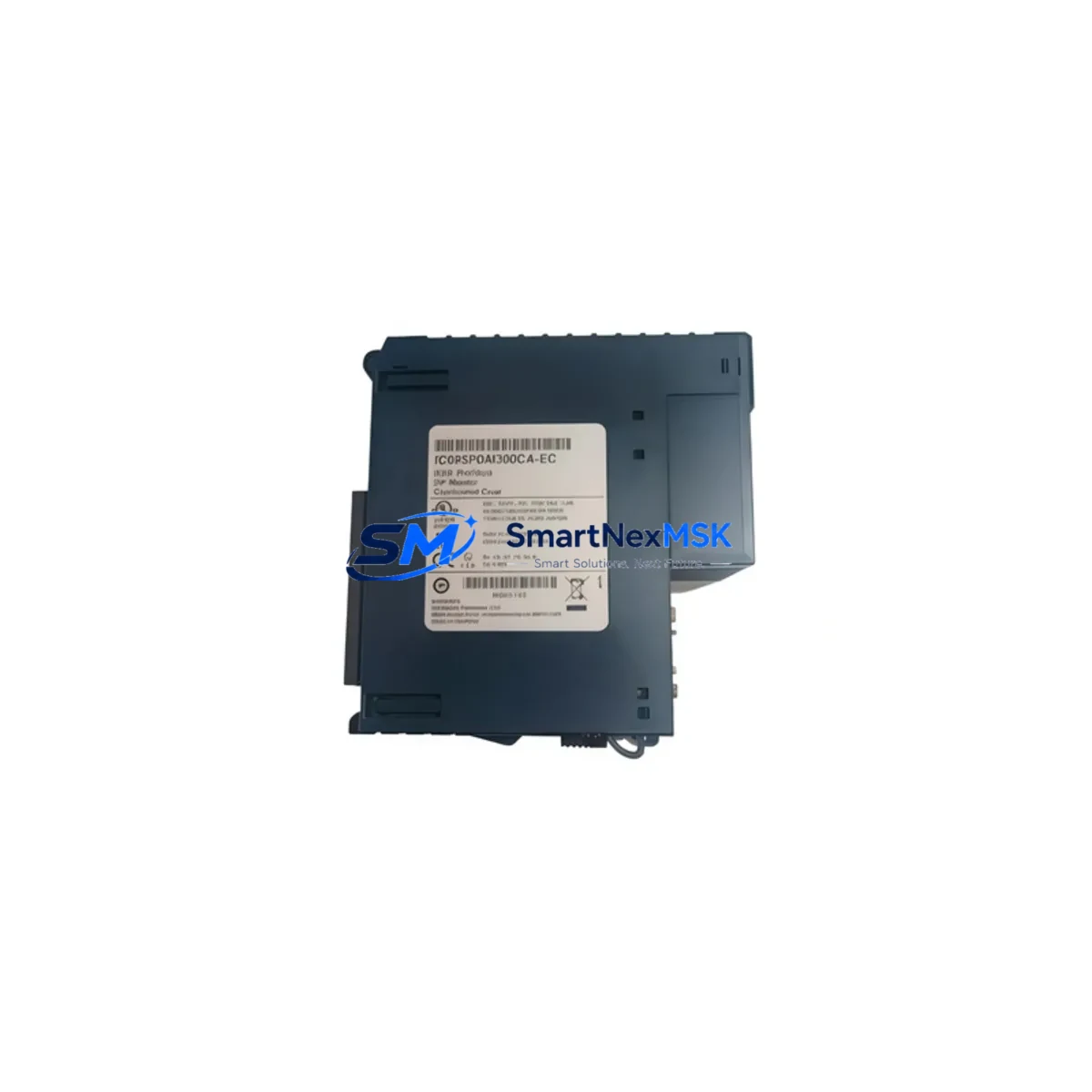

The GE IC695PBM300CA is a PROFIBUS DP Master communication module engineered for the PACSystems RX3i platform. As legacy automation infrastructure ages and OEM support windows close, the IC695PBM300CA has become a critical retrofit component for engineers tasked with modernizing distributed I/O networks, migrating from discontinued Series 90-30 or Series 90-70 architectures, and sustaining production continuity without full system replacement. This module supports up to 125 PROFIBUS DP slave devices per network segment, making it a scalable solution for both small-cell upgrades and plant-wide control cabinet overhauls.

When planning a retrofit around the IC695PBM300CA, engineers must verify several key parameters before commissioning. Power budget on the IC695 Universal Backplane — typically the IC695CHS016 or IC695CHS012 — must accommodate the module’s 5 VDC draw alongside co-installed modules such as the IC695CPU320 or IC695CPU310 controller, IC695ALG600 analog I/O modules, and IC695MDL765 discrete output modules. Terminal wiring on the PROFIBUS DB9 connector must follow the EN 50170 standard, with correct bus termination resistors enabled only at the physical endpoints of the segment. Failure to terminate correctly causes reflections that corrupt DP telegram cycles and trigger slave timeout faults.

Module slot addressing within the RX3i rack is configured through Proficy Machine Edition (PME), where the IC695PBM300CA is assigned a rack/slot address and its GSD-defined slave map is imported. Engineers migrating from an older IC693CMM321 PROFIBUS master on a Series 90-30 rack must re-export the slave GSD files and rebuild the DP configuration in PME, as the configuration databases are not directly portable between platforms. Program logic referencing %AI, %AQ, %I, and %Q memory mapped to PROFIBUS slaves must be audited and remapped to the new module’s I/O image offsets.

HMI screens connected via IC695ETM001 Ethernet modules or legacy IC693CMM311 serial links may reference symbolic variable names tied to the old module’s data table. These references must be updated in the HMI project — whether running on iFIX, CIMPLICITY, or a third-party SCADA — before cutover to prevent display errors or false alarm conditions. Communication links to upstream DCS systems using IC695PNC001 PROFINET controllers or IC695EIS001 EtherNet/IP scanner modules should be validated in parallel to ensure the PROFIBUS segment change does not affect higher-level data aggregation.

For I/O expansion during the retrofit, the IC695PBM300CA can address remote I/O drops equipped with Emerson RSTi-EP or third-party PROFIBUS DP slaves such as Siemens ET 200S or Phoenix Contact Inline stations. Each slave’s station address must be set via hardware DIP switches or software tools before the DP master scan cycle is activated. Commissioning engineers should use a PROFIBUS diagnostic tool to verify bus cycle time, slave response windows, and error counters before handing over to operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the IC695PBM300CA typically begins with a rack audit. The IC695 Universal Backplane must have an available slot with sufficient power headroom. In a fully loaded chassis running an IC695CPU320, IC695PSA040 power supply, IC695ETM001 Ethernet module, and multiple IC695MDL765 I/O modules, the power budget must be recalculated before inserting the PROFIBUS master. The IC695PSA040 or IC695PSD040 power supply datasheets provide the 5 VDC and 3.3 VDC rail capacities needed for this calculation.

Once the physical slot is confirmed, the PROFIBUS network topology must be documented: cable lengths, baud rate selection (typically 1.5 Mbps or 12 Mbps for short segments), number of active slaves, and repeater placement for segments exceeding 100 meters. Each PROFIBUS DP slave — whether a Siemens ET 200M remote I/O station, an ABB AC500 I/O coupler, or a Pepperl+Fuchs field barrier — must have its GSD file available for import into PME. Missing GSD files are a common cause of retrofit delays and should be sourced from the slave manufacturer before the maintenance window begins.

Program migration from a Series 90-30 ladder logic project requires exporting the existing program from Logicmaster 90 or an older PME project, then importing and adapting it in the current PME version. Variable references tied to the IC693CMM321’s %AI/%AQ blocks must be remapped to the IC695PBM300CA’s configured I/O image. This step is best performed in a simulation environment using PME’s offline emulator before any live rack changes are made. Programming cables such as the IC690USB901 USB-to-serial adapter or IC693CBL316 serial cable may be needed to extract the legacy program from the old controller before decommissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a PROFIBUS master swap requires a structured cutover plan. The recommended approach is to pre-configure the IC695PBM300CA offline in PME, import all slave GSD files, assign station addresses, and validate the DP configuration against the existing network map before the maintenance window opens. A full program backup of the running IC695CPU310 or IC695CPU320 should be stored on a CF card or USB drive and verified readable before any hardware changes begin.

During the physical swap, the PROFIBUS cable should be disconnected from the old module before the rack power is cycled to prevent bus contention. After inserting the IC695PBM300CA into its designated slot and restoring power, the PME project with the new DP configuration should be downloaded to the CPU. The module’s status LEDs — OK, ACTIVE, and ERR — provide immediate feedback on bus health. A solid OK with a flashing ACTIVE LED and no ERR indication confirms that the master is exchanging data with all configured slaves.

If any slave fails to respond after cutover, the PME diagnostic viewer can isolate the fault to a specific station address. Common causes include incorrect baud rate on the slave, missing bus termination at the segment endpoint, or a station address conflict introduced during the retrofit. Resolving these issues typically takes 15–30 minutes per slave and should be factored into the maintenance window estimate. Once all slaves are confirmed online and I/O data is flowing correctly, the HMI system should be validated against live process values before returning the line to production.

Retrofit Support FAQ

Q: Is the IC695PBM300CA a direct drop-in replacement for the IC693CMM321?
A: It is a functional replacement for PROFIBUS DP master capability, but it is not physically interchangeable. The IC695PBM300CA installs in an IC695 Universal Backplane, while the IC693CMM321 uses an IC693 Series 90-30 rack. A PME reconfiguration and I/O remapping are required as part of the migration.

Q: What wiring changes are needed when installing the IC695PBM300CA?
A: The PROFIBUS network cable connects to the module’s DB9 port using a standard PROFIBUS DP connector. Bus termination must be enabled only at the two physical endpoints of the segment. Internal wiring to the backplane is handled automatically via the module’s edge connector — no additional terminal block wiring is required for the module itself.

Q: How is compatibility with existing PROFIBUS DP slaves verified before cutover?
A: Each slave’s GSD file is imported into PME, and the DP configuration is validated offline. A PROFIBUS diagnostic tool can be used to scan the live bus and confirm slave station addresses and response status before the new master module is activated. We recommend a bench test with representative slaves before the production cutover window.

Q: What does the 12-month warranty cover?
A: All IC695PBM300CA units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are processed via sales@smartnexmsk.com with a return authorization issued within 2 business days.
