GE Multilin URRHV Safety-Enhanced HV Power Supply Module

GE Multilin URRHV Safety-Enhanced HV Power Supply Module: Reliable Control in Harsh Industrial Sites

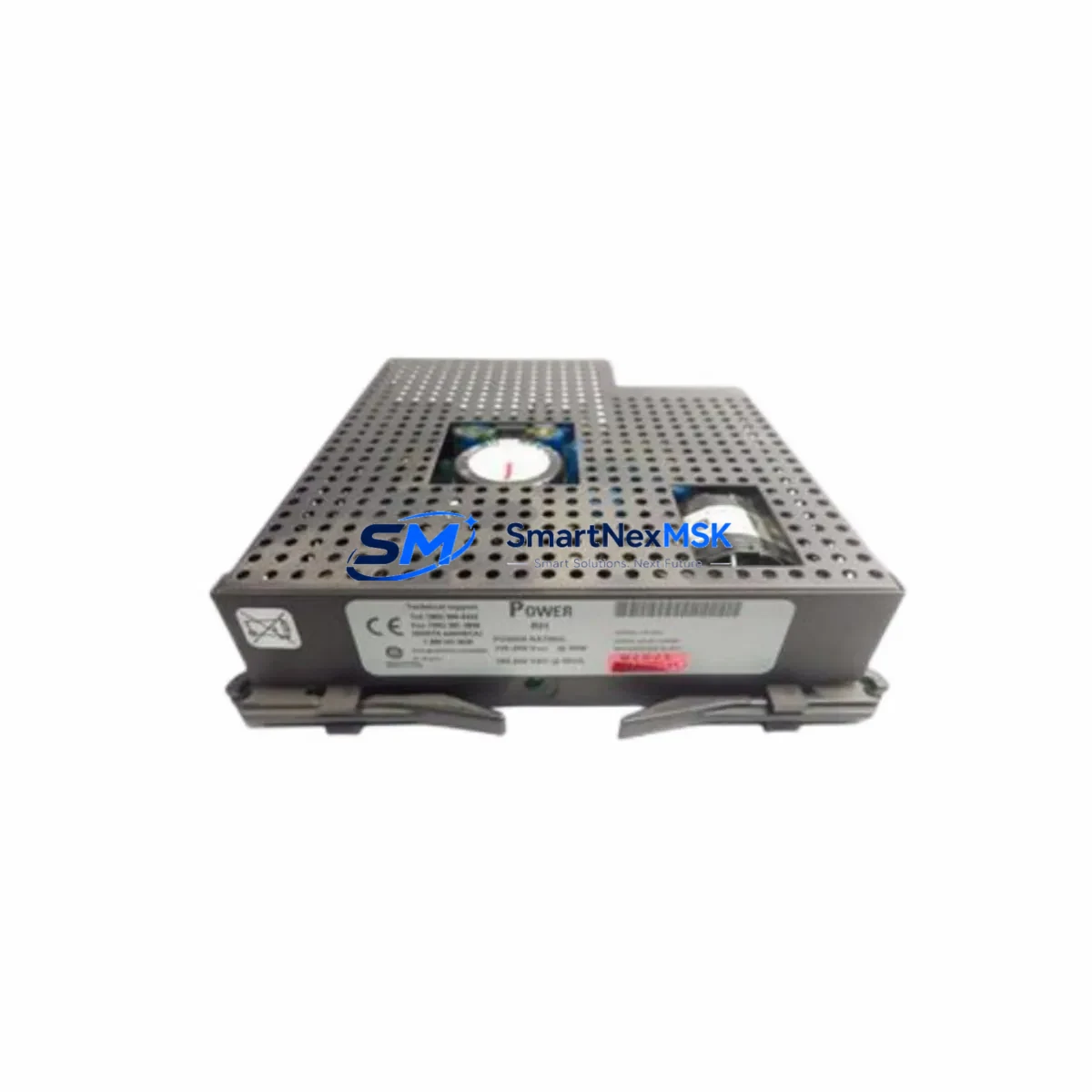

The GE Multilin URRHV is a ruggedized high-voltage power supply module engineered for the GE UR Series protection relay chassis. Designed to sustain uninterrupted power delivery in the most demanding industrial environments — including substations, petrochemical plants, mining operations, metallurgical facilities, and continuous-process manufacturing — the URRHV is a cornerstone of any safety-critical control cabinet. Its robust architecture directly addresses the most common causes of relay misoperation and control system downtime: power fluctuation, surge transients, EMI interference, and thermal stress.

In high-load industrial sites where protection relays such as the GE UR Series UR-8xx and GE Multilin 750/760 Feeder Protection Relay must operate without interruption, the quality and stability of the power supply module is non-negotiable. The URRHV accepts a wide high-voltage DC input range, ensuring continuous operation even when upstream bus voltage fluctuates during fault events or switching transients. This makes it an ideal replacement or spare for any UR chassis-based protection system where power integrity is a primary safety concern.

Safety Reliability Table

Control Cabinet Protection Strategy

A protection relay system is only as reliable as its weakest power link. In a typical high-voltage switchgear panel or substation control cabinet, the URRHV works in concert with a carefully selected set of components to form a complete, fault-tolerant protection architecture. The relay chassis powered by the URRHV typically hosts critical function cards such as the GE Multilin URTD Thermal Data Module for motor thermal protection, the GE UR CPU Module for logic processing and GOOSE messaging, and GE UR Analog Input / Output Modules for current and voltage measurement from CTs and VTs in the field.

Upstream of the URRHV, the DC bus is typically fed from a station battery system or a dedicated DC/DC converter panel, often protected by a Belden or Phoenix Contact surge protection device (SPD) to clamp lightning-induced or switching transients before they reach the relay chassis. Alongside the URRHV in the same cabinet, engineers commonly install a GE Multilin 489 Generator Management Relay or a GE Multilin 369 Motor Management Relay for coordinated protection of rotating equipment, both of which depend on stable DC supply for their trip output contacts and communication ports.

For communication integrity within the same protection zone, the UR chassis communicates via IEC 61850 GOOSE or DNP3 over fiber or copper Ethernet, often through a managed industrial Ethernet switch such as the Hirschmann RS20 or Moxa EDS-308 series, which must also be powered from the same reliable DC bus. Any instability in the power supply — even a momentary dip below the relay’s hold-up threshold — can cause a spurious trip or, worse, a failure to trip during a genuine fault. The URRHV’s wide input range and internal hold-up capacitance are specifically engineered to bridge these transient gaps, maintaining relay operability during bus voltage sags that commonly occur during close-in fault events.

In safety instrumented systems (SIS) and critical interlock loops, the URRHV-powered UR relay may serve as the final element voter in a 2-of-3 (2oo3) voting architecture, where any power supply failure would directly compromise the safety integrity level (SIL) of the loop. Pairing the URRHV with a redundant power supply module in a dual-feed chassis configuration — where supported — is a best practice for SIL 2 and SIL 3 applications in accordance with IEC 61511.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous-process facilities handling flammable hydrocarbons, protection relay systems must never lose power during a fault. The URRHV sustains the UR relay chassis through voltage dips caused by large motor starts or fault-clearing events on the 6 kV or 11 kV bus, ensuring that feeder and transformer protection remains armed at all times. Unplanned relay downtime in these environments can result in uncontrolled process shutdowns, fire risk, or regulatory non-compliance.

Electric Power Substations: Transmission and distribution substations rely on UR Series relays for line differential, distance, and bus protection. The URRHV’s ability to operate across a wide DC input range — tolerating battery float voltage variations from 105 Vdc to 280 Vdc — makes it suitable for both 110 Vdc and 220 Vdc station battery systems without hardware modification. This flexibility reduces spare parts complexity for utilities managing large relay fleets.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The URRHV’s ruggedized construction and wide thermal operating range make it a dependable power source for motor protection relays guarding conveyor drives, crusher motors, and ventilation fans — all of which are critical to both production continuity and personnel safety.

Water & Wastewater Treatment: Pump station protection relays powered by the URRHV provide reliable motor and feeder protection in environments with high humidity and corrosive atmospheres. Continuous operation of water treatment infrastructure is a public safety obligation, and any relay power supply failure that causes a missed trip or a spurious trip can have serious downstream consequences.

Metallurgy & Steel Mills: Arc furnace operations generate severe harmonic distortion and voltage flicker on the supply bus. The URRHV’s internal filtering and surge suppression ensure that the UR relay chassis remains stable and fully functional even when the upstream DC bus is contaminated by switching noise from thyristor-controlled rectifiers and large induction furnace drives.

Port & Heavy Logistics Infrastructure: Shore-to-ship power systems and large crane drives require robust protection relay systems that can withstand the mechanical shock and vibration of port operations. The URRHV’s compliance with IEC 60255 mechanical standards ensures long-term reliability in these high-cycle, high-vibration environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the URRHV module?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to its rated specification within the warranty period, we provide a free replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit, and a replacement is dispatched immediately upon confirmation of the defect.

Q2: What pre-shipment testing is performed on the URRHV before dispatch?
Every URRHV module undergoes a full functional load test prior to shipment. This includes input voltage range verification, output regulation measurement under rated load, surge immunity spot-check, and visual inspection for physical damage. A test record is available upon request. We do not ship untested modules.

Q3: Is the URRHV compatible with all UR Series chassis variants, and can it replace an existing failed module in the field?
The URRHV is designed for GE Multilin UR Series chassis that require a high-voltage DC power supply input. It is compatible with both 8-slot and 12-slot UR chassis configurations. Field replacement is straightforward — the module slides into the dedicated power supply slot and requires no firmware configuration. Always verify the chassis input voltage specification (HV vs. LV) before ordering to ensure the correct module variant is selected.

Q4: Can you guarantee long-term supply availability for the URRHV as a critical spare?
Yes. We maintain dedicated stock of the URRHV and other UR Series modules to support critical spare programs for utilities, EPCs, and industrial operators. For customers requiring guaranteed stock reservation or blanket purchase orders for multi-site spare programs, please contact our sales team directly. We support long-term supply agreements with lead-time commitments to ensure your protection relay spares inventory is never at risk.
