GE UR8FH Safety-Enhanced Protection Relay for Harsh Sites

GE UR8FH Safety-Enhanced Protection Relay: Reliable Control for Harsh Industrial Sites

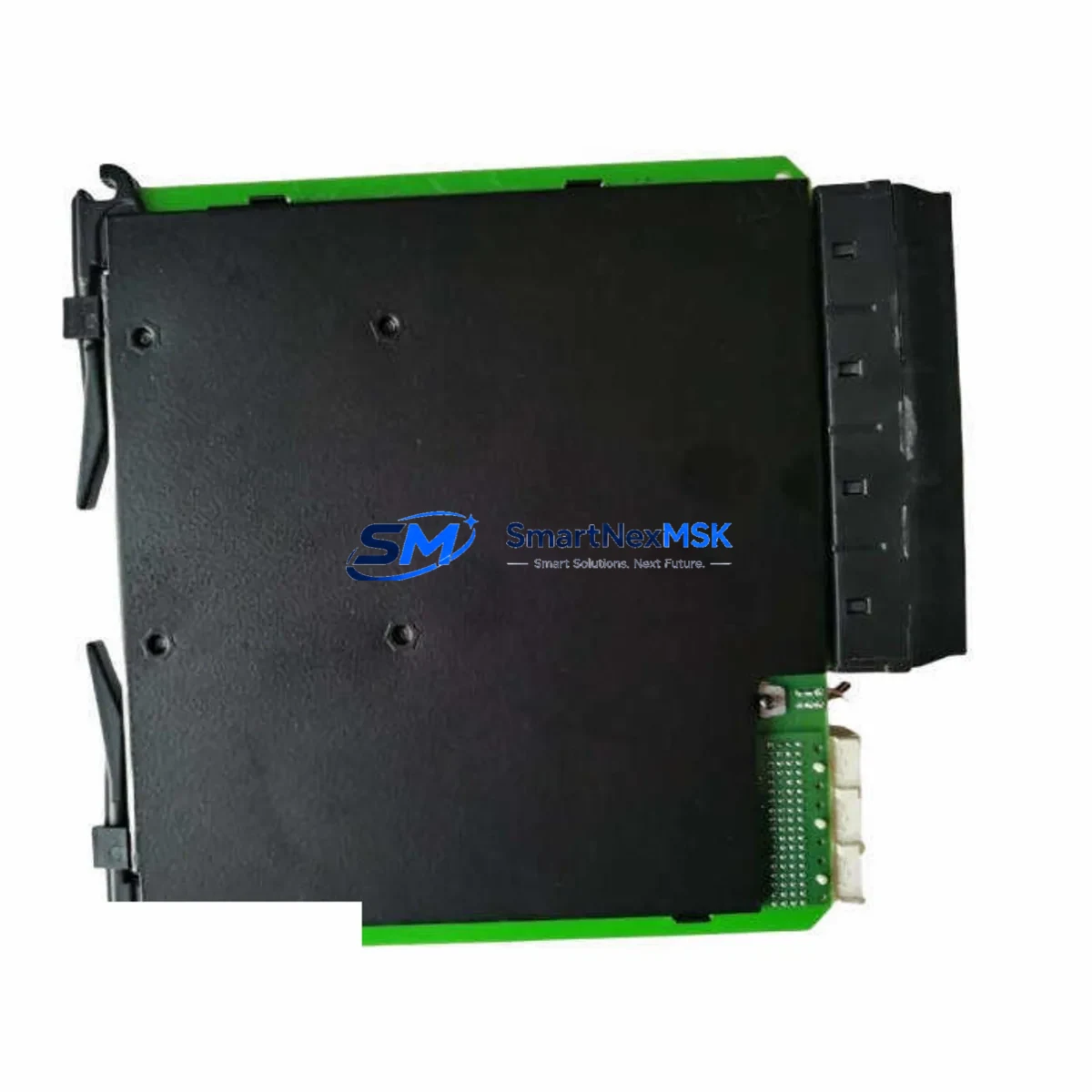

The GE UR8FH is a ruggedized universal relay module from GE Grid Solutions’ industry-proven UR Series platform, engineered specifically for mission-critical protection and control applications in the most demanding industrial environments. Whether deployed in high-voltage substations, petrochemical processing plants, mining extraction facilities, metallurgical smelting operations, or continuous-run power generation sites, the UR8FH delivers consistent, safety-grade performance where control interruption is simply not an option.

Industrial automation systems operating in harsh environments face a relentless combination of threats: electromagnetic interference from variable-frequency drives and large motor starters, voltage transients and surge events on shared power buses, thermal cycling across wide ambient temperature ranges, vibration from heavy rotating machinery, and the ever-present risk of signal drift in analog measurement loops. The GE UR8FH is purpose-built to withstand all of these stressors simultaneously, maintaining accurate protective relay operation without nuisance tripping or missed fault detection — two failure modes that can cascade into catastrophic equipment damage or personnel safety incidents.

At the core of the UR8FH’s safety architecture is its multi-function protection logic, which integrates overcurrent, overvoltage, differential, and frequency protection elements within a single hardened chassis. This consolidation reduces the number of discrete relay modules required in a control cabinet, directly lowering the probability of inter-device wiring faults and simplifying the safety interlock verification process during commissioning and periodic testing. Field engineers working on critical interlock loops — such as emergency shutdown (ESD) circuits, fire and gas system interfaces, or turbine trip relays — benefit from the UR8FH’s deterministic response times and its ability to maintain protection function integrity even during upstream communication anomalies.

In a typical heavy industrial control cabinet, the UR8FH operates alongside complementary components from the GE UR Series ecosystem. The GE UR6EH and GE UR6FH universal relay modules serve as companion protection devices on adjacent feeder circuits, while the GE URE-XPANSION I/O module extends the digital and analog I/O capacity needed for complex interlock schemes. Power supply integrity is maintained by dedicated GE UR Series DC power supply modules, which provide regulated, isolated 24 VDC or 48 VDC rails to the relay logic circuits — ensuring that power bus fluctuations on the main panel do not propagate into the protection measurement circuits. For communication-intensive installations, the GE UR Series fiber-optic communication card eliminates ground loop interference on long cable runs between the relay and the DCS or SCADA host, a common source of spurious trip signals in electrically noisy environments.

The UR8FH’s surge withstand capability (SWC) and fast transient burst (FTB) immunity ratings meet IEC 61000-4 series requirements, making it compatible with installations where large contactors, capacitor banks, or thyristor-controlled rectifiers generate repetitive high-energy transients. Its optical isolation on all digital inputs prevents ground potential differences — a persistent problem in multi-grounded industrial earthing systems — from corrupting the relay’s binary input states. This is particularly important in mining and port crane applications where mobile equipment and rail-mounted machinery create dynamic ground reference shifts that can cause conventional relay modules to register false trip or close commands.

For water treatment and municipal utility installations, the UR8FH provides reliable motor protection and feeder protection on pump station switchgear, where the combination of high humidity, corrosive atmospheres, and frequent motor start-stop cycles creates accelerated aging in less robust relay designs. The module’s conformal-coated PCB assemblies resist moisture ingress and chemical contamination, extending mean time between failures (MTBF) in these environments. Paired with a GE Multilin 369 Motor Management Relay for the primary motor protection function, the UR8FH can serve as the feeder backup protection element, providing a fully redundant protection layer on critical pump drives.

In power generation and co-generation facilities, the UR8FH integrates into generator protection schemes alongside the GE Multilin G60 Generator Protection System, handling bus protection and transformer differential functions while the G60 manages the generator unit itself. This division of protection responsibility follows IEC 61511 functional safety principles, ensuring that no single module failure can simultaneously disable both the primary and backup protection functions for a generating unit. The UR8FH’s IEC 61850 GOOSE messaging capability allows it to exchange trip and block signals with other IEC 61850-compliant IEDs on the station bus in under 4 milliseconds — fast enough to coordinate with high-speed circuit breakers and prevent fault propagation across bus sections.

Spare parts availability and long-term supply continuity are critical considerations for any protection relay specified into a greenfield or brownfield industrial project. SMARTNEXMSK maintains verified stock of the GE UR8FH and related UR Series modules, supported by a documented pre-shipment functional test procedure that validates relay element pickup values, timing characteristics, and communication port operation before dispatch. Every unit shipped carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, with technical support available for installation and commissioning queries.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the GE UR8FH typically incorporates multiple layers of protection, power conditioning, and communication redundancy. On the power supply side, a GE UR Series redundant DC power supply module feeds the relay backplane, with a secondary Phoenix Contact QUINT-PS UPS module providing bridging power during momentary AC supply interruptions — preventing relay reboot events that would leave protection circuits unmonitored during the critical seconds of a power disturbance. Upstream of the power supplies, a Siemens 3RT2 series contactor with integrated surge suppressor handles the main panel feed switching, while a Dehn DG M TNS 275 surge protection device clamps incoming transients before they reach the relay auxiliary power terminals.

For analog measurement inputs, the UR8FH’s current transformer (CT) and voltage transformer (VT) input circuits are protected by dedicated GE Multilin CT shorting terminal blocks, which automatically short the CT secondary when the relay module is withdrawn for maintenance — eliminating the dangerous open-circuit CT voltage condition that has caused numerous field injuries and equipment failures. The relay’s digital output contacts, rated for high-cycle switching duty, drive Omron G7SA safety relay modules in the trip circuit, providing force-guided contact monitoring that allows the safety PLC to verify trip circuit continuity without energizing the trip coil.

Communication integrity in the substation or plant control room is maintained through a Hirschmann MACH 1000 series managed Ethernet switch with RSTP ring redundancy, ensuring that a single fiber break does not isolate the UR8FH from the SCADA system. For legacy serial communication requirements, a Moxa NPort 5150 serial device server bridges the relay’s RS-485 Modbus port to the plant Ethernet backbone, with optical isolation on the serial interface preventing ground loop currents from corrupting Modbus register reads.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area switchrooms adjacent to process units handling flammable hydrocarbons, the UR8FH provides feeder protection for motor control centers (MCCs) driving compressors, pumps, and agitators classified under IEC 60079 Zone 1 or Zone 2. Its fast overcurrent response (configurable to <20 ms for high-set instantaneous elements) ensures that cable faults in hazardous area cable trays are cleared before arc energy can ignite surrounding atmospheres.

Power Generation and Grid Substations: The UR8FH serves as a bus protection and transformer backup protection relay in 11 kV to 132 kV substations, coordinating with upstream transmission protection via IEC 61850 GOOSE to achieve system-wide fault clearance times that prevent voltage collapse on interconnected grid sections. Its wide auxiliary voltage input range accommodates both 110 VDC station battery systems and 48 VDC telecom-grade battery plants without requiring separate relay variants.

Mining and Mineral Processing: Underground and open-cut mining operations subject protection relays to extreme vibration, dust ingress, and wide temperature swings. The UR8FH’s conformal-coated assemblies and wide operating temperature range make it suitable for deployment in surface switchrooms at remote mine sites where climate control is limited. It protects high-voltage drives feeding SAG mills, ball mills, and conveyor systems — equipment whose unplanned shutdown costs can exceed tens of thousands of dollars per hour.

Water and Wastewater Treatment: Municipal water authorities rely on the UR8FH for motor protection on high-service pumps and blower motors in treatment plants where continuous operation is a regulatory requirement. Its motor thermal model and locked-rotor protection elements prevent motor burnout during the high-inrush start cycles common in variable-load pumping applications, while its event recording capability provides post-fault data for maintenance root cause analysis.

Metallurgical and Steel Plants: In electric arc furnace (EAF) installations and rolling mill drives, the UR8FH handles the extreme harmonic distortion and rapid load fluctuations that characterize steelmaking power systems. Its harmonic-restrained differential protection elements prevent false tripping caused by inrush and overexcitation harmonics, while its high-speed fault recording captures the sub-cycle transients that characterize EAF electrode short-circuit events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the GE UR8FH?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from GE’s published specifications under normal operating conditions. It includes relay element accuracy, contact output operation, communication port function, and power supply performance. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed on each GE UR8FH unit?
Every GE UR8FH dispatched from SMARTNEXMSK undergoes a documented functional test covering: auxiliary power supply energization and self-diagnostic pass verification, relay element pickup and timing accuracy checks against GE factory specifications, digital input and output contact operation verification, and communication port connectivity confirmation (Ethernet and serial). Test records are available upon request for quality audit purposes.

Q3: Is the GE UR8FH compatible with existing GE UR Series installations?
Yes. The UR8FH is fully backward-compatible with the GE UR Series hardware platform and EnerVista UR Setup software. It can be configured as a direct replacement for earlier UR Series relay modules in the same chassis slot, provided the firmware version is matched or upgraded using GE’s standard firmware update procedure. Compatibility with IEC 61850 Edition 1 and Edition 2 station bus configurations is supported.

Q4: Can SMARTNEXMSK guarantee long-term supply continuity for the GE UR8FH?
SMARTNEXMSK maintains a dedicated inventory position for GE UR Series modules, including the UR8FH, to support both project procurement and emergency spare requirements. For customers with multi-year maintenance contracts or large installed bases, we offer reserved stock arrangements and advance purchase agreements to ensure supply continuity independent of manufacturer lead time fluctuations. Contact our technical sales team to discuss your specific inventory requirements.
