GEFRAN GFX4-IR-80-0-2-0-0 Maintenance-Ready Spare GFX4

GEFRAN GFX4-IR-80-0-2-0-0 Maintenance-Ready Spare for GFX4 Automation

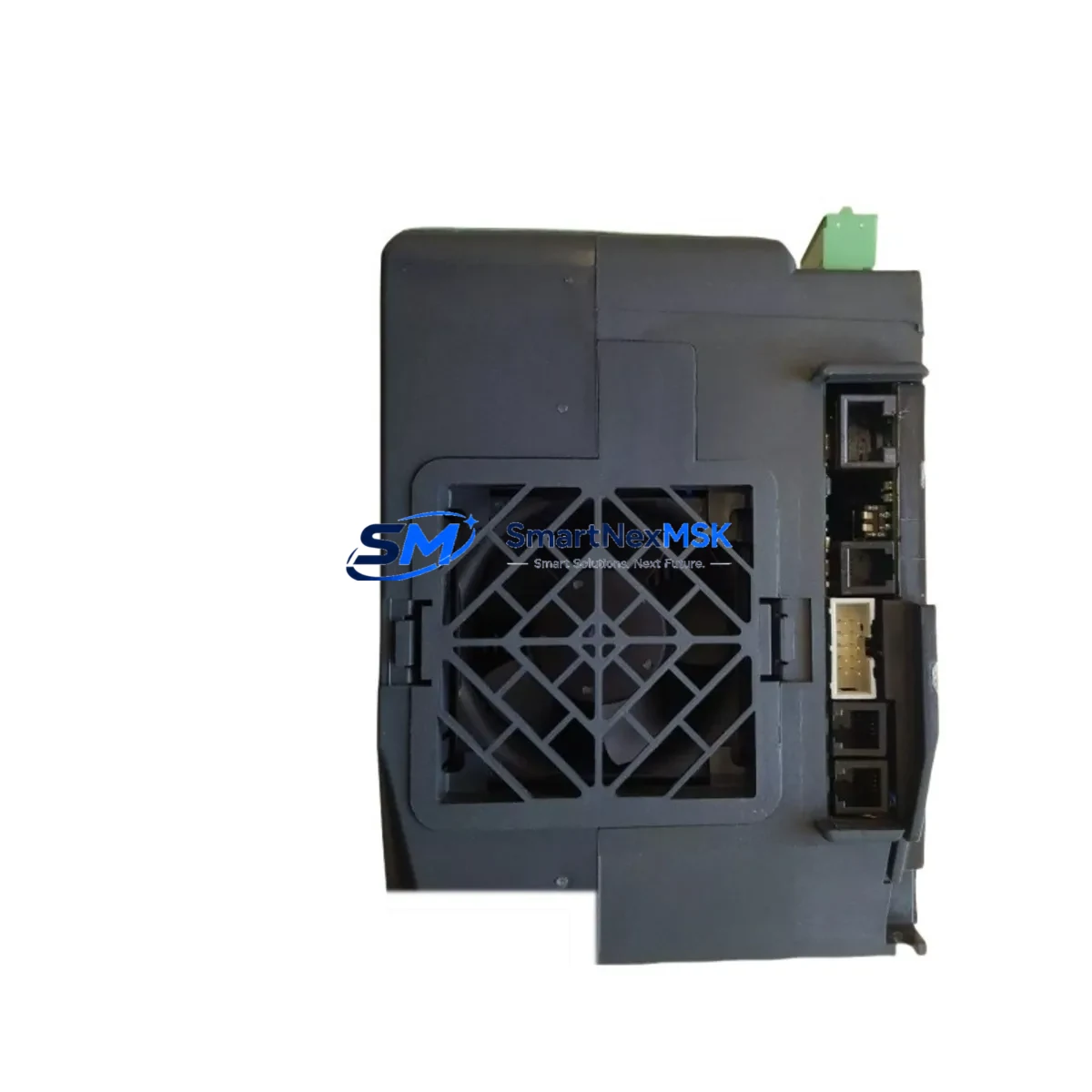

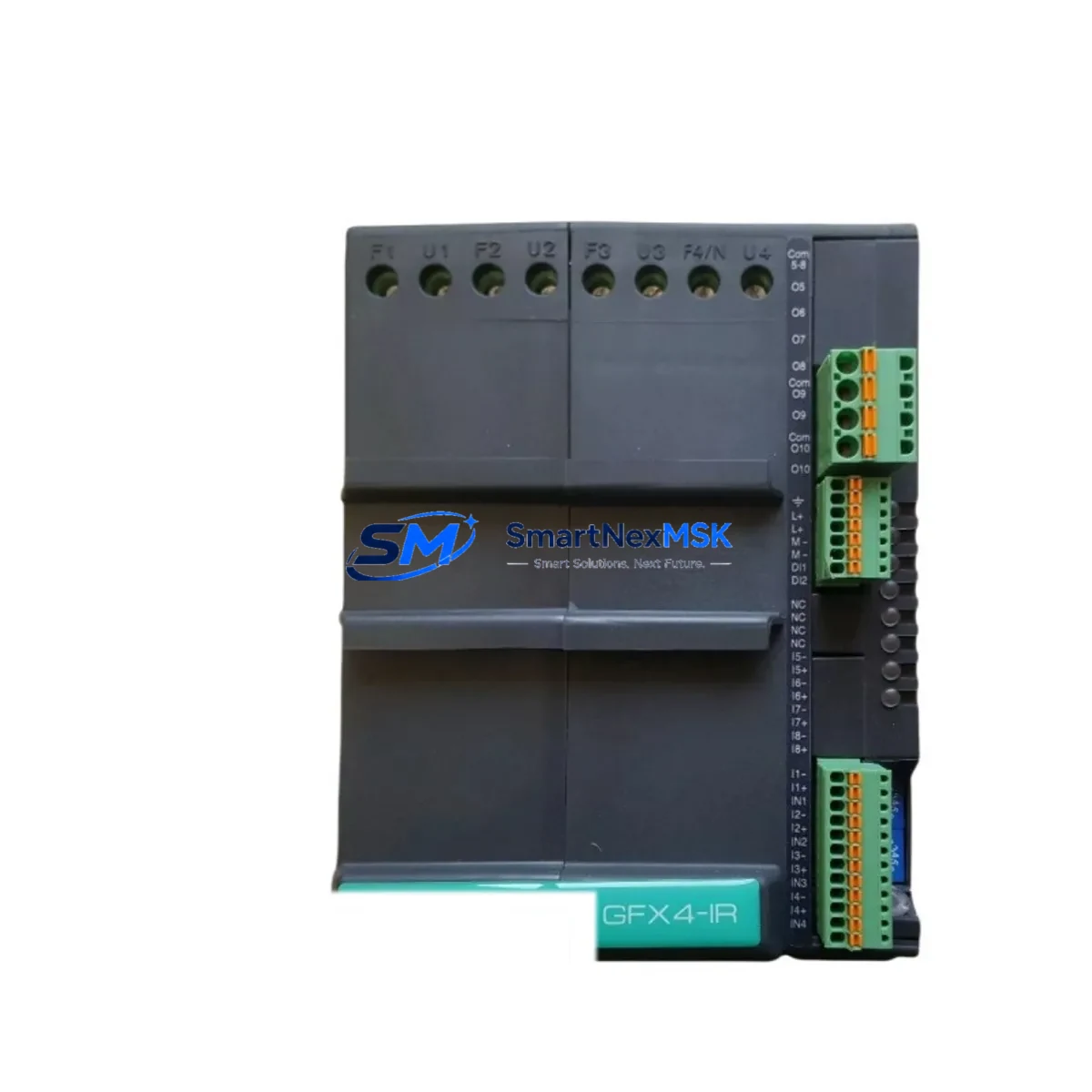

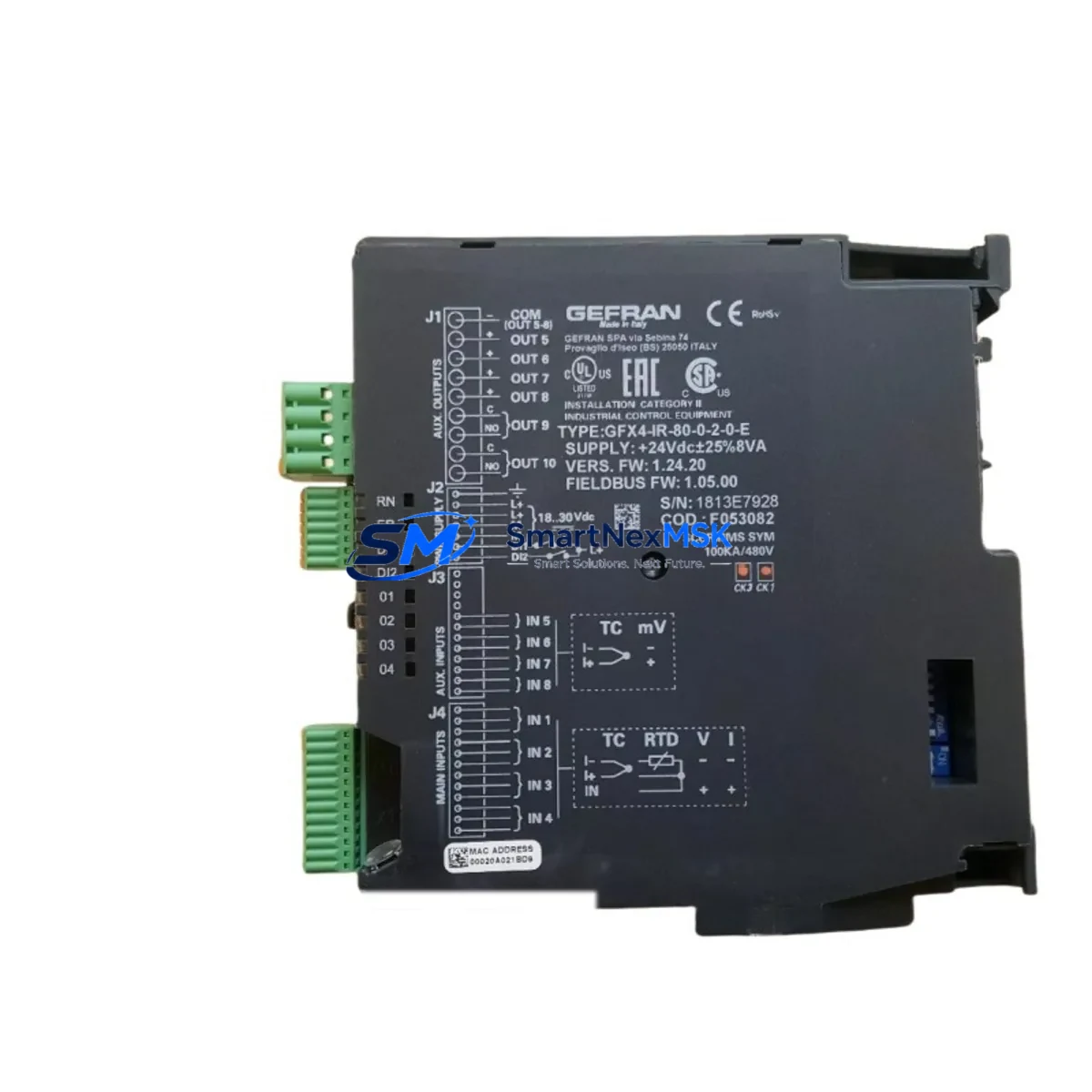

The GEFRAN GFX4-IR-80-0-2-0-0 is an original single-phase SCR (Silicon Controlled Rectifier) power controller rated at 80A with phase-angle firing mode, designed for precise thermal process control in industrial automation environments. As a critical power regulation component within the GFX4 Series platform, this unit governs resistive and inductive load management in furnaces, ovens, extruders, and process heating systems. When this controller fails or degrades, production lines face immediate thermal runaway risk, uncontrolled output, or complete process shutdown — making rapid spare parts availability essential for maintenance continuity.

Sourced directly from GEFRAN’s authorized supply chain, each GFX4-IR-80-0-2-0-0 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification covering gate trigger response, current rating integrity, and thermal dissipation performance. Our 12-month warranty covers manufacturing defects and ensures your maintenance team receives a field-ready replacement with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a GFX4-IR-80-0-2-0-0 is flagged during routine inspection or fails under load, experienced maintenance engineers know that the SCR controller rarely fails in isolation. A systematic cabinet audit is essential to prevent repeat failures and reduce mean time to repair (MTTR).

Begin by verifying the 24VDC auxiliary power supply feeding the GFX4 control board — voltage sag or ripple is a leading cause of premature SCR gate misfiring. Next, inspect the GEFRAN 1000 or 1200 Series temperature controller providing the 4–20mA or 0–10V setpoint signal; a drifting PID output will cause the replacement SCR to operate erratically from day one. Check the current transformer (CT) feedback module if the GFX4 is configured for closed-loop current limiting — a faulty CT will prevent proper load regulation.

Downstream, examine the load contactor or soft-starter bypass relay in series with the SCR output; contact wear or coil degradation can impose voltage spikes that stress the new SCR’s thyristors. The line fuse or semiconductor fuse (aR type) protecting the SCR must be replaced simultaneously — a fuse that has experienced a fault current event may have degraded without visibly blowing, leaving the replacement unit unprotected. Verify the heatsink thermal interface and fan assembly; inadequate cooling is the primary cause of SCR derating and early failure in high-cycle applications.

For systems integrated with a GEFRAN GFX4 communication module (RS485/Modbus), confirm that the fieldbus address and baud rate parameters are correctly restored after replacement — parameter loss during power cycling is common. If the cabinet includes a GEFRAN 4T34 or 4T44 multi-loop controller coordinating multiple GFX4 units, verify that the zone assignment and cascade control logic remain intact. Finally, inspect terminal block connections and cable ferrules on the control wiring harness; loose connections at the gate trigger input are a frequent source of intermittent firing faults that mimic SCR failure.

For aging systems where the GFX4-IR-80-0-2-0-0 has been in service beyond 8–10 years, consider stocking a GEFRAN GFX4 Series spare kit that includes the SCR controller, a matched semiconductor fuse, and a spare temperature controller module — this three-component kit covers the majority of thermal process control failures and supports a sub-30-minute cabinet restoration workflow.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the main supply and apply LOTO (Lockout/Tagout) per site safety procedures. Allow the heatsink to cool to ambient temperature before handling.

Step 2 — Parameter Backup: If the existing GFX4-IR-80-0-2-0-0 is still partially functional, use GEFRAN’s GF_eXpress configuration software or the front-panel keypad to export all operating parameters — firing mode, current limit setpoint, ramp time, and alarm thresholds — before removal.

Step 3 — Mechanical Removal: Disconnect load cables (L1/T1), control signal wiring, and the 24VDC auxiliary supply. Note cable labeling before disconnection. Remove the unit from the DIN rail or panel mount.

Step 4 — Inspection of Adjacent Components: Before installing the replacement, visually inspect the semiconductor fuse, heatsink surface, and load contactor contacts. Replace the fuse regardless of visual condition if a fault event occurred.

Step 5 — Installation & Parameter Restore: Mount the new GFX4-IR-80-0-2-0-0, reconnect all wiring per the original schematic, and restore saved parameters via GF_eXpress or manual keypad entry. Verify control input signal level before energizing.

Step 6 — Commissioning Check: Apply power and ramp the setpoint from 0% to 100% while monitoring output current with a clamp meter. Confirm thermal stability over a 15-minute run cycle before returning the system to production.

This workflow is compatible with legacy GFX and GTX single-phase SCR controllers, allowing direct form-fit-function replacement without panel modification in most installations.

Spare Parts Support FAQ

Q1: Is the GFX4-IR-80-0-2-0-0 a direct replacement for older GEFRAN GTX or GFX single-phase SCR controllers?
In most cases, yes. The GFX4 Series was designed with backward-compatible mounting dimensions and control input ranges relative to earlier GFX and GTX single-phase variants. However, always verify the supply voltage range and firing mode configuration against your existing panel schematic before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this unit?
Each GFX4-IR-80-0-2-0-0 undergoes gate trigger verification, insulation resistance testing, and visual inspection for transit damage before dispatch. Units are shipped with original GEFRAN packaging and include a test record. Our 12-month warranty covers manufacturing defects identified after installation.

Q3: How should I manage GFX4-IR-80-0-2-0-0 inventory for a multi-furnace facility?
For facilities operating 5 or more GFX4-controlled heating zones, we recommend maintaining a minimum of one spare SCR controller per 5 units in service, supplemented by matched semiconductor fuses and a spare temperature controller. This buffer supports a same-shift restoration target for unplanned failures without waiting for international shipping lead times.

Q4: What is the lead time and shipping arrangement for urgent orders?
In-stock units are dispatched within 1–2 business days via DHL Express or FedEx International Priority. For urgent maintenance situations, contact our sales team directly to confirm real-time stock availability and arrange priority dispatch. Export documentation including commercial invoice and packing list is provided for all international shipments.
