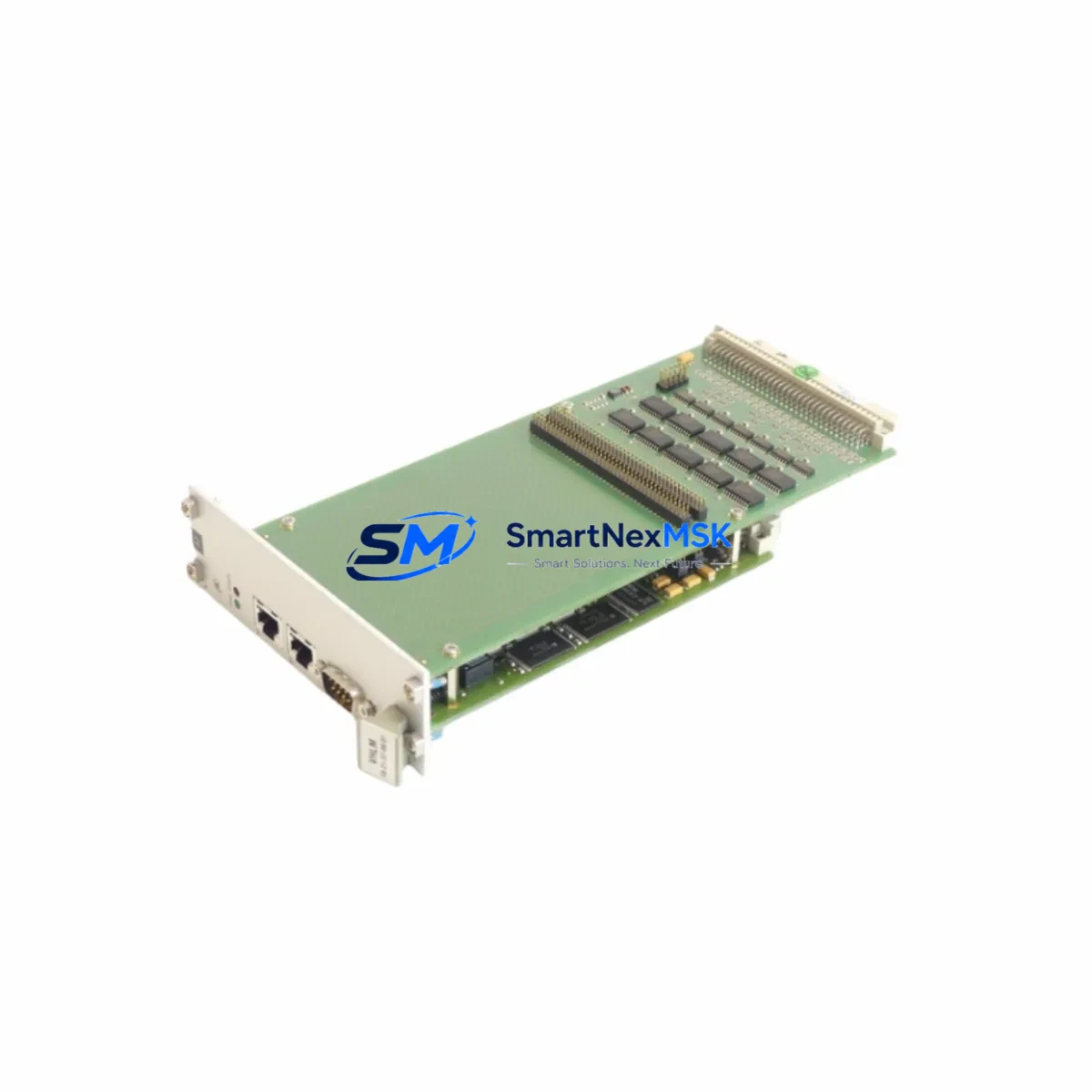

Haas Laser 18-21-37-00 Retrofit-Ready Laser Control Module for VHLM Series
The Haas Laser 18-21-37-00 is a retrofit-ready laser control module engineered for seamless integration into VHLM series laser systems. As legacy Haas Laser platforms reach end-of-life and original spare parts become increasingly difficult to source, the 18-21-37-00 provides a reliable, wiring-compatible replacement path that minimizes engineering rework and keeps production lines running. Whether you are managing a planned upgrade or responding to an unplanned failure on an aging VHLM control cabinet, this module is pre-tested and ready to deploy.
Industrial laser systems built around the VHLM platform typically rely on a tightly integrated architecture of laser power supplies, beam delivery controllers, I/O interface boards, and motion coordination modules. The 18-21-37-00 slots directly into this ecosystem, maintaining compatibility with the existing backplane connector layout and terminal wiring scheme. Engineers replacing a failed unit do not need to redesign the control cabinet or re-route signal cables — the module preserves the original pin assignments and signal logic expected by the VHLM controller.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 18-21-37-00 |
| Brand | Haas Laser |
| Compatible Series | VHLM Series Laser Control Systems |
| Module Type | Laser Control Module |
| Backplane Interface | Compatible with VHLM standard backplane slot |
| Terminal Wiring | Direct replacement — original wiring retained |
| Communication Protocol | Compatible with VHLM internal control bus |
| Power Supply Requirement | Verify existing PSU capacity before installation |
| Installation Type | Rack-mount, drop-in replacement |
| Commissioning | Address configuration and I/O mapping verification required |
| Replacement Recommendation | Direct substitute for discontinued VHLM laser control modules |
| Warranty | 12-Month Warranty included |
| Stock Status | In stock — ready to ship |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the Haas Laser 18-21-37-00 into an existing VHLM production line requires careful pre-installation planning. Before removing the failed or obsolete module, technicians should document the current terminal wiring layout and photograph all connector positions on the backplane. The VHLM series control cabinet typically houses a dedicated laser power supply unit alongside the control module — confirming that the PSU output capacity meets the 18-21-37-00 operating requirements is a critical first step that prevents post-installation faults.
The VHLM platform’s I/O architecture connects the laser control module to upstream and downstream process equipment through a structured I/O interface board. During replacement, engineers must verify that the module address settings — typically configured via DIP switches or rotary selectors on the module face — match the address map expected by the VHLM system controller. Mismatched addresses are a common source of commissioning delays and can cause the controller to fail to recognize the new module on startup.
For sites running HMI panels linked to the VHLM laser system, screen configurations referencing the old module’s data tags may require updating after the swap. The VHLM HMI typically communicates with the laser control module over the internal control bus; confirming that the communication link is re-established and that all process visualization screens reflect live data from the 18-21-37-00 is part of the standard post-installation verification checklist.
In multi-axis laser systems, the 18-21-37-00 may operate alongside motion control cards, beam shutter interface modules, and chiller interlock I/O boards within the same control rack. Technicians should confirm that the rack’s backplane power distribution is not overloaded after adding the replacement module, particularly in older VHLM cabinets where the original power budget was sized tightly. A laser safety interlock relay module and an emergency stop I/O board are typically present in the same cabinet and must remain fully functional throughout the swap procedure.
For sites that have already migrated portions of their VHLM system to a newer control platform, the 18-21-37-00 can serve as a bridge component, maintaining laser control functionality on the legacy segment while the broader migration is completed in phases. This approach avoids a full-line shutdown and allows production to continue on unaffected stations during the transition period.
Downtime Control During System Migration
Unplanned downtime during a laser control module replacement is one of the most costly risks in a VHLM system retrofit. The 18-21-37-00 is shipped pre-tested and function-verified, which eliminates the most common source of extended downtime — receiving a module that requires bench testing or firmware initialization before it can be installed.
To further compress the replacement window, experienced maintenance teams prepare a module swap kit in advance: a printed copy of the terminal wiring diagram, the current DIP switch address configuration, a backup of the HMI project file, and a record of any custom I/O mapping applied to the original module. With this documentation in hand, the physical swap of the 18-21-37-00 can typically be completed within a single maintenance shift.
Preserving the original program logic stored in the VHLM system controller is essential. The controller’s ladder logic or function block program should be backed up to a programming cable-connected laptop before the module is removed, ensuring that any controller memory dependent on the laser module’s I/O status is protected. After installation, a controlled power-up sequence — bringing the laser power supply online before enabling the control module — reduces the risk of inrush-related faults that can trigger protective shutdowns and extend the commissioning window.
For critical production environments, maintaining a spare 18-21-37-00 in local inventory is the most effective downtime mitigation strategy. With a 12-month warranty and confirmed stock availability, procurement teams can establish a buffer stock position without long-term financial exposure.
Retrofit Support FAQ
Q: Is the 18-21-37-00 a direct replacement for the original VHLM series laser control module?
A: Yes. The 18-21-37-00 is designed as a direct substitute for the original VHLM laser control module, maintaining the same backplane interface, terminal wiring layout, and control bus compatibility. No cabinet rewiring is required in standard replacement scenarios.
Q: What commissioning steps are required after installing the 18-21-37-00?
A: After physical installation, technicians should verify the module address configuration, confirm the communication link to the VHLM system controller, check I/O mapping against the original configuration, and perform a controlled power-up sequence. HMI data tag connections should also be verified before returning the system to production.
Q: Does the 18-21-37-00 require any firmware updates or special programming tools?
A: The module is shipped ready for installation. In most VHLM retrofit scenarios, no firmware update is required. If the host controller’s program references specific module parameters, these should be verified against the replacement module’s specification sheet. A standard VHLM-compatible programming cable is sufficient for any parameter adjustments.
Q: What warranty coverage is included with the 18-21-37-00?
A: Every 18-21-37-00 unit is covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing. Warranty claims are supported directly through our technical team with fast response and replacement dispatch.
