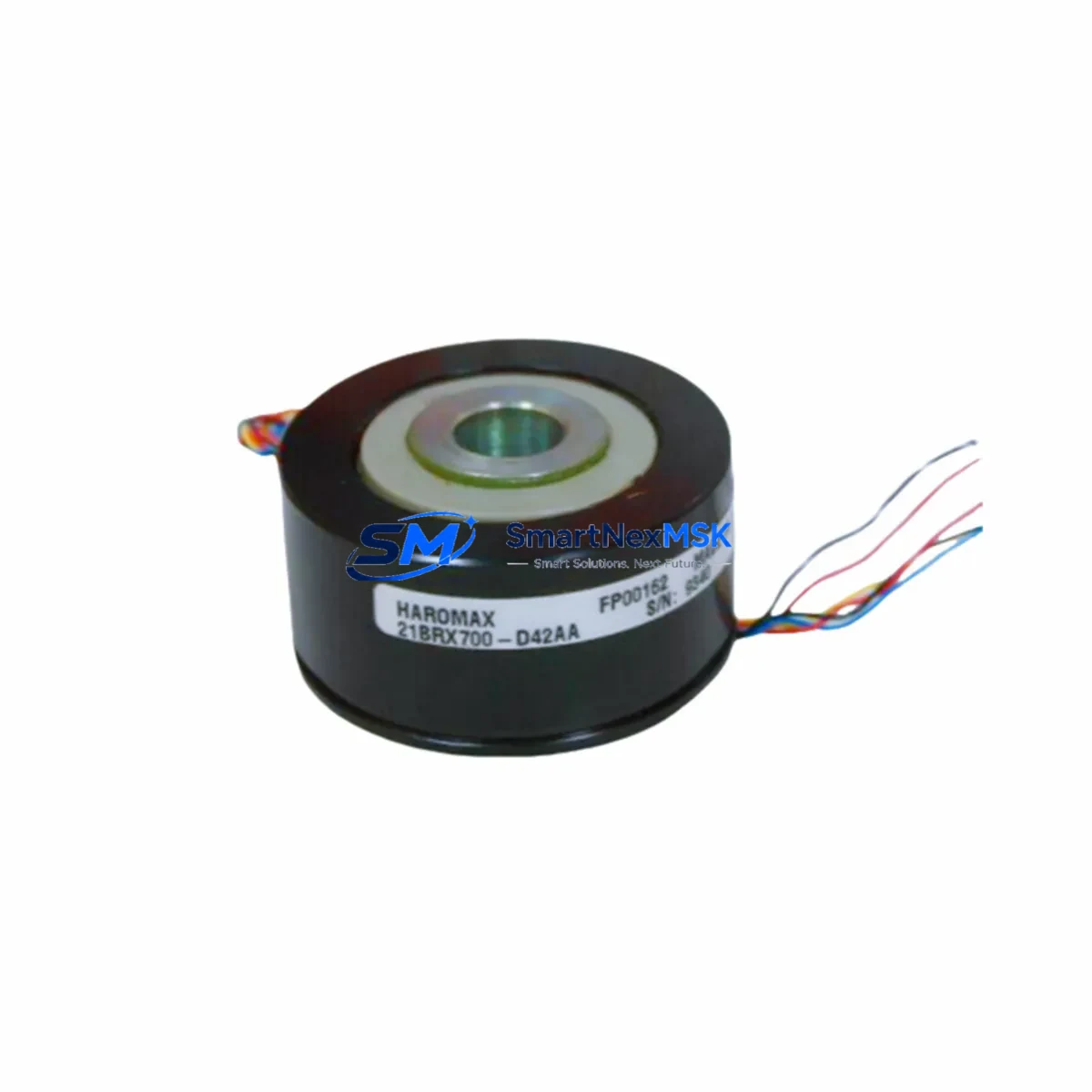

HAROWE 21BRX700-D42AA Maintenance-Ready Spare for BRX Series Automation
The HAROWE 21BRX700-D42AA is an original brushless resolver from the BRX Series, engineered for precision angular position and velocity feedback in demanding industrial motion control systems. As servo drives, CNC axes, and robotic joints age, the resolver is one of the first components to degrade — causing erratic positioning, drive faults, and unplanned downtime. Stocking a verified replacement of the 21BRX700-D42AA is a fundamental step in any proactive maintenance strategy for facilities running HAROWE-based feedback loops.
This unit ships fully tested, with electrical parameters verified against OEM specifications. Each 21BRX700-D42AA is inspected for transformation ratio accuracy, phase shift, null voltage, and insulation resistance before dispatch. A 12-month warranty is included on every unit, covering manufacturing defects and electrical performance. Long-term supply continuity is supported — this model is maintained in our spare parts inventory to serve both emergency replacement and scheduled overhaul programs.
Spare Maintenance Table
| Parameter | Specification / Value |
|---|---|
| Part Number | 21BRX700-D42AA |
| Brand | HAROWE |
| Series | BRX Series |
| Type | Brushless Resolver (Rotary) |
| Pole Pairs | 1 (Single-Speed) |
| Excitation Voltage | 7 Vrms typical (reference winding) |
| Excitation Frequency | 400 Hz – 10 kHz (application-dependent) |
| Transformation Ratio | 0.5 ± 5% (Sin/Cos output) |
| Null Voltage | ≤ 15 mV |
| Operating Temperature | -55°C to +155°C |
| Shaft Configuration | Solid shaft, flanged housing |
| Mounting | Direct-coupled or flexible coupling to servo motor shaft |
| Compatibility | HAROWE BRX Series servo systems; compatible with standard R/D converter ICs (e.g., AD2S1210, AU6802) |
| Origin | USA |
| Warranty | 12 Months — electrical performance and manufacturing defects |
| Condition | Original, new or recertified; fully tested before shipment |
| Lead Time | In-stock: 1–3 business days; ex-stock shipment available |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the 21BRX700-D42AA, the resolver is rarely the only component that warrants attention. A thorough control cabinet inspection during the same maintenance window significantly reduces the risk of repeat downtime. The following components are commonly found in the same electrical circuit or servo axis assembly and should be evaluated concurrently:
The resolver-to-digital (R/D) converter module — often a dedicated signal conditioning card within the servo drive — should be checked for drift or calibration errors, as a degraded R/D converter can cause a new resolver to report false position data. The servo drive itself (such as units in the HAROWE-compatible drive family or third-party drives accepting resolver feedback) should have its feedback input terminals inspected for corrosion and its firmware parameters verified against the new resolver’s transformation ratio.
The resolver cable and shielded wiring harness connecting the 21BRX700-D42AA to the drive are a frequent source of intermittent faults — inspect for chafing, broken shield continuity, and connector pin integrity. Alongside the cable, the terminal block or connector housing at the cabinet entry point should be checked for loose terminations. If the system uses a signal isolator or resolver signal conditioner, verify its output accuracy with the new resolver installed.
For axes that also carry brake control relays or contactor modules, inspect coil resistance and contact condition — a failing brake relay can mask what appears to be a resolver fault. The 24 VDC auxiliary power supply feeding the resolver excitation circuit should be load-tested; voltage sag under load is a common cause of resolver null voltage errors. If the axis is part of a multi-axis CNC or robotic controller, review the axis configuration parameters in the HMI or operator panel to confirm the resolver channel assignment and scaling factors are correctly set after replacement.
Finally, if the system includes a safety relay or STO (Safe Torque Off) module tied to the servo axis, verify that the safety circuit resets cleanly after the resolver swap — some safety PLCs latch faults that require a manual reset sequence before the axis can be re-enabled.
Site Replacement Workflow
Step 1 — Isolation and Lockout: De-energize the servo drive and apply LOTO. Allow the DC bus to discharge fully before opening the cabinet.
Step 2 — Document Existing Wiring: Photograph or sketch the resolver cable routing and connector pinout before disconnection. The 21BRX700-D42AA uses a standard resolver winding configuration (R1/R2 reference, S1–S4 sine/cosine), but verify against the existing harness label.
Step 3 — Mechanical Removal: Loosen the resolver mounting flange or coupling. Note the angular orientation of the resolver body relative to the motor shaft — some systems require a specific null position alignment during reinstallation.
Step 4 — Install Replacement Unit: Mount the new 21BRX700-D42AA, reconnect the wiring harness in the documented order, and verify shield grounding at the drive end only (single-point grounding prevents ground loops).
Step 5 — Electrical Verification: Before powering up, measure winding resistance (reference and sin/cos) with a multimeter to confirm no open or short circuits. Insulation resistance to chassis ground should exceed 10 MΩ at 500 VDC.
Step 6 — Drive Commissioning: Power up the drive in a safe, low-speed test mode. Verify that the position feedback reads correctly through a full 360° rotation. Confirm null voltage and transformation ratio are within the drive’s acceptance window. Update the HMI or SCADA system with the replacement date and unit serial number for maintenance records.
Step 7 — Return to Service: Re-enable the safety circuit, perform a controlled test cycle at reduced speed, then return the axis to full production speed. Log the replacement in the CMMS for lifecycle tracking.
Spare Parts Support FAQ
Q1: Is the 21BRX700-D42AA a direct drop-in replacement for older HAROWE BRX resolver variants?
A: Yes, the 21BRX700-D42AA is designed as a form-fit-function replacement within the BRX Series. Minor dimensional or connector differences may exist between production batches — always verify the shaft diameter, flange bolt pattern, and connector type against your existing unit before installation. Our technical team can assist with cross-reference confirmation prior to shipment.
Q2: What testing is performed before shipment?
A: Every 21BRX700-D42AA unit undergoes electrical bench testing covering transformation ratio, null voltage, winding resistance (reference and sin/cos), and insulation resistance. Units that do not meet OEM-equivalent specifications are not shipped. A test report is available upon request.
Q3: How should I manage resolver spares in a long-running facility with legacy HAROWE systems?
A: For facilities with 5 or more HAROWE-based servo axes, we recommend maintaining a minimum of one 21BRX700-D42AA on the shelf per 10 axes, with a maximum shelf life of 7 years in a climate-controlled environment. Resolvers are passive electromagnetic devices with no consumable parts, making them well-suited for long-term storage. Rotate stock on a first-in, first-out basis and re-test units that have been stored for more than 3 years before installation.
Q4: What is covered under the 12-month warranty?
A: The 12-month warranty covers electrical performance (transformation ratio, null voltage, winding continuity) and manufacturing defects from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature range. Warranty claims are processed with a return authorization — contact sales@smartnexmsk.com to initiate.
