HF HF2211A Retrofit-Ready Serial Device Server: Seamless Compatibility Upgrade for Legacy Industrial Control Systems

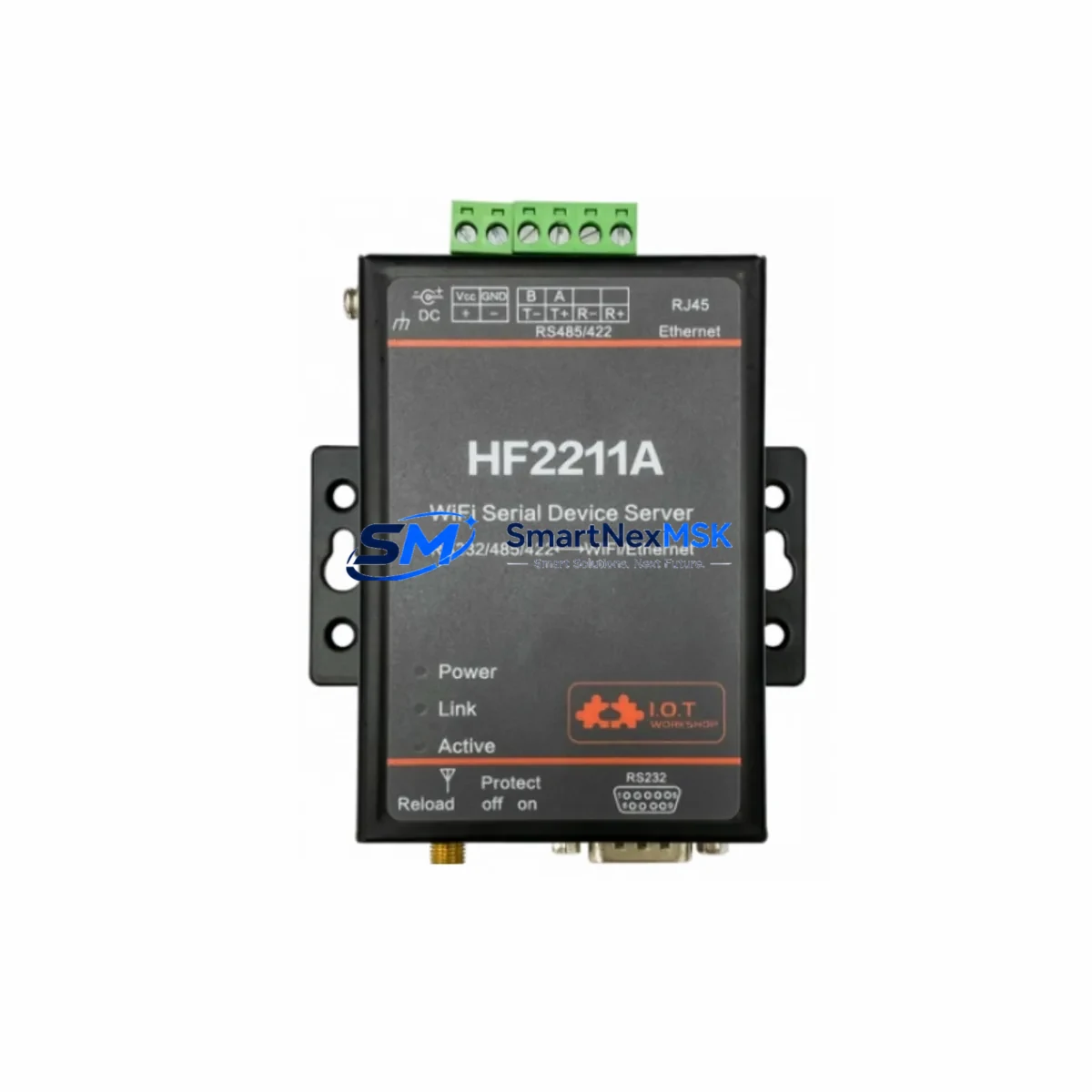

The HF HF2211A is a compact, DIN-rail-mountable serial-to-Ethernet device server engineered by High Flying Electronics (HF) to bridge legacy RS485, RS232, and RS422 serial devices into modern TCP/IP Ethernet networks. As industrial facilities accelerate the retirement of aging SCADA infrastructure, proprietary serial PLCs, and standalone RTUs, the HF2211A has become a proven retrofit component for engineers who need to preserve existing field wiring while migrating communications to Ethernet-based supervisory systems — without rewriting control logic or replacing field instruments.
Whether you are upgrading a distributed control system (DCS) that relies on RS485 Modbus RTU polling, extending the reach of a legacy Siemens S7-200 or Mitsubishi FX-series PLC network, or integrating older Omron C200H I/O racks into a modern Ethernet backbone, the HF2211A provides a transparent, low-latency serial tunnel that preserves your existing communication protocol and device addressing. Its support for both Modbus TCP and Modbus RTU makes it directly compatible with most SCADA platforms including WinCC, iFIX, InTouch, and Ignition, eliminating the need for protocol conversion gateways in straightforward retrofit scenarios.
Upgrade Compatibility Table
| Parameter | HF HF2211A Specification | Retrofit / Replacement Notes |
|---|---|---|
| Serial Interfaces | RS232 / RS485 / RS422 (selectable) | Covers the three most common legacy serial standards; no hardware adapter required |
| Network Interface | 10/100 Mbps Ethernet (RJ45) | Direct connection to existing managed switches or PLC Ethernet modules |
| Protocol Support | Modbus TCP, Modbus RTU, TCP Server/Client, UDP | Compatible with Siemens, Mitsubishi, Omron, Schneider, and ABB SCADA platforms |
| Power Supply | DC 5V (USB) or DC 9–36V (terminal) | Verify control cabinet 24VDC rail capacity before installation; typical draw <1W |
| Terminal Wiring | Screw terminal block (A+, B−, GND for RS485) | Retain existing shielded twisted-pair field cable; re-terminate at HF2211A terminal block |
| Installation | DIN rail or panel mount | Fits standard 35mm DIN rail in existing control cabinets without structural modification |
| IP Address Assignment | Static IP or DHCP | Assign static IP within existing PLC subnet; update SCADA device address table accordingly |
| Baud Rate | 300 bps – 230.4 kbps | Match to existing serial device baud rate; no firmware change required on field instruments |
| Operating Temperature | −40°C to +85°C | Suitable for harsh industrial environments including outdoor control cabinets |
| Warranty | 12 Months | Covered from date of shipment; includes functional verification and burn-in test |
Retrofit Planning for Existing Automation Systems
A successful retrofit using the HF HF2211A begins with a thorough audit of the existing serial communication topology. In a typical legacy installation, a Siemens S7-200 CPU 226 or a Mitsubishi FX3U PLC communicates with field instruments — flow meters, temperature transmitters, variable frequency drives — over an RS485 Modbus RTU bus. The HF2211A is inserted between the PLC’s RS485 port (or a dedicated RS485 communication module such as the Siemens EM 277 or Mitsubishi FX3U-485ADP-MB) and the Ethernet switch, converting the serial Modbus RTU traffic into Modbus TCP packets that the SCADA host can read natively.
Before installation, engineers should document the existing RS485 bus topology: the number of slave devices, their Modbus addresses (typically 1–247), the baud rate (commonly 9600 or 19200 bps), parity settings, and the physical cable run length. The HF2211A supports up to 32 RS485 nodes per port without an external repeater, which covers the majority of legacy panel bus configurations. For larger networks previously served by a dedicated RS485 repeater or hub, the existing repeater can often be retained downstream of the HF2211A.
In control cabinets where a Schneider Electric Modicon TSX Micro or a legacy ABB AC500 rack occupies the primary controller slot, the HF2211A is frequently deployed alongside a 24VDC DIN rail power supply module to provide isolated serial-to-Ethernet conversion for third-party instruments that cannot be directly connected to the PLC’s proprietary backplane bus. Similarly, when upgrading Omron CJ1M or CS1 series systems, the HF2211A can serve as a transparent gateway for legacy RS232 barcode readers, label printers, or weighing terminals that are not compatible with the Omron EtherNet/IP or FINS/TCP protocol stack.
For HMI migration projects — for example, replacing an aging Siemens TP177 or Mitsubishi GOT1000 panel with a modern Weintek cMT or Advantech WebOP HMI — the HF2211A enables the new HMI to communicate with existing serial PLCs over Ethernet, preserving the original Modbus register map and eliminating the need to remap I/O tags or rewrite HMI screen logic. The HMI’s Modbus TCP driver is configured to point to the HF2211A’s static IP address and virtual COM port, and the existing serial PLC responds as if it were still connected directly to the HMI’s RS485 port.
When the retrofit scope includes I/O expansion — for instance, adding remote I/O modules such as the Advantech ADAM-4150 digital I/O module or the Moxa ioLogik E1210 Ethernet remote I/O — the HF2211A can be used to integrate any remaining legacy RS485 I/O modules into the same Ethernet segment, providing a unified Modbus TCP address space for the SCADA system. Programming cables such as the Siemens PC Adapter USB or the Mitsubishi SC-09 are used during the commissioning phase to verify PLC program integrity before the serial bus is switched over to the HF2211A gateway.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary engineering constraint in any live production retrofit. The recommended approach when deploying the HF HF2211A is a parallel commissioning strategy: the HF2211A is configured, IP-addressed, and bench-tested against a laptop running a Modbus TCP polling tool (such as Modbus Poll or QModMaster) before the existing serial cable is disconnected from the PLC. This allows the engineering team to verify that the HF2211A correctly forwards Modbus RTU frames from the serial side and presents valid Modbus TCP responses on the Ethernet side, without interrupting the live production process.
During the cutover window — typically scheduled during a planned maintenance shutdown — the sequence is: (1) save and back up the existing PLC program using the appropriate programming software (STEP 7 Micro/WIN for S7-200, GX Works2 for Mitsubishi FX, or CX-Programmer for Omron CJ/CS series); (2) disconnect the RS485 field cable from the PLC’s serial port and reconnect it to the HF2211A’s terminal block, preserving the A+/B−/GND polarity; (3) connect the HF2211A to the Ethernet switch and confirm the assigned static IP is reachable from the SCADA host; (4) update the SCADA communication driver to point to the HF2211A’s IP address and TCP port (default 8899); (5) perform a live Modbus poll of all configured slave addresses to confirm data integrity before resuming production.
Because the HF2211A operates as a transparent serial tunnel, the PLC program logic, Modbus register addresses, and field instrument configurations require no modification. The original control continuity is preserved end-to-end, and the risk of introducing logic errors during the migration is effectively eliminated. Each HF2211A unit shipped by SMARTNEXMSK undergoes a functional burn-in test and is covered by a 12-month warranty from the date of shipment, providing additional assurance for critical production environments.
Retrofit Support FAQ
Q1: Can the HF HF2211A directly replace a legacy serial communication module on a Siemens or Mitsubishi PLC rack?
The HF2211A is not a backplane-mounted module; it is an external DIN-rail device that connects to the PLC’s RS485/RS232 port via terminal wiring. It replaces the function of a dedicated serial-to-Ethernet gateway or protocol converter, not a backplane I/O module. For backplane-level replacement, the appropriate Siemens CP or Mitsubishi QJ71E71 Ethernet module should be evaluated in parallel.
Q2: What wiring changes are required when retrofitting from a direct RS485 serial connection to the HF2211A?
The existing RS485 shielded twisted-pair cable is re-terminated at the HF2211A’s A+, B−, and GND screw terminals. The PLC’s RS485 port is disconnected from the field bus and the HF2211A takes over as the Ethernet-side gateway. No changes to field instrument wiring are required. Confirm termination resistor placement (typically 120Ω at each end of the RS485 bus) remains correct after the HF2211A is inserted.
Q3: How is compatibility with the existing SCADA Modbus TCP driver verified before cutover?
Before disconnecting the live serial bus, configure the HF2211A with the correct baud rate, parity, and stop bits matching the existing serial devices. Use a Modbus TCP polling tool on the SCADA engineering workstation to query the HF2211A’s IP address and confirm that all Modbus slave addresses respond correctly. This bench verification step eliminates the most common source of cutover failures and can be completed without interrupting production.
Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every HF HF2211A unit supplied by SMARTNEXMSK is tested for serial port functionality (RS485, RS232, RS422), Ethernet connectivity, Modbus TCP/RTU protocol forwarding, and power supply operation across the rated input voltage range before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with configuration documentation and can be returned for replacement or repair within the warranty period. Contact sales@smartnexmsk.com for warranty claims.
