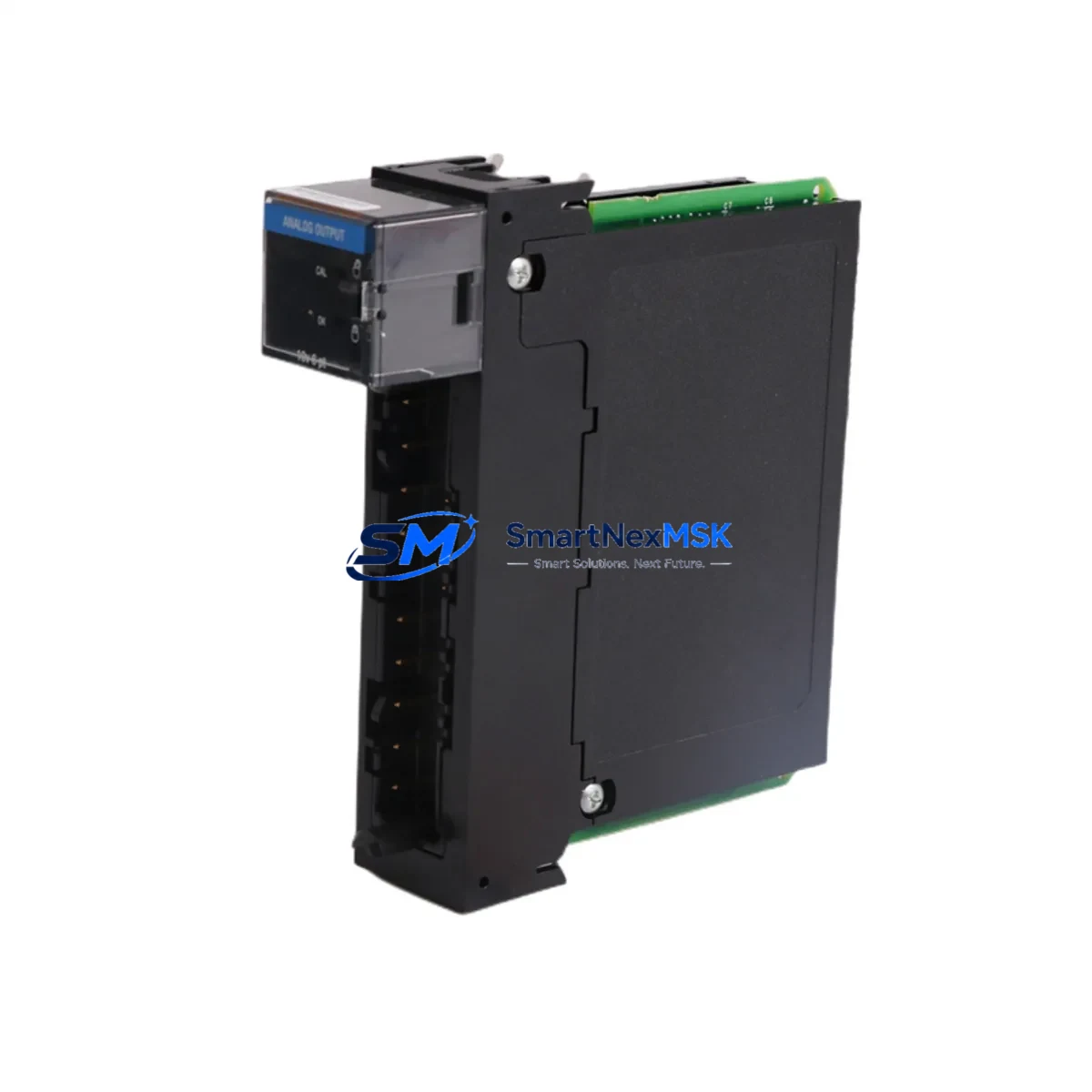

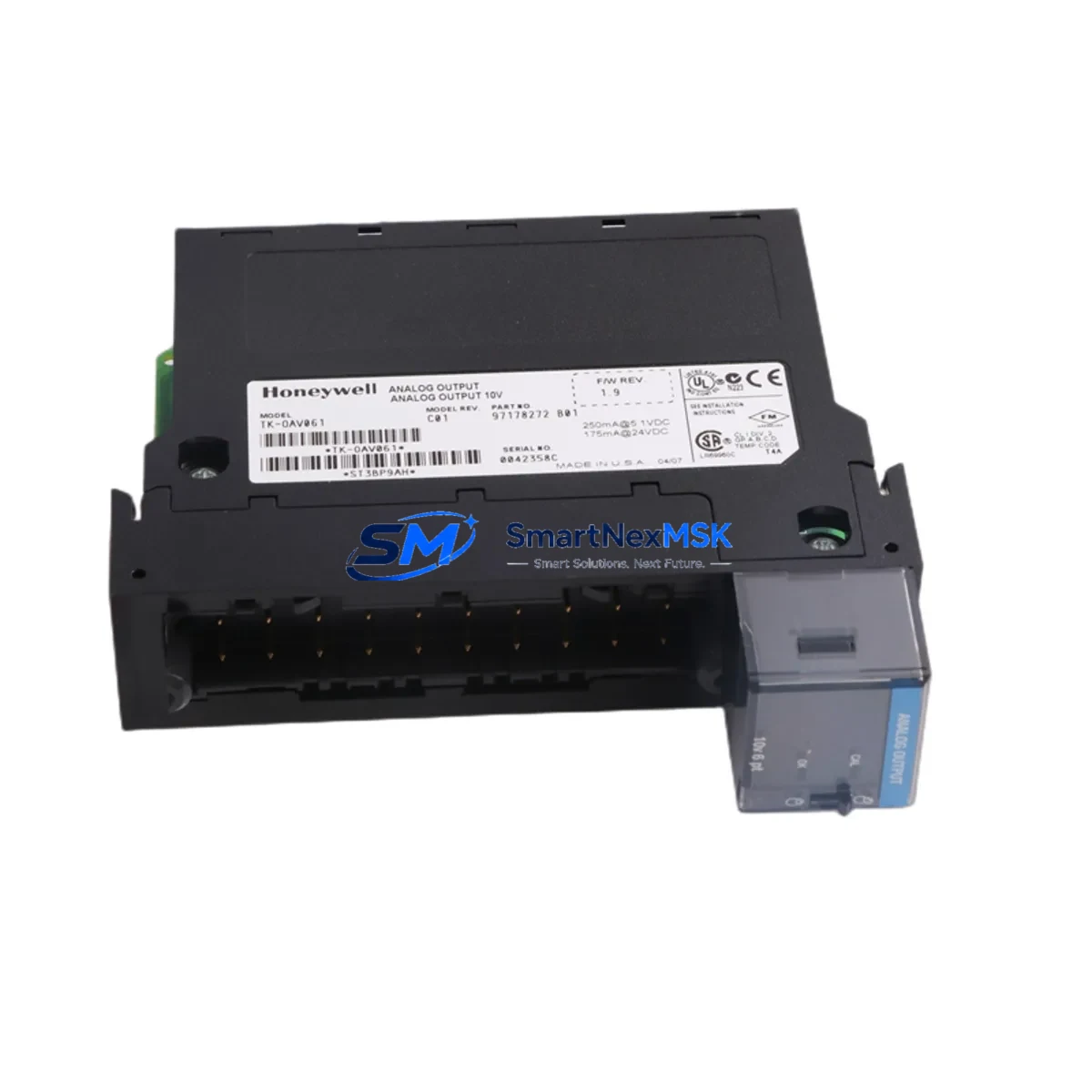

HOLLEYWELL TK-OAV061 Retrofit-Ready Analog Output for TK Series DCS

HOLLEYWELL TK-OAV061 Retrofit-Ready Analog Output for TK Series DCS: Seamless Compatibility and Legacy System Upgrade

The HOLLEYWELL TK-OAV061 is a high-reliability analog output module engineered for direct retrofit and drop-in replacement within HOLLEYWELL TK Series Distributed Control Systems (DCS). Designed to address the growing demand for discontinued spare parts, aging control infrastructure upgrades, and production-line continuity, the TK-OAV061 delivers verified signal accuracy, full backplane compatibility, and field-proven terminal wiring alignment — making it the preferred choice for engineers managing legacy automation environments.

Whether your facility is executing a phased DCS modernization, recovering from an unplanned module failure, or consolidating I/O capacity across an aging control cabinet, the TK-OAV061 provides a technically sound, cost-effective path forward. Each unit is pre-tested prior to shipment, backed by a 12-month warranty, and supported by our technical team for wiring adaptation and commissioning guidance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TK-OAV061 into an existing TK Series DCS environment begins with a structured pre-retrofit assessment. Before removing the failed or obsolete module, engineers should document the current module address, verify the backplane slot assignment, and capture the existing analog output channel configuration from the controller’s engineering workstation. This baseline data ensures that the replacement module can be configured identically, minimizing the risk of process deviation during switchover.

In most TK Series installations, the TK-OAV061 shares the same physical form factor and terminal block layout as its predecessors, which means field wiring — typically 4–20 mA loops connected to control valves, variable frequency drives, or positioners — can remain intact. However, engineers should verify loop resistance and cable shielding continuity before re-energizing the output channels. Where the original installation used a TK-MFC060 or TK-MFC080 carrier module, confirm that the carrier is in serviceable condition before inserting the replacement analog output module.

For facilities running mixed I/O configurations, the TK-OAV061 is commonly deployed alongside the TK-IAV061 analog input module, the TK-IDV161 digital input module, and the TK-ODV161 digital output module within the same chassis. Power distribution within the control cabinet should be reviewed to confirm that the TK-PRS021 power supply module can support the additional load introduced by the replacement module, particularly in high-density I/O racks where multiple modules are being refreshed simultaneously.

Communication continuity is another critical planning element. The TK Series controller — typically a TK-PPD011 or equivalent processor module — manages the scan cycle for all I/O modules on the backplane. After installing the TK-OAV061, the module must be recognized by the controller configuration tool, and the analog output tags must be mapped correctly to the HMI display screens. In facilities using SCADA or DCS operator stations, HMI engineers should verify that the analog output trend displays and alarm setpoints remain correctly associated with the new module’s channel addresses.

Where the retrofit involves a broader communication protocol migration — for example, transitioning from a proprietary TK Series fieldbus to PROFIBUS DP or MODBUS RTU — a TK-PCIC01 communication interface module may need to be reconfigured or replaced in parallel. In such cases, the TK-OAV061 retrofit should be sequenced after the communication layer has been validated to avoid compounding commissioning variables. Programming cables compatible with the TK Series engineering workstation should be on-site during the retrofit window to allow real-time configuration adjustments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing analog output modules in a live DCS environment. The recommended approach is to perform the TK-OAV061 replacement during a scheduled maintenance window, with the affected control loop placed in manual mode at the operator station before the module is removed. This preserves the last known output value at the field device — whether a control valve, actuator, or drive — and prevents process upsets caused by a loss of analog signal during the module swap.

Before the maintenance window begins, the replacement TK-OAV061 should be pre-configured offline using the TK Series engineering workstation. Module address, channel scaling, output range, and fault-state behavior should all be programmed and verified against the original configuration backup. This pre-staging approach reduces the in-window commissioning time to a final loop check and live output verification, typically achievable within 30 to 60 minutes per module.

Original program logic stored in the TK-PPD011 or equivalent controller does not need to be modified when performing a like-for-like TK-OAV061 replacement, provided the module address and channel assignments are preserved. Engineers should retain a full controller program backup prior to any hardware change as a precautionary measure. After the module is installed and the controller has recognized it, a channel-by-channel output test — stepping each analog output from 4 mA to 20 mA and confirming the corresponding field device response — should be completed before returning the loop to automatic control.

For multi-module retrofit projects where several TK-OAV061 units are being replaced across a single chassis or across multiple control cabinets, a phased approach is recommended: replace and commission one module at a time, returning each loop to automatic before proceeding to the next. This staged methodology protects overall system stability and allows the operations team to maintain production continuity throughout the upgrade campaign.

Retrofit Support FAQ

Q1: Is the TK-OAV061 a direct drop-in replacement for the original discontinued module?
In the majority of TK Series installations, yes. The TK-OAV061 shares the same backplane connector, terminal block layout, and module address structure as the original. Engineers should confirm the firmware revision of the host controller (TK-PPD011 or equivalent) to ensure full compatibility. Our technical team can assist with revision verification prior to shipment.

Q2: What wiring changes are required during installation?
In most cases, no field wiring changes are required. The TK-OAV061 terminal block is designed to match the legacy TK Series wiring standard. Engineers should inspect existing cable terminations for corrosion or loose connections and perform a loop resistance check before re-energizing. If the installation involves a non-standard wiring configuration, our team can provide wiring adaptation guidance.

Q3: How is the module address configured after installation?
Module address assignment is performed through the TK Series engineering workstation connected via the programming cable to the TK-PCIC01 communication interface or directly to the controller. The address must match the slot position defined in the original controller configuration. No hardware DIP switches are required — all addressing is software-defined within the controller configuration tool.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every TK-OAV061 unit undergoes functional output testing across all analog channels prior to shipment, verifying signal accuracy, channel isolation, and power consumption within specification. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery. Warranty claims are supported by our technical team with replacement dispatch or repair service as applicable.
