Hydac EDS1791-N-016-000 Retrofit-Ready Pressure Switch for EDS 1791

Hydac EDS1791-N-016-000 Retrofit-Ready Pressure Switch for EDS 1791 Control Systems

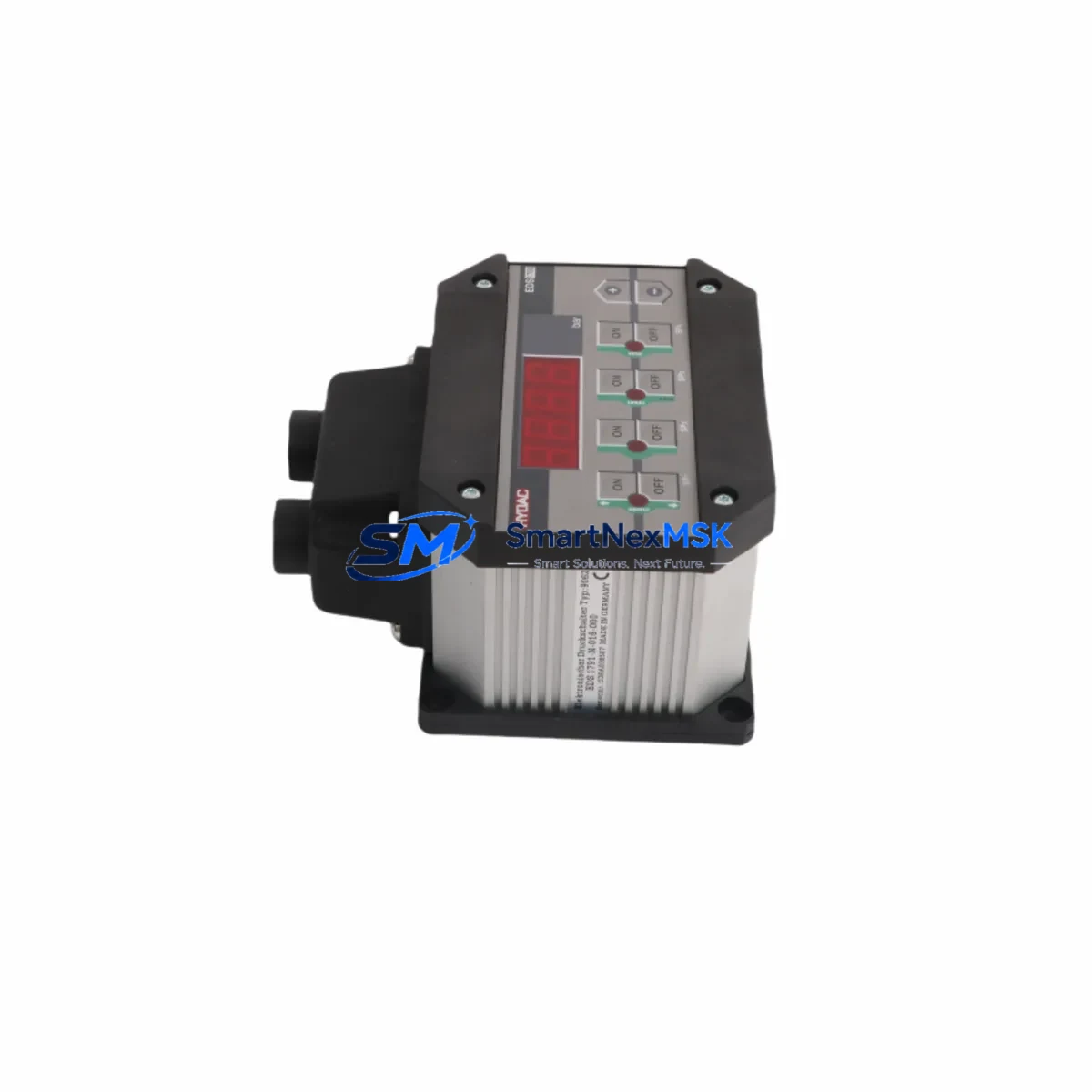

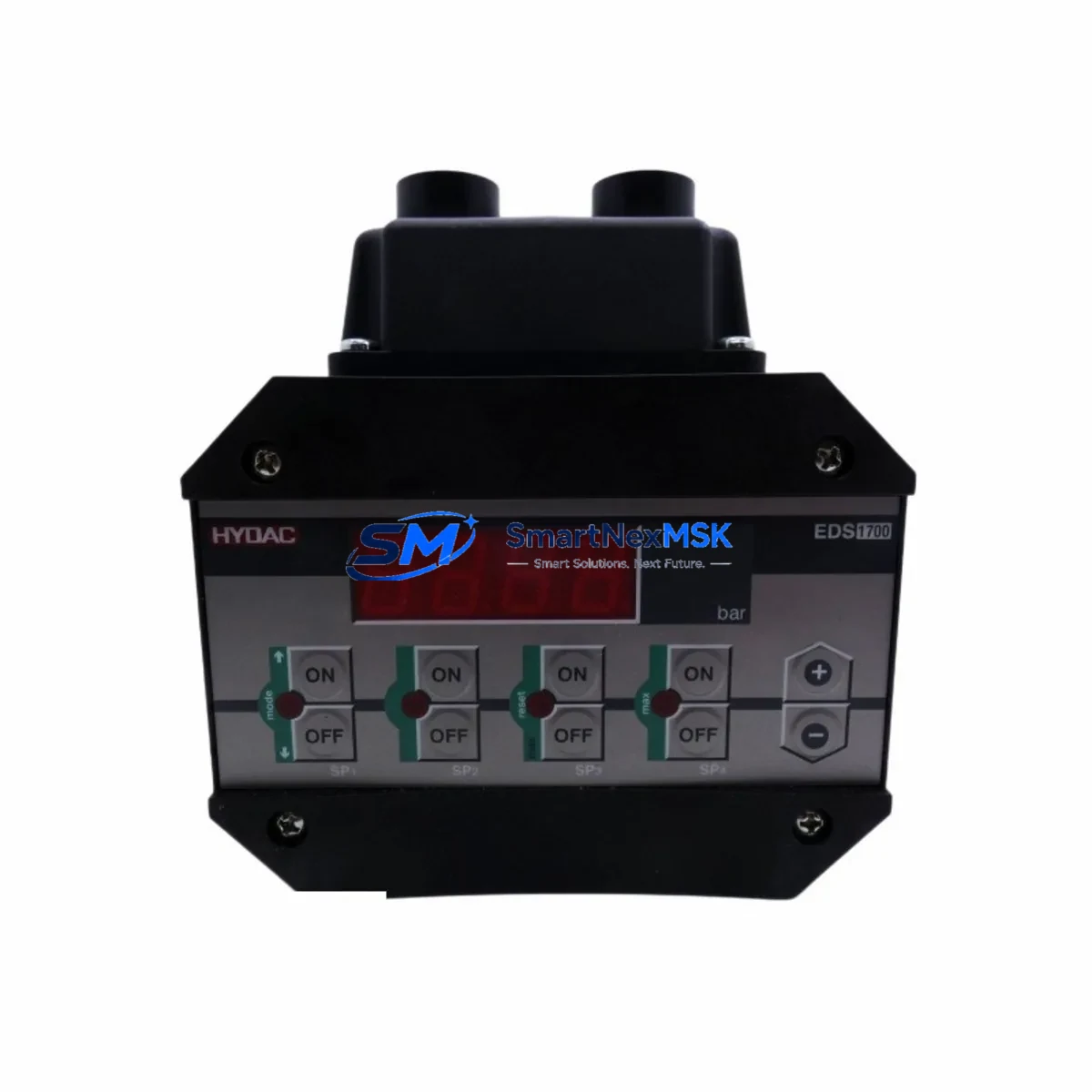

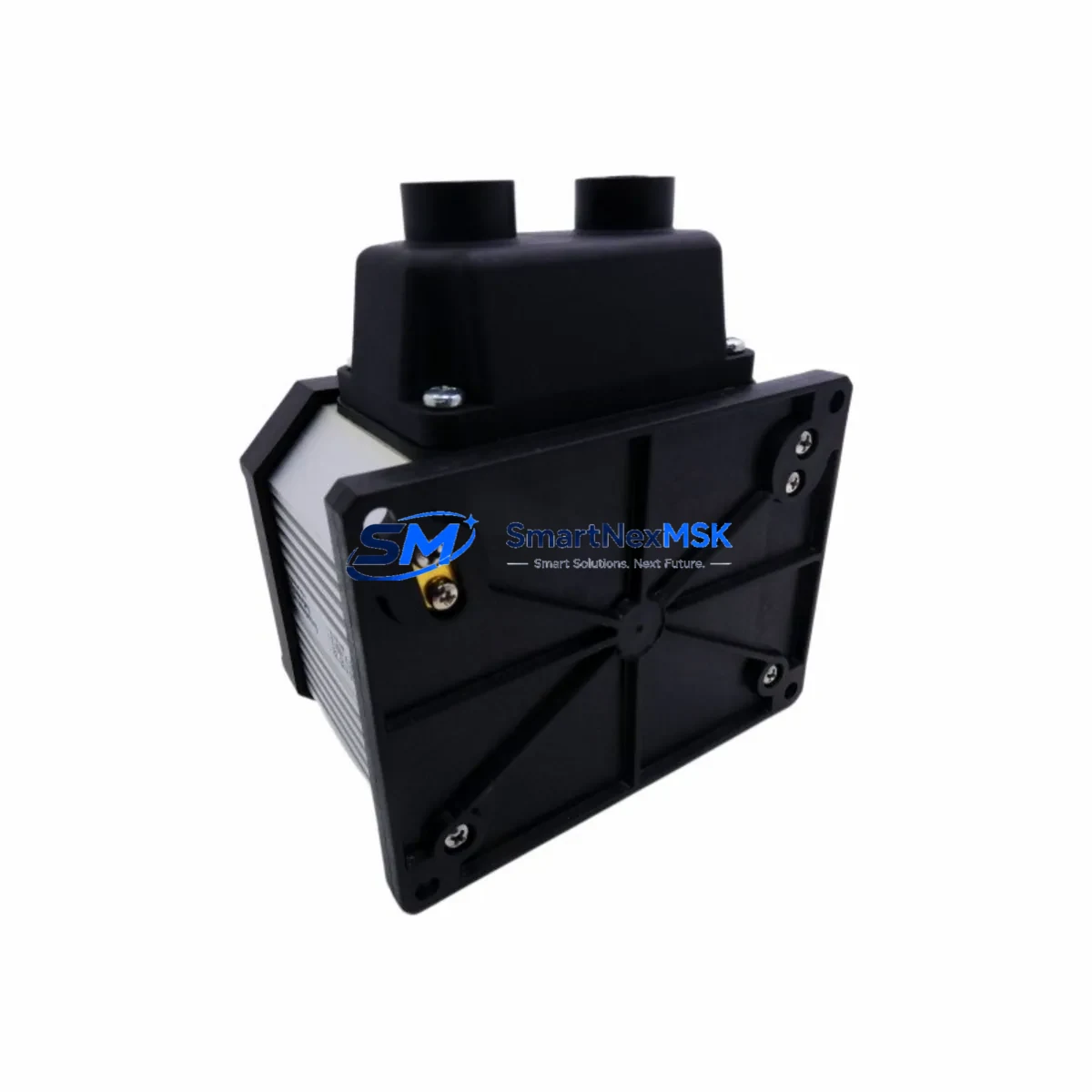

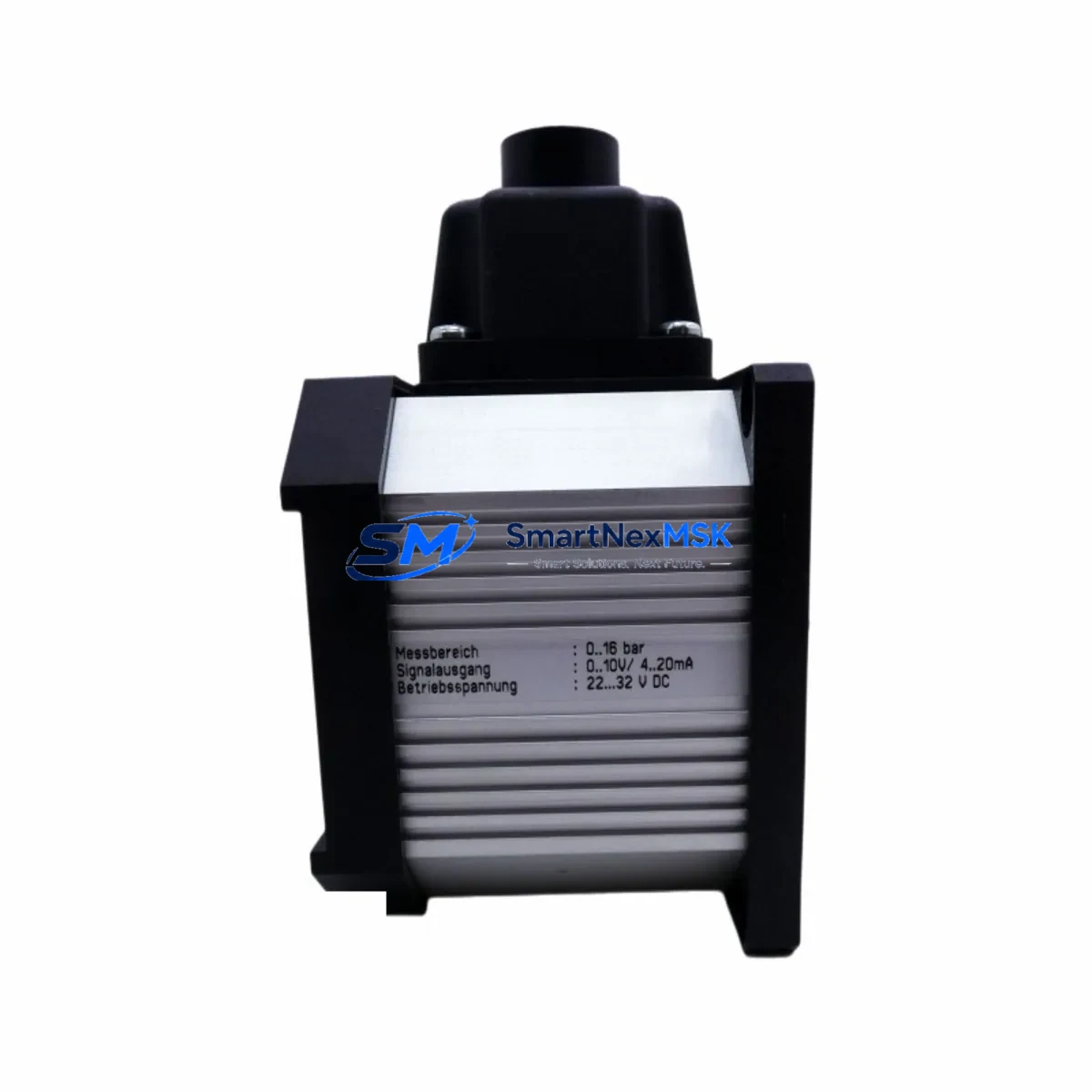

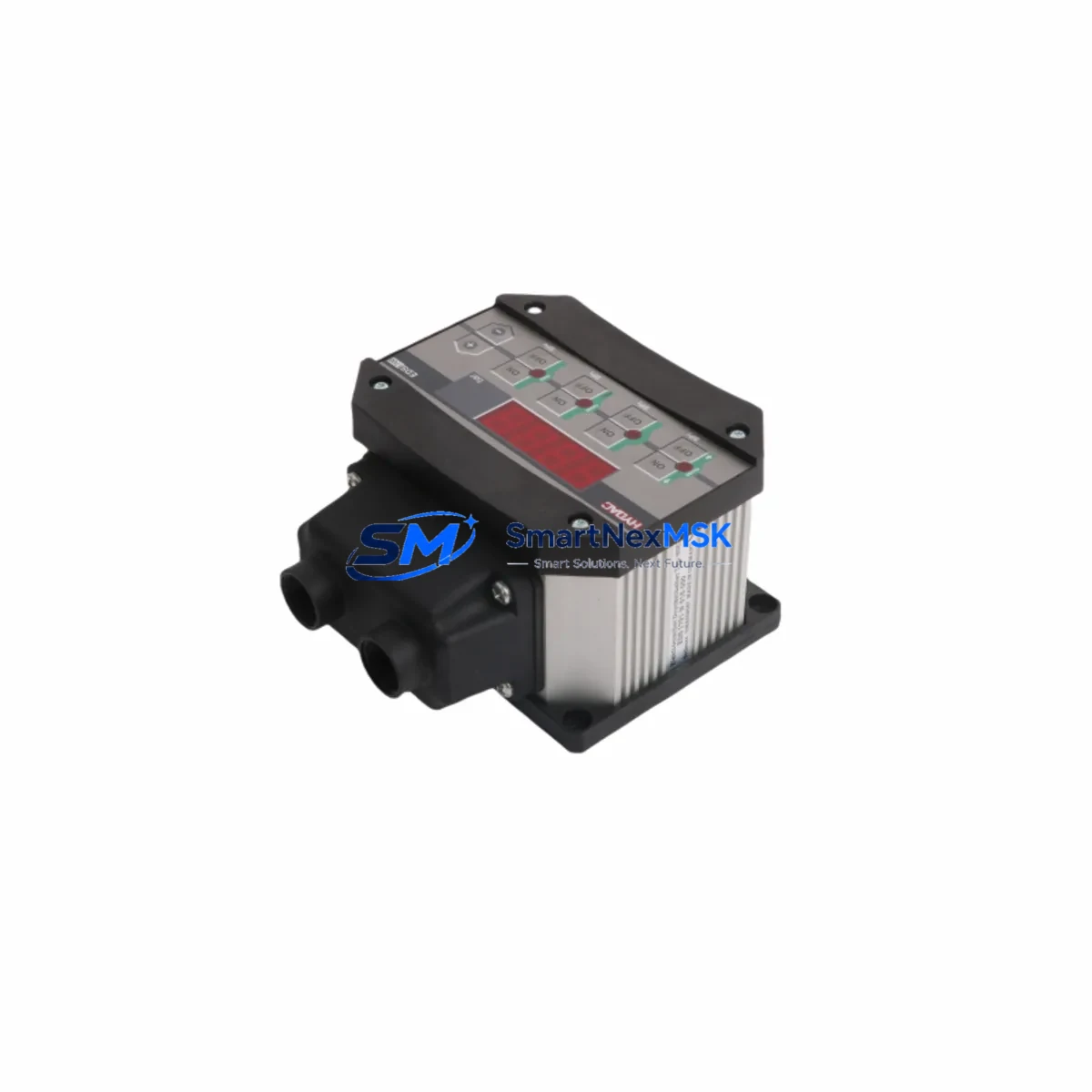

The Hydac EDS1791-N-016-000 is a retrofit-ready electronic pressure switch engineered as a direct replacement for legacy EDS 1791 Series units deployed across hydraulic and pneumatic control systems in industrial automation environments. Whether you are managing a planned upgrade of an aging control cabinet, recovering from an unplanned failure of a discontinued pressure monitoring component, or executing a phased modernization of a multi-axis hydraulic press line, this unit delivers the signal accuracy, electrical compatibility, and mechanical interchangeability required to restore full system operation with minimal downtime.

Designed to interface seamlessly with existing PLC architectures — including Siemens S7-300, S7-400, and S7-1500 series controllers — the EDS1791-N-016-000 outputs a clean analog signal (4–20 mA or 0–10 V, depending on configuration) that maps directly to existing I/O channel assignments without requiring program modifications in most retrofit scenarios. Engineers replacing failed EDS 1791 units in legacy Siemens ET 200M or ET 200S distributed I/O stations will find that terminal wiring, cable shielding requirements, and signal scaling remain consistent with the original specification, significantly reducing commissioning time on the plant floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the EDS1791-N-016-000 into an existing control system begins well before the unit arrives on site. The first step is a thorough audit of the control cabinet to confirm available 24 V DC supply capacity from the existing power supply module — typically a Siemens SITOP PSU100S or equivalent — ensuring that the additional sensor load does not push the rail beyond its rated output current. In multi-sensor hydraulic circuits where several EDS 1791 units are installed in parallel, cumulative current draw must be recalculated against the power budget of the entire I/O rack.

Terminal block wiring should be verified against the original Hydac EDS 1791 wiring diagram. The M12 connector pinout of the EDS1791-N-016-000 follows the same standard assignment (Pin 1: supply +, Pin 3: supply −, Pin 4: analog output), allowing direct reconnection of existing field cables without re-termination in most installations. Where cable assemblies have aged or show signs of insulation degradation, replacement with shielded M12 cordsets rated for the operating environment is recommended before commissioning the new unit.

For systems using Siemens S7-300 analog input modules such as the SM 331 or the more recent SM 1231 in S7-1500 configurations, the channel scaling in the PLC program should be reviewed to confirm that the engineering unit conversion (bar to process value) remains valid. In most cases, no program changes are required; however, if the legacy unit had been factory-calibrated to a non-standard range, the new unit’s teach-in function should be used to align the output span before going live. Distributed I/O nodes — including Profibus DP slaves or PROFINET IO devices such as the ET 200SP — should be checked for correct module addressing after physical replacement to avoid address conflicts on the fieldbus segment.

Where the control system includes an HMI panel — such as a Siemens TP700 Comfort or KTP900 Basic — the pressure trend display and alarm setpoint screens should be validated after replacement to confirm that the analog input value maps correctly to the on-screen engineering unit display. If the original EDS 1791 had been parameterized with a custom switch output threshold, the EDS1791-N-016-000’s integrated switching output (if applicable to the variant) should be configured to match the original setpoint before the machine is returned to production.

Systems that include a Profibus PA or HART communication backbone may require an IO-Link master module — such as the Siemens IM 154-8 PN/DP CPU or a dedicated IO-Link master block — if the upgrade path calls for transitioning from pure analog sensing to digital IO-Link communication. This migration path is increasingly common in modernization projects where the end goal is to enable predictive maintenance data collection from pressure sensors without replacing the entire control architecture. The EDS1791-N-016-000 supports this migration path, allowing the unit to operate in analog mode initially and be reconfigured for IO-Link communication once the master infrastructure is in place.

Downtime Control During System Migration

Minimizing unplanned downtime during pressure switch replacement requires a structured hot-swap protocol. Before removing the legacy EDS 1791 unit, the PLC program should be placed in a safe hold state — typically by activating a maintenance mode interlock that freezes the relevant control loop outputs and prevents the machine from responding to pressure feedback signals during the swap interval. This approach protects the original ladder logic or function block program from generating spurious fault conditions while the sensor is disconnected.

Where the process cannot be fully halted, a bypass relay or manual override on the affected I/O channel can be used to hold the last valid pressure value in the PLC’s analog input register while the physical replacement is performed. This technique is particularly effective in continuous-process hydraulic systems — such as injection molding machines or hydraulic press lines — where a brief sensor absence would otherwise trigger an emergency stop sequence and require a full machine restart cycle.

After the EDS1791-N-016-000 is installed and wired, a bench-level signal verification using a calibrated pressure source and a handheld process meter should be performed before the PLC is returned to automatic mode. Confirming that the output signal at 0 bar and at full-scale pressure matches the expected 4 mA and 20 mA endpoints respectively takes less than five minutes and eliminates the risk of a misconfigured sensor causing a process fault immediately after restart. Once signal integrity is confirmed, the PLC can be released from maintenance mode and the system returned to normal operation — typically within a total intervention window of 30 to 60 minutes for a single-sensor replacement.

All replacement units supplied by SMARTNEXMSK are pre-tested prior to shipment, with test records available upon request. Each EDS1791-N-016-000 is covered by a 12-month warranty against manufacturing defects, providing assurance for both planned maintenance schedules and emergency breakdown recovery scenarios.

Retrofit Support FAQ

Q: Is the EDS1791-N-016-000 a direct drop-in replacement for the original Hydac EDS 1791 Series?
A: Yes. The EDS1791-N-016-000 shares the same G¼ process connection, M12 × 1 electrical connector pinout, 18–32 V DC supply range, and 4–20 mA / 0–10 V output signal as the original EDS 1791 Series. In the vast majority of retrofit installations, no mechanical adapters, wiring changes, or PLC program modifications are required.

Q: What pre-shipment testing is performed on each unit?
A: Every EDS1791-N-016-000 supplied by SMARTNEXMSK undergoes functional output verification at 0 bar and full-scale pressure, insulation resistance testing, and connector integrity inspection before dispatch. Test records are available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: How do I verify wiring compatibility with my existing control cabinet before ordering?
A: Confirm the M12 connector pinout on your existing cable assembly (Pin 1: +V supply, Pin 3: 0 V, Pin 4: analog output signal). If your installation uses a 3-wire or 4-wire M12 cordset with standard Hydac pinout, the EDS1791-N-016-000 is directly compatible. For non-standard wiring configurations, contact sales@smartnexmsk.com with your existing wiring diagram for a pre-order compatibility review.

Q: Can this unit be used in a system that is being migrated from analog sensing to IO-Link communication?
A: Yes. The EDS1791-N-016-000 supports a phased migration approach. The unit can be commissioned in standard analog mode (4–20 mA) immediately upon installation, maintaining full compatibility with existing PLC analog input modules. When the IO-Link master infrastructure is ready, the unit can be reconfigured for IO-Link communication via the push-button teach-in interface or an IO-Link configuration tool, without requiring physical replacement of the sensor.
