HYUNDAI DOM16 Maintenance-Ready Spare for HD1000 Automation

HYUNDAI DOM16 Maintenance-Ready Spare for HD1000 Automation

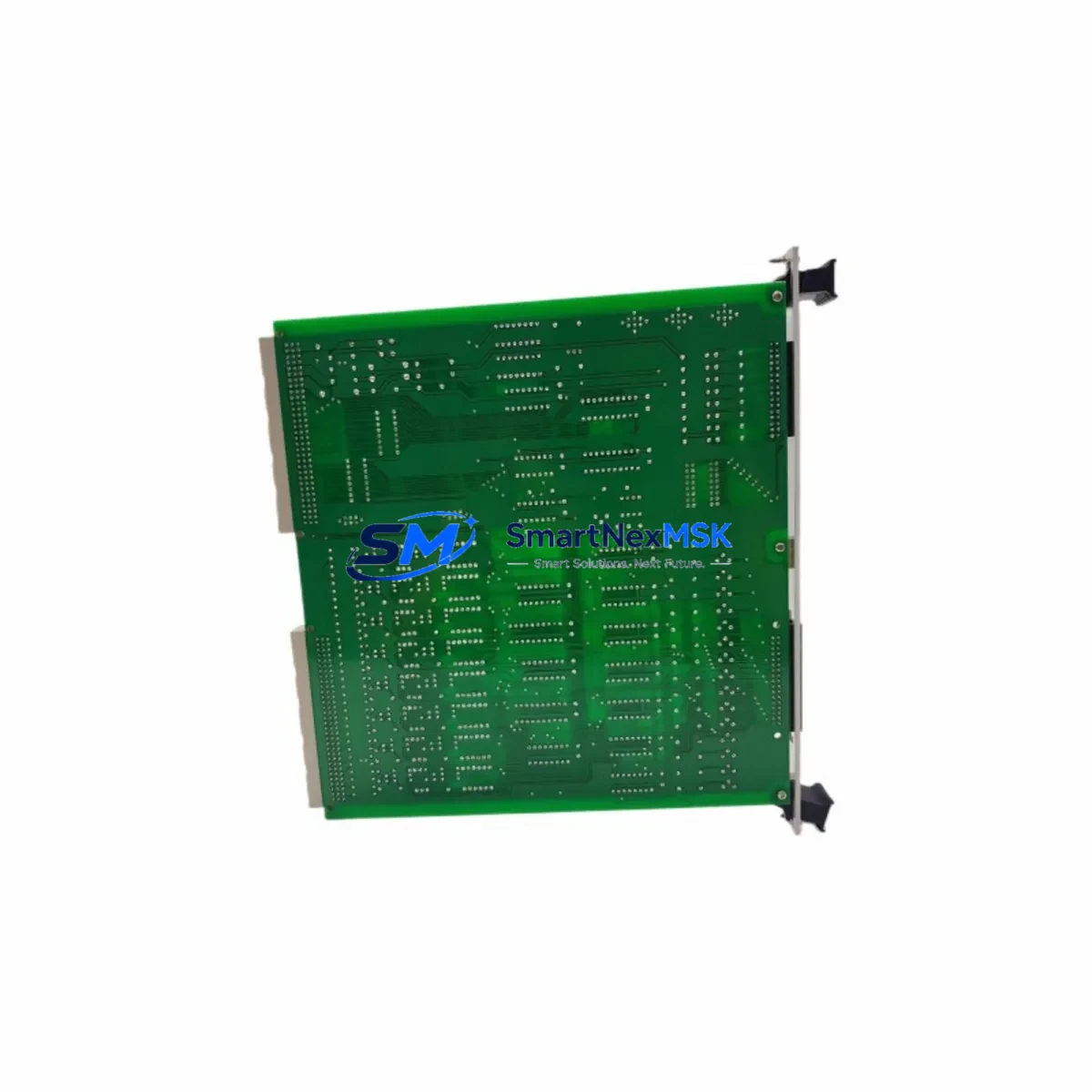

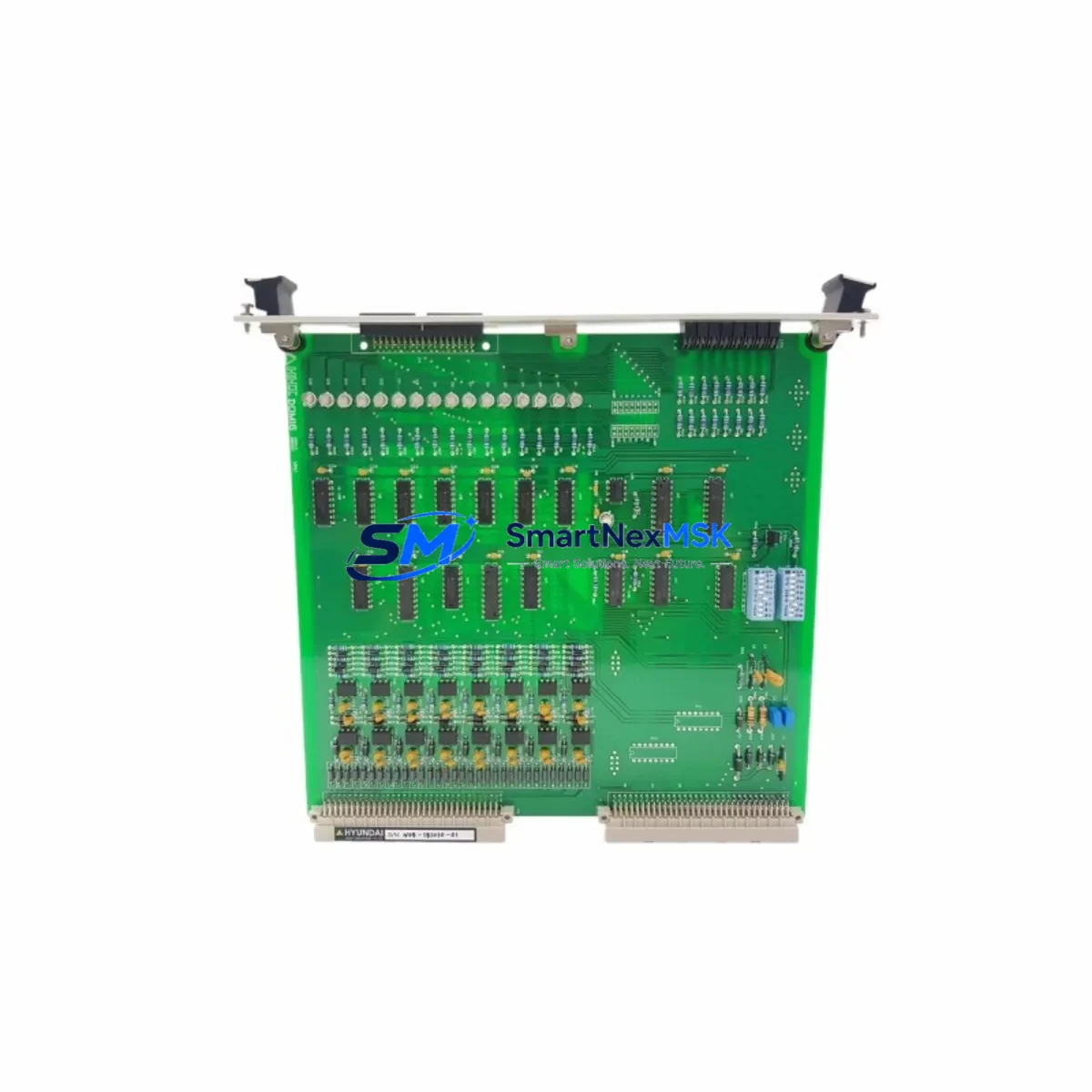

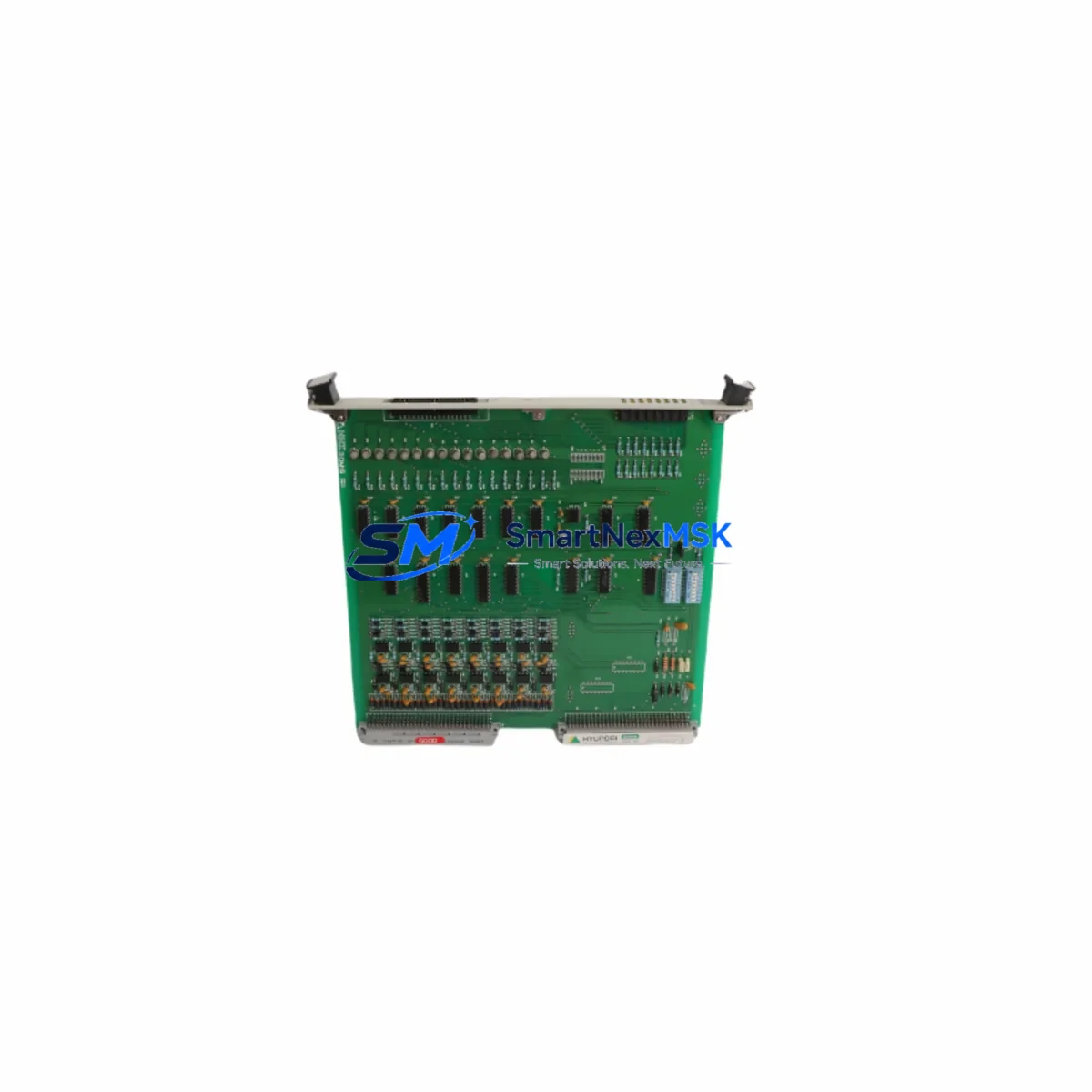

The HYUNDAI DOM16 is a 16-point transistor digital output module designed as an original spare part for the HYUNDAI HD1000 PLC series. For maintenance engineers managing continuous production lines, chemical processing plants, or heavy industrial control cabinets, the DOM16 represents a critical component in any structured spare parts inventory. Its direct plug-in compatibility with the HD1000 backplane eliminates the need for firmware reconfiguration or wiring adaptation during emergency replacement, dramatically reducing unplanned downtime and restoring control loop integrity within minutes of installation.

The DOM16 delivers 16 channels of transistor-type digital output, capable of driving solenoid valves, relay coils, indicator lamps, motor starters, and other field actuators with consistent signal integrity. Each output channel is individually protected against short-circuit and overload conditions, ensuring that a single field fault does not cascade into a full module failure or broader system shutdown. This level of channel-level protection is essential in high-density control cabinets where multiple actuator circuits share a common output module.

In planned maintenance cycles, the DOM16 is typically inspected alongside the HYUNDAI DIM16 digital input module, which handles the corresponding 16-channel input side of the same I/O rack. Maintenance teams should also verify the condition of the HD1000 CPU module and the HD1000 power supply module during any DOM16 replacement, as output module faults are frequently triggered by upstream power irregularities rather than the output module itself. Checking the 24VDC field power rail and associated fuse blocks before condemning a DOM16 can prevent unnecessary part replacement and reduce maintenance cost.

For sites running mixed I/O architectures, the DOM16 is often installed in the same rack as HYUNDAI AOM4 analog output modules and HYUNDAI AIM4 analog input modules, which handle process variable control for flow, pressure, and temperature loops. When replacing the DOM16, technicians should inspect the HD1000 I/O bus connector and backplane slot contacts for oxidation or mechanical wear, particularly in high-humidity or chemically aggressive environments such as water treatment facilities or fertilizer plants.

In facilities where the HD1000 PLC communicates with SCADA systems or HMI panels via RS-485 or Modbus RTU, the DOM16 replacement procedure should include a communication integrity check on the HYUNDAI HCM communication module to confirm that output status feedback is correctly reflected in the supervisory layer after module swap. Failure to verify this step can result in phantom output states being displayed on the operator HMI, creating a safety risk in interlock-critical applications.

All DOM16 units supplied by SMARTNEXMSK are sourced from verified distribution channels, individually tested for output channel continuity and isolation resistance prior to shipment, and covered by a 12-month warranty against manufacturing defects. Stock is maintained to support both single-unit emergency orders and bulk procurement for planned maintenance shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for HD1000-based control systems requires a holistic view of the entire I/O rack and power distribution architecture. When scheduling a DOM16 replacement, maintenance engineers should simultaneously inspect the following components to prevent repeat failures and ensure system stability after the module is returned to service.

The HYUNDAI HD1000 power supply module (PSU) is the first component to verify. Output module faults are frequently caused by voltage sag or ripple on the 24VDC bus rather than internal module failure. A calibrated multimeter or power quality analyzer should be used to confirm that the PSU output is within ±5% of nominal before the new DOM16 is installed. Alongside the PSU, the HD1000 backplane bus connector should be cleaned and inspected for pin damage or corrosion, particularly in coastal or high-humidity industrial sites.

The HYUNDAI DIM16 digital input module in the same rack should be functionally tested during the same maintenance window, as input and output modules share the same backplane power rail and are subject to the same environmental stressors. If the site uses HYUNDAI AOM4 analog output modules for PID loop control of actuators, their output calibration should be verified after any power interruption associated with the DOM16 swap.

Field wiring connected to the DOM16 output terminals should be inspected for insulation degradation, loose terminal screws, and correct fuse sizing. Terminal blocks and fuse holders on the output side of the module are common failure points in high-cycle applications such as packaging lines or press control systems. If the site uses signal isolators between the DOM16 outputs and field devices, their isolation resistance should be checked to confirm that no ground fault has developed in the field wiring harness.

For sites with HYUNDAI HCM Modbus communication modules installed in the same rack, the communication link to the SCADA or DCS host should be verified after the DOM16 replacement to confirm that output register mapping is intact. Finally, the HD1000 CPU module event log should be reviewed for any latched fault codes related to the output module prior to clearing alarms and returning the system to automatic mode.

Site Replacement Workflow

Replacing a HYUNDAI DOM16 on a live industrial site follows a structured procedure designed to minimize downtime and eliminate the risk of incorrect reinstallation. Before beginning, the maintenance engineer should confirm that the replacement DOM16 carries the same firmware revision as the module being removed, or that the HD1000 CPU is configured to accept the installed firmware version. SMARTNEXMSK supplies DOM16 units with standard factory firmware compatible with all HD1000 series CPU revisions.

Step 1 — Isolate the output circuit: Place the HD1000 CPU in STOP mode via the programming terminal or HMI. De-energize the 24VDC field power supply feeding the DOM16 output commons. Do not rely solely on the CPU STOP command to de-energize field actuators — always isolate field power independently.

Step 2 — Document wiring: Photograph or record the terminal wiring on the DOM16 output connector before disconnecting. The 16-channel output connector is a removable screw-terminal block, which simplifies replacement without rewiring individual conductors.

Step 3 — Remove and replace: Slide the DOM16 out of the backplane slot. Insert the replacement module and confirm that the backplane connector is fully seated. Reattach the output terminal block.

Step 4 — Power-up and verify: Restore field power and switch the CPU to RUN mode. Use the programming software or HMI to force-test each of the 16 output channels individually, confirming that the corresponding field actuator responds correctly. Check the CPU diagnostic display for any residual fault codes.

Step 5 — Return to service: Clear all latched alarms, confirm normal process operation, and update the maintenance log with the replacement date, module serial number, and technician name. Schedule the next inspection interval based on the site’s preventive maintenance calendar.

This workflow is applicable whether the DOM16 is being replaced as an emergency corrective action or as part of a planned shutdown. SMARTNEXMSK maintains buffer stock of the DOM16 to support both scenarios, with same-day dispatch available for urgent orders.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the HYUNDAI DOM16 supplied by SMARTNEXMSK?
All DOM16 units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, output channel failure under normal operating conditions, and backplane connector integrity. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with priority turnaround to minimize site downtime.

Q2: How is the DOM16 tested before shipment?
Each DOM16 unit undergoes pre-shipment functional testing that includes output channel continuity verification across all 16 points, optical isolation resistance measurement, and backplane connector inspection. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement.

Q3: Is the DOM16 compatible with all HD1000 CPU and backplane revisions?
The DOM16 is designed for the HYUNDAI HD1000 PLC platform and is compatible with all standard HD1000 backplane configurations. Compatibility with specific CPU firmware revisions should be confirmed against the HD1000 system manual. SMARTNEXMSK technical support can assist with compatibility verification prior to order placement.

Q4: Can SMARTNEXMSK supply DOM16 units for long-term maintenance contracts or bulk spare parts programs?
Yes. SMARTNEXMSK supports long-term supply agreements for the DOM16 and other HYUNDAI HD1000 series components. Bulk pricing, reserved stock allocation, and scheduled delivery programs are available for maintenance teams managing multiple sites or large installed bases of HD1000 systems. Contact our sales team to discuss your specific requirements.
