IAI DS-S-C1-L DSSC1LDS Maintenance-Ready Spare DS Series

IAI DS-S-C1-L DSSC1LDS Maintenance-Ready Spare DS Series Automation

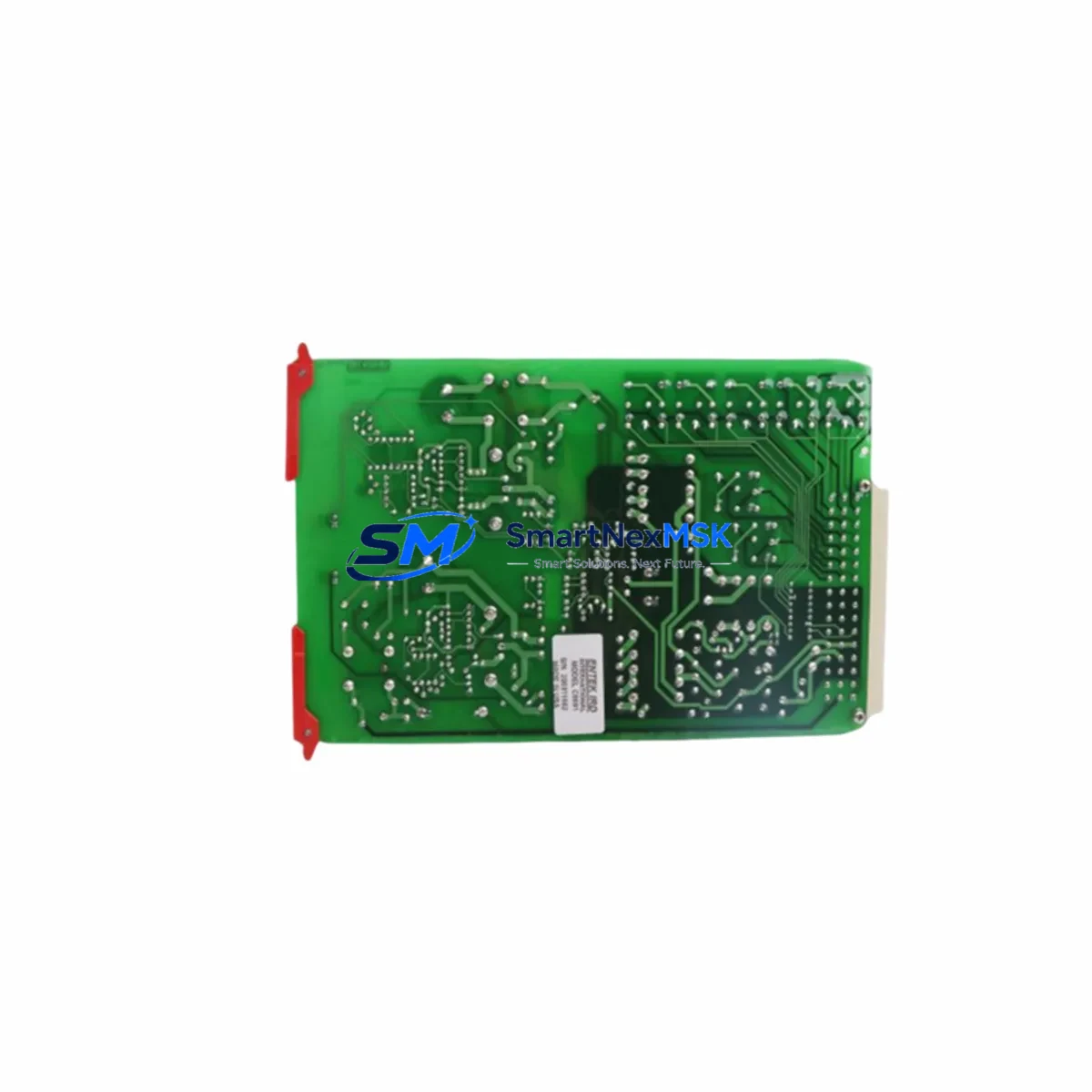

The IAI DS-S-C1-L (also referenced as DSSC1LDS) is an original output module from IAI’s DS Series, engineered for high-reliability industrial automation environments. Whether you are managing a scheduled overhaul, responding to an unplanned fault, or building a proactive spare parts inventory for a critical control cabinet, this module delivers verified compatibility and performance parity with the original installation. Sourced directly from authorized supply channels, each unit undergoes pre-shipment functional testing and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to act fast when downtime risk is highest.

In industrial facilities where DS Series controllers manage conveyor positioning, servo drive coordination, or multi-axis motion sequences, a failed output module can cascade into full-line stoppages within minutes. Stocking the DS-S-C1-L as a ready-to-install spare eliminates the lead-time gap that turns a minor fault into a multi-shift production loss. Our inventory is maintained for long-term supply continuity, making this module available not only for immediate emergency replacement but also for planned lifecycle replenishment across aging DS Series installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DS-S-C1-L output module is flagged during a control cabinet inspection or fault log review, experienced maintenance engineers know that the output module rarely fails in isolation. A thorough site assessment should extend to the surrounding electrical circuit and system architecture to prevent repeat failures and ensure a clean return to service.

Begin by verifying the 24 VDC power supply module feeding the DS Series rack — voltage sag or ripple is a leading cause of premature output transistor degradation. Check the DS Series backplane or base unit for oxidized connector contacts or mechanical damage that may have contributed to the module fault. If the DS-S-C1-L drives inductive loads such as solenoid valves or relay coils, inspect the flyback suppression diodes or surge absorbers on each output channel; missing or failed suppressors accelerate transistor wear.

Review the IAI DS Series I/O expansion modules installed in adjacent slots — a shorted output on one module can stress neighboring modules through shared bus voltage. Examine the terminal block wiring connected to the output module’s load terminals for signs of overheating, insulation cracking, or loose ferrules, all of which increase contact resistance and thermal stress. If the system includes IAI PCON or ACON servo driver units receiving signals from this output module, verify that the driver enable and command wiring is intact and correctly terminated.

For installations with signal isolation relays between the DS-S-C1-L outputs and field devices, test relay coil resistance and contact continuity — relay contact wear is frequently misdiagnosed as a PLC output fault. Check any inline fuse holders or circuit protection devices on the output circuit; a blown fuse that is simply replaced without identifying the root cause will result in repeat module failures. If the control cabinet includes an IAI touch panel or operator interface (HMI) communicating with the DS Series controller, confirm that communication cables and connectors are secure and that no communication errors are logged that might indicate a broader controller issue.

Finally, review the DS Series controller’s diagnostic memory and error history using the IAI PC software or teaching pendant. Output overcurrent records, watchdog resets, or communication timeouts logged prior to the module failure can reveal systemic issues — such as a failing 24V SMPS power supply or degraded RS-232/RS-485 communication cable — that must be resolved before the replacement DS-S-C1-L is commissioned.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Switch off the main circuit breaker feeding the DS Series control cabinet. Confirm zero voltage at the backplane power input using a calibrated multimeter before touching any module.

Step 2 — Document the existing configuration. Photograph the wiring harness, terminal labels, and module slot positions before removal. Record the DS-S-C1-L’s slot address and any DIP switch or jumper settings visible on the module face.

Step 3 — Remove the faulty module. Release the module locking tab, disconnect the I/O connector, and slide the module out of the backplane slot. Inspect the backplane connector pins for damage or contamination.

Step 4 — Install the replacement DS-S-C1-L. Align the replacement module with the backplane guide rails and seat it firmly until the locking tab engages. Reconnect the I/O wiring connector, verifying that all terminals are torqued to specification.

Step 5 — Power-up and verify. Restore power and observe the module’s status LEDs. Use the IAI teaching pendant or PC software to force-test each output channel before returning the system to automatic operation. Confirm that all downstream actuators, drives, and field devices respond correctly.

Step 6 — Update maintenance records. Log the replacement date, module serial number, and any associated findings in the equipment maintenance register. Schedule the next inspection interval based on the operating environment and load cycle.

Spare Parts Support FAQ

Q1: Is the DS-S-C1-L (DSSC1LDS) a direct plug-in replacement for the original module?
Yes. The replacement DS-S-C1-L is an original IAI DS Series output module that installs directly into the same backplane slot without any firmware changes, parameter re-entry, or mechanical modification. Wiring reconnects to the same terminal positions as the original unit.

Q2: What pre-shipment testing is performed on each unit?
Every DS-S-C1-L is functionally tested prior to dispatch. Output channel switching, load voltage response, and connector integrity are verified. A test report is available upon request. Units are packed in anti-static protective packaging to prevent ESD damage during transit.

Q3: How should I manage DS-S-C1-L inventory for a multi-line facility?
For facilities operating three or more DS Series controllers, we recommend maintaining a minimum of one DS-S-C1-L spare per controller cluster. For high-cycle or continuous-duty applications, a two-unit buffer per production line is advisable. Long-term supply agreements are available to lock pricing and ensure priority allocation for planned maintenance windows.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, reverse polarity, or physical impact. Warranty claims are processed with priority — replacement units are dispatched within 3 business days of fault confirmation.
