ICS T8442C Safety-Enhanced Speed Monitor for Harsh Industrial Sites

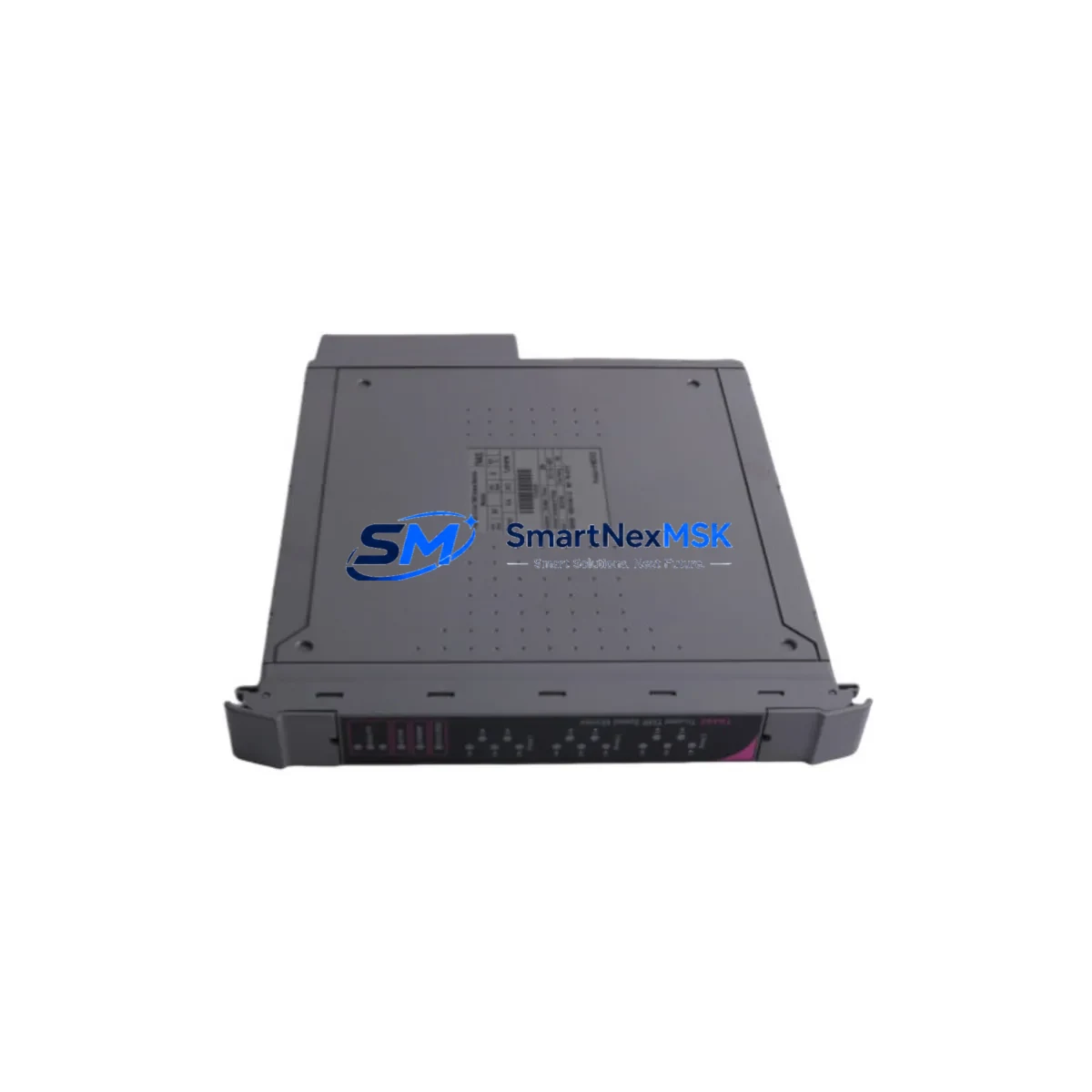

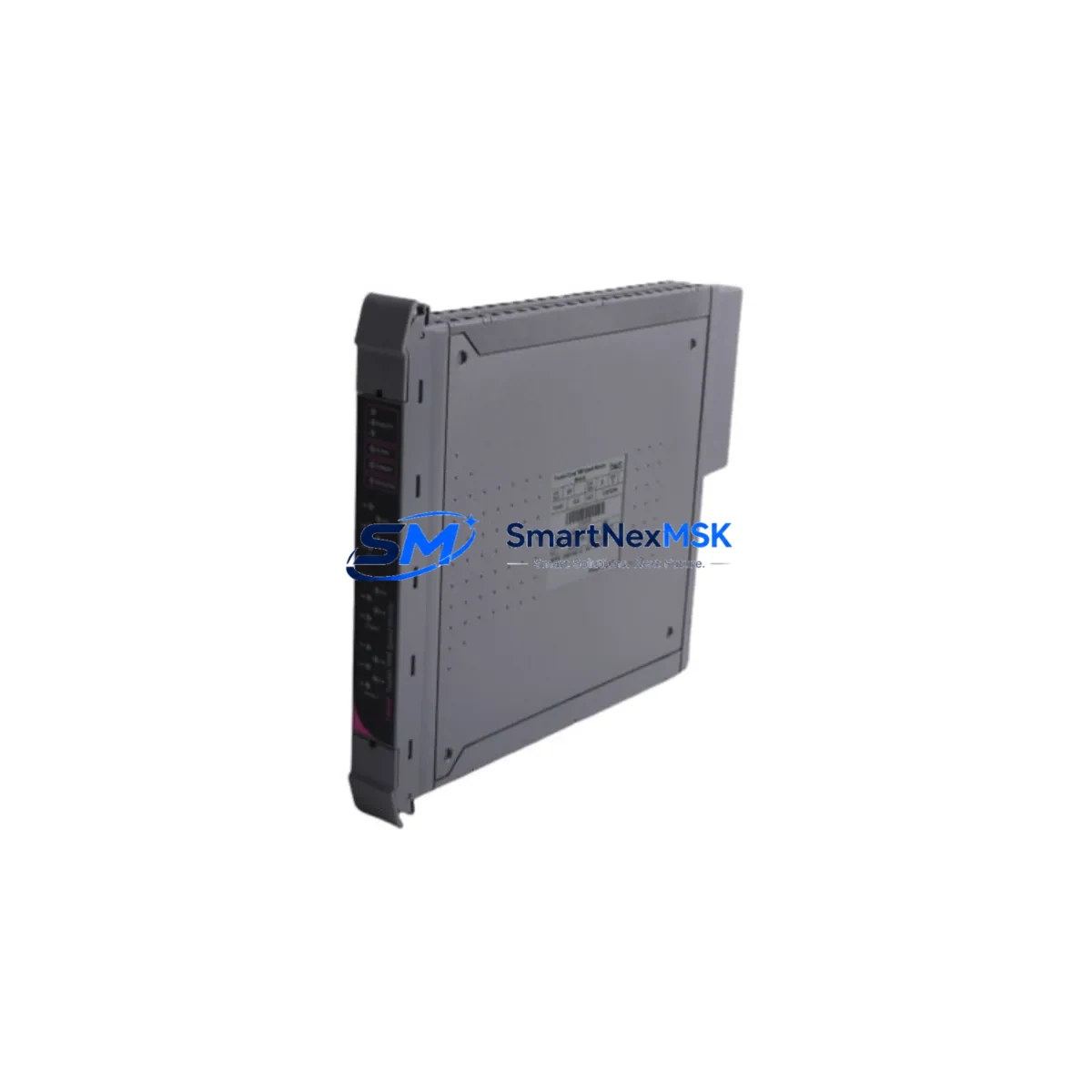

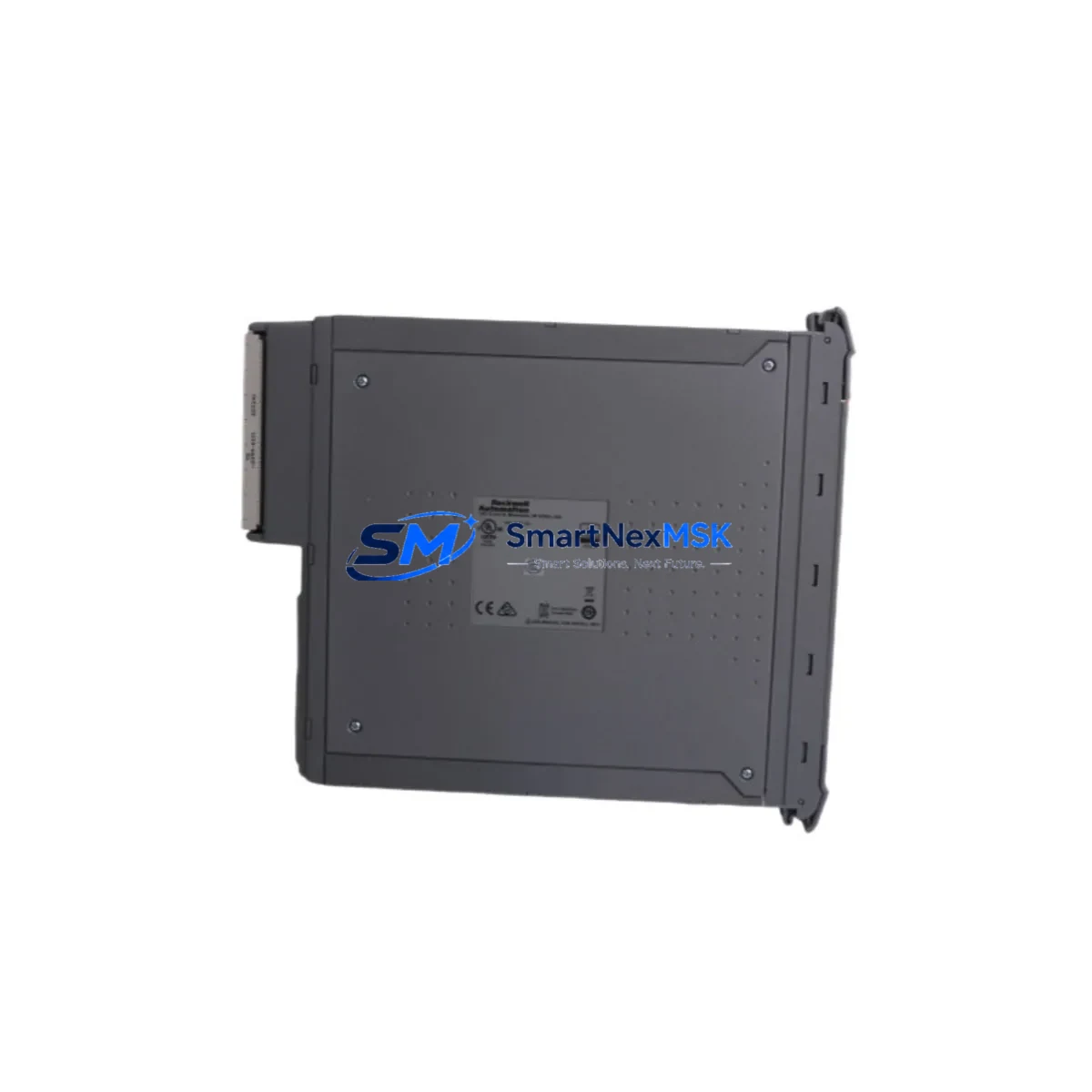

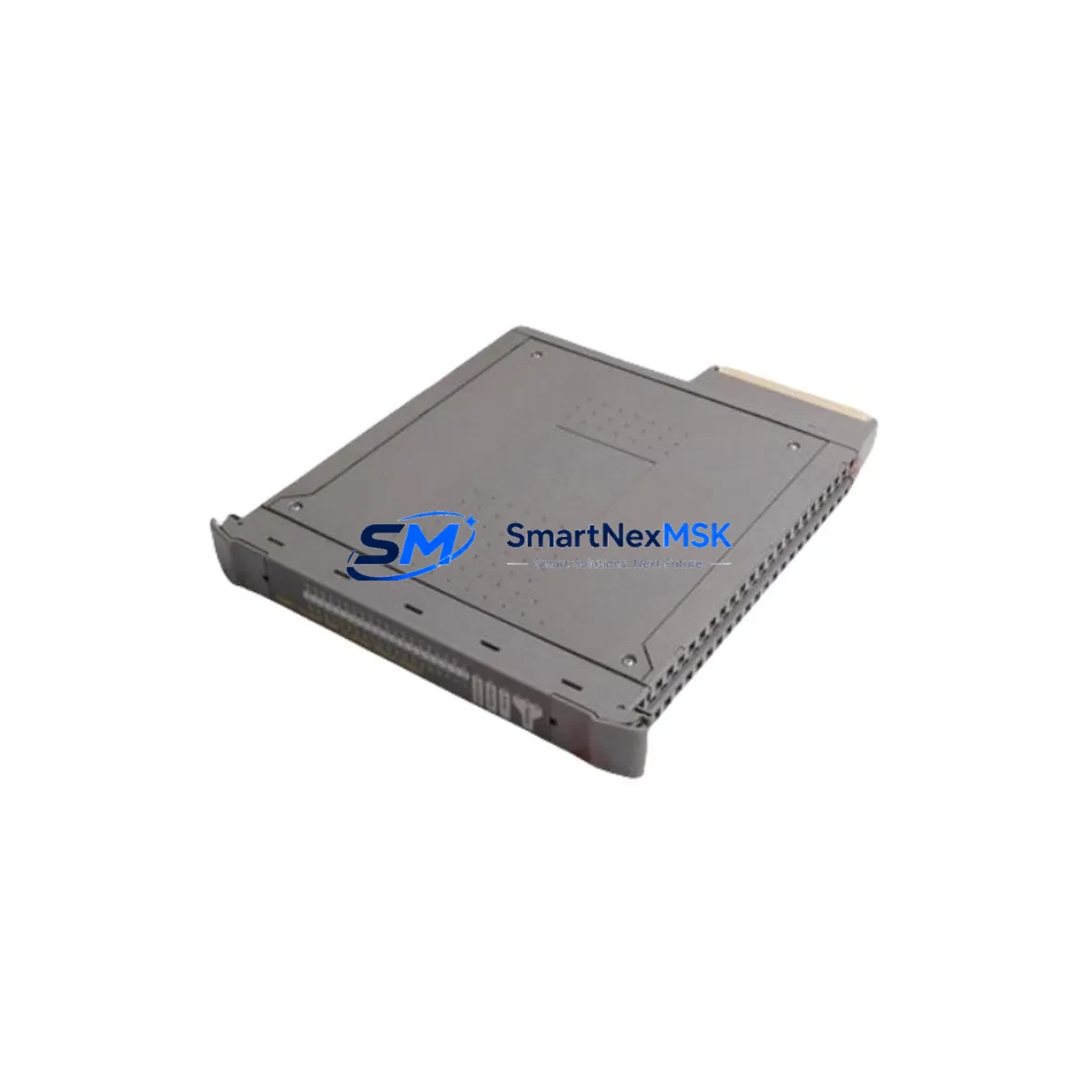

The ICS T8442C is a ruggedized speed monitoring module from the ICS T8000 Series, engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed to detect overspeed, underspeed, and zero-speed conditions with high precision, the T8442C plays a central role in protecting rotating machinery, drive systems, and critical process loops from uncontrolled acceleration or stall events that can lead to catastrophic equipment failure or personnel hazard.

In high-load, high-interference industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical smelters, and continuous manufacturing lines — speed monitoring is not optional. It is a fundamental layer of the safety interlock architecture. The T8442C integrates directly into the T8000 control platform, providing deterministic speed feedback to the main processor module and enabling the safety logic to execute protective shutdown sequences before mechanical damage or process deviation escalates.

Signal integrity is a persistent challenge in heavy industrial control cabinets. The T8442C is built to reject electromagnetic interference from variable frequency drives, high-current bus bars, and adjacent relay coils. Its isolated input circuitry prevents ground loops and common-mode noise from corrupting speed pulse signals, ensuring that the control system receives accurate, stable data even when installed in close proximity to high-power switching equipment. This directly reduces the risk of spurious trips, missed fault detection, and module misoperation — all of which can compromise both safety and production continuity.

Power supply stability is equally critical. The T8442C is designed to operate reliably across a wide supply voltage range, tolerating transient surges and micro-interruptions that are common in industrial power distribution systems. When paired with a T8000 Series power supply module and a properly specified surge protection device on the incoming power rail, the T8442C maintains uninterrupted monitoring even during grid disturbances. This is particularly important in facilities where the control system must remain operational during partial power events to execute safe shutdown sequences.

Within the T8000 control cabinet, the T8442C works in close coordination with the T8110 processor module, which processes the speed data and executes the configured safety logic. The T8431 analog input module and T8451 digital input module handle complementary process signals — such as vibration, temperature, and valve position feedback — that together form a complete machine protection strategy. The T8461 digital output module then drives the final control elements: shutdown relays, alarm annunciators, and interlock contactors. This tightly integrated architecture minimizes communication latency between detection and protective action, which is essential in high-speed rotating machinery applications where milliseconds matter.

For communication-intensive installations, the T8442C operates within a backplane architecture that supports the T8000 Series communication modules, enabling speed data to be transmitted to supervisory SCADA systems, historian servers, and remote monitoring platforms without introducing additional latency or data corruption risk. Redundant communication paths can be configured to ensure that speed monitoring data remains available to the control room even in the event of a single communication channel failure.

The T8442C is stocked as a tested, verified spare and replacement module. Each unit undergoes functional verification prior to shipment, confirming that input signal conditioning, threshold detection logic, and output relay operation all perform within specification. This pre-shipment testing protocol is critical for spare parts used in safety interlock systems, where an untested replacement module could introduce latent faults that only manifest under specific process conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust T8000-based control cabinet protection strategy extends well beyond the T8442C speed monitor itself. In a typical heavy industrial installation, the T8442C operates alongside the T8110 processor module, which serves as the central logic executor for all safety interlock decisions. The T8431 analog input module monitors continuous process variables — bearing temperature, vibration amplitude, and differential pressure — that complement the discrete speed signal from the T8442C to provide a multi-parameter machine health picture.

On the output side, the T8461 digital output module drives shutdown contactors and alarm relays based on the combined logic evaluation. For installations requiring hardwired safety loops independent of the main processor, a dedicated T8480 relay output module can be configured to provide direct, processor-independent trip outputs — a critical design feature for SIL-rated interlock circuits. The T8451 digital input module captures field device status signals: valve position feedback, motor run confirmation, and emergency stop inputs that must be continuously monitored to validate the integrity of the safety loop.

Power system integrity is maintained through the T8920 power supply module, which provides regulated, filtered DC power to the backplane. In critical applications, a redundant power supply configuration — using a second T8920 in hot-standby — ensures that a single power supply failure does not interrupt speed monitoring or safety logic execution. External surge protective devices on the incoming AC supply further protect the entire T8000 rack from grid-borne transients.

For facilities with distributed control architectures, the T8830 communication module enables the T8000 system to exchange speed and status data with the plant DCS or SCADA platform over standard industrial protocols. This integration ensures that speed exceedance events are logged, alarmed, and visible to control room operators in real time, supporting both immediate response and post-incident analysis.

Critical Industrial Safety Applications

The ICS T8442C is deployed across a wide range of critical industrial sectors where speed monitoring is integral to both process safety and equipment protection:

Petrochemical and Refining: Compressor trains, pump drives, and agitator systems in hydrocarbon processing facilities require continuous overspeed protection. A speed exceedance event in a high-pressure compressor can result in mechanical failure, process release, and fire or explosion hazard. The T8442C provides the first line of detection, triggering the emergency shutdown sequence before the mechanical trip mechanism is required to act.

Power Generation: Steam turbine and gas turbine control systems rely on speed monitoring modules to detect runaway conditions during load rejection events. The T8442C integrates into the turbine protection system alongside vibration monitors and axial displacement sensors to provide a comprehensive overspeed protection architecture.

Mining and Mineral Processing: Conveyor drives, crusher motors, and hoisting systems in underground and surface mining operations are subject to extreme mechanical loads and frequent start-stop cycles. The T8442C monitors drive speed to detect belt slip, motor stall, and overspeed conditions that can cause structural damage or personnel injury.

Water and Wastewater Treatment: Pump stations and aeration blower systems require reliable speed monitoring to detect cavitation, dry-run, and overspeed conditions. The T8442C supports continuous, unattended operation in remote pump stations where manual inspection is infrequent.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and furnace exhaust fans operate under extreme thermal and mechanical stress. Speed monitoring in these applications prevents drive runaway and protects both the mechanical drivetrain and the process material from damage caused by uncontrolled speed excursions.

Safety and Quality FAQ

Q: What warranty coverage is provided for the ICS T8442C?
A: Every ICS T8442C supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers functional defects in the module’s speed detection, signal conditioning, and output relay circuits. Warranty replacement or repair is handled directly, with priority processing for customers in critical production environments.

Q: How is each T8442C tested before shipment?
A: Each unit undergoes a functional verification process prior to dispatch. This includes input signal response testing across the specified frequency range, threshold detection accuracy verification, output relay operation confirmation, and visual inspection for physical integrity. Test records are available upon request for customers with quality management system requirements.

Q: Is the T8442C compatible with existing T8000 Series installations?
A: Yes. The T8442C is a direct replacement module for T8000 Series installations. It is backplane-compatible with standard T8000 racks and interfaces with T8110 processor modules without requiring firmware changes or hardware modifications in the majority of installations. Customers are advised to confirm the specific firmware revision of their processor module for full compatibility assurance.

Q: Can long-term supply of the T8442C be guaranteed for ongoing maintenance programs?
A: SMARTNEXMSK maintains dedicated stock of the ICS T8442C to support planned maintenance programs, emergency spare requirements, and lifecycle extension projects. Customers operating aging T8000 installations are encouraged to establish a standing spare parts agreement to ensure module availability when needed, avoiding unplanned production downtime caused by spare part lead time.
