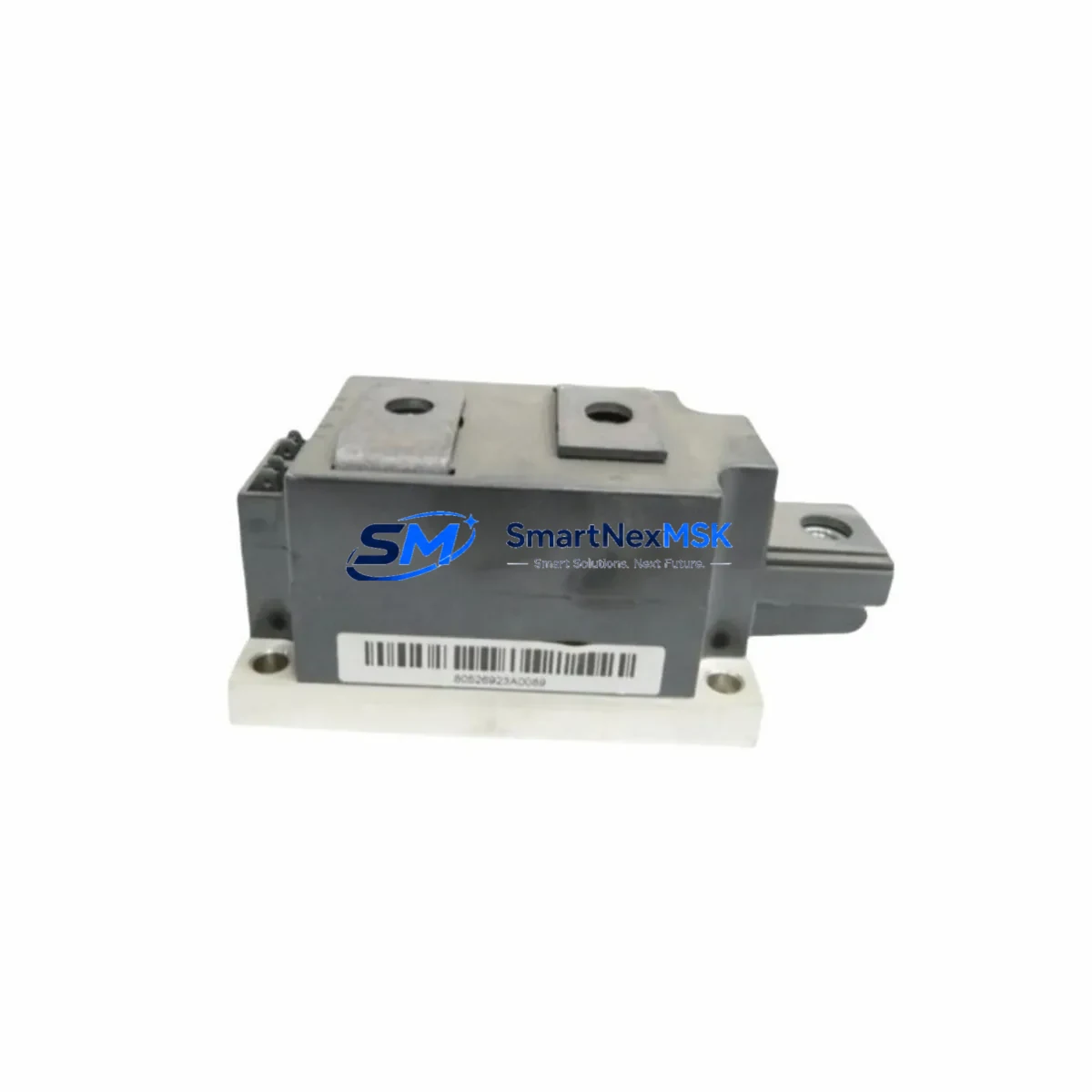

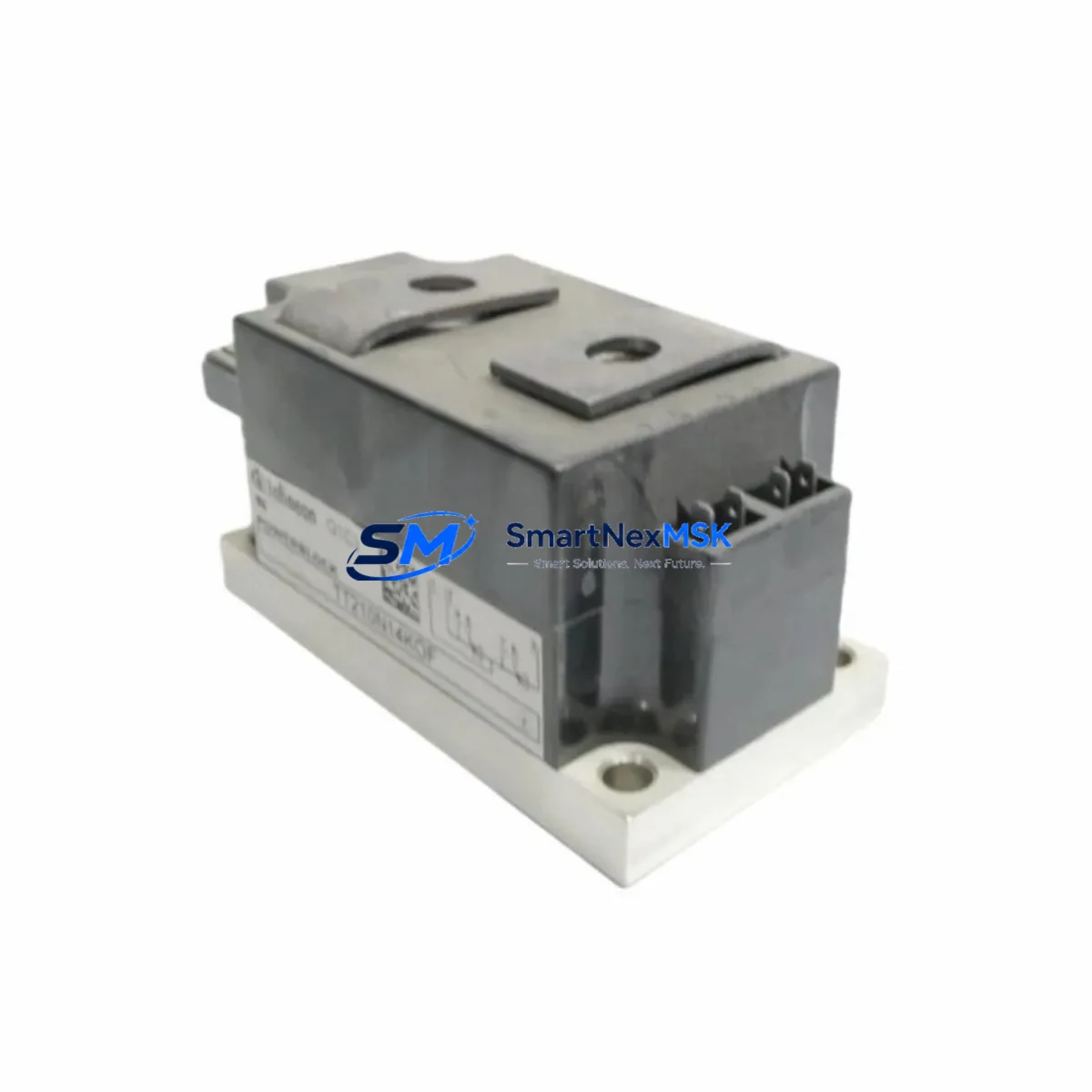

Infineon TT210N14KOF Safety-Enhanced SCR Thyristor Module

Infineon TT210N14KOF Safety-Enhanced SCR Thyristor Module: Reliable Power Control for Harsh Industrial Sites

The Infineon TT210N14KOF is a ruggedized dual SCR (Silicon Controlled Rectifier) thyristor module engineered for demanding industrial power control applications where safety, signal integrity, and continuous uptime are non-negotiable. Rated at 210A average on-state current and 1400V repetitive peak off-state voltage (VDRM), this module is purpose-built for high-load, high-interference environments including heavy industrial control cabinets, critical interlock circuits, and hazardous-area power conversion systems.

Housed in Infineon’s industry-proven ISOPLUS i4-PAC package, the TT210N14KOF delivers exceptional thermal management with a 3000V isolation voltage between the power terminals and the baseplate. This galvanic isolation is critical in preventing ground-loop faults and protecting downstream PLC I/O modules, DCS analog input cards, and safety relay modules from destructive voltage transients. In environments where surge events, inductive load switching, and EMI from variable frequency drives (VFDs) or motor starters are constant threats, the TT210N14KOF’s robust construction significantly reduces the risk of control interruption, signal drift, and module misoperation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-designed industrial control cabinet, the TT210N14KOF does not operate in isolation — it is one element of a coordinated protection and control architecture. When integrated into a thyristor power controller or soft-starter assembly, it works in conjunction with RC snubber networks and MOV surge arresters to clamp transient overvoltages that would otherwise propagate into the control bus and corrupt signals on Siemens SIMATIC S7-300 or S7-400 analog output modules.

For gate drive integrity, the TT210N14KOF is typically paired with dedicated thyristor gate driver boards or firing angle controllers that provide optically isolated trigger pulses, eliminating common-mode noise coupling from the power stage into the logic-level control circuitry. This isolation barrier is especially important when the control system includes Profibus DP or PROFINET communication modules, where noise-induced bit errors can trigger spurious fault states or emergency shutdowns.

On the power supply side, the control cabinet’s 24VDC SITOP PSU8200 power supply units or equivalent industrial DIN-rail PSUs must be protected from the harmonic disturbances generated during thyristor phase-angle firing. Proper cabinet layout — including segregated cable routing for power and signal wiring, use of shielded twisted-pair cables for analog signals, and installation of line reactors or EMC filters upstream of the thyristor stack — is essential to maintaining stable operation of co-located Beckhoff EtherCAT I/O terminals or ABB AC500 PLC CPU modules.

For safety interlock circuits, the TT210N14KOF can be incorporated into redundant firing configurations where a safety relay module (such as a Pilz PNOZ or Schmersal SRB series device) monitors thyristor conduction state and de-energizes the gate drive in the event of a detected fault condition. This architecture supports SIL 2 interlock strategies in process industries where uncontrolled power delivery to a load represents a personnel or equipment hazard.

Thermal management is equally critical to long-term reliability. The module’s isolated baseplate allows direct mounting to an aluminum extruded heatsink or a liquid-cooled cold plate, with thermal interface material applied per Infineon’s mounting guidelines. Proper heatsink sizing — verified against the module’s Rth(j-c) of ≤ 0.12 K/W — ensures junction temperatures remain within safe limits even at full rated current in a 45°C ambient control room.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking facilities, the TT210N14KOF is deployed in thyristor-controlled electric heaters and pump motor soft-starters. Its wide operating temperature range and high surge current rating (3800A ITSM) make it resilient to the inrush events common during process restarts after emergency shutdowns (ESD). The module’s 3000V isolation voltage provides the creepage and clearance margins required by IEC 60664-1 for equipment installed in Zone 2 classified areas when housed in appropriate Ex e enclosures.

Electric Power Generation & Transmission: In power plant auxiliary systems — including excitation controllers for synchronous generators and thyristor-based automatic voltage regulators (AVRs) — the TT210N14KOF provides the high blocking voltage and current capacity needed to handle reactive load swings without nuisance tripping. Its compatibility with standard i4-PAC footprint heatsink assemblies simplifies maintenance replacement during planned outages, reducing mean time to repair (MTTR) and supporting grid stability obligations.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The TT210N14KOF’s robust ceramic-isolated package withstands these mechanical stresses while maintaining consistent gate trigger characteristics, ensuring reliable speed control of conveyor drives, crusher motors, and ventilation fan systems. Predictable spare parts availability — with guaranteed stock and 12-month warranty coverage — supports the long maintenance intervals typical of remote mining sites.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on thyristor power controllers for precise dosing pump speed regulation and UV disinfection lamp power management. The TT210N14KOF’s low on-state voltage drop minimizes heat generation in sealed control panels, reducing cooling load and extending the service life of co-installed components including Omron CJ2M PLC units and Yokogawa STARDOM field controllers.

Metallurgy & Steel Production: Electric arc furnace (EAF) auxiliary systems and induction heating controllers demand thyristor modules capable of surviving repetitive high-current pulses. The TT210N14KOF’s 3800A surge rating and robust package construction make it a reliable choice for these cyclic-load applications, where module failure results in costly production downtime and potential furnace damage.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the TT210N14KOF?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the Infineon TT210N14KOF datasheet. This includes gate trigger failure, excessive leakage current, isolation breakdown, and thermal resistance out-of-specification. Warranty claims are processed with priority dispatch of a replacement unit to minimize your site downtime. Physical damage resulting from incorrect installation, overvoltage beyond rated VDRM, or improper heatsink mounting is excluded.

Q2: What pre-shipment testing is performed on each TT210N14KOF unit?
Every TT210N14KOF unit undergoes a full parametric verification before dispatch, including off-state blocking voltage test, gate trigger current and voltage measurement, on-state voltage drop check, and isolation voltage withstand test. This ensures that the module you receive meets Infineon’s published specifications and is ready for immediate installation in your control cabinet without additional incoming inspection delays.

Q3: Is the TT210N14KOF compatible with existing i4-PAC heatsink assemblies and firing boards?
Yes. The TT210N14KOF uses the standard ISOPLUS i4-PAC package footprint, which is dimensionally and thermally compatible with heatsink assemblies and firing boards designed for the broader Infineon i4-PAC thyristor family. This direct form-factor compatibility makes the TT210N14KOF a straightforward drop-in replacement for end-of-life or failed modules in existing installations, without requiring mechanical modifications to the control cabinet or changes to the gate drive circuitry.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
We maintain dedicated stock of the TT210N14KOF to support customers with ongoing maintenance and spare parts programs. For facilities operating multiple thyristor power controllers — such as those found in continuous process plants or large motor drive systems — we recommend establishing a consignment stock arrangement or blanket purchase order to ensure guaranteed availability. Our team can provide lead time commitments and volume pricing to support your site’s maintenance planning cycle.
