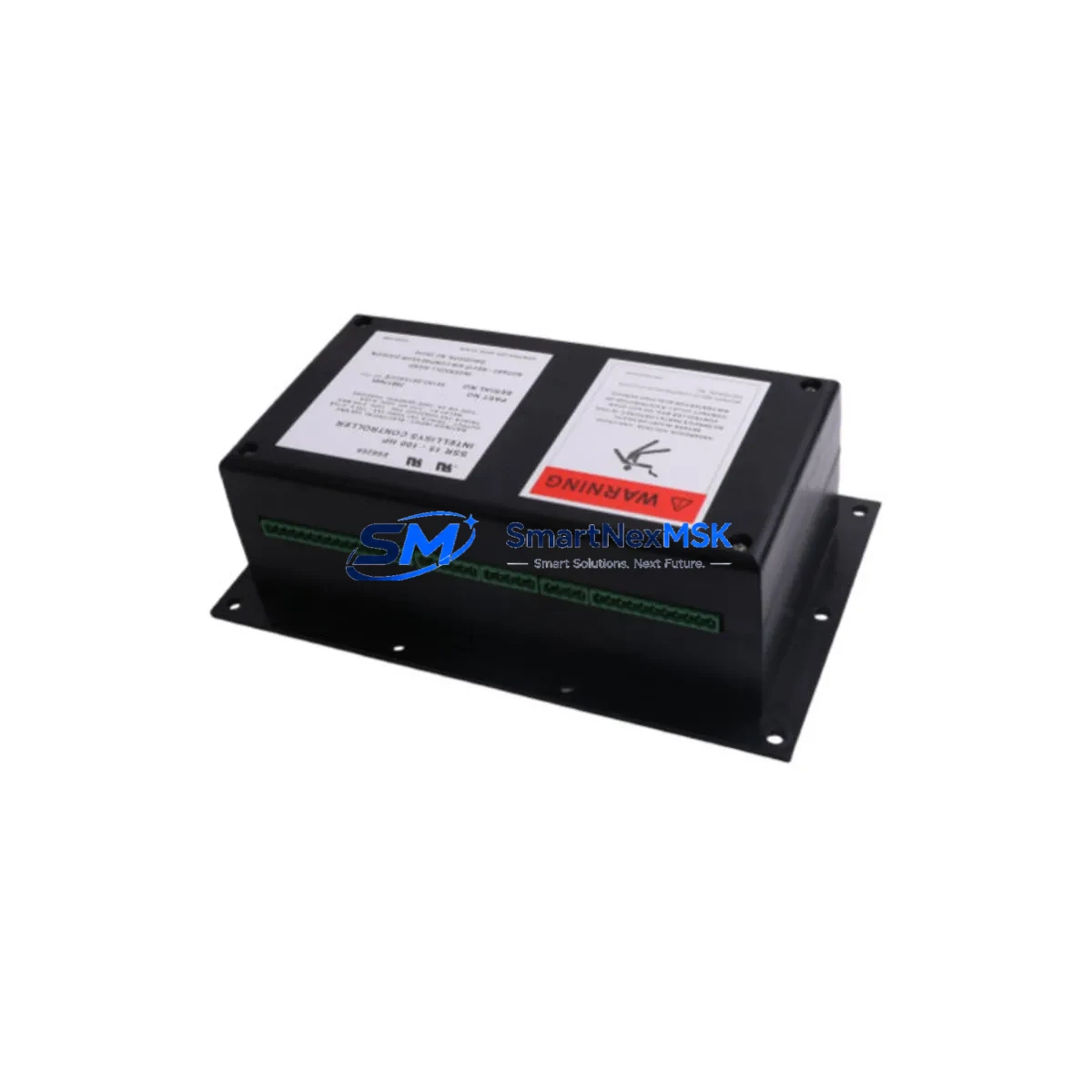

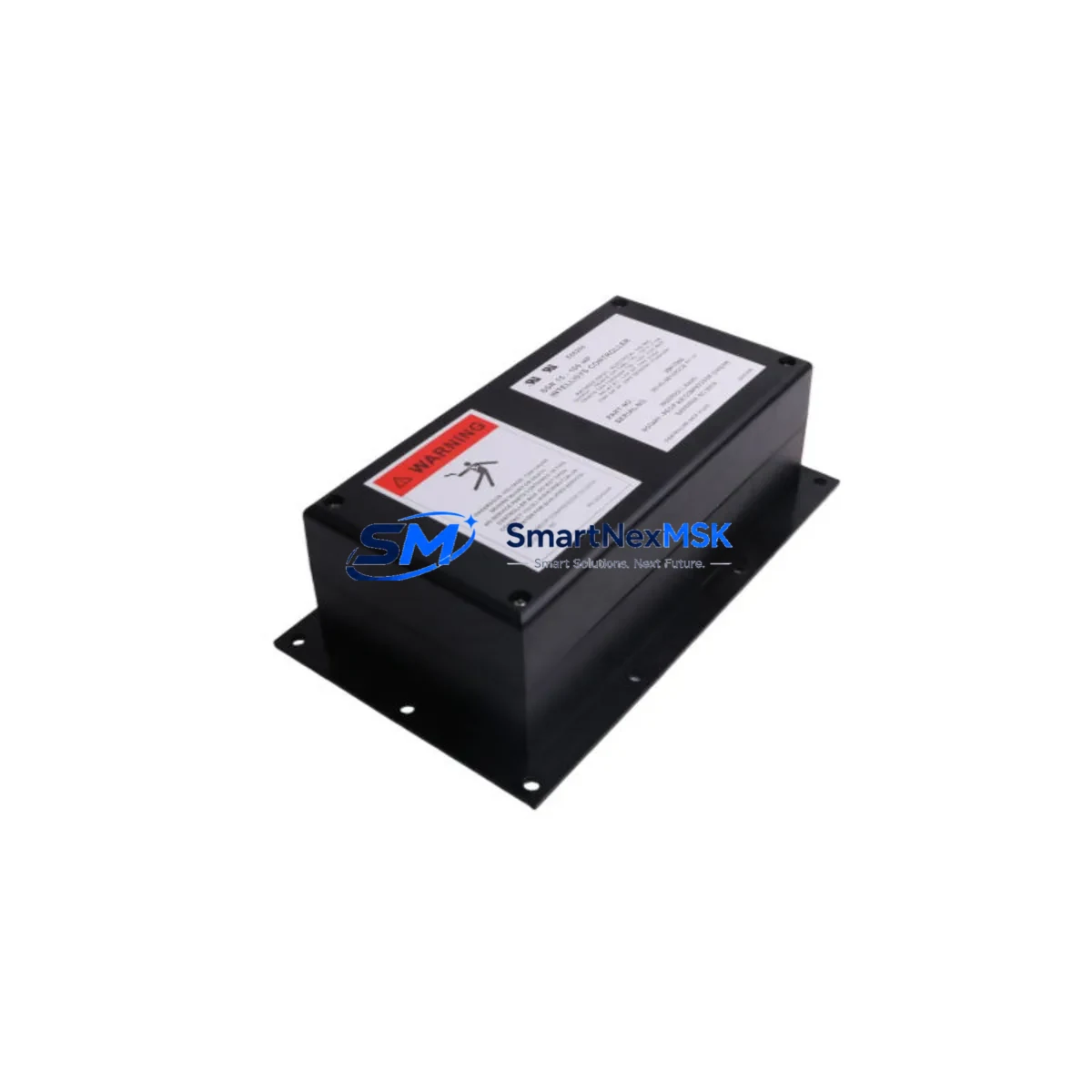

INTELLISYS 39817655 Maintenance-Ready Spare for IntelliSys Automation

INTELLISYS 39817655 Maintenance-Ready Spare for IntelliSys Automation

The INTELLISYS 39817655 is a critical PLC module spare part designed for maintenance engineers and procurement teams managing IntelliSys-based industrial automation systems. Whether you are executing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory for a control cabinet, the 39817655 provides a verified, original-specification replacement that minimizes downtime risk and restores system continuity with confidence.

Industrial facilities running IntelliSys automation platforms understand the operational cost of unplanned downtime. A failed PLC module in a production line, compressor skid, or process control loop can halt output within minutes. Having the INTELLISYS 39817655 on the shelf — pre-tested, properly stored, and ready for immediate installation — is the single most effective insurance against extended outages. This module ships fully tested against original factory parameters, with documentation confirming compatibility with the IntelliSys control architecture.

For maintenance planners and reliability engineers, the 39817655 fits directly into a broader spare parts strategy. It is not an isolated component — it operates within a system of interconnected modules, power supplies, and communication interfaces. Procurement teams sourcing this module should simultaneously review the health and availability of adjacent components to ensure a complete recovery capability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the INTELLISYS 39817655 in the field, experienced maintenance engineers treat the module swap as an opportunity for a broader control cabinet inspection. The 39817655 does not operate in isolation — its performance depends on the integrity of the surrounding system components. During a planned or emergency replacement, the following adjacent items should be inspected or sourced as companion spares:

The IntelliSys power supply module feeding the PLC rack should be checked for output voltage stability and ripple, as a degraded power supply is a common root cause of repeated module failures. The backplane or rack assembly should be inspected for bent pins, oxidation, or mechanical damage at the module slot. Digital I/O modules connected to the same rack segment should be verified for correct signal states and channel integrity — a shorted field device can stress adjacent modules including the 39817655.

The communication interface module (whether Modbus, Profibus, or proprietary IntelliSys network) should be confirmed operational after the PLC module swap, as firmware handshake sequences may require re-initialization. Relay output modules in the same cabinet should be checked for contact wear, particularly if the system has been running under high-cycle conditions. Terminal blocks and wiring harnesses at the I/O marshalling panel should be inspected for loose terminations, which can cause intermittent faults misdiagnosed as module failures.

For facilities with HMI integration, the operator panel or HMI communication link should be tested post-replacement to confirm tag mapping and alarm display are functioning correctly. Signal isolators on analog input channels should be checked for drift, especially in high-temperature or high-vibration environments. Fuse holders and circuit protection devices in the 24VDC control circuit should be inspected and replaced if showing signs of heat stress. Finally, the battery backup module (if present in the IntelliSys rack) should be tested to ensure program retention capability is intact after the module exchange.

Building a companion spare kit around the 39817655 — including at minimum a power supply module, one I/O module of each type in use, and a communication interface card — is the recommended approach for facilities targeting sub-four-hour MTTR (Mean Time to Repair) on their IntelliSys control systems.

Site Replacement Workflow

Replacing the INTELLISYS 39817655 on-site follows a structured sequence designed to minimize system disruption and confirm compatibility before returning the process to automatic control:

Step 1 — Isolation and Backup: Place the affected control loop in manual mode or safe state. Back up the current PLC program to the engineering workstation using the IntelliSys programming software. Document the current module slot address and any DIP switch or jumper settings on the outgoing module.

Step 2 — Physical Replacement: Power down the rack segment (or the full rack if hot-swap is not supported for this module type). Remove the failed 39817655 by releasing the module latch and sliding it from the backplane. Inspect the backplane connector for damage. Insert the new 39817655, ensuring full seating and latch engagement.

Step 3 — Configuration Restore: Power up the rack. Restore the program from backup if required. Confirm the module is recognized by the CPU and that all I/O channels report correct status. Check communication links to the SCADA or DCS host system.

Step 4 — Functional Verification: Run a loop check on all I/O points associated with the replaced module. Confirm analog signal scaling, digital input/output states, and any interlock logic dependent on this module. Return the loop to automatic control only after all checks pass.

This workflow is compatible with both emergency replacement scenarios and planned maintenance windows. For aging IntelliSys installations where the 39817655 may no longer be available through the original OEM channel, sourcing from a verified industrial spare parts supplier with pre-shipment testing and a 12-month warranty is the recommended strategy for extending system life without full platform migration.

Spare Parts Support FAQ

Q1: Is the INTELLISYS 39817655 a direct drop-in replacement for the original module?
Yes. The 39817655 is sourced and verified to original INTELLISYS specifications. It is designed for direct slot replacement in IntelliSys automation racks without hardware modification. Compatibility is confirmed prior to shipment. If your system uses a specific firmware revision, please contact our technical team before ordering.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal industrial operating conditions for 12 months from the date of shipment. Each unit is function-tested before dispatch. In the event of a warranty claim, we provide replacement or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage, or physical impact.

Q3: How should I manage long-term spare parts inventory for IntelliSys systems?
For critical production assets, we recommend holding a minimum of one 39817655 module per control system, stored in anti-static packaging in a climate-controlled environment. For facilities with multiple IntelliSys installations, a pooled spare strategy with a central storeroom and documented check-out procedures is advisable. We offer long-term supply agreements for high-volume or multi-site customers.

Q4: Can you supply the 39817655 for an older or discontinued IntelliSys system?
Yes. We specialize in sourcing spare parts for legacy and end-of-life industrial automation platforms. The 39817655 is available from our inventory for both current and older IntelliSys system variants. All units undergo pre-shipment functional testing regardless of age or sourcing channel, and the 12-month warranty applies to all supplied units.
