INTERFACE PCI-2726CM Maintenance-Ready Spare PCI-2700

INTERFACE PCI-2726CM Maintenance-Ready Spare for PCI-2700 Automation

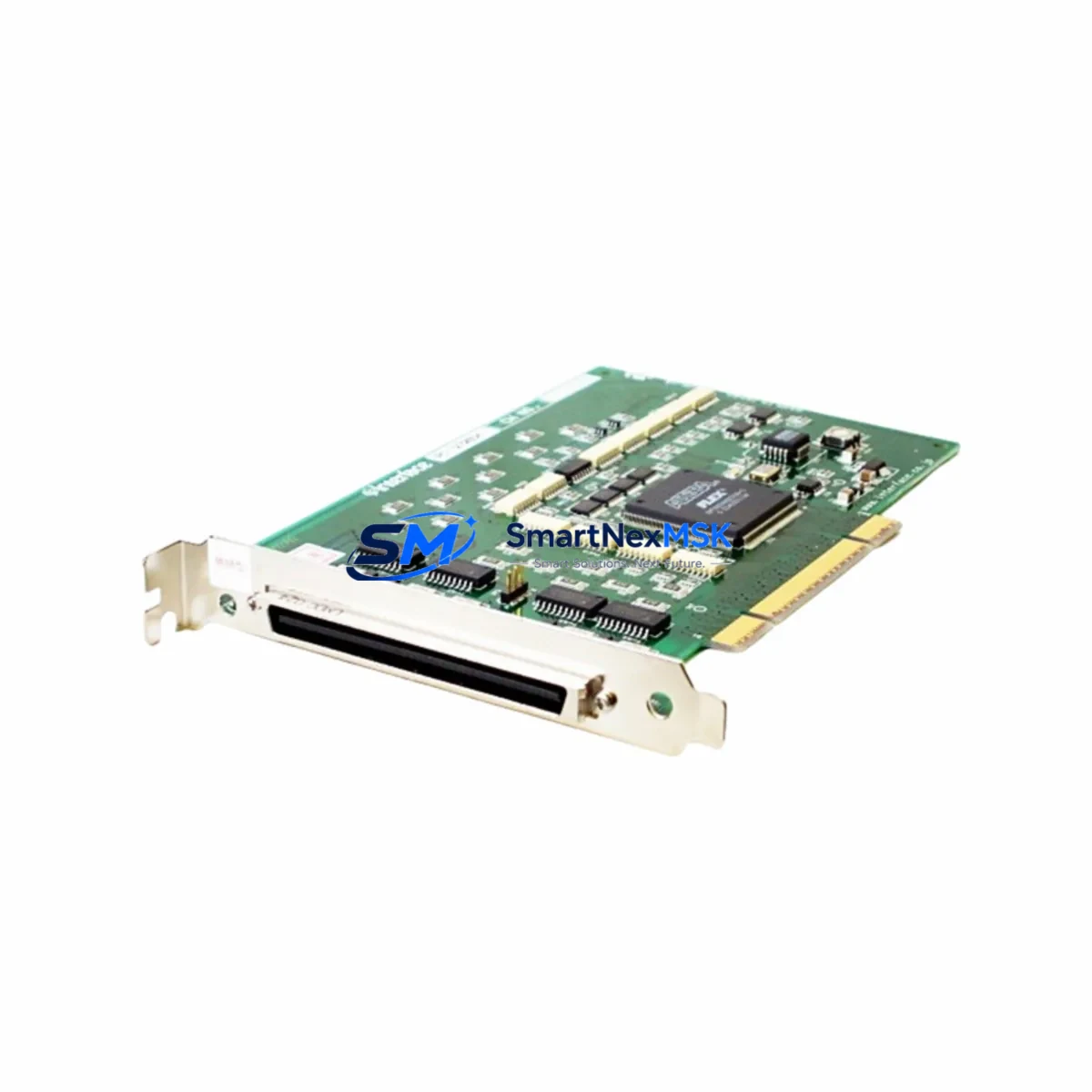

The INTERFACE PCI-2726CM is a 32-channel isolated digital I/O PCI board designed for demanding industrial automation environments. As a maintenance-ready spare, it supports rapid replacement in PCI-2700 series control systems, minimizing unplanned downtime and restoring production continuity with confidence. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a strategic spare parts inventory for aging automation infrastructure, the PCI-2726CM delivers the electrical isolation, channel density, and PCI bus compatibility required for reliable field replacement.

Maintenance engineers and procurement teams working with INTERFACE PCI-2700 series systems recognize the PCI-2726CM as a critical line-replaceable unit. Its 32-channel isolated digital I/O architecture makes it suitable for high-density signal acquisition, relay control, and interlock monitoring across a wide range of industrial applications — from discrete manufacturing to process control and utilities. Stocking this board as a verified spare reduces mean time to repair (MTTR) and eliminates the risk of extended lead times during critical production windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PCI-2726CM in a PCI-2700 series control system, a thorough site inspection is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the IPC chassis power supply — typically a 24 VDC or ATX-format industrial power supply — to confirm stable voltage delivery to the PCI bus before installing the replacement board. Fluctuating or undersized power supplies are a common root cause of digital I/O board degradation in long-running systems.

Next, inspect the field wiring harness and terminal blocks connected to the 50-pin I/O connector. Corroded terminals, loose crimps, or miswired channels can damage the new board immediately upon power-up. If the system uses a INTERFACE TB-32 or equivalent terminal board, verify that the flat cable and connector are in good condition before reconnecting.

For systems where the PCI-2726CM handles relay interlock or safety interlock signals, check the associated relay modules and relay output cards in the same control cabinet. Relay coil failures or contact welding can generate back-EMF spikes that stress I/O board isolation circuits. Replacing the PCI-2726CM without addressing a faulty relay module may result in premature failure of the new board.

If the control system includes a communication module — such as a PCI-based RS-232/RS-485 serial card or a fieldbus interface card — verify that the driver stack and IRQ assignments are not conflicting with the new PCI-2726CM after installation. PCI resource conflicts are a known issue in older industrial PCs running Windows XP or Windows 7 embedded environments.

For systems with an HMI panel connected to the same IPC, confirm that the HMI software (such as INTERFACE’s own API library or a third-party SCADA) correctly maps the I/O channel addresses after board replacement. Channel address offsets can shift if the board is installed in a different PCI slot than the original. Additionally, if the system uses signal isolators or signal conditioners between field sensors and the PCI-2726CM input channels, inspect these components for drift or failure — particularly in high-temperature or high-humidity environments.

Procurement engineers building a spare parts list for PCI-2700 series systems should consider stocking the PCI-2726CM alongside related components: a spare IPC power supply unit, a set of replacement terminal blocks and wiring connectors, at least one spare relay output module for the same control cabinet, and a backup flat cable assembly for the 50-pin I/O connector. For sites with multiple PCI-2700 series systems, a single PCI-2726CM spare can serve as a shared pool spare across installations, reducing total inventory cost while maintaining rapid response capability.

Site Replacement Workflow

The PCI-2726CM is designed for straightforward field replacement with minimal tooling. Begin by safely isolating the control system: follow your site’s lockout/tagout (LOTO) procedure, de-energize the IPC chassis, and discharge any residual voltage in the field wiring. Remove the existing PCI-2726CM by releasing the PCI slot bracket screw and carefully extracting the board from the PCI slot — avoid flexing the PCB during removal.

Before installing the replacement board, visually inspect the PCI slot connector on the motherboard for bent pins, debris, or corrosion. Install the new PCI-2726CM into the same PCI slot where possible to preserve driver resource assignments. Reconnect the 50-pin field wiring connector, ensuring correct orientation and secure locking. Restore power and verify that the operating system recognizes the board using the INTERFACE driver utility or Device Manager.

Perform a channel-by-channel I/O verification test using the INTERFACE diagnostic software or your site’s standard I/O checkout procedure before returning the system to production. Document the replacement date, board serial number, and test results in your maintenance log. This workflow supports compliance with ISO 9001 maintenance record requirements and provides traceability for warranty claims.

For sites migrating from older PCI-2700 series variants, the PCI-2726CM maintains backward compatibility with existing wiring and software configurations, eliminating the need for re-engineering and reducing the total cost of system life extension. This makes it an ideal solution for extending the operational life of legacy automation systems without the capital expenditure of a full platform upgrade.

Spare Parts Support FAQ

Q1: Is the PCI-2726CM compatible with all PCI-2700 series systems?
The PCI-2726CM is designed for the INTERFACE PCI-2700 series and is compatible with standard 32-bit PCI slot industrial PCs. It maintains wiring and software compatibility with other PCI-2700 series boards, making it a direct replacement in most PCI-2700 series installations. For specific compatibility confirmation, provide your system model and existing board configuration to our technical team before ordering.

Q2: What pre-shipment testing is performed on each PCI-2726CM spare?
Every PCI-2726CM unit is function-tested prior to shipment to verify digital I/O channel operation, isolation integrity, and PCI bus communication. Units are shipped with anti-static packaging and include a test report upon request. Our 12-month warranty covers defects in materials and workmanship from the shipment date.

Q3: How should I manage PCI-2726CM inventory for a multi-site operation?
For operations with multiple PCI-2700 series installations, we recommend maintaining at least one PCI-2726CM spare per site cluster, with a centralized pool spare for emergency cross-site deployment. Given typical lead times for original INTERFACE components, holding a verified spare eliminates the risk of extended downtime during critical production periods. Our team can support blanket order arrangements for long-term supply continuity.

Q4: What is the warranty and return policy for the PCI-2726CM spare?
All PCI-2726CM units carry a 12-month warranty from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. Units must be returned in original packaging with a completed RMA form. Our technical team will assess returned units and provide replacement or repair within the warranty period. Contact sales@smartnexmsk.com for RMA initiation and warranty claims.
