Johnson Controls LP-DIS60U00-C Safety-Enhanced Interface Module

Johnson Controls LP-DIS60U00-C Safety-Enhanced Interface Module: Reliable Control in Harsh Industrial Sites

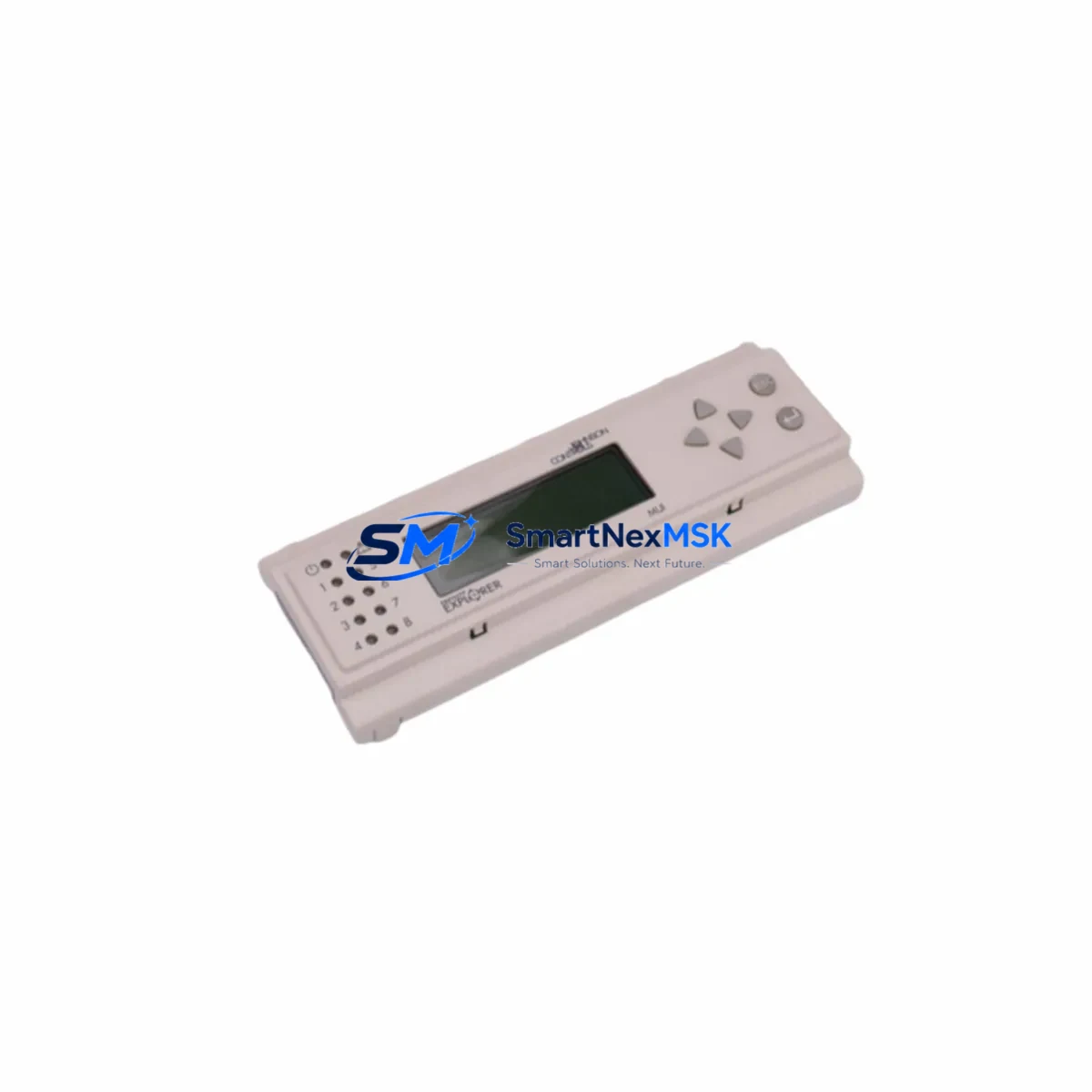

The Johnson Controls LP-DIS60U00-C is a ruggedized Master Unit Interface (MUI) module engineered for the Metasys Building Automation System (BAS). Designed to operate reliably in high-load, high-interference, and continuous-production environments, the LP-DIS60U00-C serves as a critical communication and display bridge between field-level controllers and supervisory networks. In industrial control cabinets where signal integrity, uptime, and personnel safety are non-negotiable, this module delivers the stability and resilience that demanding applications require.

Industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical complexes, and continuous manufacturing lines — depend on uninterrupted BAS communication to maintain safe process conditions. The LP-DIS60U00-C is built to withstand the electrical noise, voltage transients, and thermal stress common in these environments, reducing the risk of control interruption, signal drift, and module mis-operation that can cascade into costly or dangerous shutdowns.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the LP-DIS60U00-C does not operate in isolation — it functions as part of a layered protection architecture. Upstream, a Johnson Controls MS-NAE5510-2 Network Automation Engine manages supervisory-level BACnet/IP communication, while downstream field controllers such as the Johnson Controls MS-FEC2611-0 Field Equipment Controller handle direct I/O. The LP-DIS60U00-C bridges these layers, providing local operator interface and status display without introducing latency or communication bottlenecks.

Power quality is foundational to module longevity. Pairing the LP-DIS60U00-C with a 24 VAC Class 2 transformer rated at adequate VA capacity, supplemented by a DIN-rail surge protection device (SPD) on the 24V bus, significantly reduces the risk of power-induced module faults. In facilities with frequent voltage sags or switching transients — common in heavy motor-load environments — an uninterruptible power supply (UPS) module on the BAS panel bus ensures the interface module remains operational during grid disturbances.

Communication line integrity is equally critical. The N2 Bus and BACnet MS/TP networks connected through the LP-DIS60U00-C are susceptible to ground loops and induced noise in long cable runs across industrial floors. Installing RS-485 signal isolators at panel entry points and using shielded twisted-pair (STP) cable — terminated with proper 120-ohm bus termination resistors — eliminates the common-mode noise that causes communication anomalies and false alarms. For facilities running parallel safety instrumented systems, the LP-DIS60U00-C can coexist in the same cabinet as Honeywell Safety Manager I/O modules or Siemens SIMATIC S7-300 safety CPUs, provided proper segregation of safety and non-safety wiring is maintained per IEC 61511 guidelines.

Thermal management within the control cabinet is another reliability factor. Alongside the LP-DIS60U00-C, DIN-rail mounted cabinet cooling fans or thermostat-controlled panel air conditioners maintain ambient temperatures within the module’s rated operating range, preventing thermal derating and premature component aging. For critical interlock loops where the LP-DIS60U00-C monitors alarm states, integrating a watchdog relay module on the output circuit provides a hardware-level failsafe that triggers a safe-state output if the BAS communication heartbeat is lost.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process facilities handling flammable or toxic materials, the LP-DIS60U00-C supports local operator visibility of BAS alarm states and HVAC interlock status without requiring remote HMI access. This reduces response time to ventilation failures or gas detection events, supporting emergency shutdown (ESD) coordination.

Power Generation Stations: Thermal and hydroelectric power plants rely on precise environmental control in electrical switchgear rooms and turbine control buildings. The LP-DIS60U00-C provides stable BAS interface functionality in environments with high electromagnetic emissions from large transformers and bus bars, maintaining control loop integrity for cooling and fire suppression systems.

Mining Operations: Underground and surface mining facilities subject control equipment to extreme dust, vibration, and temperature cycling. The LP-DIS60U00-C’s ruggedized design and wide storage temperature range make it suitable for surface control rooms serving mine ventilation and dewatering BAS networks, where module failure can compromise worker safety.

Water & Wastewater Treatment: Municipal and industrial water treatment plants operate 24/7 with zero tolerance for control system downtime. The LP-DIS60U00-C enables local monitoring of pump station BAS points, chemical dosing interlocks, and alarm annunciation — reducing dependence on remote SCADA connectivity for critical safety decisions.

Metallurgical & Steel Plants: High-temperature smelting and rolling mill environments generate intense electrical noise. The LP-DIS60U00-C’s EMI-resistant communication architecture maintains reliable N2 Bus and BACnet MS/TP data exchange in these conditions, supporting furnace ventilation control and fume extraction safety systems.

Port & Logistics Terminals: Large-scale port facilities with extensive crane and conveyor motor loads create significant power quality challenges. The LP-DIS60U00-C supports BAS monitoring of fire detection, access control, and HVAC systems across terminal buildings, maintaining safety system visibility even during high-load switching events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the LP-DIS60U00-C?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults identified under normal operating conditions from the date of shipment. Each unit undergoes a full functional test prior to dispatch. If a defect is confirmed within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed through sales@smartnexmsk.com with a typical response within 24 business hours.

Q2: How is the LP-DIS60U00-C tested before shipment?
Every LP-DIS60U00-C unit is subject to pre-shipment inspection including power-on functional verification, communication port continuity check, and visual inspection for physical damage. Units that do not pass inspection are quarantined and not dispatched. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the LP-DIS60U00-C compatible with current Metasys system versions?
The LP-DIS60U00-C is designed for compatibility with Johnson Controls Metasys NAE, NCE, and LCS series network engines running Metasys Release 9.x and earlier. For integration with Metasys Release 10.x and later architectures, compatibility should be verified against the Johnson Controls Metasys system configuration guide. Our technical team can assist with compatibility assessment prior to purchase — contact sales@smartnexmsk.com.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. SMARTNEXMSK maintains dedicated inventory of the LP-DIS60U00-C and compatible Metasys BAS components to support ongoing maintenance, spare parts programs, and emergency replacement requirements. We serve industrial clients with planned procurement cycles as well as urgent field replacement needs. For volume orders or scheduled supply agreements, contact our sales team to discuss availability and lead times.
