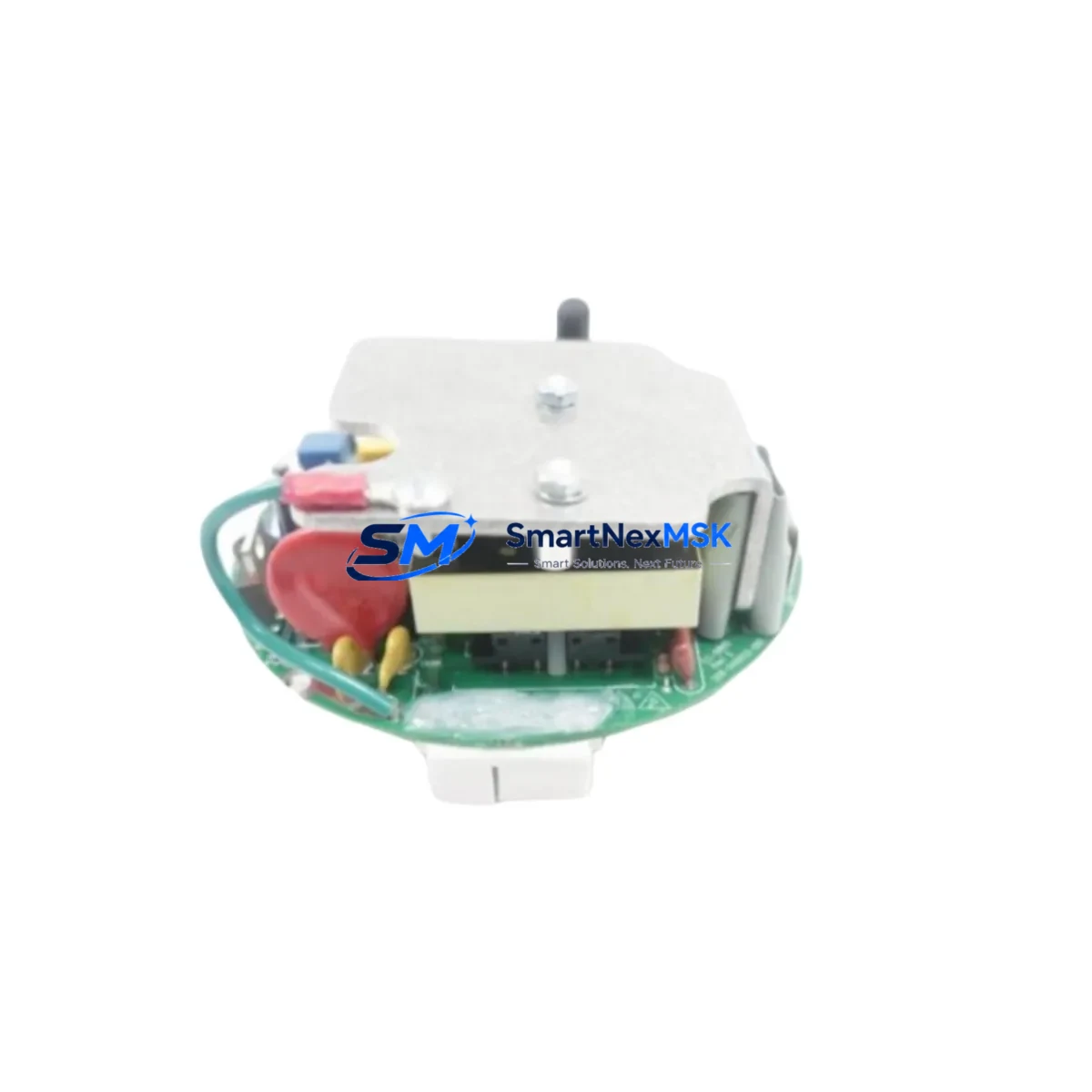

JORDAN CONTROL 50B-040652-001 Retrofit-Ready PLC Board for EC-0895 Control Systems
The JORDAN CONTROL 50B-040652-001 is a retrofit-ready PLC circuit board engineered as a direct replacement for legacy EC-0895 series control systems. As industrial facilities face increasing pressure to modernize aging automation infrastructure without full-line shutdowns, this board provides a proven, cost-effective path to extend system life, restore reliable control, and bridge the gap between discontinued hardware and current operational demands.
Whether you are managing a planned upgrade cycle or responding to an unplanned failure of an obsolete EC-0895 board, the 50B-040652-001 is sourced, tested, and shipped ready for installation. Each unit undergoes functional verification prior to dispatch, covering power-on diagnostics, I/O channel integrity, and communication link validation. A 12-month warranty is included with every shipment.
Upgrade Compatibility Table
| Parameter | Legacy EC-0895 Board | 50B-040652-001 Retrofit Board |
|---|---|---|
| Form Factor | EC-0895 rack-mount | Direct drop-in, same rack footprint |
| Backplane Interface | EC-0895 series backplane connector | Compatible — no backplane modification required |
| Terminal Wiring | Original field wiring retained | Pin-compatible — no rewiring required |
| Communication Protocol | Legacy serial / proprietary EC-0895 link | Compatible; verify baud rate and node address before power-on |
| Power Supply Requirement | Per EC-0895 spec | Confirm PSU capacity covers new board draw; recommend JORDAN CONTROL compatible PSU |
| I/O Channel Count | EC-0895 native I/O | Equivalent channel count; verify module address assignment |
| Program Compatibility | EC-0895 ladder logic / function blocks | Logic retained; re-download recommended after board swap |
| HMI Interface | Existing HMI panel link | Verify HMI tag mapping and screen variable addresses post-swap |
| Commissioning Requirement | — | Cold-start test, I/O scan, comms link check, HMI confirmation |
| Warranty | Expired / discontinued | 12 Months from shipment date |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 50B-040652-001 into an EC-0895 control cabinet begins well before the board arrives on site. Engineers should start by auditing the existing control panel layout: confirm the rack and backplane model, verify that the power supply module delivers sufficient current headroom for the replacement board, and photograph all existing terminal wiring before disconnection. In many EC-0895 installations, the control cabinet also houses companion modules — including discrete input/output expansion cards, analog signal conditioning modules, and dedicated communication interface cards — that must remain undisturbed during the board swap.
For sites running multi-drop serial networks, the node address configured on the original board must be documented and replicated on the 50B-040652-001 before the unit is seated in the rack. Communication links — whether RS-232, RS-485, or a proprietary EC-0895 fieldbus — should be verified at the physical layer using a loop-back test or protocol analyzer before the PLC program is re-downloaded. If the installation includes a JORDAN CONTROL programming cable or a dedicated programming adapter for the EC-0895 platform, ensure the cable driver version is compatible with the replacement board firmware.
Many EC-0895 retrofit projects also involve adjacent upgrades. It is common to simultaneously replace the EC-0895 series power supply module when the original PSU shows signs of capacitor aging or voltage drift. Similarly, if the installation uses legacy EC-0895 analog input modules or thermocouple input cards, this is an appropriate time to evaluate whether those modules require replacement or recalibration. For systems with HMI panels — particularly older operator terminals communicating over a dedicated serial port — verify that the HMI screen database and tag variable addresses remain consistent after the board swap. Some sites will need to re-export and re-import the HMI project file to confirm tag integrity.
Where the retrofit scope extends to I/O expansion, engineers should confirm that any remote I/O expansion racks connected to the EC-0895 system are addressed correctly and that the new board’s I/O scan cycle time is within the tolerance of the existing field devices. Proximity sensors, solenoid valve drivers, and motor starter interlocks connected through the original EC-0895 digital output modules should each be individually verified during the commissioning walk-through. If the site uses a JORDAN CONTROL communication gateway to bridge the EC-0895 network to a supervisory SCADA system or DCS, confirm that the gateway’s polling configuration does not require adjustment after the board replacement.
Downtime Control During System Migration
Minimizing production downtime during a PLC board replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, back up the complete PLC program — including all data blocks, retentive memory values, and communication configuration parameters — using the appropriate programming software for the EC-0895 platform. Store the backup on at least two independent media to protect against data loss during the swap.
During the outage window, follow a strict sequence: isolate power to the control cabinet, discharge any residual voltage on the backplane bus, remove the failed or obsolete board, seat the 50B-040652-001 firmly into the rack connector, and restore power in a controlled step-up sequence. Do not attempt to run the PLC program until the communication link to the programming terminal has been confirmed and the I/O module status indicators show normal. Re-download the program from the verified backup, perform a forced I/O test on all critical output channels, and confirm that the HMI operator panel is displaying correct process values before releasing the system to automatic control.
For continuous-process industries where even brief interruptions carry significant cost, consider staging a pre-configured and pre-tested 50B-040652-001 board in advance — loaded with the current program backup and pre-set with the correct node address and communication parameters — so that the physical swap and recommission can be completed within a single planned maintenance shift. This approach, combined with a documented rollback procedure using the original board (if still functional), provides the highest level of operational continuity during the migration.
Retrofit Support FAQ
Q1: Is the 50B-040652-001 a direct drop-in replacement for the original EC-0895 board?
Yes. The 50B-040652-001 is designed as a form-fit-function replacement for the EC-0895 series board. It uses the same rack mounting, backplane connector, and terminal wiring layout. No structural modifications to the control cabinet are required. Verify module address and communication settings before power-on.
Q2: Do I need to rewrite my PLC program after installing the replacement board?
No rewrite is required. Your existing EC-0895 ladder logic and function block program is compatible with the 50B-040652-001. We recommend re-downloading the program from a verified backup after installation to ensure all retentive data values and communication parameters are correctly initialized on the new board.
Q3: What pre-shipment testing does the 50B-040652-001 undergo?
Every unit is functionally tested prior to dispatch. Testing covers power-on initialization, I/O channel continuity, communication port response, and basic diagnostic self-check. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Q4: What if my EC-0895 system uses additional expansion modules or a communication gateway?
The 50B-040652-001 is compatible with standard EC-0895 series expansion configurations. If your system includes analog input modules, digital I/O expansion cards, or a communication gateway connecting to a SCADA or DCS, these components do not need to be replaced as part of the board swap. Confirm node addressing and baud rate settings on the gateway after the replacement to ensure the supervisory link is re-established correctly.
