JUSUNG 30895004 Maintenance-Ready Spare for CVD/ALD Automation

JUSUNG 30895004 Maintenance-Ready Spare for CVD/ALD Automation

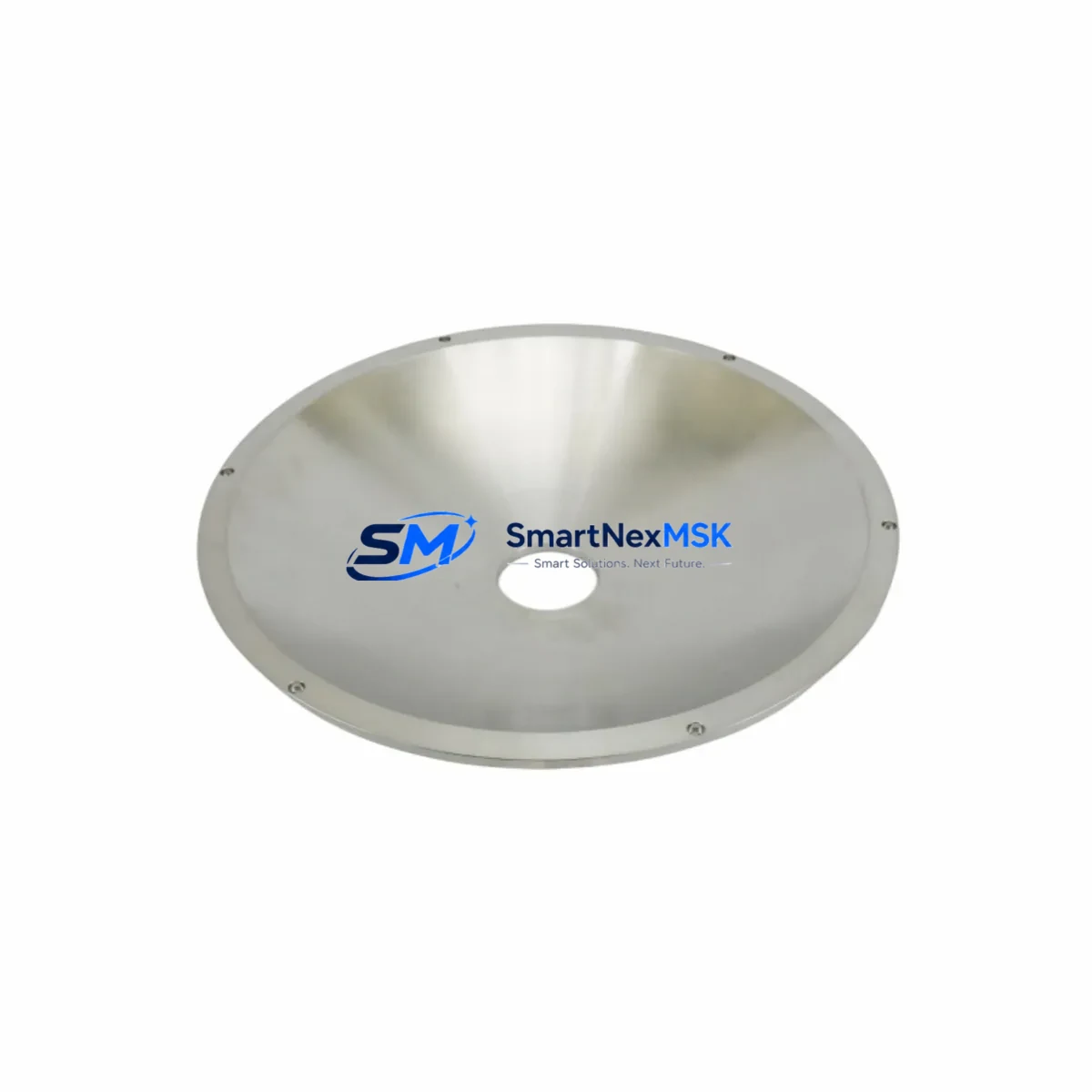

Unplanned downtime in CVD and ALD semiconductor process chambers carries severe production cost consequences. The JUSUNG 30895004 (cross-reference: P30895004, 4022.437.11211, 15KLD02Z) is an original chamber unit spare part engineered for JUSUNG process equipment platforms. Sourced directly from verified supply channels, this component supports rapid field replacement, minimizes mean time to repair (MTTR), and restores process integrity without requiring chamber recertification from scratch.

For maintenance engineers managing CVD or ALD tool fleets, having a pre-qualified JUSUNG 30895004 on the shelf is a proven strategy for reducing unscheduled outages. This part is tested prior to shipment, packaged to OEM standards, and backed by a 12-month warranty covering manufacturing defects and functional performance. Whether you are executing a planned PM cycle, responding to a process alarm, or extending the service life of an aging JUSUNG system, this spare delivers the compatibility and reliability your operation demands.

Procurement engineers will appreciate the long-term supply commitment: SMARTNEXMSK maintains dedicated stock of high-demand JUSUNG chamber components, enabling consistent lead times and reducing the risk of single-source dependency for critical process tools.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a JUSUNG 30895004 chamber unit requires replacement, experienced process engineers treat the event as a trigger for a broader system health review. A single component failure in a CVD or ALD module rarely occurs in isolation — thermal cycling, process gas exposure, and RF power stress affect multiple assemblies simultaneously.

During a planned replacement of the 30895004, maintenance teams should inspect and, where appropriate, pre-stage spares for the following associated components:

• Chamber heater assemblies and thermocouple sensors — thermal uniformity directly impacts deposition quality; verify calibration and element integrity during any chamber access event.
• RF match network and generator interface modules — plasma-assisted CVD/ALD processes depend on stable RF coupling; inspect connectors, capacitor banks, and tuning actuators.
• Gas delivery manifold valves and MFC units — precursor and purge gas flow accuracy is critical; check valve seats and mass flow controller zero-point drift.
• Vacuum pump interface flanges and foreline isolation valves — base pressure recovery after maintenance depends on flange integrity and valve seat condition.
• Chamber lid O-ring and seal kits — elastomeric seals degrade with thermal cycles; replace proactively during any chamber opening to avoid repeat access.
• Substrate susceptor and lift pin assemblies — inspect for warping, contamination, and pin travel consistency when the chamber is open.
• Process controller I/O cards and interlock relay modules — verify that all safety interlocks, pressure switches, and temperature limit relays are functional before returning the tool to production.
• Communication interface modules (RS-232/RS-485/EtherCAT) — confirm tool-to-host communication integrity after any hardware intervention to prevent recipe execution errors.
• HMI display panels and operator interface terminals — aging HMI units in long-running JUSUNG systems may exhibit touchscreen degradation or firmware instability; assess during extended PM windows.
• Signal isolation barriers and analog input conditioning modules — sensor signal integrity for temperature, pressure, and flow inputs should be verified, particularly in older control cabinet configurations.

Stocking a consolidated spare kit covering the 30895004 alongside these associated components allows maintenance teams to execute full PM cycles without waiting for secondary parts deliveries — a critical advantage in high-utilization fab environments.

Site Replacement Workflow

Replacing the JUSUNG 30895004 follows a structured field procedure designed to minimize chamber downtime and preserve process qualification status:

1. Pre-replacement verification: Confirm the incoming spare part number against the installed unit label and equipment BOM. Cross-check against known equivalents P30895004, 4022.437.11211, and 15KLD02Z to ensure compatibility before breaking the chamber seal.
2. Safe isolation: Follow LOTO (Lockout/Tagout) procedures. Vent the chamber to atmosphere, isolate RF power, and confirm gas line purge completion before accessing the chamber interior.
3. Component extraction: Document the as-found condition with photographs. Remove the failed 30895004 unit per the JUSUNG field service manual torque and sequence specifications.
4. Installation of replacement unit: Install the new JUSUNG 30895004 spare, applying correct torque values and verifying all electrical and mechanical connections. Replace any co-located seals or gaskets as a matter of course.
5. System recommissioning: Perform pump-down leak check, confirm base pressure recovery, and execute a short process qualification run before releasing the tool to production scheduling.
6. Documentation and stock replenishment: Log the replacement event in your CMMS, update the spare parts inventory, and initiate a reorder for the consumed 30895004 unit to maintain buffer stock levels.

This workflow applies equally to scheduled PM replacements and emergency corrective maintenance scenarios. The pre-tested, OEM-sourced JUSUNG 30895004 from SMARTNEXMSK eliminates the uncertainty associated with aftermarket or refurbished alternatives, supporting faster tool qualification and reduced re-work risk.

Spare Parts Support FAQ

Q1: Is the JUSUNG 30895004 an original OEM part or an aftermarket equivalent?
The 30895004 supplied by SMARTNEXMSK is sourced from verified OEM supply channels. Each unit is an original JUSUNG-manufactured component, not an aftermarket reproduction. Pre-shipment functional testing is performed on every unit, and the part is covered by a 12-month warranty against manufacturing defects and performance failures.

Q2: How do I confirm compatibility with my specific JUSUNG chamber model?
Compatibility can be confirmed by matching the part number 30895004 (or cross-references P30895004, 4022.437.11211, 15KLD02Z) against your equipment BOM or the installed unit label. If you require additional confirmation, contact our technical team with your chamber model and serial number — we will verify fit before shipment.

Q3: What is the recommended spare parts stocking strategy for JUSUNG CVD/ALD systems?
For high-utilization tools, we recommend maintaining a minimum of one 30895004 unit on-site as a ready spare, supplemented by a broader PM kit covering seals, heater elements, and I/O interface components. For multi-tool fab environments, a centralized spare pool with defined reorder points reduces both carrying cost and stockout risk. SMARTNEXMSK supports blanket order arrangements for customers with recurring demand.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, process misuse, or physical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference, a description of the failure mode, and photographic documentation. Replacement or credit will be processed upon evaluation.
