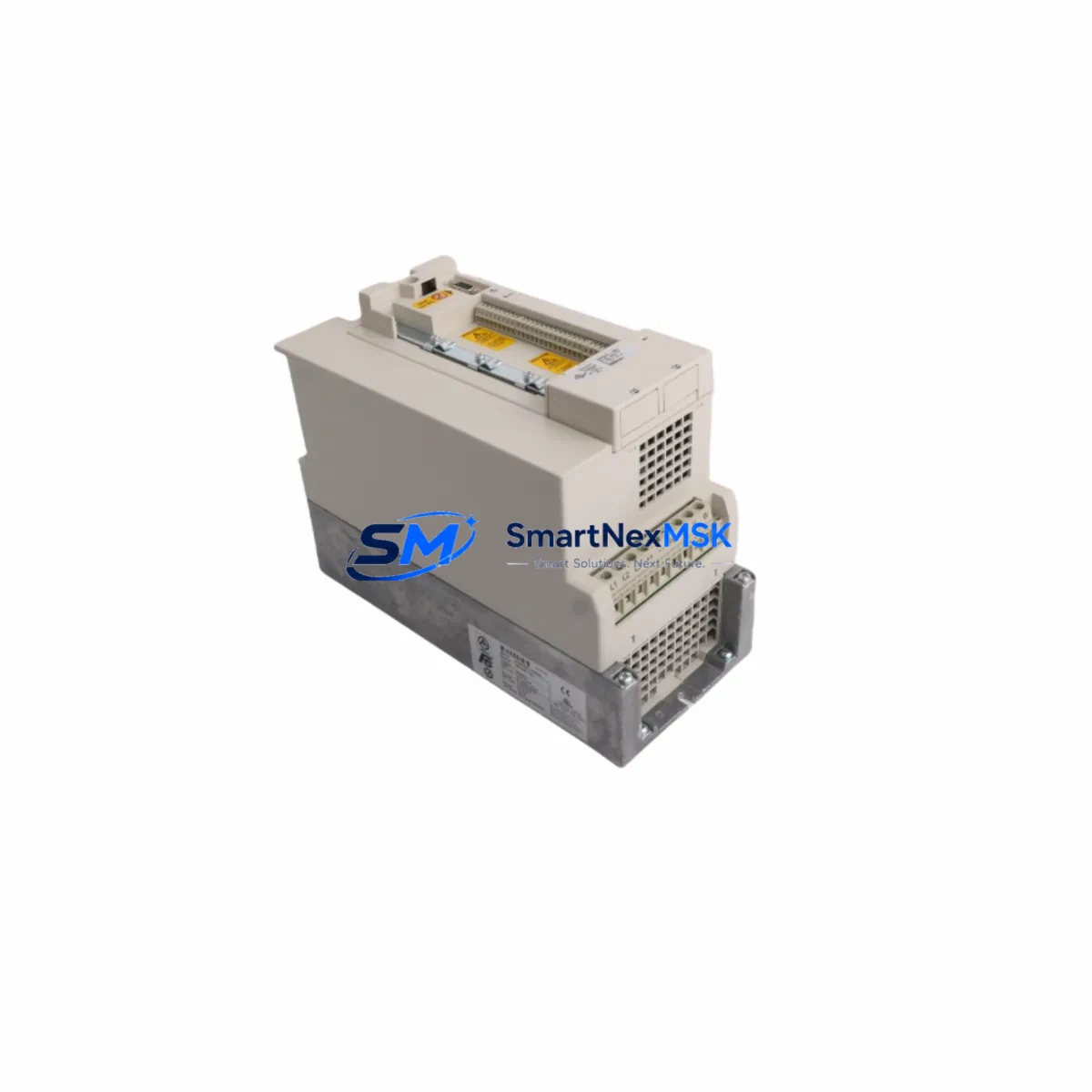

KEB 15F5G1E-Y001 Retrofit-Ready VFD for COMBIVERT F5 Systems

KEB 15F5G1E-Y001 Retrofit-Ready VFD for COMBIVERT F5 Systems: Seamless Compatibility and Legacy System Upgrade

The KEB 15F5G1E-Y001 is a retrofit-ready Variable Frequency Drive (VFD) engineered for direct replacement and smooth integration into existing KEB COMBIVERT F5 control architectures. As industrial facilities face increasing pressure to modernize aging automation infrastructure without full system overhauls, the 15F5G1E-Y001 provides a technically validated, cost-effective path to extend operational life, restore discontinued spare parts, and upgrade drive performance — all while preserving existing wiring, programming logic, and HMI configurations.

Whether you are replacing a failed unit on a legacy production line, upgrading a control cabinet to meet current safety standards, or migrating from an obsolete COMBIVERT F4 or F5 generation drive, the 15F5G1E-Y001 is designed to minimize engineering rework and reduce commissioning time on the factory floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KEB 15F5G1E-Y001 into a legacy control system requires a structured pre-installation assessment. Engineers and maintenance teams should begin by auditing the existing control cabinet layout, confirming available DIN rail space, and verifying that the existing 24VDC control power supply — typically a KEB or third-party SITOP-class PSU — can support the auxiliary power draw of the new drive alongside other active components such as safety relays and I/O terminals.

Terminal wiring compatibility is a critical checkpoint. The 15F5G1E-Y001 uses the standard COMBIVERT F5 terminal block arrangement, but engineers replacing an older F4-generation unit must carefully remap analog input signals (0–10V or 4–20mA), digital input assignments, and relay output wiring. In many retrofit scenarios, the existing KEB X2A and X2B terminal connectors can be reused directly, significantly reducing rewiring time.

For systems using a KEB COMBIVERT option card — such as the PROFIBUS-DP communication module or the CANopen interface card — the option card slot position and firmware version must be verified before transfer. In multi-drive installations where several COMBIVERT F5 units share a common DC bus or are coordinated via a KEB C6 controller or similar master PLC, the drive node address and baud rate settings must be reconfigured to match the existing network topology.

I/O expansion modules connected to the original drive — including digital I/O extension terminals and encoder feedback cards — should be tested for signal integrity after installation. If the system includes a KEB HMI panel or a third-party operator panel communicating over RS-485, the panel’s drive parameter address map must be validated against the replacement unit’s register set to avoid display errors or control faults.

In applications involving servo-adjacent motion control, where the COMBIVERT F5 operates alongside a KEB COMBIVERT S or T series servo drive on a shared control platform, engineers should confirm that the master controller’s scan cycle and drive response time remain within acceptable limits after the swap. Backplane-mounted configurations using a KEB rack system require verification of slot addressing and termination resistor settings on the fieldbus segment.

For facilities running Siemens S7-300 or S7-400 PLCs as the supervisory controller, the existing GSD file for the PROFIBUS-DP drive node should be re-imported and the hardware configuration updated in STEP 7 or TIA Portal to reflect the replacement unit. Similarly, installations using Allen-Bradley ControlLogix or CompactLogix as the host controller over EtherNet/IP will require an updated EDS file and drive profile verification in Studio 5000.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any drive replacement on a live production line. The recommended approach for the KEB 15F5G1E-Y001 retrofit is a pre-staged swap strategy: the replacement drive is fully pre-configured offline using the KEB COMBIVERT PC software tool before the maintenance window begins. All motor nameplate data, acceleration and deceleration ramp profiles, current limits, and fieldbus node parameters are loaded and verified on the bench unit prior to installation.

During the maintenance window, the original drive’s parameter set should be exported and archived as a backup — even if the unit is faulty — as the parameter file serves as the authoritative reference for the replacement configuration. Once the 15F5G1E-Y001 is physically installed and wired, a controlled no-load test run should be performed before reconnecting the motor load, confirming that direction of rotation, speed reference scaling, and fault relay outputs are functioning correctly.

For critical processes where even brief interruptions are unacceptable, a parallel run strategy can be employed: the replacement drive is installed in a bypass configuration alongside the original unit, with a manual or automatic changeover contactor allowing the system to switch between drives without stopping the process. This approach is particularly effective in pump and fan applications where the COMBIVERT F5 controls a continuous flow process.

After commissioning, the original program logic in the host PLC — whether running on a Siemens S7, Mitsubishi MELSEC, or Omron CJ-series controller — should be verified to confirm that all drive status bits, fault codes, and speed feedback signals are being received correctly. HMI screens displaying drive speed, current, and fault status should be tested under live conditions before the maintenance window is closed and normal production resumes.

Retrofit Support FAQ

Q1: Is the KEB 15F5G1E-Y001 a direct drop-in replacement for my existing COMBIVERT F5 unit?
In most cases, yes. The 15F5G1E-Y001 shares the same mechanical footprint, terminal block layout, and parameter structure as the standard COMBIVERT F5 series. However, engineers should verify the power rating, option card configuration, and firmware version of the original unit before installation. Minor parameter adjustments may be required for motor-specific tuning.

Q2: What communication protocols does the 15F5G1E-Y001 support, and will my existing fieldbus wiring be compatible?
The 15F5G1E-Y001 supports PROFIBUS-DP, CANopen, and RS-232/485 communication via the COMBIVERT F5 option card system. If your existing installation uses one of these protocols, the original communication wiring and network configuration can typically be retained. The option card from the original drive may be transferable to the replacement unit — confirm slot compatibility before proceeding.

Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
Every KEB 15F5G1E-Y001 unit undergoes functional testing prior to shipment, including power-on verification, I/O signal checks, and communication interface validation where applicable. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range.

Q4: Can I reuse my existing motor cables and braking resistor when installing the 15F5G1E-Y001?
Yes, in most retrofit scenarios the existing motor output cables and external braking resistor can be reused, provided they are rated for the drive’s output current and voltage. Inspect cable insulation and connector condition before reuse. Verify that the braking resistor value and wattage rating are within the COMBIVERT F5 specification for the 15F5G1E-Y001’s power class to avoid thermal overload during deceleration cycles.
