Keithley KPCI-PIO32IOA Spare for KPCI Series Automation

Keithley KPCI-PIO32IOA Spare for KPCI Series Automation

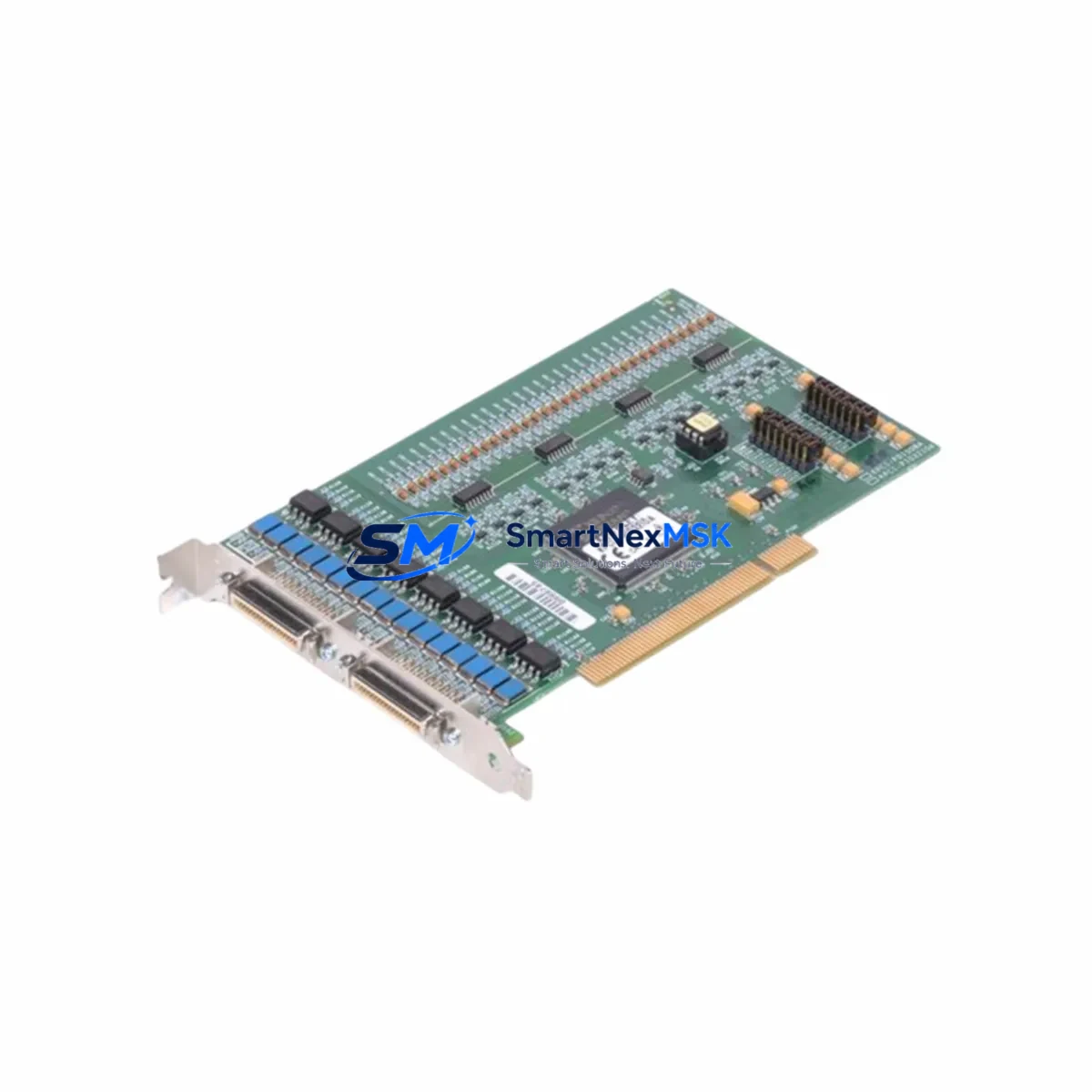

The Keithley KPCI-PIO32IOA is a 32-channel TTL-level digital I/O PCI card designed for industrial data acquisition and automation control systems. As a maintenance-ready original spare, this unit supports rapid replacement in KPCI Series-based control architectures, minimizing unplanned downtime and restoring system continuity with full hardware compatibility. Each unit is sourced, inspected, and dispatched with a 12-month warranty, making it a reliable choice for maintenance engineers managing aging PCI-bus automation platforms.

For facilities running Keithley KPCI Series instrumentation in process control, laboratory automation, or machine monitoring environments, maintaining a stocked spare of the KPCI-PIO32IOA is a proven strategy for reducing mean time to repair (MTTR). The card interfaces directly with standard PCI slots and supports both input and output operations across 32 TTL-compatible channels, making it suitable for relay driving, sensor polling, interlock monitoring, and digital signal conditioning tasks common in industrial maintenance scenarios.

When replacing a failed or degraded KPCI-PIO32IOA, maintenance teams should conduct a full inspection of the surrounding control cabinet environment. Verify the integrity of the host PC or industrial computer’s PCI bus, check for signs of oxidation or mechanical stress on the card edge connector, and confirm that the system BIOS and driver stack remain compatible with the replacement unit. Firmware version alignment between the new card and the existing DriverLINX or Measurement Computing software layer is critical to avoid I/O mapping conflicts after hot-swap or cold replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for systems using the KPCI-PIO32IOA should extend beyond the card itself. During scheduled cabinet inspections or corrective maintenance events, engineers should simultaneously evaluate the following components within the same control loop or chassis:

The KPCI-3108 analog input card and KPCI-3116 analog output card are frequently co-installed in the same PCI chassis and share the same DriverLINX software environment — a failure in one card often prompts a full audit of the others. The SCC-68 or equivalent signal conditioning connector block, used to interface field wiring to the KPCI-PIO32IOA via the 50-pin header, should be inspected for terminal corrosion, loose screw connections, and cable shield continuity. Fuse integrity on the 24 VDC field power rail feeding relay coils driven by the I/O card outputs must be verified, as blown fuses are a common secondary symptom of I/O card failure.

If the KPCI-PIO32IOA is used in a relay output configuration, the associated SSR-OAC5A or equivalent solid-state relay modules should be tested for leakage current and switching response. For systems using the card in conjunction with a Keithley 2700 or 2750 multiplexer/switch mainframe, verify that the digital trigger lines and handshake signals remain within TTL thresholds after card replacement. Terminal blocks such as the TB-2715 or equivalent DIN-rail mounted blocks used for field termination should be torque-checked and visually inspected for insulation degradation.

In older installations where the KPCI-PIO32IOA interfaces with a SCXI signal conditioning chassis, the SCXI backplane power supply and module seating should be confirmed before commissioning the replacement card. Additionally, the host industrial PC’s power supply unit (PSU) should be load-tested — an aging PSU with marginal 3.3 V or 5 V rail output is a frequent root cause of intermittent PCI card failures that are misdiagnosed as card-level faults.

Site Replacement Workflow

Replacing the KPCI-PIO32IOA on-site follows a structured sequence to minimize downtime and ensure system integrity:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number matches KPCI-PIO32IOA exactly. Cross-reference the board revision if the existing installation uses a specific driver version. Download and retain the current system configuration backup from the DriverLINX Device Manager or equivalent software before powering down.

2. Safe Shutdown: Execute a controlled process shutdown via the SCADA or HMI interface. Disable all digital outputs through software before cutting power to avoid relay chatter or field device faults. Power down the industrial PC and discharge any residual PCI bus voltage by holding the power button for 5 seconds after shutdown.

3. Physical Replacement: Remove the failed KPCI-PIO32IOA from the PCI slot using ESD-safe procedures. Inspect the slot for bent pins or debris. Seat the replacement card firmly and evenly, ensuring the bracket is secured. Reconnect the 50-pin SCSI cable to the SCC or terminal block, verifying pin-1 orientation.

4. Driver and Configuration Restore: Power on the system and allow the OS to detect the new PCI device. Install or re-confirm the DriverLINX driver version. Restore the saved channel configuration and verify I/O mapping matches the pre-failure baseline. Perform a channel-by-channel functional test using the DriverLINX diagnostic utility or equivalent test tool before returning the system to production.

5. Return to Service: Re-enable process outputs sequentially, monitor for alarm conditions, and log the replacement event in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement KPCI-PIO32IOA for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the KPCI-PIO32IOA still available as a new original spare?
Yes. SMARTNEXMSK maintains stock of original KPCI-PIO32IOA units sourced from authorized channels. Each unit undergoes functional verification prior to shipment. For legacy KPCI Series systems, we recommend securing at least one spare unit per active installation to support rapid replacement without lead-time risk.

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers hardware defects in materials and workmanship under normal operating conditions. Each unit is tested before dispatch. In the event of a warranty claim, SMARTNEXMSK provides replacement or repair support. Warranty does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside specified voltage and temperature ranges.

Q3: How do I confirm compatibility before ordering?
Compatibility is confirmed by matching the PCI bus interface (32-bit, 33 MHz), the 50-pin SCSI-II connector pinout, and the DriverLINX or Measurement Computing UL software version in use at your site. If you are unsure of your system’s driver version or board revision requirements, contact our technical team with your existing card’s label information and we will advise before shipment.

Q4: Can SMARTNEXMSK support long-term or blanket spare parts orders for the KPCI Series?
Yes. For maintenance teams managing multiple KPCI Series installations or planning multi-year lifecycle support for aging automation systems, SMARTNEXMSK offers long-term supply agreements and priority stock reservation. Contact us to discuss volume pricing, scheduled delivery, and extended support options for your spare parts program.
