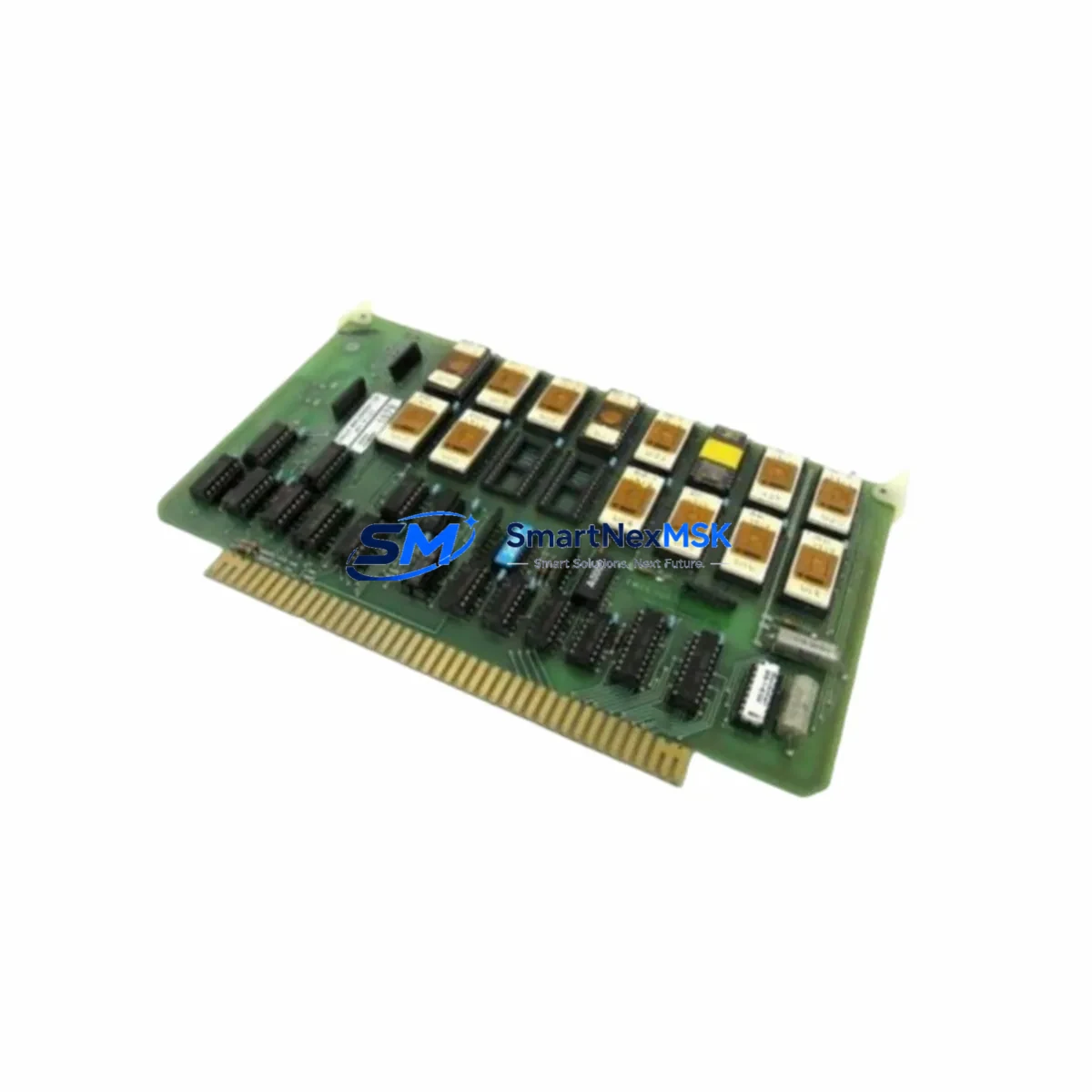

The KINT 3402121100 is an original PCB control board engineered for the 640-34021210XD series automation platform. Carrying dual variant designations — 640-34021210XD-1BA and 640-34021210XD-2BA — this board serves as a direct, drop-in replacement for aging or failed units in industrial control cabinets. For maintenance engineers managing continuous production lines, elevator drive systems, HVAC automation, or general-purpose inverter-based machinery, having a verified spare of this board on the shelf is a frontline strategy against unplanned downtime.

SMARTNEXMSK supplies this board as a tested, original-grade spare with full functional verification prior to dispatch. Each unit is backed by a 12-month warranty and ships with inspection documentation. Whether you are executing a planned overhaul, responding to an emergency fault, or building out your site’s critical spare inventory, the KINT 3402121100 is ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KINT 3402121100 control board fails or shows signs of degradation — such as erratic output, fault codes, overheating, or communication loss — the replacement procedure should be treated as part of a broader cabinet inspection, not an isolated board swap. Experienced maintenance engineers know that a failed control board is often a symptom of upstream or downstream stress on the electrical system.

Before or during replacement of the 3402121100, the following components in the same control cabinet or electrical circuit should be inspected and, where necessary, replaced as part of the same maintenance window:

• DC Bus Capacitor Bank: Electrolytic capacitors on the DC bus are a common root cause of control board stress. Measure capacitance and ESR; replace if degraded beyond 20% of rated value.
• IGBT Power Module: The driver board interfaces directly with the IGBT module. Inspect for gate drive signal integrity and check for short-circuit or open-circuit conditions before powering the new board.
• Input / Output Terminal Blocks: Loose or corroded terminal connections on the I/O strip can cause intermittent faults that mimic board failure. Re-torque all terminals and inspect for oxidation.
• 24VDC Control Power Supply: The control board requires a stable low-voltage supply. Verify output voltage under load; a sagging or noisy 24V rail is a frequent cause of board resets and communication errors.
• Relay Output Modules: If the 640-series drive controls relay outputs for contactor or alarm circuits, inspect relay coil resistance and contact condition. Worn relay contacts can back-feed noise into the control board.
• RS-485 / Modbus Communication Module: For drives integrated into a SCADA or PLC network, verify the communication module’s termination resistor and cable shielding. A damaged communication interface can cause the control board to log spurious faults.
• Fuse and Circuit Breaker Assembly: Check all fuses in the input protection circuit. A partially blown fuse can allow the drive to operate intermittently while delivering under-voltage to the control board.
• EMC Filter / Line Reactor: If the installation includes an input EMC filter or AC line reactor, inspect for physical damage and verify that filter capacitors are not leaking or bulging.
• Thermistor / Temperature Sensor: Many 640-series drives use NTC thermistors for thermal protection. A drifted thermistor can trigger false over-temperature faults, leading to unnecessary board replacements.
• Operator Panel / HMI Interface Cable: If the drive uses a remote keypad or HMI panel, inspect the ribbon or RJ45 interface cable for damage. A faulty panel cable can prevent parameter upload and complicate post-replacement commissioning.

Stocking these associated components alongside the KINT 3402121100 in your site’s critical spare inventory reduces mean time to repair (MTTR) and eliminates secondary delays caused by waiting for ancillary parts after the primary board has already been replaced.

Site Replacement Workflow

Replacing the KINT 3402121100 on-site is a structured process that, when executed correctly, restores full drive functionality within a single maintenance shift. The following workflow is recommended for maintenance and commissioning engineers:

1. Isolate and De-energize: Follow LOTO (Lockout/Tagout) procedures. Confirm DC bus voltage has discharged below 30V before opening the drive enclosure — this typically requires a minimum 5-minute wait after power-off.
2. Document Existing Configuration: If the original board is still partially functional, upload all drive parameters to the operator panel or a PC tool before removal. This preserves motor tuning data, PID settings, and communication addresses.
3. Photograph Wiring Layout: Before disconnecting any connectors, photograph the board’s connector positions, cable routing, and any jumper settings. This is especially important for 640-34021210XD-1BA vs. 640-34021210XD-2BA variant differences.
4. Remove and Inspect: Extract the faulty board and inspect the PCB for visible damage — burnt components, cracked solder joints, or swollen capacitors. This information is useful for root-cause analysis and warranty claims.
5. Install the KINT 3402121100 Spare: Seat the new board, reconnect all connectors in the documented order, and verify that all mounting screws are torqued to specification to ensure proper grounding.
6. Restore Parameters and Commission: Download the saved parameter set to the new board. If the original parameters are unavailable, refer to the motor nameplate and application documentation to re-enter key settings (motor rated current, frequency, control mode).
7. Functional Test: Run the drive at low speed under no-load conditions first, then progressively load the motor while monitoring output current, voltage, and temperature. Confirm all I/O signals, relay outputs, and communication responses are operating correctly before returning the system to production.

This workflow is compatible with both planned maintenance windows and emergency breakdown scenarios. SMARTNEXMSK’s pre-tested units significantly reduce commissioning risk, as each board has been verified for basic electrical function before shipment.

Spare Parts Support FAQ

Q1: Is the KINT 3402121100 compatible with both the 640-34021210XD-1BA and 640-34021210XD-2BA variants?
Yes. The 3402121100 board is the common control board used across both the -1BA and -2BA sub-variants of the 640-34021210XD series. However, always verify the firmware revision label on the original board before installation, as some production batches may require a specific firmware version for full feature compatibility.

Q2: How do you verify the board is functional before shipment?
Each KINT 3402121100 unit supplied by SMARTNEXMSK undergoes a pre-shipment functional test that includes power-on verification, communication interface check, and output signal validation. A test report is available upon request. The 12-month warranty covers any functional defects that arise under normal operating conditions after installation.

Q3: What is the recommended spare inventory strategy for this board?
For facilities operating multiple 640-series drives, we recommend maintaining a minimum of one KINT 3402121100 board per five installed drives, or one unit per critical production line — whichever is greater. Given that this series is widely deployed in legacy automation systems, sourcing lead times from OEM channels can be extended; maintaining a local spare eliminates this risk entirely.

Q4: Can this board be used to extend the service life of older 640-series installations?
Absolutely. The KINT 3402121100 is one of the most effective tools for extending the operational life of 640-34021210XD-based systems that are no longer supported under active OEM service contracts. By replacing the control board rather than the entire drive unit, maintenance teams can defer capital expenditure on new drives while maintaining system reliability. SMARTNEXMSK maintains long-term stock of this and related 640-series components to support exactly this use case.
