Kistler 5863A20 Safety-Enhanced Process Monitor for Harsh Sites

Kistler 5863A20 Safety-Enhanced Process Monitor for Harsh Industrial Sites

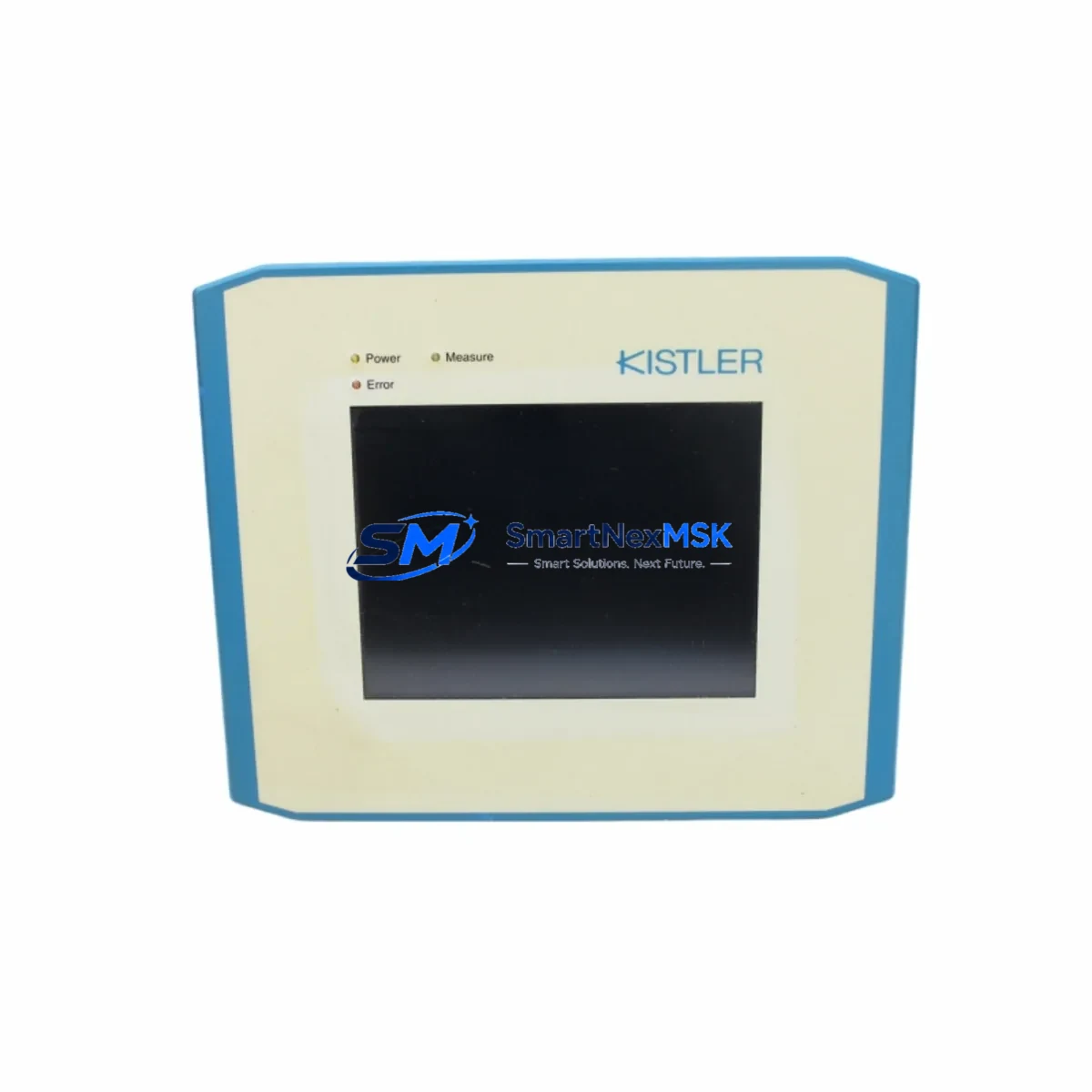

The Kistler 5863A20 is a high-precision, safety-enhanced process control monitor engineered for continuous operation in the most demanding industrial environments. Designed to interface directly with piezoelectric sensors and charge amplifiers within critical measurement and control loops, the 5863A20 delivers stable, interference-resistant signal conditioning that protects against control interruption, signal drift, and measurement anomalies — all of which can trigger unplanned shutdowns in high-stakes production facilities.

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and continuous manufacturing environments — process monitoring equipment must perform without compromise. The Kistler 5863A20 is built to meet this standard. Its robust signal processing architecture suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) that are endemic to environments with large variable-frequency drives, high-current switchgear, and dense cable routing. This makes it a reliable front-end component in safety-critical measurement chains where signal integrity is non-negotiable.

When integrated into a control cabinet alongside components such as the Kistler 5011 charge amplifier and Kistler 5015 multi-channel amplifier, the 5863A20 forms a coherent, low-noise signal chain that minimizes the risk of false process triggers or missed fault events. In applications where force, pressure, or torque measurements feed directly into safety interlock logic — such as press force monitoring on stamping lines or torque verification on critical rotating machinery — the accuracy and stability of the 5863A20 are essential to preventing equipment damage and personnel hazards.

The unit is fully compatible with Kistler’s CoMo Injection and CoMo Torque process monitoring platforms, enabling seamless integration into existing quality and safety architectures. When paired with Kistler 5847 signal conditioners or Kistler 2825A piezoelectric force sensors, the system provides end-to-end measurement integrity from the sensing element through to the control system output. For installations requiring DIN-rail mounting within compact control enclosures, the 5863A20’s form factor is compatible with standard 19-inch rack and modular cabinet layouts used alongside Siemens SIMATIC S7 PLCs, Allen-Bradley ControlLogix controllers, and Beckhoff CX series embedded PCs.

Power supply stability is a critical factor in process monitor reliability. The 5863A20 is designed to tolerate supply voltage fluctuations and transient surges that are common in industrial environments with heavy motor loads. When the power rail is protected by a Phoenix Contact QUINT power supply or equivalent industrial-grade PSU with active buffering, the 5863A20 maintains measurement continuity even during brief grid disturbances — a key requirement in facilities where process interruption carries significant safety or financial consequences.

For communication-intensive installations, the 5863A20’s analog output interfaces cleanly with Siemens ET 200SP analog input modules or Beckhoff EL3174 analog input terminals, ensuring that process values are accurately digitized and transmitted to the supervisory control layer without signal degradation. In distributed control architectures, this clean analog-to-digital handoff is essential for maintaining the fidelity of safety-relevant process data across the full control loop.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet strategy for high-reliability process monitoring begins with selecting components that are individually validated and collectively compatible. The Kistler 5863A20 sits at the heart of this strategy as the primary signal conditioning and monitoring unit. In a typical heavy-industry control enclosure, it operates alongside a Kistler 5011A charge amplifier handling raw piezoelectric sensor signals, while a Kistler 5847 signal conditioner manages secondary measurement channels. Power integrity is maintained by a Phoenix Contact QUINT 24VDC power supply with integrated surge protection, ensuring the 5863A20 receives clean, stable power even when large inductive loads switch on the same bus.

For safety interlock applications, the 5863A20’s analog output feeds into a Pilz PNOZ safety relay or equivalent safety-rated input module, enabling the process monitor to participate directly in machine safety circuits. Communication to the supervisory PLC — whether a Siemens S7-1500 CPU or an Allen-Bradley ControlLogix L8x controller — is handled via Beckhoff EL3174 analog input terminals or equivalent high-resolution analog I/O modules, preserving signal fidelity across the full measurement chain. Cabinet-level surge protection is further reinforced by Phoenix Contact TRABTECH surge arresters on all signal and power lines entering the enclosure, guarding against lightning-induced transients and switching surges that could otherwise corrupt measurement data or damage the 5863A20’s input circuitry.

Critical Industrial Safety Applications

The Kistler 5863A20 is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery facilities, it monitors pump and compressor vibration signatures in real time, providing early warning of bearing degradation or rotor imbalance before catastrophic failure occurs. In power generation plants — including thermal, hydro, and nuclear facilities — it serves as a precision front-end for turbine shaft monitoring systems, where measurement accuracy directly impacts plant safety and regulatory compliance.

In underground mining operations, the 5863A20 is used in conveyor drive monitoring and rock bolt load measurement systems, where reliable signal conditioning under extreme vibration and dust conditions is essential. Water treatment and pumping stations rely on it for continuous pump health monitoring, reducing the risk of undetected cavitation or seal failure that could lead to environmental incidents. In metallurgical and steel processing plants, it monitors rolling mill force and press tonnage in real time, feeding safety interlock systems that prevent overload damage to tooling and structural components. Port and bulk material handling facilities use the 5863A20 in crane load monitoring and conveyor tension measurement systems, where accurate force data is critical to safe load management and equipment longevity.

Safety and Quality FAQ

Q: What warranty coverage does the Kistler 5863A20 carry?
A: Every Kistler 5863A20 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering full functional performance. If the unit fails to perform to specification within the warranty period under normal operating conditions, we provide replacement or repair support at no additional cost.

Q: How is each unit tested before shipment?
A: All 5863A20 units undergo a comprehensive pre-shipment functional test that verifies signal input response, output accuracy, power supply tolerance, and communication integrity. Units that do not meet Kistler’s original performance specifications are not dispatched. A test record is available upon request.

Q: Is the 5863A20 compatible with my existing Kistler or third-party control system?
A: The Kistler 5863A20 is designed for broad compatibility with Kistler’s CoMo process monitoring platforms and outputs a standard analog signal compatible with most industrial PLC analog input modules, including Siemens SIMATIC, Allen-Bradley ControlLogix, and Beckhoff EtherCAT I/O systems. If you have a specific compatibility question, contact our technical team before ordering.

Q: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
A: Yes. SMARTNEXMSK maintains stock of the Kistler 5863A20 and related Kistler process monitoring components to support both planned maintenance schedules and emergency replacement requirements. We serve industrial buyers globally with fast dispatch and reliable lead times, minimizing the risk of extended production downtime due to spare parts unavailability.
