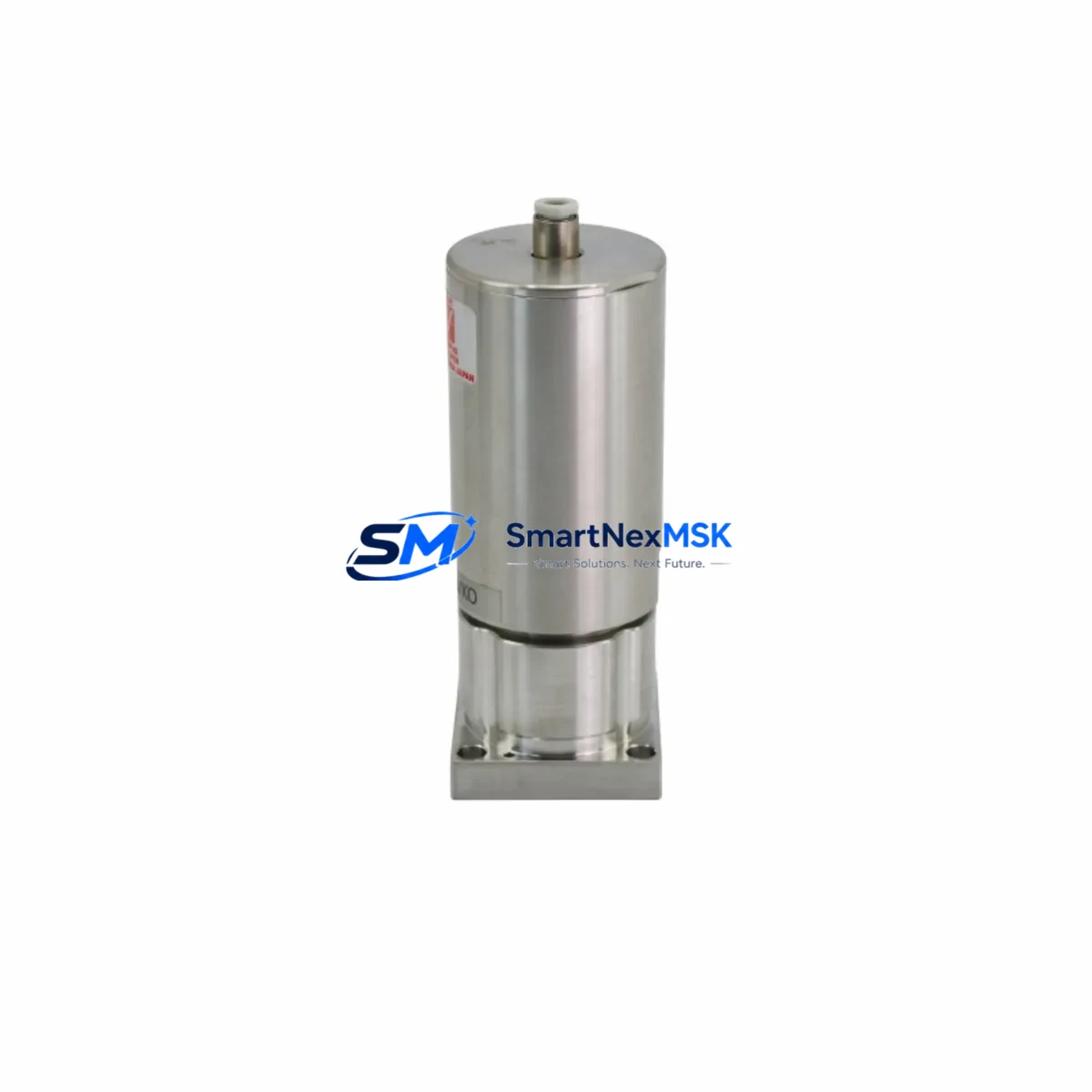

The KITZ SCT P11104128 TD4CB-GC-1003-FA-SEP-316LE is a precision-engineered pneumatic ball valve designed for demanding industrial automation environments. As a maintenance-ready original spare, this unit is stocked and tested to support rapid field replacement, minimizing unplanned downtime in process control, chemical handling, fluid management, and general industrial automation systems. Whether you are executing a planned shutdown, responding to an emergency valve failure, or building a strategic spare parts inventory for a critical control loop, the P11104128 delivers the dimensional accuracy, material integrity, and actuation reliability required by maintenance engineers and procurement teams operating under strict uptime commitments.

Built from 316L stainless steel wetted components with a full-bore TD4CB-GC series body configuration, this valve is engineered for corrosion resistance in aggressive media environments including dilute acids, chlorinated fluids, and high-humidity process lines. The pneumatic actuator interface (FA-SEP configuration) ensures direct compatibility with standard double-acting and spring-return actuator assemblies commonly deployed across KITZ SCT valve automation packages. Each unit undergoes factory pressure testing and functional verification prior to shipment, and is backed by a 12-month warranty covering material and workmanship defects.

For maintenance engineers managing aging automation infrastructure, the P11104128 represents a reliable path to system continuity without the lead time risk of OEM procurement channels. SMARTNEXMSK maintains ready stock of this model to support emergency dispatch requirements, with same-day processing available for urgent orders.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the KITZ SCT P11104128 TD4CB-GC-1003-FA-SEP-316LE, experienced maintenance engineers treat the valve not as an isolated component but as part of an interconnected control loop. A comprehensive inspection and replacement plan should address the following associated components to prevent secondary failures and ensure the loop returns to full operational status after the valve swap.

Begin with the pneumatic actuator supply circuit: verify the solenoid valve (typically a 5/2 or 4/2 directional control valve, 24VDC or 110VAC coil) controlling the FA-SEP actuator is functioning correctly and that the coil resistance is within specification. A faulty solenoid is a common root cause of apparent valve failure. Inspect the air filter-regulator-lubricator (FRL) unit upstream of the actuator for moisture contamination and pressure drop — degraded FRL performance directly impacts actuator stroke speed and torque output.

Check the limit switch box or position feedback module mounted on the actuator. In automated control systems, the open/close position signal feeds back to the PLC or DCS I/O card; a failed limit switch can cause false process alarms or prevent the control system from confirming valve state. Inspect the signal cable and terminal block connections at both the field junction box and the control cabinet marshalling panel — corroded terminals and loose ferrules are a frequent source of intermittent feedback faults.

At the control cabinet level, review the I/O module (digital output card) driving the solenoid valve and the digital input card receiving the position feedback. If the system uses a signal isolator or safety barrier between the field device and the I/O card (common in hazardous area installations), verify the isolator output voltage and current loop integrity. For systems with fieldbus communication (PROFIBUS-DP, FOUNDATION Fieldbus, or HART), confirm the device address and communication parameters have not been disrupted during the maintenance window.

Inspect the process piping flanges and gaskets adjacent to the valve for signs of leakage or corrosion — a valve replacement is the ideal opportunity to renew flange gaskets and check bolt torque. If the installation includes a manual override handwheel or lockout/tagout (LOTO) provision, verify the override mechanism disengages cleanly after the new valve is commissioned. Finally, update the maintenance management system (CMMS) record with the new valve serial number, installation date, and next scheduled inspection interval to maintain traceability across the spare parts lifecycle.

Site Replacement Workflow

The P11104128 is designed as a direct dimensional and functional replacement for existing TD4CB-GC series installations. Follow this workflow to minimize downtime and ensure system compatibility:

Step 1 — Isolation and De-energization: Isolate the process line upstream and downstream of the valve. Depressurize the actuator air supply and de-energize the solenoid valve coil. Apply LOTO procedures per site safety protocol.

Step 2 — Dimensional Verification: Before removing the old valve, confirm the replacement P11104128 matches the installed unit on face-to-face dimension, end connection type (flanged/threaded), and actuator mounting interface (ISO 5211 pad). Cross-reference the reference codes (469205, FBSDV-6.35-2B3-BGC#A, 5252156-A) against the installed unit’s nameplate if available.

Step 3 — Removal and Inspection: Remove the old valve and inspect the adjacent piping, gaskets, and actuator mounting bracket for wear or corrosion. Replace gaskets as a matter of course — do not reuse compressed gaskets.

Step 4 — Installation and Torque: Install the P11104128 with new gaskets. Torque flange bolts to the specification for the pipe class and gasket type. Reconnect the actuator air supply lines and solenoid valve wiring, verifying polarity and air port orientation (supply, exhaust, actuator ports A and B).

Step 5 — Functional Test: Restore air supply and energize the solenoid. Cycle the valve open and closed a minimum of three times, confirming full stroke, correct position feedback signals, and absence of leakage at packing and body joints. Document the test results in the CMMS before returning the loop to service.

Step 6 — System Recommissioning: Restore the control system to automatic mode. Monitor the first several process cycles for anomalous alarms or unexpected valve behavior. Retain the replaced valve for failure analysis if the root cause of the original fault has not been confirmed.

Spare Parts Support FAQ

Q1: Is the P11104128 a genuine KITZ SCT original spare or an aftermarket equivalent?
The P11104128 TD4CB-GC-1003-FA-SEP-316LE supplied by SMARTNEXMSK is an original KITZ SCT spare part sourced through established industrial supply channels. Each unit is inspected and tested prior to dispatch. A 12-month warranty covering material and workmanship defects is included with every shipment.

Q2: How do I verify compatibility with my installed TD4CB-GC valve before ordering?
Compatibility can be confirmed by cross-referencing the full SKU (TD4CB-GC-1003-FA-SEP-316LE) and reference codes (469205, FBSDV-6.35-2B3-BGC#A, 5252156-A, 302156, 2302037) against the nameplate of the installed valve. If the nameplate is damaged or missing, provide the pipe size, end connection type, actuator interface standard (ISO 5211 pad size), and operating pressure/temperature to our technical team for confirmation before ordering.

Q3: What is the recommended spare parts stocking strategy for critical process loops using TD4CB-GC valves?
For critical process loops where valve failure results in production loss or safety risk, a minimum of one P11104128 unit per installed valve is recommended as on-site strategic stock. For facilities with multiple TD4CB-GC installations, a pooled spare of two to three units is typically sufficient to cover emergency replacement needs while maintaining acceptable inventory carrying costs. SMARTNEXMSK can support blanket order arrangements and scheduled replenishment to maintain your spare parts buffer without manual reordering.

Q4: What pre-shipment testing is performed on each P11104128 unit?
Each P11104128 undergoes hydrostatic shell and seat pressure testing per KITZ SCT factory standards, actuator stroke verification (full open and full close), and visual inspection of body, seat, and actuator mounting interface prior to packaging. A test report is available upon request. Units are packaged to prevent transit damage and shipped with protective end caps on all process connections.
