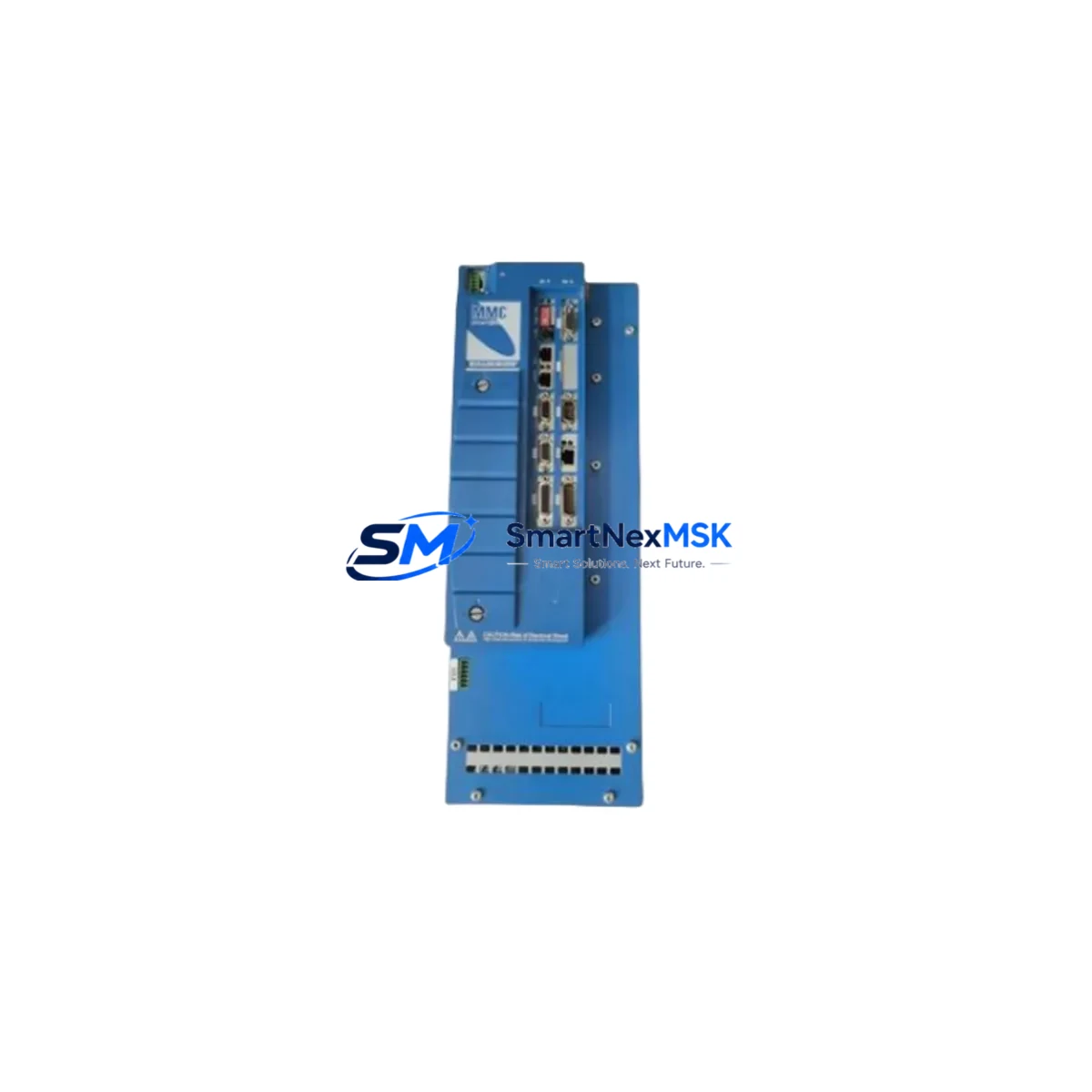

KOLLMORGEN MMC-SD-12.0-460-D Spare Digital MMC Automation

KOLLMORGEN MMC-SD-12.0-460-D Spare Digital MMC Automation

The KOLLMORGEN MMC-SD-12.0-460-D is a Digital MMC Series motion controller designed for high-performance industrial automation systems. As a maintenance-ready original spare, this unit is stocked to support rapid replacement in servo drive systems, CNC machine tools, packaging lines, printing presses, and multi-axis motion platforms where unplanned downtime carries significant operational cost. Whether you are executing a planned shutdown, responding to a fault alarm, or building a strategic spare parts buffer, the MMC-SD-12.0-460-D delivers verified compatibility with the KOLLMORGEN Digital MMC architecture and eliminates the risk of extended lead times on critical motion control hardware.

Maintenance engineers and procurement teams working with KOLLMORGEN servo systems understand that the motion controller sits at the heart of coordinated axis control. A failed or degraded MMC-SD-12.0-460-D can cascade into full line stoppage. Stocking this spare — or sourcing it through a verified distributor with pre-shipment testing — is a standard practice in facilities running continuous or semi-continuous production schedules. This unit ships with a 12-month warranty and undergoes functional verification prior to dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the MMC-SD-12.0-460-D in a live production environment, a disciplined inspection of the surrounding electrical system is essential to prevent repeat failures and confirm system integrity before restart. Maintenance engineers should treat this replacement as an opportunity for a broader control cabinet audit.

Begin with the servo power supply module feeding the MMC bus — verify output voltage stability and ripple within specification, as an unstable DC bus is a common root cause of motion controller faults. Inspect the 24 VDC logic power supply that powers the controller’s internal logic board; degraded capacitors or marginal output voltage can cause intermittent resets that mimic controller failure. Check all feedback cables and encoder connectors between the MMC-SD-12.0-460-D and the servo motors — damaged shielding or loose connectors introduce noise that corrupts position data and triggers fault codes.

Review the I/O expansion modules connected to the MMC bus for any latched fault states or blown fuses on digital output channels. Inspect terminal blocks and wiring harnesses in the motion control section of the cabinet for signs of heat damage, loose crimps, or insulation breakdown — particularly on high-current motor phase wiring. If the system uses a KOLLMORGEN servo amplifier (such as the S200, AKD, or Servostar series) in conjunction with the MMC controller, verify that the amplifier firmware version is compatible with the replacement MMC unit and that drive parameters are backed up before power cycling.

For systems with communication modules — whether EtherCAT, PROFIBUS, or DeviceNet — confirm that the network address and baud rate settings are correctly restored after controller swap. Check any signal isolators on analog reference inputs (±10 V velocity or torque commands) for drift or offset errors that could cause unexpected axis movement on startup. Inspect safety relay modules and STO (Safe Torque Off) wiring to confirm the safety circuit is intact and will not prevent drive enable after the replacement. Finally, verify the HMI or operator panel communication link to the MMC controller is re-established and that all axis status displays are reading correctly before returning the machine to automatic mode.

Site Replacement Workflow

Replacing the MMC-SD-12.0-460-D on-site follows a structured sequence to minimize downtime and avoid configuration loss. Before removing the failed unit, document or export the existing motion program, axis parameters, and communication settings from the MMC controller using the KOLLMORGEN programming software. If the controller is non-responsive, retrieve the last known parameter backup from your maintenance management system or from a previously saved project file.

Power down the control cabinet following your site’s lockout/tagout procedure. Disconnect all feedback cables, I/O connectors, and communication cables from the MMC-SD-12.0-460-D, labeling each connector to ensure correct reinstallation. Remove the controller from its mounting position and install the replacement unit. Reconnect all cables in the documented order, paying particular attention to encoder feedback connectors — incorrect seating is a leading cause of post-replacement faults.

Restore power and load the saved motion program and axis parameters into the replacement MMC-SD-12.0-460-D. Perform a low-speed jog test on each axis before enabling full automatic operation. Confirm that all position feedback values, fault status registers, and I/O states are reading correctly. This workflow is compatible with legacy KOLLMORGEN Digital MMC installations and supports system life extension without requiring hardware platform migration — a critical advantage for facilities managing aging automation infrastructure where a full drive system upgrade is not yet budgeted.

Spare Parts Support FAQ

Q1: Is the MMC-SD-12.0-460-D compatible with all Digital MMC Series installations?
The MMC-SD-12.0-460-D is designed for KOLLMORGEN Digital MMC Series multi-axis motion control systems operating on 460 V AC three-phase input with a 12.0 A continuous output rating. Compatibility with your specific installation depends on the axis count, feedback type, and firmware version of your existing system. We recommend confirming your existing controller’s part number and firmware revision before ordering. Our technical team can assist with compatibility verification.

Q2: What pre-shipment testing is performed on this spare?
Each MMC-SD-12.0-460-D unit undergoes functional verification prior to dispatch, including power-on testing, communication interface checks, and output stage verification. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. A test report is available upon request for critical applications.

Q3: How quickly can this spare be shipped, and what is the lead time for out-of-stock units?
In-stock units ship within 1–3 business days from our warehouse. For units sourced on request, lead times vary by availability — typically 5–15 business days for standard procurement channels. For emergency downtime situations, contact our sales team directly to discuss expedited sourcing options. We maintain long-term supply relationships to support obsolete and end-of-life KOLLMORGEN components.

Q4: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers functional failures attributable to manufacturing defects or component quality issues under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. To initiate a warranty claim, contact our sales team with the order reference, a description of the fault symptom, and any available fault codes or diagnostic data. Replacement or repair will be arranged based on inspection findings.
