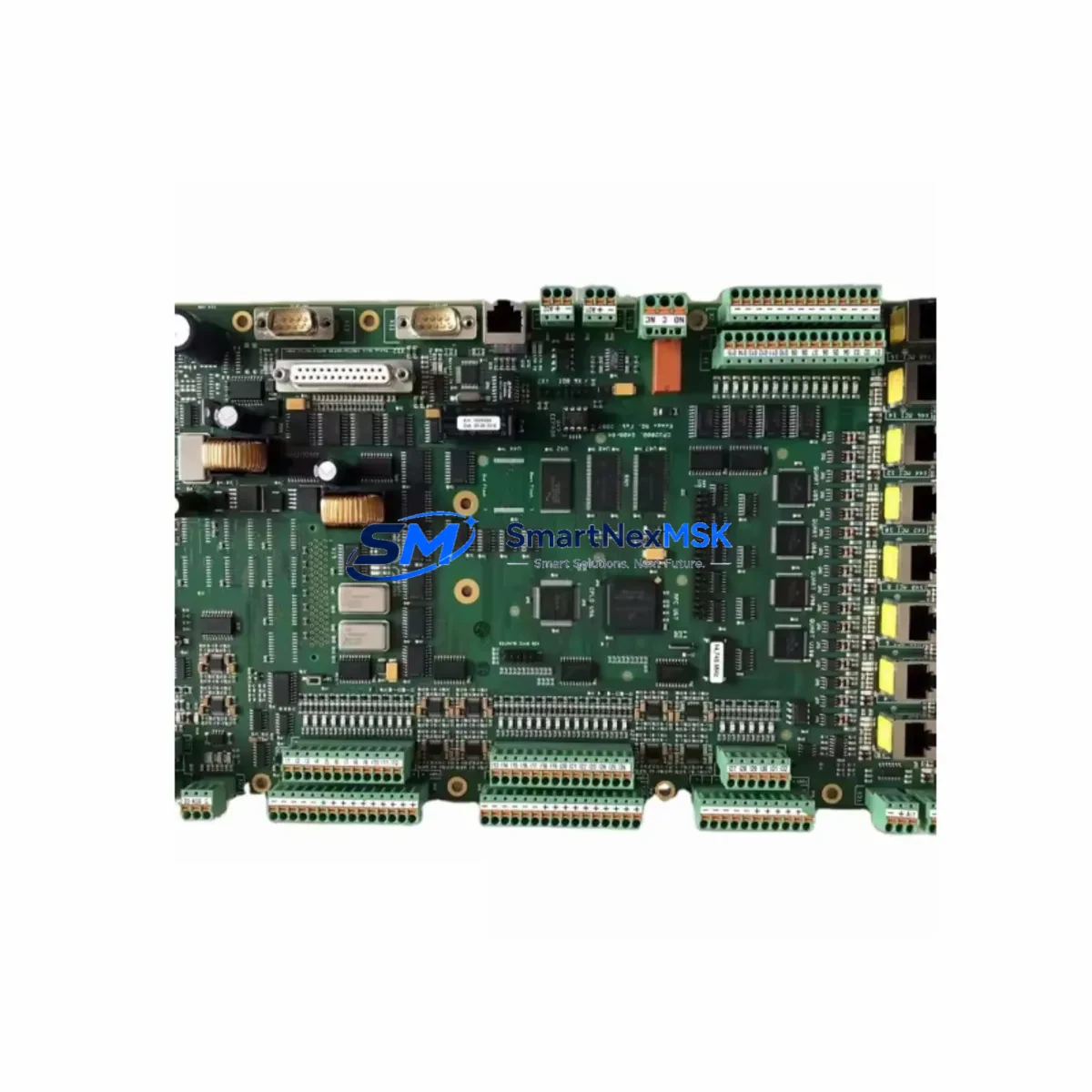

Komax CPU2000.G400R04 Safety-Enhanced Encoder Interface Module

Komax CPU2000.G400R04 Safety-Enhanced Encoder Interface Module: Reliable Control in Harsh Industrial Sites

The Komax CPU2000.G400R04 is a ruggedized encoder interface module engineered for the CPU2000 series variable frequency drive platform. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module serves as a critical link between the drive controller and rotary feedback devices — ensuring precise speed and position data reaches the control loop without interruption, signal drift, or communication anomalies.

In heavy industrial settings — including petrochemical plants, metallurgical facilities, mining operations, port logistics systems, and continuous-process manufacturing lines — encoder feedback integrity is not optional. A single instance of signal loss or data corruption can cascade into motor runaway, process shutdown, or safety interlock failure. The CPU2000.G400R04 addresses these risks through robust hardware design, wide operating temperature tolerance, and strong electromagnetic immunity, making it a dependable choice for engineers specifying components in critical drive control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust drive control cabinet in a continuous-production facility is only as reliable as its weakest feedback path. The CPU2000.G400R04 encoder interface module is typically deployed alongside the Komax CPU2000 series main control board and the CPU2000 power board, forming the core of a closed-loop vector control architecture. When paired with a properly rated 24 VDC switching power supply — such as those from the MEAN WELL SDR or HDR series — the encoder signal chain remains stable even during mains voltage fluctuations or brief power dips that would otherwise cause the drive to fault.

In cabinets where multiple drives share a common DC bus or operate in coordinated motion sequences, the integrity of each encoder feedback channel is essential. Engineers often install signal surge protectors on encoder cable entry points to guard against lightning-induced transients and ground potential differences between field devices and the control panel. The CPU2000.G400R04’s optical isolation stage provides an additional layer of protection, preventing ground loops from corrupting the A/B/Z pulse train that the CPU2000 drive relies on for speed regulation.

For applications requiring functional safety compliance, the encoder module is frequently used in conjunction with Komax safety relay modules or third-party SIL-rated speed monitoring relays that cross-check encoder output against safe speed thresholds. In such configurations, the CPU2000.G400R04 feeds real-time velocity data to both the drive’s internal PID loop and the external safety monitoring circuit, enabling overspeed detection and emergency stop actuation without relying solely on software-based protection.

Communication integrity within the cabinet is further supported by proper cable segregation — encoder cables routed away from power conductors — and the use of shielded twisted-pair encoder cables terminated with ferrite cores. When the CPU2000.G400R04 is installed in environments with heavy variable-speed drive switching noise, such as those using IGBT-based inverter modules with high dV/dt output, the differential input architecture of this encoder card effectively rejects common-mode noise that would otherwise appear as false pulses or missed counts.

For multi-axis systems, each axis typically requires its own dedicated encoder interface card. The CPU2000.G400R04 is designed for single-axis feedback, and system integrators building multi-motor coordinated lines — such as those found in steel rolling mills or paper machine drive sections — will specify one module per drive, ensuring independent feedback paths and eliminating cross-axis interference. Complementary components in such systems include Komax CPU2000 communication cards (for PROFIBUS, Modbus RTU, or CANopen integration) and braking resistor assemblies that manage regenerative energy during rapid deceleration cycles.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In pump and compressor drive systems operating in Zone 2 classified areas, the CPU2000.G400R04 provides the encoder feedback necessary for precise flow control and anti-surge protection. Accurate speed feedback prevents compressor surge events that can damage equipment and create hazardous pressure releases. The module’s EMI immunity is particularly valuable in environments where high-voltage switchgear and variable-speed drives operate in close proximity.

Power Generation & Utilities: Boiler feed pump drives, induced draft fan drives, and cooling water pump systems in thermal power plants demand continuous, uninterrupted operation. The CPU2000.G400R04 supports closed-loop speed control that maintains process stability during load transients, reducing the risk of thermal runaway or pressure excursions caused by uncontrolled pump speed variation.

Mining & Mineral Processing: Conveyor belt drives, hoist systems, and ball mill drives in underground and surface mining operations are subject to extreme vibration, dust ingress, and wide ambient temperature swings. The ruggedized design of the CPU2000.G400R04, combined with its optical isolation, ensures reliable encoder feedback even when the control cabinet is exposed to mechanical shock and conducted electrical interference from heavy machinery.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment facilities require precise flow control to maintain dosing accuracy and prevent water hammer events. The CPU2000.G400R04 enables the CPU2000 drive to maintain tight speed regulation across the full operating range, supporting energy-efficient operation and reducing mechanical stress on pump impellers and pipe fittings.

Metallurgy & Steel Production: Rolling mill main drives, ladle transfer car drives, and continuous casting machine drives operate under extreme load cycling and require encoder feedback systems that can withstand high levels of electromagnetic interference generated by large thyristor rectifiers and arc furnace equipment. The differential signal architecture of the CPU2000.G400R04 is well-suited to these demanding electrical environments.

Port & Material Handling: Crane hoist drives, gantry travel drives, and ship loader conveyor systems rely on accurate speed and position feedback for safe load handling. The CPU2000.G400R04 supports the precise torque and speed control required for smooth load pickup and controlled lowering, reducing the risk of load swing and mechanical shock to crane structures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the CPU2000.G400R04?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the product datasheet. This includes failures of the optical isolation stage, signal processing circuitry, and connector interface. Damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling is excluded. Warranty claims are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed on each CPU2000.G400R04 unit?
Each unit undergoes functional verification prior to dispatch, including encoder signal input/output continuity checks, isolation resistance testing between signal and power circuits, and compatibility verification against the CPU2000 drive platform interface specification. Units that do not meet the acceptance criteria are quarantined and not shipped. A test record is available upon request for customers with quality management system requirements.

Q3: Is the CPU2000.G400R04 compatible with all CPU2000 series drives, and can it replace older encoder card revisions?
The CPU2000.G400R04 is designed for the Komax CPU2000 series VFD platform and is compatible with the standard encoder expansion slot used across the CPU2000 product family. It is suitable as a direct replacement for earlier encoder interface card revisions used in the same series, provided the drive firmware supports the card’s signal specification. Customers are advised to confirm the drive firmware version with their system documentation before installation. Our technical team can assist with compatibility verification prior to order.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated stock of the CPU2000.G400R04 to support customers with planned maintenance schedules, spare parts programs, and emergency replacement requirements. For customers managing large installed bases of CPU2000 drives, we offer reserved stock arrangements and priority fulfillment agreements. Our sourcing team actively monitors supply chain availability to ensure continuity of supply for critical industrial spare parts.
