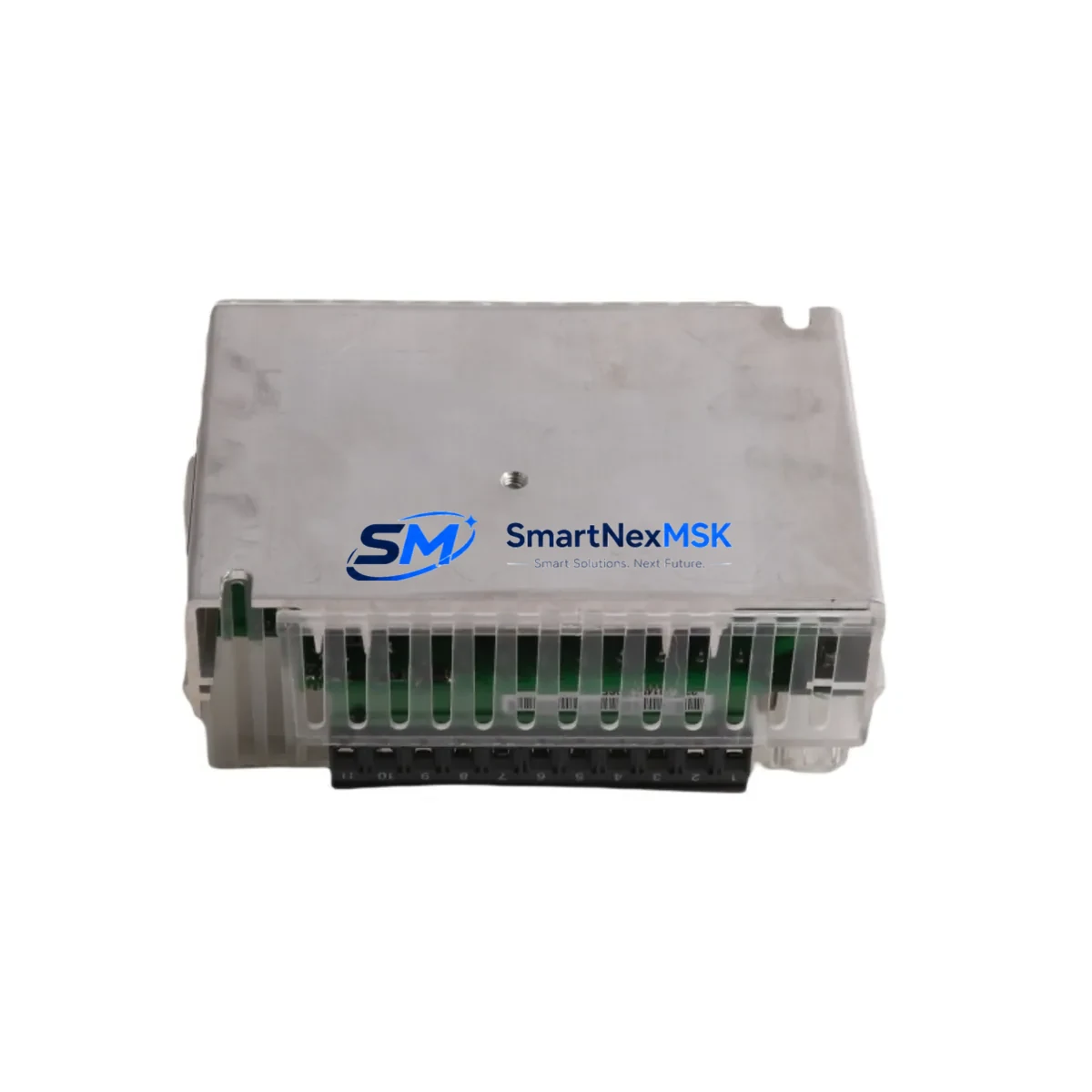

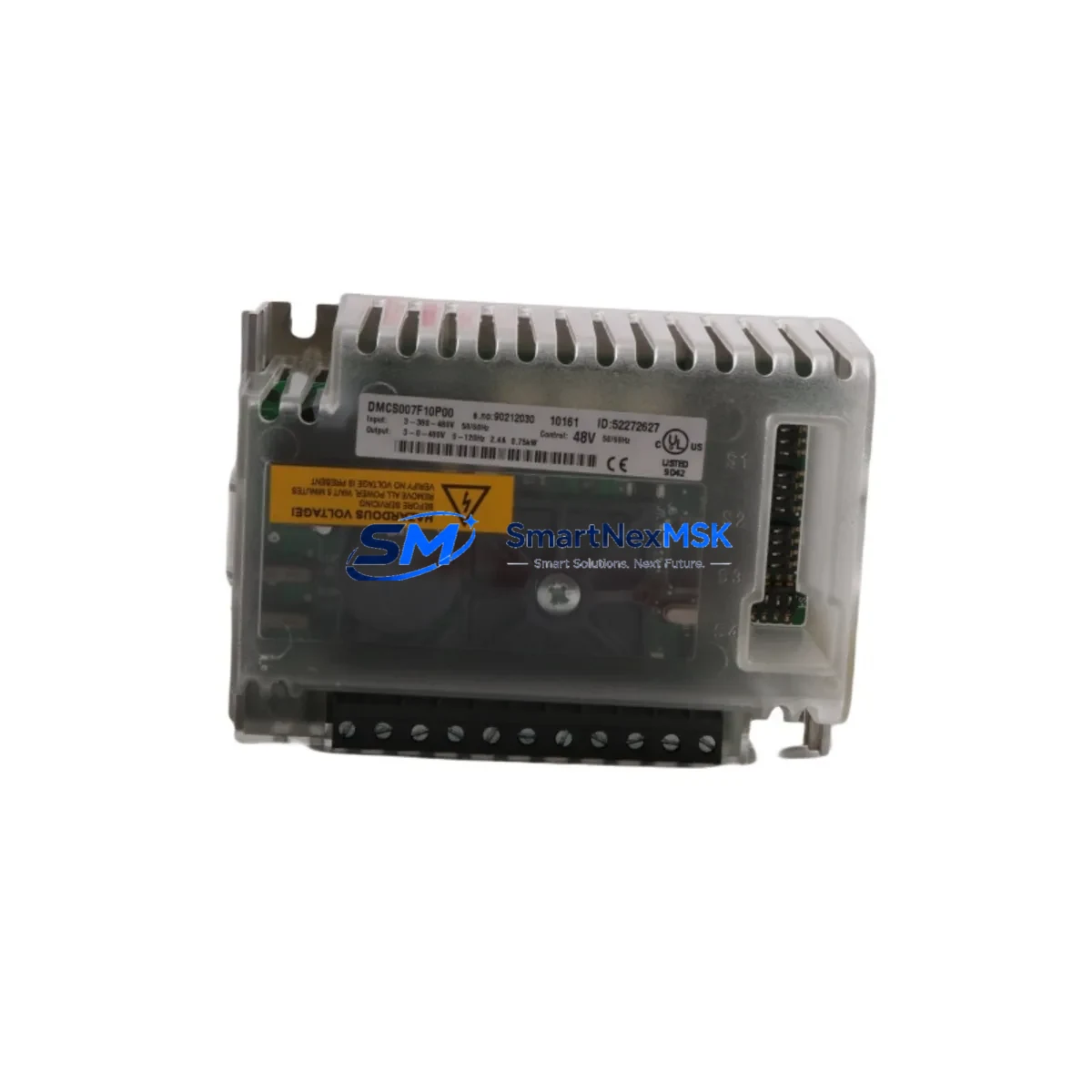

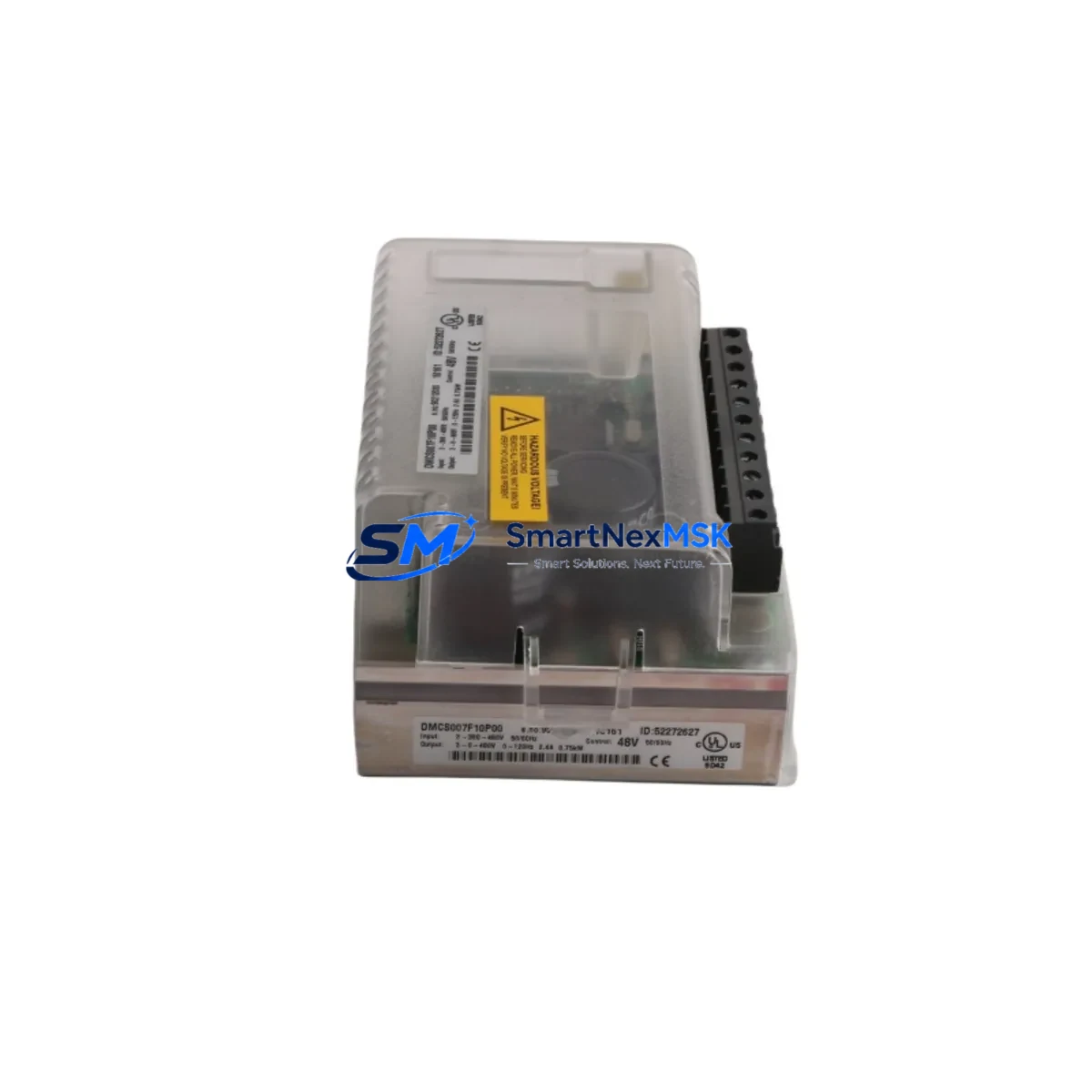

KONECRANES DMCS007F10P00 Safety-Enhanced DC Bus Supply Module

KONECRANES DMCS007F10P00 Safety-Enhanced DC Bus Supply Module for Harsh Industrial Sites

The KONECRANES DMCS007F10P00 is a ruggedized DC Bus Supply Module engineered for continuous, safety-critical operation in demanding industrial environments. Designed to serve as the backbone of crane drive power distribution systems, this module delivers stable, conditioned DC bus voltage to downstream inverter drives and motion control axes — even under high-load cycling, severe electromagnetic interference, and fluctuating mains supply conditions. For facilities where unplanned downtime carries significant safety and financial consequences, the DMCS007F10P00 represents a proven, field-validated solution for control cabinet power integrity.

In heavy industrial settings such as steel mills, port container terminals, offshore lifting platforms, and continuous process plants, the DC bus supply module occupies a critical position in the drive system architecture. Any instability at this stage — whether caused by input voltage sag, capacitor degradation, inrush current spikes, or thermal stress — propagates directly into motion control errors, emergency stop activations, and potential mechanical hazards. The DMCS007F10P00 is built to absorb and suppress these disturbances before they reach the drive inverter stage, protecting both equipment and personnel.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust crane or heavy-lift control cabinet is only as reliable as its weakest power component. The KONECRANES DMCS007F10P00 DC Bus Supply Module is typically deployed alongside a coordinated set of protection and conditioning components to form a complete, fault-tolerant drive system. In a well-engineered cabinet, the DMCS007F10P00 works in concert with the KONECRANES DMSF input filter module, which attenuates high-frequency conducted emissions from the mains supply before they reach the rectifier stage. Downstream, the KONECRANES DMIV inverter module receives clean, regulated DC bus power, enabling precise speed and torque control of hoist and travel motors without signal drift or torque ripple.

For applications requiring regenerative braking energy management — common in high-cycle hoisting operations — the KONECRANES DMBR braking resistor module or an active front-end regeneration unit is integrated into the same DC bus rail, preventing overvoltage trips during deceleration. The KONECRANES DMCP control panel interface module provides the supervisory layer, monitoring bus voltage, current draw, and thermal status in real time, with alarm relay outputs wired to the facility’s safety PLC or emergency stop circuit.

Communication integrity is maintained through the KONECRANES CAN bus or PROFIBUS DP fieldbus interface cards, which link the drive system to the plant-level SCADA or DCS. In safety-critical interlocking applications, the drive system may also interface with a Pilz PNOZ safety relay or a Siemens ET 200SP fail-safe I/O module to enforce SIL-rated emergency stop and safe torque-off (STO) functions. Surge protection at the cabinet entry point — typically a Phoenix Contact TRABTECH surge arrester — provides the first line of defense against lightning-induced transients and switching surges from adjacent high-power equipment. Together, these components form a layered protection architecture in which the DMCS007F10P00 serves as the stable, conditioned power foundation.

Critical Industrial Safety Applications

The KONECRANES DMCS007F10P00 is deployed across a wide range of safety-sensitive industrial sectors where drive system reliability is directly linked to operational safety and regulatory compliance.

Port and Container Terminal Operations: In ship-to-shore (STS) and rubber-tyred gantry (RTG) cranes, the DC bus supply module must sustain stable power delivery through rapid load cycles — lifting and lowering containers at high frequency, often in salt-laden, high-humidity coastal environments. The DMCS007F10P00’s surge suppression and thermal management capabilities prevent nuisance trips that could leave suspended loads in an unsafe state.

Steel Mill and Metallurgical Plants: Ladle cranes, charging cranes, and coil handling systems in steel production operate in extreme thermal and electromagnetic environments. Furnace switching transients, high-current bus bars, and radiated heat create conditions that degrade standard drive components rapidly. The ruggedized design of the DMCS007F10P00 ensures consistent DC bus voltage under these conditions, supporting safe, controlled load movement in proximity to molten metal.

Petrochemical and Offshore Platforms: In hazardous area installations where crane drives must comply with ATEX or IECEx zone requirements, the control cabinet housing the DMCS007F10P00 is typically purged and pressurized. The module’s low self-heating profile and stable operation reduce the thermal load on the enclosure cooling system, supporting compliance with hazardous area temperature class requirements.

Mining and Tunneling: Underground hoist systems and shaft conveyances rely on drive systems that can sustain continuous duty cycles without thermal derating. The DMCS007F10P00 supports full-load operation across the specified temperature range, reducing the risk of mid-shift drive faults that could strand personnel or equipment underground.

Water and Wastewater Treatment: Overhead cranes used for pump maintenance, screen cleaning, and sludge handling in water treatment facilities require reliable drive systems that can operate in high-humidity, chemically aggressive environments. The DMCS007F10P00’s sealed construction and corrosion-resistant components support long service intervals in these conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the KONECRANES DMCS007F10P00?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from the original KONECRANES specification. If the module fails to perform its rated DC bus supply function under normal operating conditions within the warranty period, we will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each DMCS007F10P00 unit?
Every unit undergoes a comprehensive functional verification process before dispatch. This includes DC bus output voltage stability testing, surge suppression circuit continuity checks, thermal protection circuit validation, and visual inspection for physical damage or connector integrity issues. A test record is available upon request for quality-critical procurement processes.

Q3: Is the DMCS007F10P00 compatible with all KONECRANES crane drive generations?
The DMCS007F10P00 is designed for compatibility with KONECRANES CXT, XLD, and SX series drive systems that utilize the DMCS-series modular drive architecture. For older or non-standard drive configurations, we recommend providing your full drive system model number so our technical team can confirm compatibility before shipment. Cross-referencing with the original KONECRANES drive system documentation is always advised for safety-critical replacements.

Q4: Can you guarantee long-term supply availability for ongoing maintenance programs?
Yes. We maintain dedicated stock of the DMCS007F10P00 and other KONECRANES DMCS-series modules to support planned maintenance, emergency replacement, and multi-unit procurement programs. For facilities managing a fleet of KONECRANES cranes, we offer reserved stock arrangements and priority dispatch agreements to ensure that a drive system fault never results in extended downtime due to parts unavailability.
