Krauss Maffei IO 502/5088020 Spare for IO Series Automation

Krauss Maffei IO 502/5088020 Spare for IO Series Automation

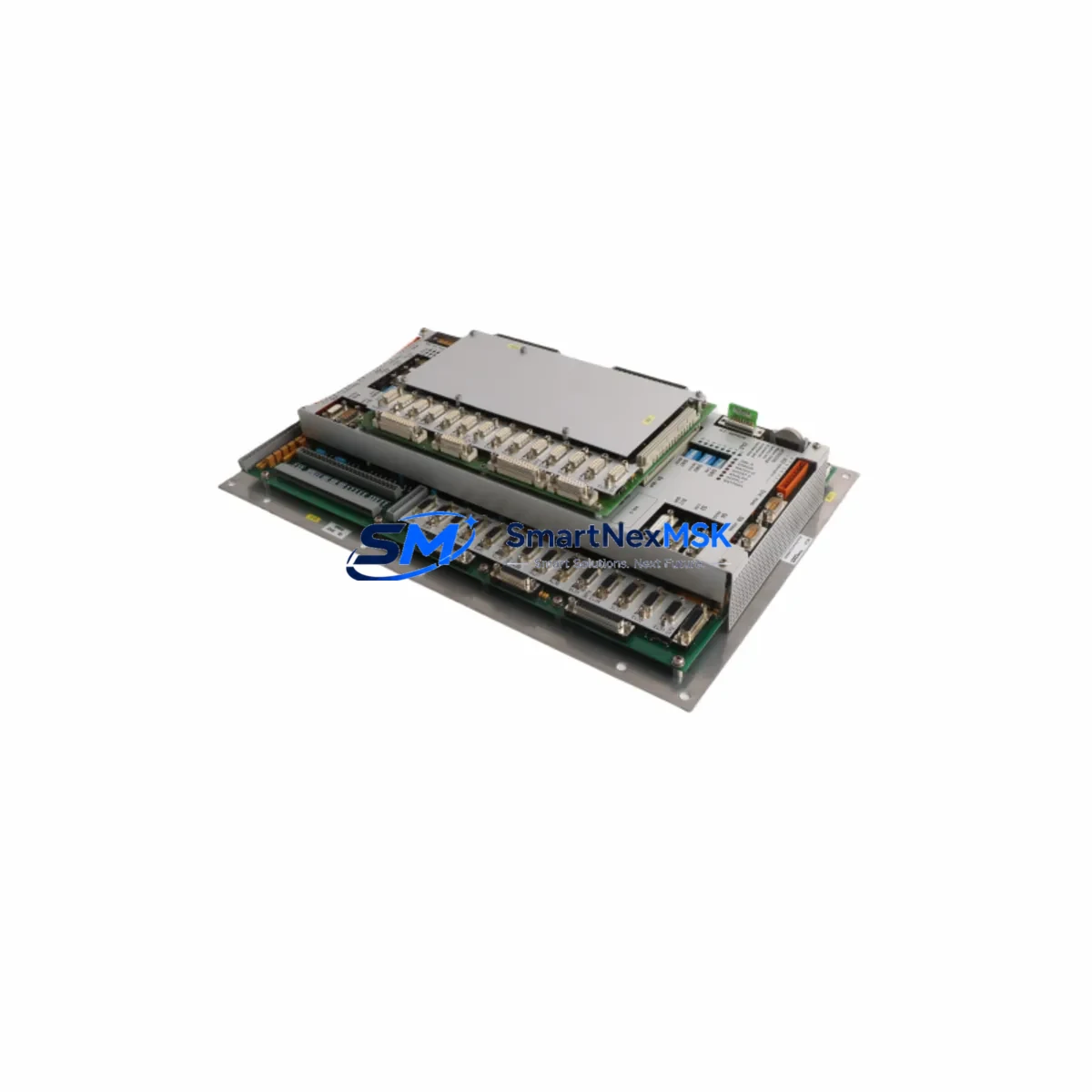

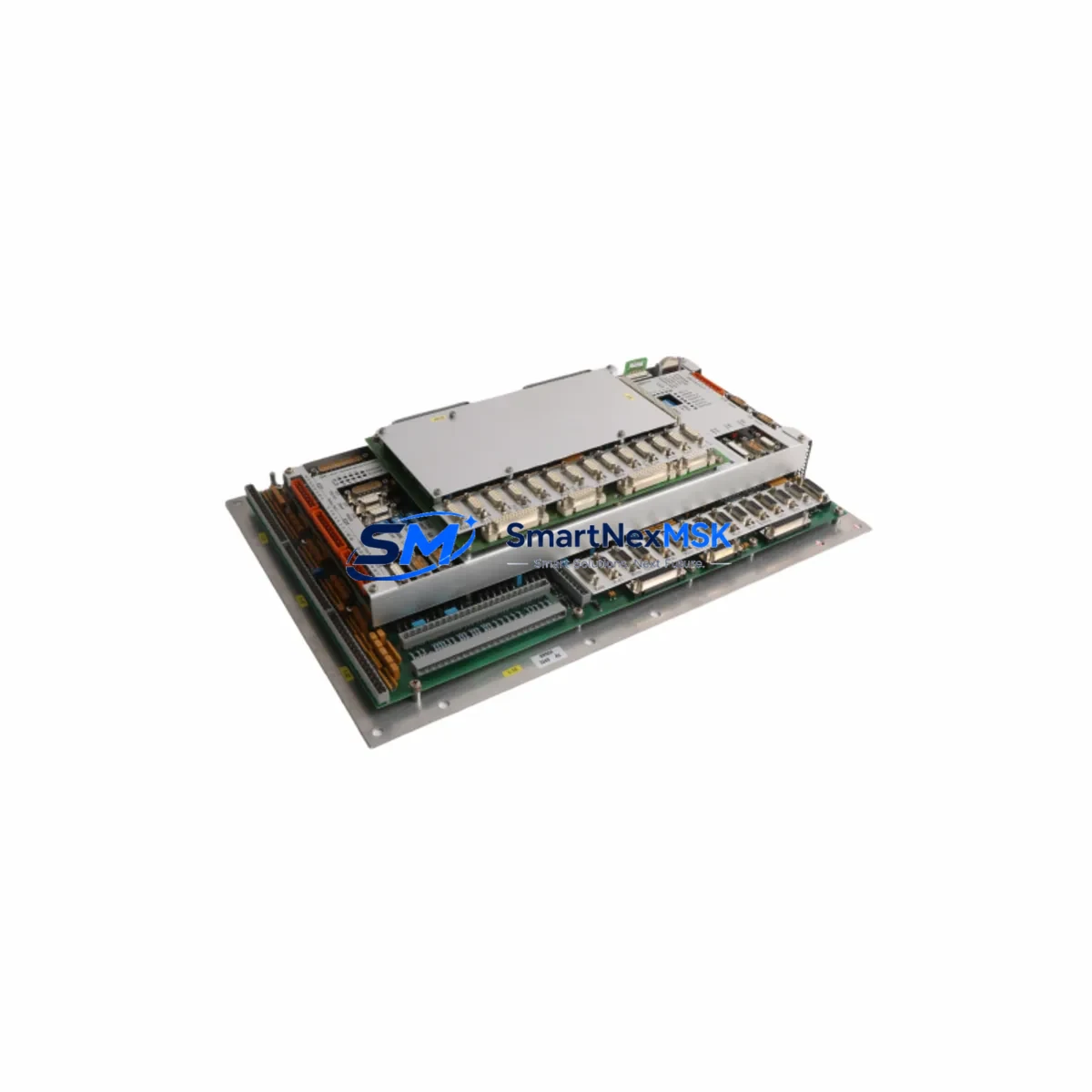

The Krauss Maffei IO 502/5088020 is an original I/O interface board engineered for IO series injection molding machine control systems. For maintenance engineers managing aging injection molding lines, unplanned downtime caused by a failed I/O board can halt an entire production cell within minutes. Stocking a verified replacement of the IO 502/5088020 is a proven strategy to reduce mean time to repair (MTTR) and protect production continuity.

This board serves as the critical signal bridge between the machine’s PLC controller and field-level sensors, actuators, and safety interlocks. When the IO 502/5088020 fails, symptoms typically include erratic axis movement, loss of mold-close confirmation signals, unresponsive safety gate interlocks, or complete loss of I/O communication on the affected rack slot. Prompt replacement with an original-spec spare eliminates the diagnostic ambiguity that comes with using non-original substitutes.

Each unit supplied by SMARTNEXMSK is sourced from verified industrial channels, functionally tested prior to shipment, and covered by a 12-month warranty. We maintain long-term supply capability for this part to support customers running legacy Krauss Maffei IO series systems that are no longer in active production by the OEM.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IO 502/5088020 in a Krauss Maffei IO series control cabinet, a thorough maintenance engineer will not stop at the board itself. The I/O interface board operates within a tightly integrated electrical environment, and adjacent components should be inspected or proactively replaced during the same maintenance window to prevent repeat failures.

Start with the power supply module feeding the I/O rack — a degraded 24 VDC rail is one of the most common root causes of I/O board failure in aging injection molding systems. Verify output voltage stability under load before reinstalling the new IO 502/5088020. Next, inspect the backplane or rack connector for oxidation, bent pins, or heat discoloration, as poor backplane contact can cause intermittent I/O faults that are difficult to diagnose.

Check all terminal blocks and field wiring connected to the I/O channels. Loose or corroded terminals on sensor and actuator circuits are a frequent source of nuisance faults that get misattributed to the I/O board. While the cabinet is open, inspect the fuse holders and circuit protection for the I/O supply circuits — replace any fuses showing signs of thermal stress.

If the machine uses a communication module (such as a PROFIBUS DP or DeviceNet interface card) to link the I/O rack to the main PLC, verify that the communication cable and connectors are intact and that the module’s status LEDs indicate healthy bus communication after the board swap. For systems using signal isolators on analog I/O channels — common in temperature and pressure measurement loops on injection molding machines — confirm that the isolators are within calibration and that their output signals are within expected range.

Also review the HMI operator panel for any stored fault codes or alarm history related to I/O errors prior to the failure. This history can reveal whether the IO 502/5088020 failure was an isolated event or part of a broader electrical degradation pattern. Finally, if the machine uses relay output modules for mold-close, ejector, or safety gate circuits, test each relay for proper switching under load — relay contacts in high-cycle injection molding applications wear faster than in most other industrial environments.

Site Replacement Workflow

Before beginning the replacement, power down the machine and follow the site lockout/tagout (LOTO) procedure. Document the slot position and wiring configuration of the existing IO 502/5088020 using photographs or a wiring diagram — this is especially important on older IO series cabinets where documentation may be incomplete.

Remove the failed board carefully, avoiding static discharge. Insert the replacement IO 502/5088020 into the same rack slot, ensuring the backplane connector is fully seated. Reconnect all field wiring to the terminal blocks, referencing your documentation. Power up the system and observe the board’s status indicators during the PLC initialization sequence. Confirm that all I/O channels report correctly on the HMI before releasing the machine to production.

For sites transitioning away from older Krauss Maffei IO series hardware, the IO 502/5088020 is a direct drop-in replacement that requires no firmware changes or parameter reconfiguration, making it the lowest-risk option for emergency downtime recovery. Maintaining at least one spare unit in the on-site spare parts cabinet is strongly recommended for any facility running more than one IO series machine.

Spare Parts Support FAQ

Q: Is the IO 502/5088020 compatible with all Krauss Maffei IO series machine variants?
A: The IO 502/5088020 is designed for Krauss Maffei IO series control systems. Compatibility should be confirmed against your machine’s electrical documentation or cabinet layout drawing. Contact our technical team at sales@smartnexmsk.com with your machine model and serial number for a definitive compatibility check before ordering.

Q: What testing is performed before shipment?
A: Every IO 502/5088020 unit undergoes functional verification prior to dispatch. This includes power-on testing and I/O channel continuity checks. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly — contact sales@smartnexmsk.com with your order reference and a description of the fault.

Q: How should I manage spare parts inventory for aging IO series systems?
A: For facilities operating multiple Krauss Maffei IO series machines, we recommend maintaining a minimum of one IO 502/5088020 per two machines in your on-site spare parts store. Given that this part is no longer in active OEM production, securing a small buffer stock now protects against future supply constraints and eliminates emergency procurement lead times during unplanned breakdowns.
