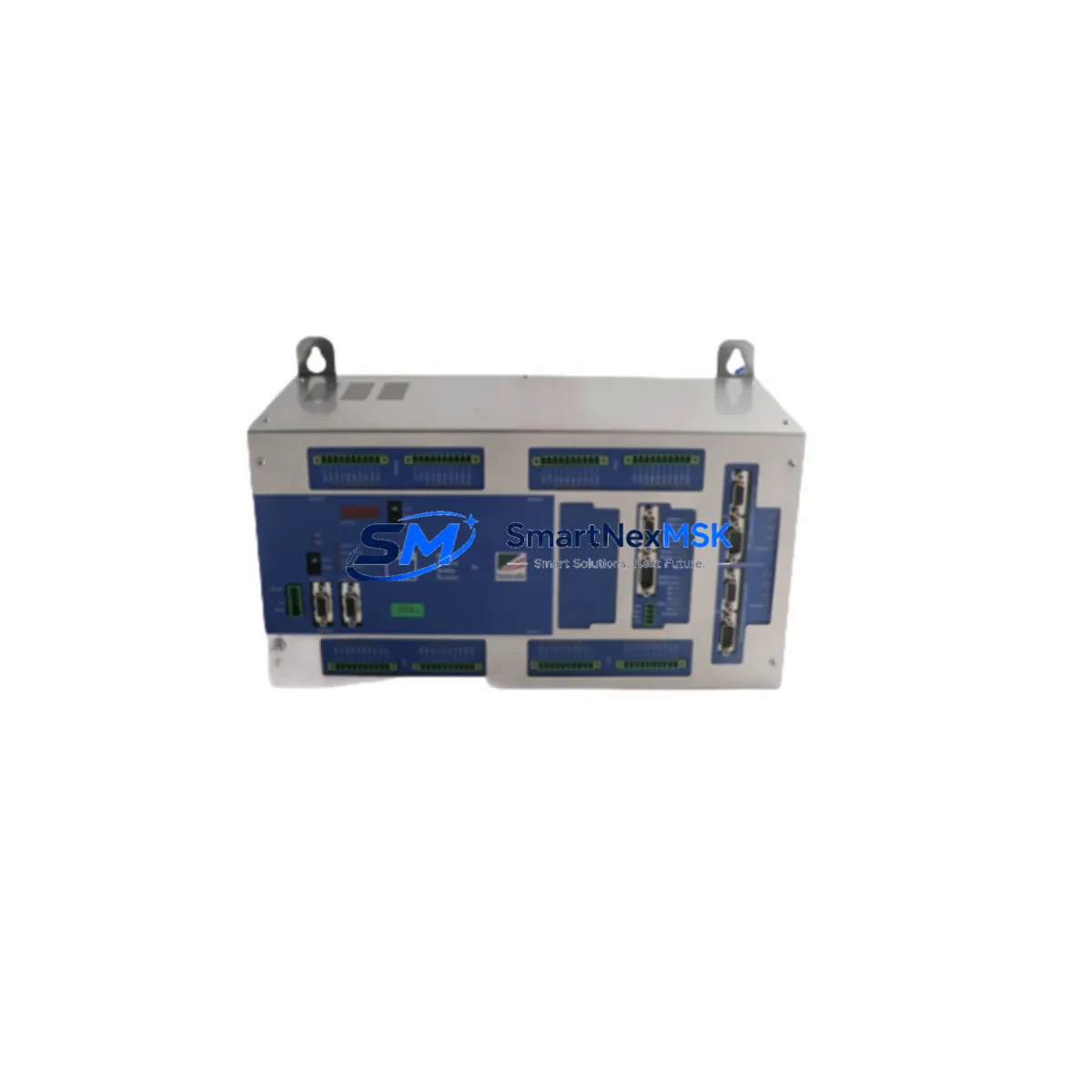

LAZER LHZ004 Safety-Enhanced Laser Interlock Controller

LAZER LHZ004 Safety-Enhanced Laser Interlock Controller for Harsh Industrial Sites

The LAZER LHZ004 is a ruggedized laser safety interlock controller engineered for continuous operation in the most demanding industrial environments. Designed to meet the stringent requirements of high-power laser processing systems — including those built on the Trumpf Lazersafe architecture — the LHZ004 delivers uncompromising control loop protection, signal integrity, and fail-safe interlock management across petrochemical, metallurgical, power generation, and heavy manufacturing facilities.

In high-load laser cutting and welding cells, where beam-on cycles run continuously for 16–24 hours per shift, even a momentary interlock failure can result in catastrophic equipment damage, personnel injury, or unplanned line stoppage. The LHZ004 addresses this risk through hardened input/output circuitry, EMI-shielded signal paths, and deterministic response logic that maintains interlock integrity even under severe electromagnetic interference from adjacent servo drives, high-frequency inverters, and arc welding equipment.

Its wide operating voltage tolerance and onboard surge suppression protect against power fluctuations common in heavy industrial substations, preventing module misoperation during voltage sags, transient spikes, or grid switching events. When integrated with safety-rated PLCs such as the Siemens S7-300F or Pilz PNOZ safety relay series, the LHZ004 forms a certified safety loop capable of achieving SIL 2 performance in laser guarding applications.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust laser safety control cabinet built around the LHZ004 demands a carefully coordinated ecosystem of protective and communicative components. At the power distribution level, a Phoenix Contact QUINT 24VDC/10A DIN-rail power supply with SFB (Selective Fuse Breaking) technology ensures that a downstream short circuit does not collapse the entire cabinet bus, keeping the LHZ004 and its associated safety circuits energized and stable.

For E-stop and door interlock chains feeding into the LHZ004, a Pilz PNOZ X3 or PNOZ m B0 modular safety relay provides the dual-channel monitoring and cross-fault detection required by ISO 13849-1 Category 3/4 architectures. Upstream of the safety relay, Schmersal AZ 16 series safety door switches with positive-opening contacts deliver reliable physical interlock signals even after years of mechanical cycling in high-vibration press and laser enclosure doors.

Signal conditioning between the LHZ004 and the host PLC is handled via Weidmüller ACT 20P signal isolators, which eliminate ground loops and common-mode interference that would otherwise cause spurious interlock trips or missed fault signals in electrically noisy environments. For facilities running Siemens S7-1500F or Allen-Bradley GuardLogix safety PLCs, the LHZ004 interfaces cleanly through hardwired safety I/O, with status feedback routed to the PLC’s F-DI modules for continuous diagnostic monitoring.

Cabinet-level surge protection is reinforced by DEHN DEHNguard Type 2 SPD modules installed at the 24VDC distribution rail, clamping transient overvoltages before they reach sensitive interlock circuitry. Communication health between the LHZ004 and supervisory SCADA systems is maintained through Moxa NPort 5150 serial device servers, which provide isolated RS-232/485 conversion with optical isolation — critical in environments where cable runs traverse high-voltage switchgear rooms or outdoor cable trays.

Critical Industrial Safety Applications

In petrochemical and refinery facilities, the LHZ004 is deployed in laser-based pipeline inspection and weld seam verification systems, where continuous operation under explosive atmosphere-adjacent conditions demands fail-safe interlock response and zero tolerance for spurious beam activation. Its deterministic trip logic ensures that any sensor fault, door breach, or power anomaly results in immediate beam inhibit without requiring PLC intervention.

In metallurgical and steel processing plants, high-power fiber laser cutting lines operate adjacent to induction furnaces and overhead crane systems that generate intense electromagnetic fields. The LHZ004’s hardened EMI immunity prevents signal corruption that could mask a genuine interlock fault, ensuring that safety zones around laser cutting heads remain reliably enforced throughout multi-shift production cycles.

For power generation and utility maintenance applications, the LHZ004 supports laser alignment and turbine blade inspection systems where beam-on authorization must be interlocked with physical access control systems and area scanners. Integration with SICK S3000 safety laser scanners via the LHZ004’s configurable input channels creates a layered protection zone that adapts to maintenance access patterns without compromising production uptime.

In port and heavy logistics automation, laser-guided vehicle (LGV) systems and automated crane positioning lasers rely on the LHZ004 to manage beam-on/off states in coordination with zone presence detection, preventing laser activation in occupied work zones. Its compact DIN-rail form factor allows integration into mobile equipment control panels where space and vibration resistance are critical constraints.

Across continuous manufacturing and automotive body-in-white lines, the LHZ004 supports 24/7 laser welding cell safety management, with its fast interlock response time ensuring that robot-cell access interlocks trip the laser within the required reaction window defined by EN ISO 11553-1 laser safety standards for industrial machinery.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the LAZER LHZ004?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. This includes interlock output failures, communication faults, and power circuit anomalies attributable to component or assembly defects. Warranty claims are supported with advance replacement options to minimize site downtime.

Q2: What pre-shipment testing is performed on each LHZ004 unit?
Every LHZ004 undergoes full functional verification prior to dispatch, including dual-channel interlock response testing, output relay continuity checks, input voltage tolerance verification across the rated ±20% range, and EMI susceptibility screening. A test record is available upon request for quality-critical installations.

Q3: Is the LHZ004 compatible with third-party safety PLCs and laser OEM systems beyond Trumpf Lazersafe?
Yes. The LHZ004 is designed with standard hardwired safety I/O interfaces compatible with Siemens S7-300F/1500F, Allen-Bradley GuardLogix, Pilz PSS, and Beckhoff TwinSAFE safety controllers. It is also field-proven in Bystronic and Amada laser safety architectures. Application-specific compatibility confirmation is available from our technical team prior to order.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated buffer stock of the LHZ004 and its key sub-components to support long-term spare parts programs for installed base customers. For facilities with critical uptime requirements, we offer consignment stock arrangements and priority fulfillment agreements to ensure replacement units are available within 24–72 hours of a field failure event.
