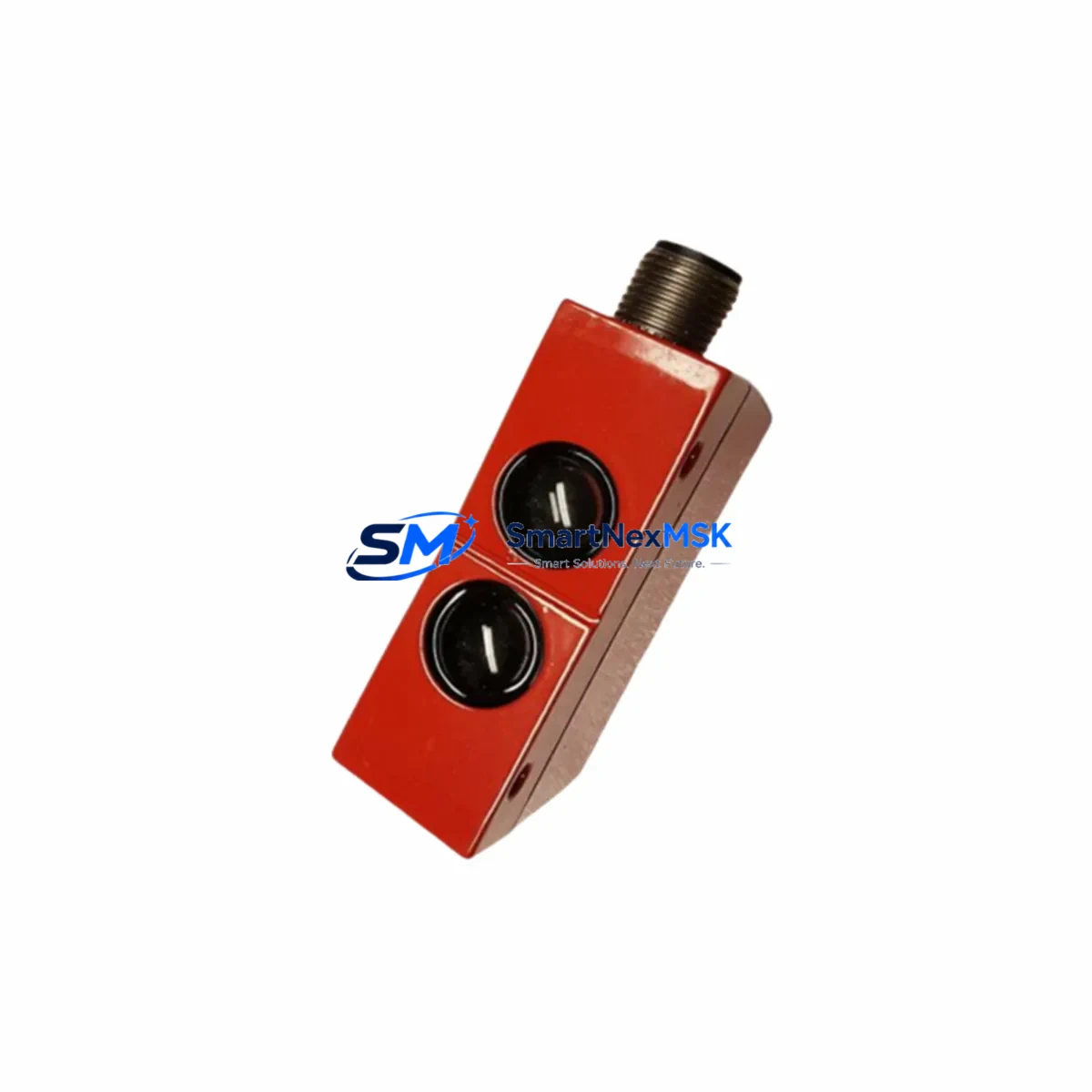

LEUZE IFRK 93/4-100 L.2 Retrofit-Ready Sensor for IFRK 93 Control Systems
The LEUZE IFRK 93/4-100 L.2 is a retrofit-ready retroreflective photoelectric sensor engineered for seamless integration into existing IFRK 93 Series automation architectures. Whether you are replacing a discontinued sensor on an aging production line, upgrading a legacy control cabinet, or restoring a system after unexpected component failure, this unit delivers verified electrical and mechanical compatibility with minimal engineering overhead. Designed for industrial environments where downtime is measured in lost revenue, the IFRK 93/4-100 L.2 supports direct substitution without requiring PLC program modifications or HMI screen redesign in the vast majority of retrofit scenarios.
For facilities running SIMATIC S7-300 or S7-400 PLCs with digital input modules such as the SM 321 or SM 331, the IFRK 93/4-100 L.2 interfaces directly to existing I/O channel assignments. Engineers integrating this sensor into Siemens ET 200S or ET 200M distributed I/O racks will find that the sensor’s NPN/PNP output configuration aligns with standard IM 151 interface module wiring conventions. No additional signal conditioning is required when the supply voltage and load current specifications of the original installation are within the sensor’s rated operating range.
When retrofitting into control cabinets originally built around OMRON CJ2M or CP1H controllers, the IFRK 93/4-100 L.2 connects to standard CJ1W-ID211 or CJ1W-ID231 digital input units without modification. Technicians should verify terminal block pitch and cable routing clearance within the cabinet before finalizing the mechanical mount. In installations where the original sensor was wired through a Phoenix Contact FLKM terminal block or Weidmüller WDU series rail terminal, the existing wiring harness can typically be reused, reducing installation time significantly.
For systems communicating over PROFIBUS DP or DeviceNet, the IFRK 93/4-100 L.2 operates as a standard discrete sensor and does not require node address configuration. Its output signal is consumed upstream by the fieldbus coupler — such as a Siemens DP/PA coupler or a Rockwell 1756-DNB DeviceNet bridge module — and no changes to the network topology or GSD file are necessary. This makes it particularly well-suited for brownfield upgrades where communication infrastructure must remain intact.
In conveyor and material handling applications where the original IFRK 93 sensor was mounted on a C-rail bracket or T-slot extrusion, the IFRK 93/4-100 L.2 retains the same housing footprint, allowing reuse of existing mounting hardware. Alignment with the retroreflector target should be verified using the sensor’s built-in alignment indicator during commissioning. For high-speed sorting lines, confirm that the sensor’s response time meets the minimum detection window required by the PLC scan cycle — typically verified against the SM 321 input filter time setting or equivalent parameter in the controller’s I/O configuration.
Before energizing the replacement unit, technicians should confirm power supply capacity at the 24 VDC rail. In older control cabinets where the SITOP PSU100S or equivalent power supply has been in service for several years, it is advisable to measure actual output voltage under load to ensure it remains within the sensor’s operating voltage tolerance. Backplane current budgets should also be reviewed if the sensor is powered through a distributed I/O rack rather than directly from the cabinet power rail.
Upgrade Compatibility Table
| Parameter | IFRK 93/4-100 L.2 (Replacement) | Notes |
|---|---|---|
| Series | IFRK 93 | Direct series match |
| Sensor Type | Retroreflective Photoelectric | Same detection principle |
| Supply Voltage | 10–30 VDC | Verify cabinet rail voltage |
| Output Type | NPN / PNP (configurable) | Match to PLC input module polarity |
| Mounting Interface | Standard M18 / C-rail bracket | Reuse existing hardware |
| Communication | Discrete (non-fieldbus) | No node address required |
| PLC Compatibility | SIMATIC S7, OMRON CJ/CP, Rockwell 1756 | Verified with standard DI modules |
| Retrofit Recommendation | Direct drop-in replacement | No program modification required |
| Commissioning Focus | Alignment, output polarity, filter time | Check PLC I/O config |
| Warranty | 12 Months | Covered from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a complete audit of the existing installation. Before ordering the IFRK 93/4-100 L.2, document the original sensor’s wiring diagram, terminal designations, and cable type. In systems where the sensor feeds a Siemens S7-300 CPU 315-2 DP or CPU 317-2 PN/DP, retrieve the hardware configuration from STEP 7 or TIA Portal to confirm the I/O address assigned to the sensor channel. This address must remain unchanged in the replacement installation to avoid program errors at startup.
For control cabinets that also house a SIMATIC HMI TP700 Comfort or KTP900 Basic panel, verify that no HMI screen references the sensor’s diagnostic status directly. If the original IFRK 93 sensor was mapped to a symbol in the PLC tag table, the replacement unit will inherit that symbol automatically — no HMI screen modification is required. However, if the original installation used a sensor with IO-Link capability and the replacement reverts to standard discrete output, the IO-Link master port (such as a Siemens SIMATIC ET 200SP IO-Link master module) must be reconfigured to standard DI mode.
In multi-axis conveyor systems, the IFRK 93/4-100 L.2 is frequently installed alongside LEUZE PRK 5/4 series polarized retroreflective sensors and LEUZE LS 5 series through-beam sensors on the same detection zone. When replacing a single sensor in such an array, ensure that the new unit’s switching hysteresis and response time are consistent with adjacent sensors to avoid false triggers in the PLC logic. Wiring should be routed through the existing cable duct and secured with the original cable ties or Panduit cable management clips to maintain EMC compliance.
Power distribution within the cabinet should be reviewed if the retrofit involves adding a new sensor to a previously unused I/O channel. The existing SITOP PSU200M or Phoenix Contact QUINT power supply should have sufficient reserve current capacity. If the cabinet also contains a Siemens SCALANCE X208 managed switch for PROFINET communication, confirm that the network topology diagram is updated to reflect any changes to the I/O configuration, even if the sensor itself is not a network node.
Downtime Control During System Migration
Minimizing production downtime during sensor replacement requires preparation before the maintenance window begins. Download and archive the current PLC program from the CPU using STEP 7 or TIA Portal before any hardware is removed. For Rockwell installations, use RSLogix 5000 or Studio 5000 to export the current project file. Store the backup on a local engineering laptop as well as a network share to ensure redundancy.
During the physical swap, keep the original IFRK 93 sensor connected until the replacement unit is mechanically mounted and wiring is verified. Use a multimeter to confirm 24 VDC supply at the terminal block before connecting the new sensor. After connection, power up the sensor and observe the output indicator LED before enabling the PLC input channel. This staged approach allows the technician to confirm sensor function without exposing the live production process to an unverified signal.
Once the IFRK 93/4-100 L.2 is energized and aligned, force the PLC input bit in the test environment to verify that the HMI status display updates correctly. Run the conveyor or machine through a manual cycle to confirm detection consistency across the full operating range. Log the commissioning results — including alignment distance, output state under load, and PLC scan time — in the site maintenance record before returning the system to automatic mode. The 12-month warranty covers the replacement unit from the date of shipment, providing coverage through the initial production validation period.
Retrofit Support FAQ
Q: Is the LEUZE IFRK 93/4-100 L.2 a direct replacement for all IFRK 93 Series variants?
A: The IFRK 93/4-100 L.2 is a direct mechanical and electrical replacement for standard IFRK 93 Series retroreflective sensors with equivalent detection range and output configuration. Variants with IO-Link or special cable terminations should be verified against the original datasheet before ordering.
Q: Do I need to modify the PLC program after installing the replacement sensor?
A: In most installations, no program modification is required. The replacement sensor uses the same I/O address and output signal type as the original. If the original sensor had IO-Link diagnostic functions mapped in the program, those function blocks should be reviewed and disabled if the replacement unit does not support IO-Link.
Q: What wiring checks should be performed before powering up the replacement unit?
A: Verify supply voltage at the terminal block (10–30 VDC), confirm output polarity matches the PLC input module (NPN or PNP), and check that the cable shield is grounded at one end only to prevent ground loops. Inspect the terminal block for corrosion or loose connections before reconnecting.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect wiring, overvoltage, mechanical impact, or installation outside the sensor’s rated environmental specifications. Pre-shipment functional testing is performed on every unit before dispatch.
