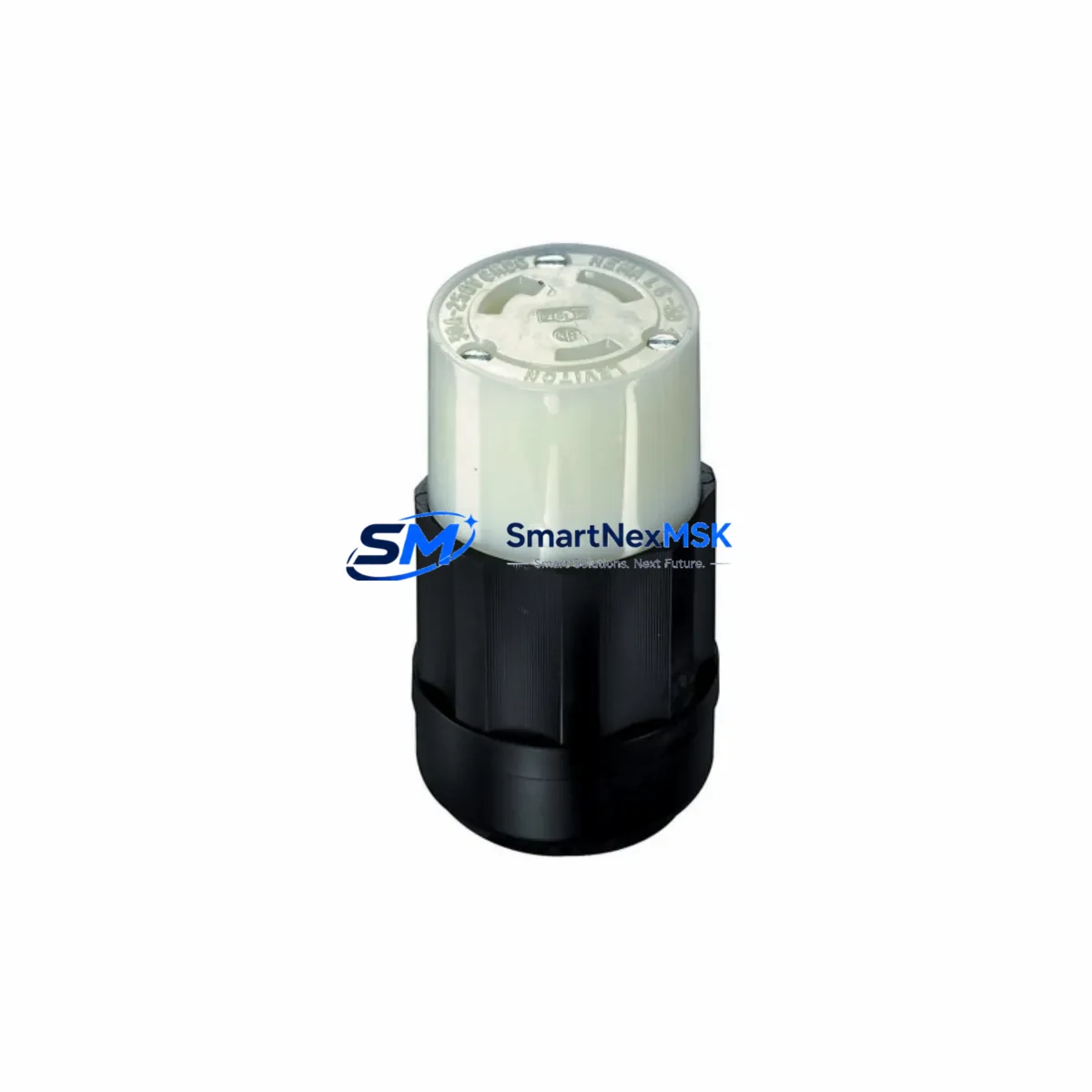

Leviton C2623 Safety-Enhanced Locking Connector Module

Leviton C2623 Safety-Enhanced Locking Connector Module: Reliable Control in Harsh Industrial Sites

The Leviton C2623 is a ruggedized NEMA L6-20 locking connector module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to meet the rigorous safety and reliability standards required in heavy industrial control cabinets, critical interlock circuits, and high-load power distribution panels, the C2623 delivers consistent electrical performance where standard connectors fail. Whether deployed in petrochemical processing plants, metallurgical facilities, mining operations, port automation systems, or continuous manufacturing lines, this connector module provides the mechanical and electrical integrity that safety-critical applications demand.

Industrial sites operating under high electromagnetic interference, persistent vibration, thermal cycling, and corrosive atmospheres require power connection components that go beyond basic compliance. The Leviton C2623 addresses these challenges with a reinforced thermoplastic housing, precision-machined brass contacts, and a positive-locking twist-lock mechanism that prevents accidental disconnection under load — a leading cause of unplanned shutdowns and arc flash incidents in field installations. Its NEMA L6-20 rating (20A, 250V AC) makes it directly compatible with motor control centers, variable frequency drives, servo amplifiers, and industrial UPS systems commonly found in PLC-based automation architectures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, every power connection point is a potential failure node. The Leviton C2623 is typically installed at the power feed interface between the main distribution panel and downstream control equipment — a position where connection integrity directly affects the safety and availability of the entire control loop. When paired with a Leviton L6-20P locking plug on the equipment side, the C2623 forms a mechanically secured, vibration-immune power interface that eliminates the risk of partial disconnection and the resulting voltage drop or arc flash events.

In PLC-based control architectures, the C2623 is commonly used to supply power to Siemens SITOP PSU8200 24VDC power supply modules, which in turn feed Siemens S7-1500 CPU modules and associated I/O racks. A stable, uninterrupted 250V AC feed through the C2623 ensures that the SITOP power supply operates within its input voltage tolerance, preventing the undervoltage trips that can cause PLC CPU faults and uncontrolled process shutdowns. Similarly, in Rockwell Automation control panels, the C2623 feeds Allen-Bradley 1606-XLP series power supplies that power CompactLogix or ControlLogix processor modules.

For variable speed drive applications, the C2623 provides the dedicated power feed to ABB ACS880 or Siemens SINAMICS G120 variable frequency drives, where a secure, low-impedance connection is critical to preventing ground fault nuisance trips and EMI-induced drive faults. In safety interlock circuits, the C2623 is often used alongside Phoenix Contact QUINT-FUSE series fuse modules and Pilz PNOZ safety relays to create a protected, monitored power distribution architecture that meets SIL 2 functional safety requirements.

Surge protection is another critical consideration in heavy industrial environments. When the C2623 is installed upstream of Siemens SIPROTEC surge protection devices or Phoenix Contact TRABTECH surge arresters, the combination provides a layered defense against transient overvoltages caused by nearby motor switching, capacitor bank switching, or lightning-induced surges on the facility power grid. This layered approach is standard practice in petrochemical and power generation facilities where a single surge event can damage multiple control modules simultaneously.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants, the Leviton C2623 is used to power distributed control system (DCS) marshalling cabinets and field junction boxes. The positive-locking mechanism ensures that power connections remain secure during the high-vibration conditions generated by compressors, pumps, and agitators. In hazardous area control rooms, the C2623 feeds the 250V AC supply rails that power Emerson DeltaV I/O cards and Honeywell Experion PKS controller modules, where any power interruption can trigger emergency shutdown sequences and costly process restarts.

Electric Power Generation and Transmission: Substation control panels and relay protection cabinets rely on secure, rated power connections to maintain the integrity of protection relay circuits. The C2623 is used to supply auxiliary power to SEL-300G generator protection relays and GE Multilin 750/760 feeder protection relays, where connection reliability is directly linked to grid protection performance. A loose or degraded power connection in this context can result in relay maloperation and potential equipment damage.

Mining and Mineral Processing: Underground and surface mining operations subject electrical equipment to extreme vibration, dust ingress, and temperature variation. The C2623’s robust thermoplastic housing and positive-lock design make it suitable for powering conveyor control panels, crusher motor control centers, and ventilation fan drive cabinets in these environments. Its UL listing ensures compliance with mining electrical safety standards.

Water and Wastewater Treatment: SCADA-controlled water treatment facilities use the C2623 to power PLC control panels managing pump stations, chemical dosing systems, and filtration processes. The connector’s resistance to moisture and its secure locking mechanism prevent the intermittent connection faults that can cause false alarms, pump cavitation, or chemical overdosing events in automated treatment processes.

Metallurgy and Steel Production: Electric arc furnace control systems, rolling mill drive panels, and ladle refining furnace automation cabinets operate in environments with intense electromagnetic interference and thermal stress. The C2623 provides a reliable power interface for the control electronics in these systems, supporting continuous production without the connection-related faults that can cause costly production interruptions.

Safety and Quality FAQ

Q1: What warranty coverage does the Leviton C2623 carry?
The C2623 is supplied with a 12-month warranty covering all manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are supported with replacement or full refund, and our technical team provides application guidance to ensure correct installation and long-term reliability.

Q2: What pre-shipment testing is performed on each unit?
Every Leviton C2623 unit undergoes full electrical verification before dispatch, including contact continuity testing, insulation resistance measurement between live contacts and ground, and mechanical inspection of the locking mechanism. Units that do not meet Leviton’s published specifications are rejected. Test records are available upon request for quality-critical procurement processes.

Q3: Is the C2623 compatible with existing NEMA L6-20 wiring and plugs?
Yes. The C2623 is fully compatible with all NEMA L6-20P plugs and L6-20 wiring configurations per NEMA WD-6 standards. It is a direct replacement for any NEMA L6-20 receptacle or connector module in existing industrial installations, requiring no wiring modifications. Compatibility extends to Leviton’s own L6-20P locking plugs as well as equivalent products from Hubbell, Bryant, and Pass & Seymour.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
Yes. The Leviton C2623 is an active, catalogued product with stable long-term availability. We maintain dedicated stock to support planned maintenance programs, emergency spare parts requirements, and multi-unit procurement for new installations. For facilities requiring guaranteed supply agreements or scheduled delivery programs, please contact our sales team to discuss stocking arrangements tailored to your maintenance cycle.
