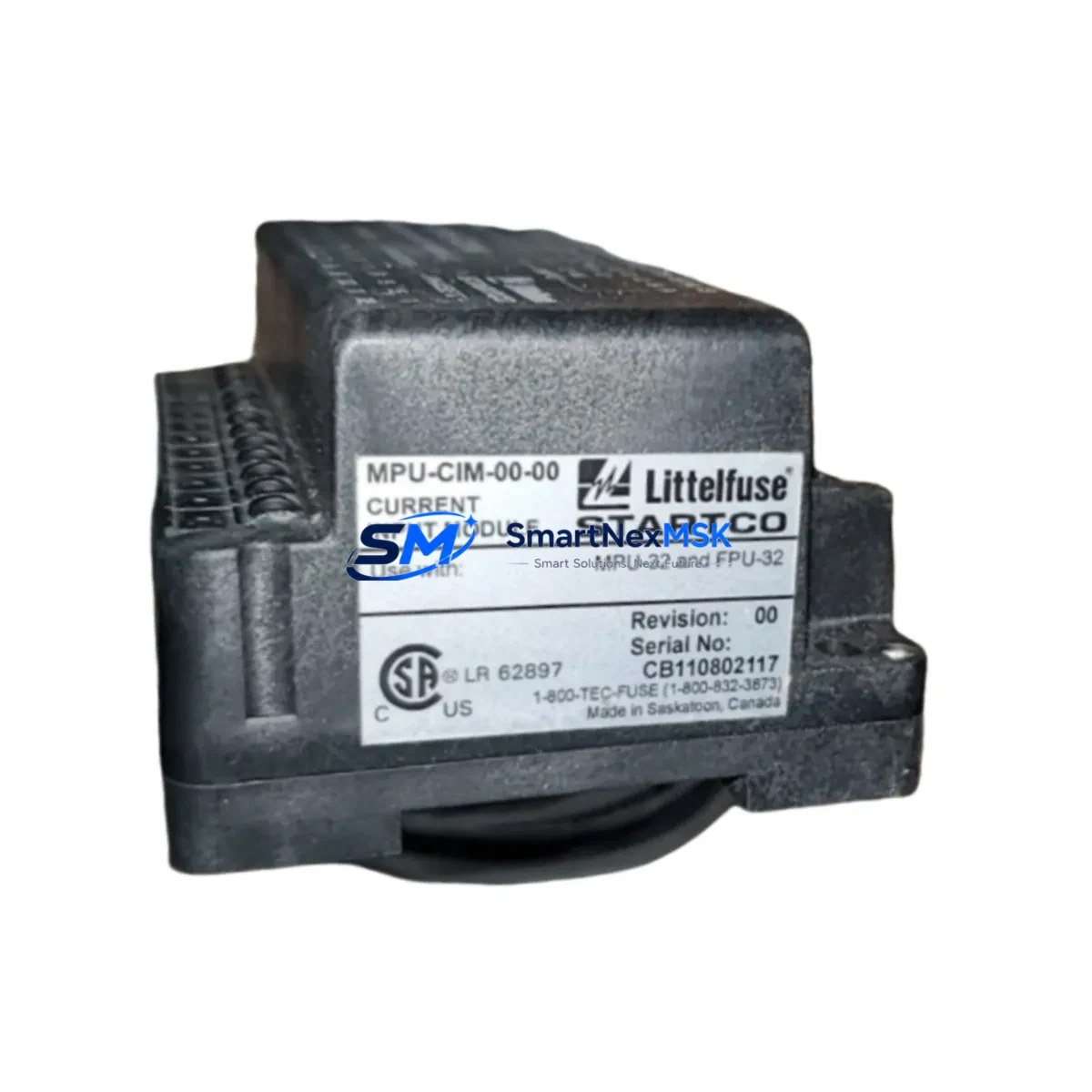

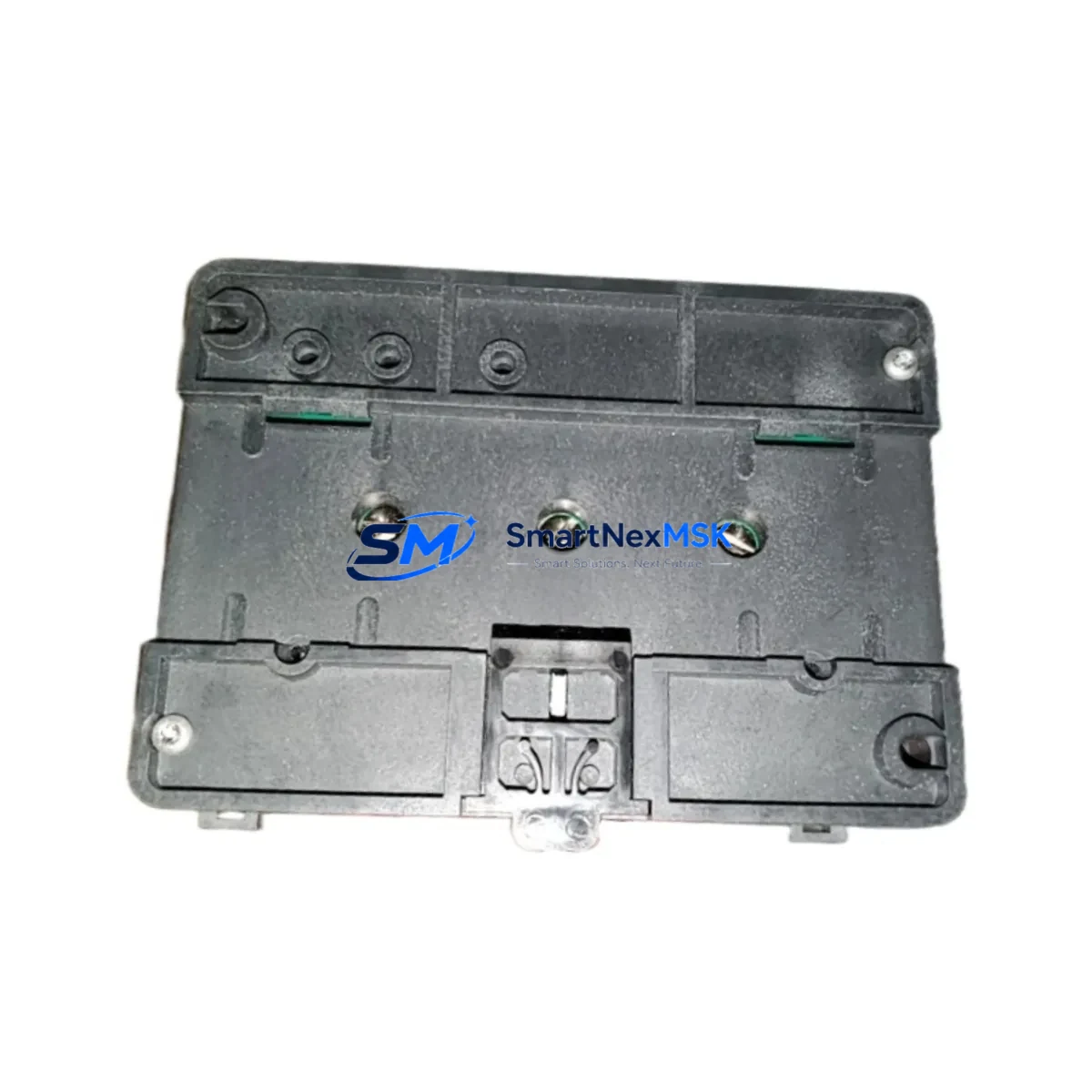

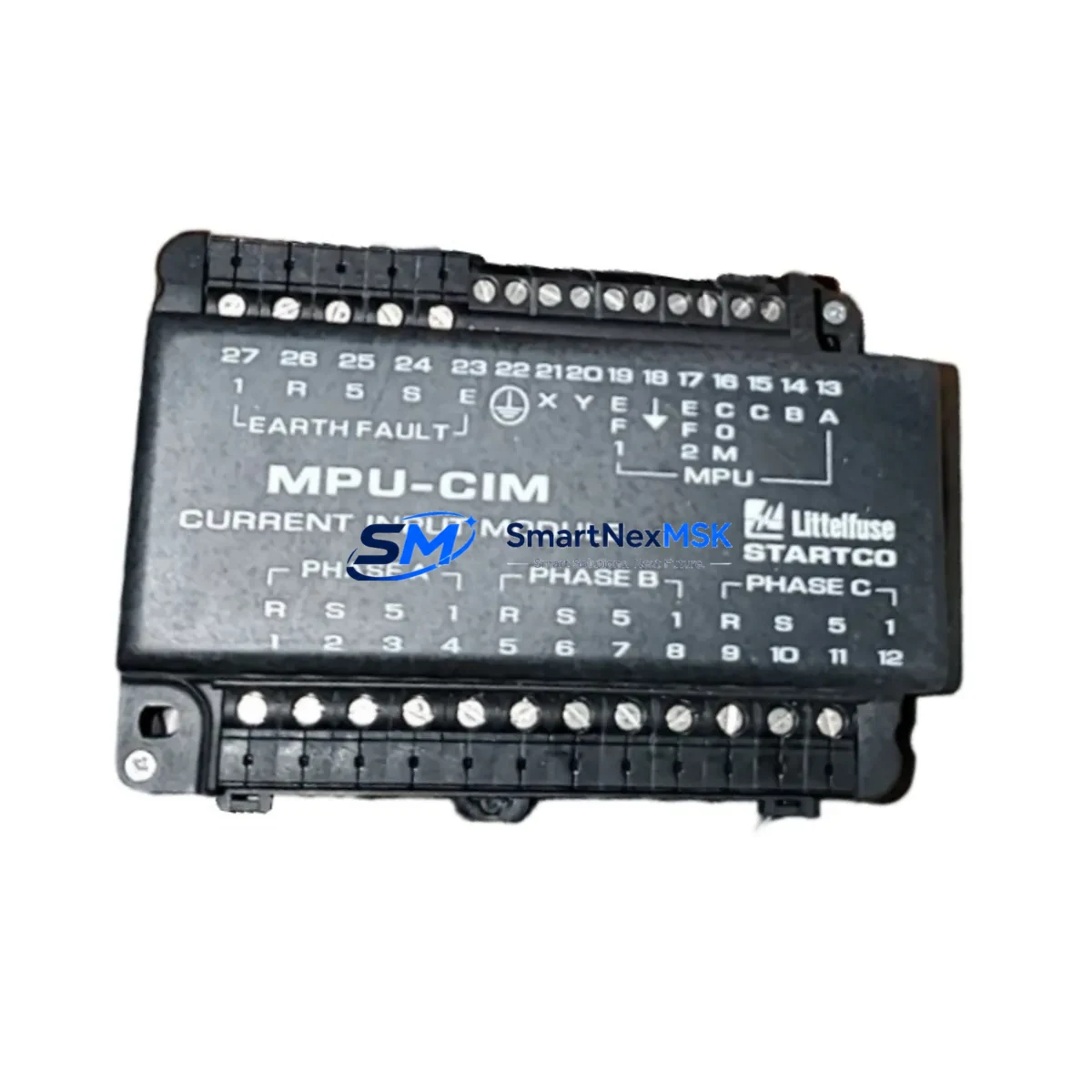

The Littelfuse MPU-CIM-00-00 is an original Current Input Module designed for the MPU Series Motor Protection Unit platform. In industrial facilities where motor-driven processes run continuously — pumps, compressors, conveyors, fans, and HVAC systems — the MPU-CIM-00-00 serves as a critical signal acquisition component, converting analog current signals from CTs into the digital data the MPU relay uses for overload detection, phase-loss protection, and ground-fault monitoring. Stocking this module as a verified spare is a fundamental step in any proactive maintenance strategy aimed at minimizing unplanned downtime and protecting rotating equipment assets.

Maintenance engineers working with Littelfuse MPU-based protection panels understand that the Current Input Module sits at the front end of the protection chain. A degraded or failed MPU-CIM-00-00 can cause erratic trip behavior, nuisance alarms, or — more dangerously — a complete loss of overcurrent protection. Replacing this module with a genuine OEM spare ensures that CT signal scaling, burden resistance, and input impedance remain within the relay’s calibrated parameters, preserving the integrity of the entire motor protection scheme.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the MPU-CIM-00-00, the inspection scope should extend beyond the module itself. The MPU Series protection system is an integrated platform, and adjacent components in the same control cabinet or motor protection circuit are subject to the same thermal cycling, vibration, and electrical stress. A thorough site inspection during a planned outage should include the following:

• MPU-VIM-00-00 Voltage Input Module — verify voltage sensing accuracy and terminal integrity; a degraded voltage input module can cause false phase-unbalance trips alongside a failing current input module.
• MPU-RTD-00-00 RTD Input Module — check winding temperature sensor connections; RTD modules in the same MPU chassis share the same environmental exposure and should be inspected simultaneously.
• Current Transformers (CTs) — inspect CT secondary wiring, terminal tightness, and insulation condition; a loose CT secondary is a common root cause of erratic current readings that can be misdiagnosed as a module fault.
• MPU Base Unit / CPU Module — confirm firmware version compatibility with the replacement CIM; review event logs for pre-existing fault codes before module swap.
• Control power supply (24 VDC or 120 VAC) — measure supply voltage at the MPU panel terminals; under-voltage conditions accelerate module wear and can cause intermittent communication faults.
• Terminal blocks and DIN rail connectors — check for corrosion, loose screws, and discoloration on all signal and power terminals in the motor protection circuit.
• Relay output contacts — test trip relay and alarm relay contact resistance; worn contacts in the MPU output circuit can prevent trip commands from reaching the contactor or circuit breaker.
• Communication module (RS-485 / Modbus) — if the MPU is integrated into a SCADA or DCS network, verify communication module status and cable shielding continuity after module replacement.
• Surge protection devices (SPDs) — inspect SPDs on CT secondary circuits and control power lines; failed SPDs leave the MPU module exposed to transient overvoltages from motor switching events.
• Motor contactor and overload relay — confirm that the downstream contactor coil voltage and overload relay settings remain consistent with the MPU protection parameters after the CIM is replaced.

Procurement engineers should consider maintaining a minimum of one MPU-CIM-00-00 per motor protection panel type in the site spare parts inventory. For facilities operating multiple MPU-based panels, a pooled spare strategy with a 2–3 unit buffer is recommended to cover simultaneous failures during peak production periods.

Site Replacement Workflow

Replacing the MPU-CIM-00-00 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically:

1. Isolate and de-energize — follow site LOTO (Lockout/Tagout) procedures; isolate control power to the MPU panel and confirm zero-energy state before opening the enclosure.
2. Document existing configuration — photograph or record the MPU parameter settings, CT ratio configuration, and any custom protection setpoints stored in the base unit before removing the module.
3. Remove the failed module — release the module locking tab, disconnect CT secondary wiring from the CIM terminals, and extract the module from the MPU chassis slot.
4. Inspect the slot and connectors — check the backplane connector pins for damage or contamination; clean with contact cleaner if necessary before inserting the replacement.
5. Install MPU-CIM-00-00 replacement — seat the new module firmly into the chassis slot, reconnect CT secondary wiring to the correct terminals, and verify terminal torque to specification.
6. Restore power and verify — re-energize the panel, confirm the MPU base unit recognizes the new CIM, and verify that current readings match expected values under known load conditions.
7. Test protection functions — perform a functional test of overload and ground-fault protection using a secondary injection test set or by verifying live current readings against clamp meter measurements.
8. Update maintenance records — log the replacement date, module serial number, and post-replacement test results in the site CMMS or maintenance logbook.

This replacement workflow is compatible with legacy MPU installations and current-generation MPU Series panels, making the MPU-CIM-00-00 a reliable long-term spare for aging motor protection systems that are not yet scheduled for full panel replacement. Extending the service life of existing MPU-based protection schemes through genuine spare parts is a cost-effective alternative to full system upgrades, particularly in facilities where motor protection panel standardization has already been established.

Spare Parts Support FAQ

Q1: Is the MPU-CIM-00-00 compatible with all MPU Series base units?
The MPU-CIM-00-00 is designed for the Littelfuse MPU Series Motor Protection Unit platform. Compatibility depends on the specific MPU base unit model and firmware version. We recommend confirming the base unit model number and firmware revision before ordering. Our technical team can assist with compatibility verification based on your panel documentation.

Q2: How is the MPU-CIM-00-00 tested before shipment?
Each unit undergoes functional testing prior to dispatch, including input signal response verification and connector integrity checks. Units are packaged in anti-static protective packaging to prevent ESD damage during transit. A test report is available upon request for critical applications.

Q3: What is the warranty coverage and what does it include?
All MPU-CIM-00-00 units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize site downtime.

Q4: Can you support long-term or blanket purchase orders for this spare part?
Yes. We support long-term supply agreements, blanket POs, and scheduled delivery programs for the MPU-CIM-00-00 and related MPU Series components. For facilities managing multi-site spare parts inventories or annual maintenance budgets, contact our sales team to discuss volume pricing and guaranteed stock allocation.
