LOWARA SV206N07M Maintenance-Ready Spare SV Series

LOWARA SV206N07M Maintenance-Ready Spare SV Series: Spare Replacement & Industrial Downtime Risk Control

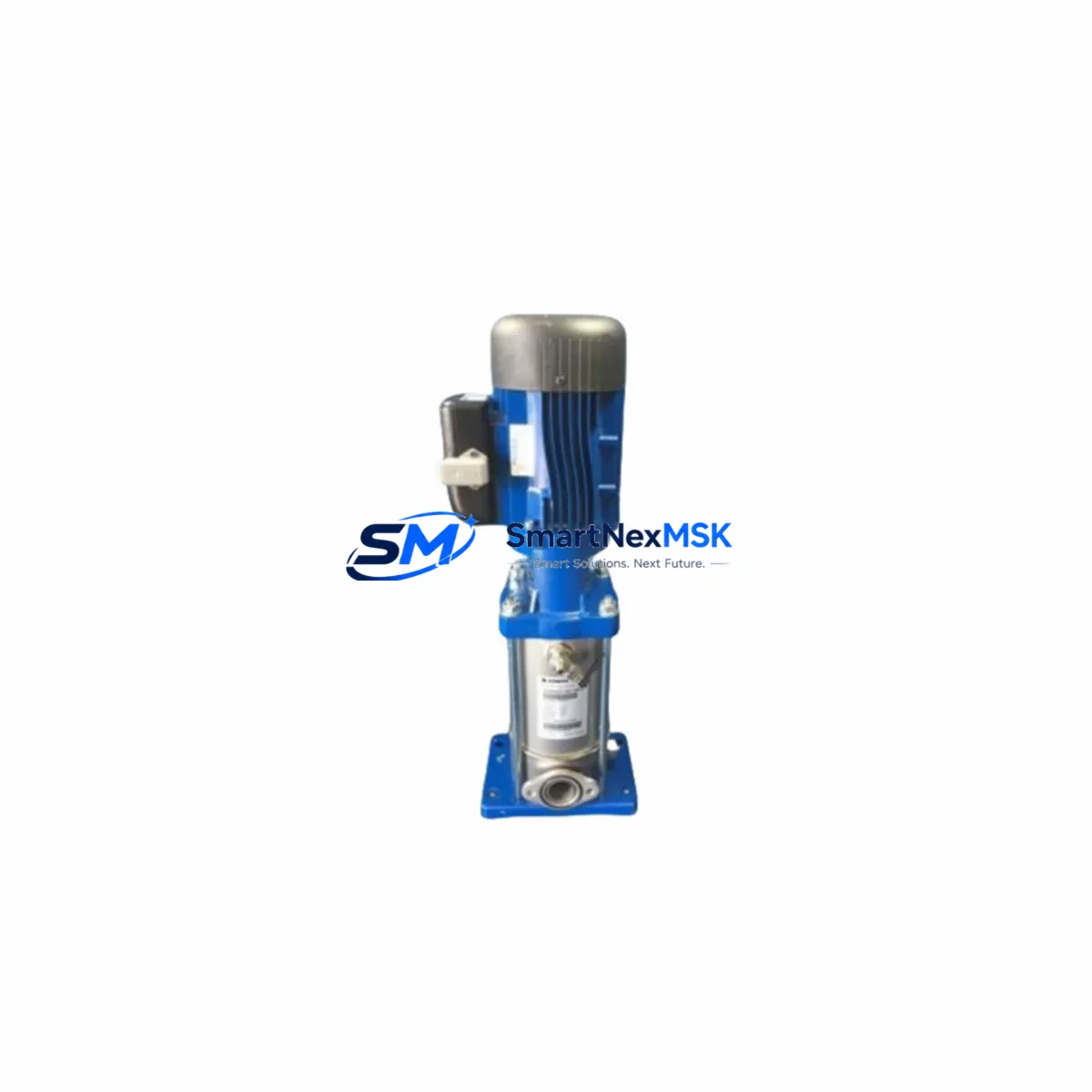

The LOWARA SV206N07M is a 6-stage vertical multistage centrifugal pump belonging to LOWARA’s proven SV Series — a platform widely deployed in industrial water supply, pressure boosting, cooling circuits, and process fluid transfer systems. As a maintenance-ready original spare, the SV206N07M is engineered to deliver direct drop-in replacement capability for aging or failed units, enabling maintenance teams to restore system pressure and flow with minimal reconfiguration and zero compatibility risk.

For facilities running continuous production lines, HVAC systems, or process cooling loops, an unplanned pump failure can cascade into broader system shutdowns. Holding a verified spare of the SV206N07M in your on-site inventory is a proven strategy to compress mean time to repair (MTTR) and protect operational continuity. This unit ships fully tested, with all hydraulic stages inspected, motor insulation verified, and mechanical seal integrity confirmed prior to dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the SV206N07M, experienced maintenance engineers treat the pump swap as an opportunity to audit the entire fluid circuit and associated electrical infrastructure. A pump failure rarely occurs in isolation — it is often preceded or accompanied by degradation in connected components that, if left unaddressed, will shorten the service life of the new unit.

Begin with the motor starter and soft-starter assembly: verify that the contactor ratings match the SV206N07M motor current draw, and inspect for contact wear or thermal discoloration. Check the motor protection relay (overload relay or electronic motor protection unit) for correct trip class settings — an improperly calibrated relay is a leading cause of premature motor burnout in multistage pump applications.

Inspect the pressure transducer or pressure switch on the discharge manifold. These sensors govern start/stop logic in variable-speed drive (VSD) or pressure-controlled pump systems; a drifted sensor will cause the replacement pump to operate outside its design curve. If the system uses a frequency inverter (VFD) for flow regulation, verify that the drive parameters — particularly ramp-up time, maximum frequency, and motor nameplate data — are updated to match the SV206N07M specifications.

On the power supply side, inspect the terminal block assembly and cable lugs feeding the pump motor. Loose or corroded terminals are a common source of phase imbalance, which accelerates winding insulation degradation. Verify that the circuit breaker or fuse protection upstream of the motor starter is correctly rated for the SV206N07M’s locked-rotor current (LRC).

For systems with remote monitoring or SCADA integration, confirm that the flow meter or energy meter on the pump circuit is functioning correctly and that baseline readings are logged before commissioning the replacement unit — this establishes a performance benchmark for future condition monitoring. If the pump feeds a cooling tower or heat exchanger loop, also inspect the expansion vessel and pressure relief valve for correct pre-charge pressure and set-point calibration.

Finally, review the mechanical coupling or flexible connector between the pump and piping. Misalignment or rigid connections that transmit vibration can cause premature bearing and seal failure in the new SV206N07M. A brief vibration measurement at commissioning — using a handheld vibration meter — provides early warning of alignment issues before they escalate.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: Isolate the pump from the electrical supply using the dedicated isolator or circuit breaker. Apply LOTO tags. Close the inlet and outlet isolation valves and allow system pressure to equalize before breaking any pipe connections.

Step 2 — Drain & Disconnect: Drain residual fluid from the pump casing via the drain plug. Disconnect the motor terminal box wiring, recording phase connections and earth bonding. Photograph the installation before disassembly to document pipe routing and support bracket positions.

Step 3 — Remove Failed Unit: Unbolt the pump from its mounting frame or inline pipe flanges. Note the condition of the mechanical seal housing and impeller — this information is useful for root-cause analysis and for adjusting the maintenance interval on the replacement unit.

Step 4 — Install SV206N07M Spare: Mount the replacement SV206N07M onto the existing frame or flange connections. Verify that the rotation direction matches the system requirement (arrow marked on pump casing). Reconnect wiring per the original phase sequence. Torque all flange bolts to specification.

Step 5 — Commission & Verify: Open isolation valves slowly to prime the pump. Energize the motor and verify rotation direction, discharge pressure, and current draw against nameplate values. Log baseline vibration and temperature readings. Update the maintenance record with the installation date and unit serial number to initiate the 12-month warranty period.

Step 6 — Replenish Spare Stock: Immediately initiate a reorder for a replacement SV206N07M spare to restore your buffer inventory. For critical pump circuits, a minimum of one on-site spare is recommended; for high-availability systems, consider a two-unit buffer.

Spare Parts Support FAQ

Q1: Is the SV206N07M a direct drop-in replacement for other 6-stage SV Series models?
The SV206N07M shares the standard SV Series mounting footprint and hydraulic connection dimensions with other 6-stage variants in the LOWARA SV lineup. However, motor power and electrical ratings vary by suffix code. Always verify the motor power (kW), voltage, and phase configuration against your existing installation before ordering. Our technical team can assist with cross-reference confirmation prior to shipment.

Q2: What pre-shipment testing is performed on each SV206N07M unit?
Each unit undergoes hydraulic performance verification, motor insulation resistance testing (Megger test), mechanical seal leak check, and rotation direction confirmation before dispatch. A test report is available upon request. Units are packaged in original or equivalent protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects, premature mechanical seal failure under normal operating conditions, and motor winding faults not attributable to installation error, voltage imbalance, or fluid contamination. To initiate a claim, contact sales@smartnexmsk.com with the unit serial number, installation date, and a description of the fault. Replacement or repair will be coordinated within the warranty period.

Q4: Can you supply SV206N07M units for long-term maintenance contracts or OEM spare parts programs?
Yes. We support scheduled spare parts programs for facilities requiring guaranteed stock availability, fixed pricing, and priority dispatch. Long-term supply agreements can be structured around your planned maintenance calendar. Contact our team to discuss volume pricing, lead times, and consignment stock options tailored to your site’s maintenance strategy.
