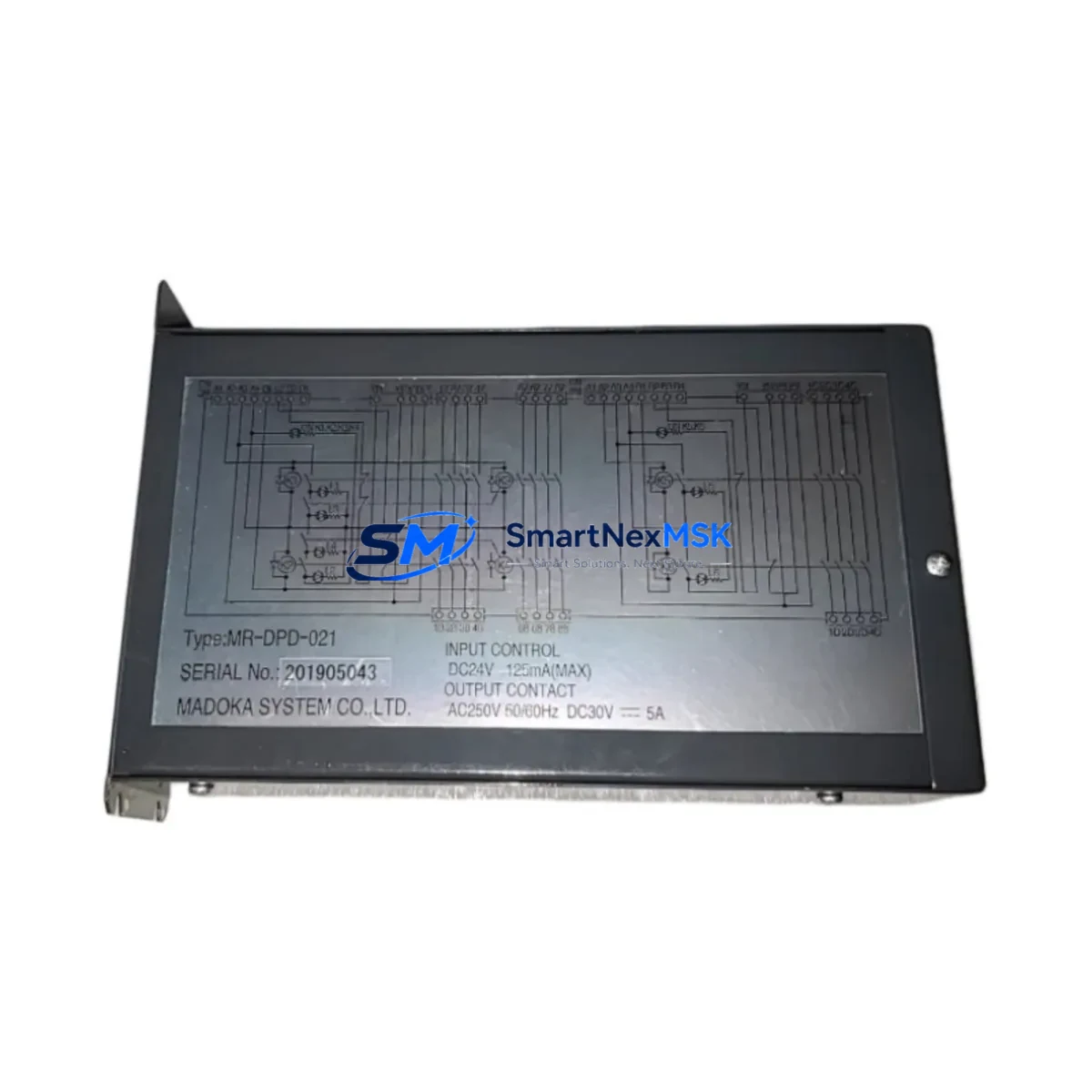

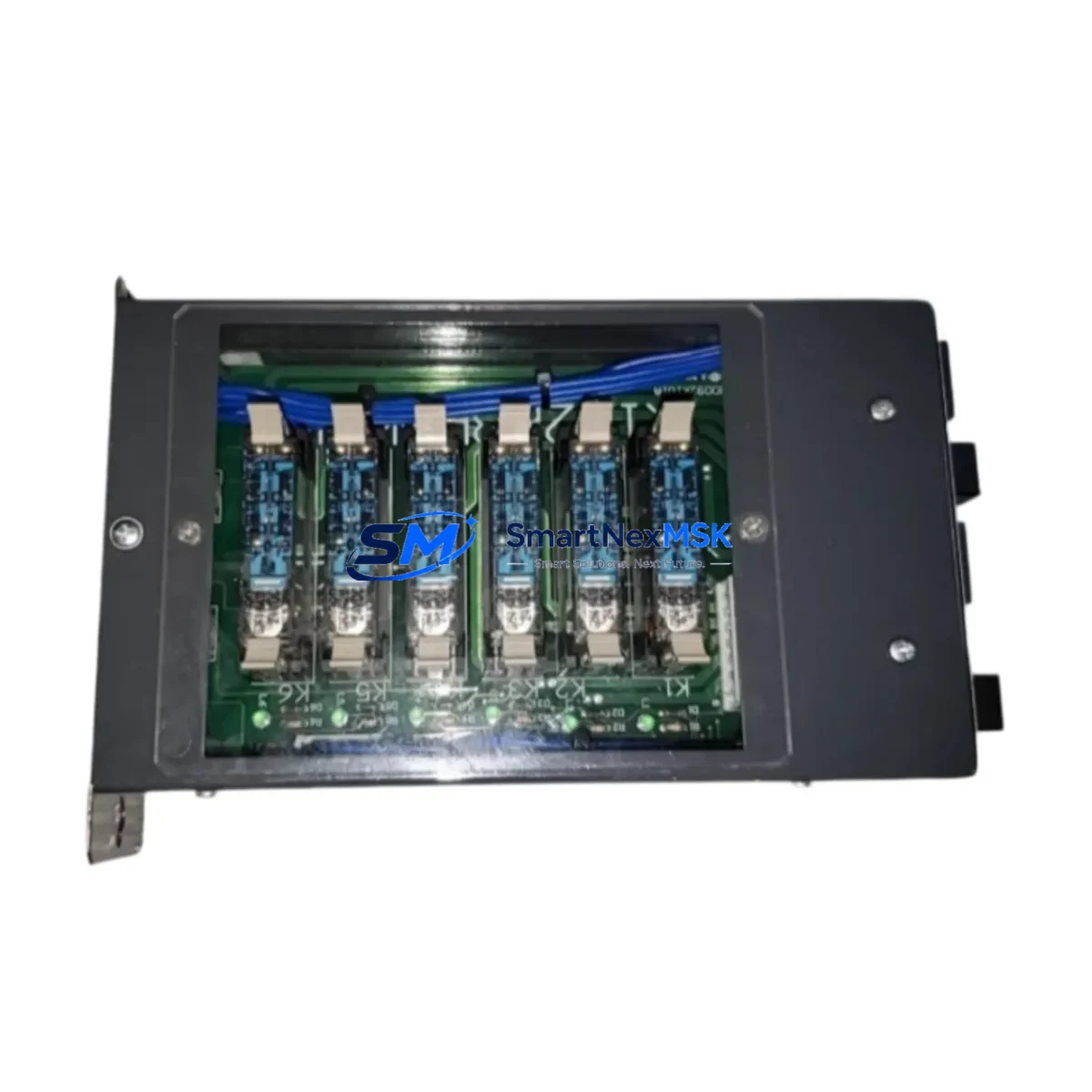

MADOKA MR-DPD-021 Safety-Enhanced Digital Output Module

MADOKA MR-DPD-021 Safety-Enhanced Digital Output Module for Harsh Industrial Sites

The MADOKA MR-DPD-021 is a ruggedized PLC digital output module engineered for mission-critical industrial control environments where control interruption, signal drift, and field downtime carry serious operational and safety consequences. Designed as part of the MADOKA MR-DP Series, this module delivers deterministic output switching performance under high electrical noise, wide temperature swings, and continuous-duty production cycles — making it a trusted component in safety-critical control cabinets across petrochemical, power generation, mining, water treatment, metallurgical, and port logistics facilities.

In high-load industrial sites, digital output modules are the last line of defense between a PLC control decision and a physical actuator response. The MR-DPD-021 is built to ensure that output commands — whether driving solenoid valves, motor contactors, relay coils, or indicator circuits — are executed reliably without false triggering, output dropout, or surge-induced latch-up. Its reinforced output driver circuitry provides robust protection against inductive load kickback and transient overvoltage events common in heavy industrial switchgear environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the MADOKA MR-DPD-021 does not operate in isolation — it functions as part of a coordinated protection and control architecture. To maximize system reliability and minimize unplanned downtime, it is typically deployed alongside complementary MADOKA MR-DP Series components and third-party protection devices.

On the power supply side, a MADOKA MR-PSU-024 or equivalent 24 VDC regulated power supply with active current limiting ensures that output channel loads do not cause bus voltage collapse during simultaneous multi-channel switching. Upstream, a MADOKA MR-CPU-031 central processing unit module coordinates scan-cycle timing and watchdog supervision, ensuring that any communication anomaly between the CPU and the MR-DPD-021 triggers a safe-state output de-energization rather than a latched fault condition.

For digital input feedback and interlock verification, the MADOKA MR-DPD-011 digital input module is commonly paired with the MR-DPD-021 in the same rack, enabling closed-loop confirmation that output commands have been physically executed by field actuators. In safety interlock loops — such as emergency shutdown (ESD) circuits or fire-and-gas suppression systems — this input/output pairing is essential for SIL-rated loop integrity.

Surge and transient protection at the field terminal level is reinforced by installing Phoenix Contact TRABTECH or Weidmüller VSSC series surge protection devices on the output wiring terminals, particularly in outdoor substations, long cable runs, or environments with frequent lightning activity. These devices work in concert with the MR-DPD-021’s internal transient suppression to provide multi-stage protection against surge events that could otherwise cause output driver failure or spurious actuation.

For communication-intensive architectures, the MADOKA MR-COM-485 or MR-COM-ETH communication interface modules handle Modbus RTU or Ethernet/IP data exchange between the MR-DP rack and SCADA systems, ensuring that output status data is continuously reported upstream without interrupting the real-time output scan cycle. In distributed control system (DCS) integration scenarios, the MR-DPD-021 may also interface with Yokogawa CENTUM VP or Honeywell Experion PKS field I/O marshalling panels via hardwired interlock signals, providing a hardware-level safety boundary independent of network communication.

Grounding and shielding discipline is equally critical: the MR-DPD-021 should be installed in a cabinet with a dedicated instrument earth bus, separated from power earth, to prevent common-mode noise from coupling into the output logic circuits. This is especially important in variable frequency drive (VFD) environments, where high-frequency switching noise from ABB ACS880 or Siemens SINAMICS G120 drives can induce false output transitions if grounding is inadequate.

Critical Industrial Safety Applications

The MADOKA MR-DPD-021 has been deployed across a wide range of high-consequence industrial environments where output module reliability directly affects process safety and regulatory compliance.

In petrochemical and refinery facilities, the module drives solenoid valves in emergency depressurization and blowdown systems, where a missed output command during a high-pressure excursion can result in catastrophic equipment failure. Its optical isolation and surge protection ensure that ground potential differences between field instruments and the control room do not compromise output integrity.

In thermal and hydroelectric power generation, the MR-DPD-021 controls turbine auxiliary systems — lube oil pumps, cooling fans, and excitation contactors — where continuous availability is mandatory. The module’s per-channel diagnostic LEDs allow maintenance technicians to identify output faults during live operation without interrupting the control scan cycle.

In underground mining operations, where explosive atmospheres and high vibration are constant concerns, the module is installed in pressurized or purged control enclosures (Ex-p rated cabinets) and drives ventilation fan starters, conveyor belt interlocks, and methane detection alarm outputs. Its wide operating temperature range accommodates the thermal cycling experienced in deep-level mine environments.

In municipal water treatment and wastewater facilities, the MR-DPD-021 controls pump motor starters, chemical dosing valve actuators, and UV disinfection system contactors. The module’s short-circuit protection prevents a single field wiring fault from cascading into a multi-channel output failure, maintaining treatment process continuity.

In metallurgical and steel mill environments, where electromagnetic interference from arc furnaces and induction heaters is extreme, the module’s IEC 61000-4 compliant EMC design ensures that output commands to cooling water valves, fume extraction fans, and casting machine actuators are executed without interference-induced errors.

In port and terminal logistics automation, the MR-DPD-021 drives crane control contactors, conveyor routing gates, and safety light curtain reset circuits, where high-cycle-rate switching and 24/7 continuous operation demand output modules with proven long-term reliability and readily available spare parts inventory.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MADOKA MR-DPD-021?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance deviations from the published specification. If the module fails under normal operating conditions within the warranty period, we provide a replacement unit or full repair at no charge. Warranty claims are processed with a target turnaround of 5–7 business days, and advance replacement units are available for critical production environments upon request.

Q2: What pre-shipment testing is performed on each MR-DPD-021 unit?
Every MADOKA MR-DPD-021 module undergoes 100% functional testing prior to shipment, including per-channel output switching verification, isolation resistance measurement, and power-on self-test (POST) validation. Units are tested at rated voltage and load to confirm output driver performance before packaging. A test record is available upon request for quality-critical procurement processes.

Q3: Is the MR-DPD-021 compatible with existing MADOKA MR-DP Series racks and backplanes?
Yes. The MR-DPD-021 is fully backward-compatible with all MADOKA MR-DP Series backplanes and CPU modules. It can be hot-swapped in systems that support live module replacement, minimizing maintenance downtime. For mixed-generation rack configurations, please confirm the backplane revision with our technical team to ensure firmware compatibility.

Q4: Can you guarantee long-term supply and spare parts availability for the MR-DPD-021?
We maintain dedicated buffer stock of the MADOKA MR-DPD-021 to support both new project deployments and ongoing spare parts programs. For facilities with long equipment lifecycles — common in power generation, petrochemical, and water treatment — we recommend establishing a consignment or blanket order arrangement to secure supply continuity. Our team can provide lead time commitments and multi-year supply agreements upon request.
