Mean Well NDR-480-48 Safety-Enhanced DIN Rail Power Supply

Mean Well NDR-480-48: Safety-Enhanced DIN Rail Power Supply for Harsh Industrial Control Cabinets

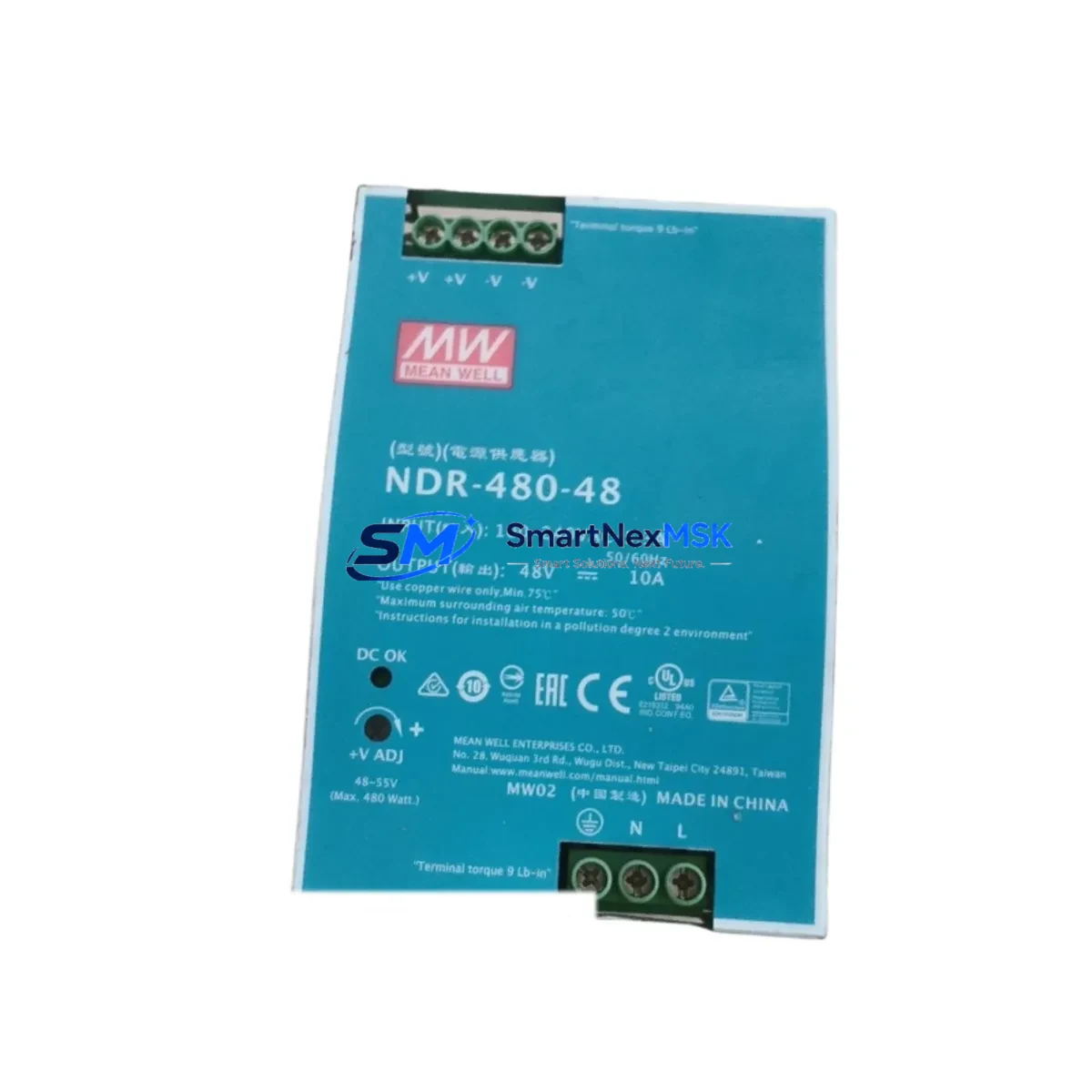

The Mean Well NDR-480-48 is a 480W, 48VDC DIN Rail-mount power supply engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to serve as the backbone of control cabinet power architecture, this unit delivers stable, regulated DC output under high-load, high-interference, and thermally stressed conditions — making it a critical component in safety-critical control loops, interlock circuits, and field instrumentation power systems.

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port automation systems — power quality is not a convenience; it is a safety imperative. The NDR-480-48 addresses this directly with its wide-range AC input (90–264VAC), active power factor correction (PFC), and built-in protections against overvoltage, overcurrent, overtemperature, and short-circuit faults. These features collectively reduce the risk of control system interruption, signal drift caused by voltage sag, and module misoperation triggered by power transients or surge events.

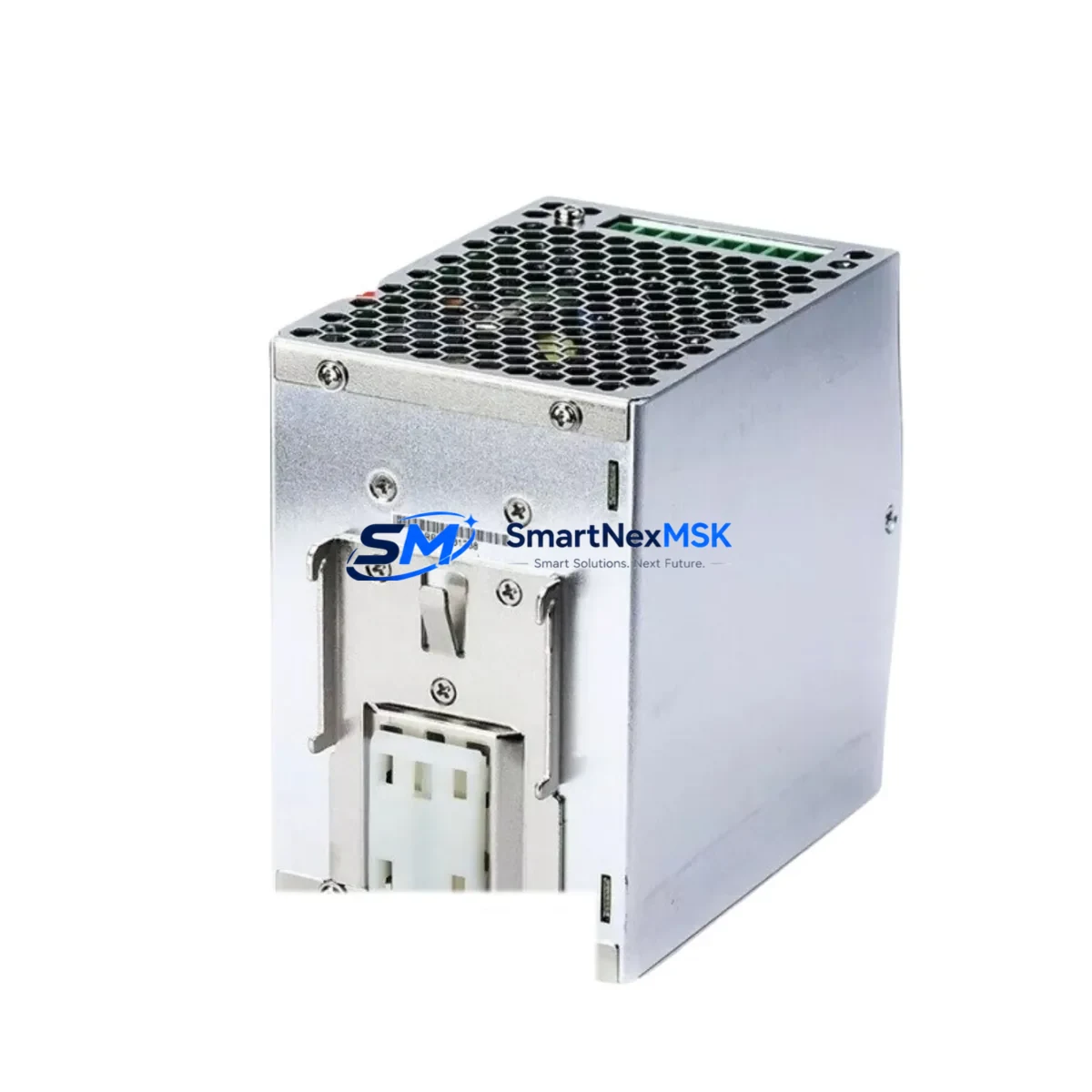

With an operating temperature range of -20°C to +70°C and convection cooling (no fan), the NDR-480-48 eliminates moving-part failure modes that commonly cause unplanned downtime in dusty or vibration-prone environments such as mining headframes, steel rolling mills, and offshore platforms. Its IP20-rated enclosure and DIN rail form factor allow direct integration into standard IEC 60715 control cabinets without additional mounting hardware.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest power link. The NDR-480-48 is typically deployed alongside complementary protection and control components to form a complete, fault-tolerant power and signal architecture. In a typical safety-rated cabinet, the NDR-480-48 feeds 48VDC bus rails that supply field devices such as the Siemens 6ES7 321-1BL00-0AA0 digital input module and the Siemens 6ES7 322-1BL00-0AA0 digital output module, both of which require stable, low-ripple DC power to maintain accurate I/O state reporting in interlock and emergency shutdown (ESD) circuits.

For installations requiring redundant power paths, the NDR-480-48 is often paired with a Mean Well DR-UPS40 DC UPS module, which provides seamless switchover to battery backup during mains interruption — a critical requirement in continuous process industries where even a 20ms power gap can trigger a safety PLC fault. Upstream surge protection is typically handled by a Phoenix Contact TRABTECH PT 2X2-BE/S-24DC-ST or equivalent DIN rail surge protective device (SPD), clamping transient overvoltages before they reach the PSU input terminals.

On the load side, individual circuit branches are protected by Mean Well SCP-75-24 or similar current-limiting modules, preventing a single branch fault from collapsing the entire 48V bus. Communication integrity within the cabinet is maintained by properly shielded PROFIBUS DP or PROFINET network segments, where the NDR-480-48’s low output ripple (<200mVp-p) ensures that fieldbus transceivers — such as those on a Siemens CP 343-1 communications processor — operate without noise-induced packet errors. For safety relay circuits, the stable 48VDC output directly powers Pilz PNOZ X series safety relays, ensuring consistent coil energization and reliable contact operation in machine guarding and ESD applications.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area control rooms and marshalling cabinets, the NDR-480-48 powers field junction boxes and intrinsic safety barriers. Its high surge immunity (IEC 61000-4-5 Level 4) protects against lightning-induced transients common in open-field pipeline installations. The fanless design eliminates ignition risk from motor sparks in Zone 2 adjacent control rooms.

Power Generation & Substation Automation: In 110kV and 220kV substation relay panels, the NDR-480-48 supplies protection relays and RTU modules with stable 48VDC, matching the standard substation DC bus voltage. Its wide input range accommodates the voltage fluctuations inherent in generator auxiliary power systems during load shedding events.

Mining & Mineral Processing: Underground and surface mining control systems demand power supplies that withstand continuous vibration, coal dust ingress, and wide ambient temperature swings. The NDR-480-48’s convection cooling and sealed terminal blocks make it suitable for motor control centers (MCCs) in crusher, conveyor, and ventilation fan control applications.

Water & Wastewater Treatment: SCADA-controlled pump stations and chemical dosing systems rely on the NDR-480-48 to power PLCs, HMIs, and 4–20mA transmitter loops. Its overcurrent protection prevents cascade failures when submersible pump motors draw inrush current during startup sequences.

Metallurgy & Steel Production: Rolling mill and continuous casting control systems operate in environments with extreme electromagnetic interference from high-current induction furnaces and DC drive systems. The NDR-480-48’s active PFC and EMC-compliant design (EN 55032 Class B) ensure that control system power remains clean and stable even in the presence of high-frequency conducted emissions.

Port & Logistics Automation: Container crane PLC cabinets and automated guided vehicle (AGV) charging infrastructure benefit from the NDR-480-48’s high efficiency (≥91%), reducing heat dissipation in sealed outdoor enclosures and extending the service interval between preventive maintenance cycles.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the NDR-480-48?
All NDR-480-48 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects, component failure under normal operating conditions, and output parameter deviation beyond published specifications. Warranty claims are processed with a target response time of 3 business days, and replacement units are dispatched from in-stock inventory to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Every NDR-480-48 undergoes a full-load burn-in test, output voltage accuracy verification, protection function activation test (OVP, OCP, SCP), and insulation resistance check prior to shipment. Units are shipped with a test record and original Mean Well packaging to ensure traceability and safe transit to site.

Q3: Is the NDR-480-48 compatible with my existing Siemens S7-300/S7-400 or Allen-Bradley ControlLogix power architecture?
Yes. The NDR-480-48 outputs 48VDC, which is compatible with standard 48V fieldbus power segments, safety relay coils, and communication module power inputs used across Siemens SIMATIC, Allen-Bradley, Schneider Modicon, and ABB AC500 PLC platforms. For 24VDC loads, a step-down DC-DC converter module can be added downstream. SMARTNEXMSK can advise on compatible converter models upon request.

Q4: Can SMARTNEXMSK guarantee long-term supply continuity for the NDR-480-48?
Yes. SMARTNEXMSK maintains dedicated safety stock of the NDR-480-48 and other high-demand Mean Well NDR Series models to support ongoing MRO (maintenance, repair, and operations) procurement. For projects requiring scheduled deliveries or blanket purchase orders, our team can arrange forward inventory allocation to ensure uninterrupted supply for plant maintenance cycles and capital project timelines.
