Meggitt GSI 127 244-127-000-017 A2-B02 Retrofit-Ready GSI

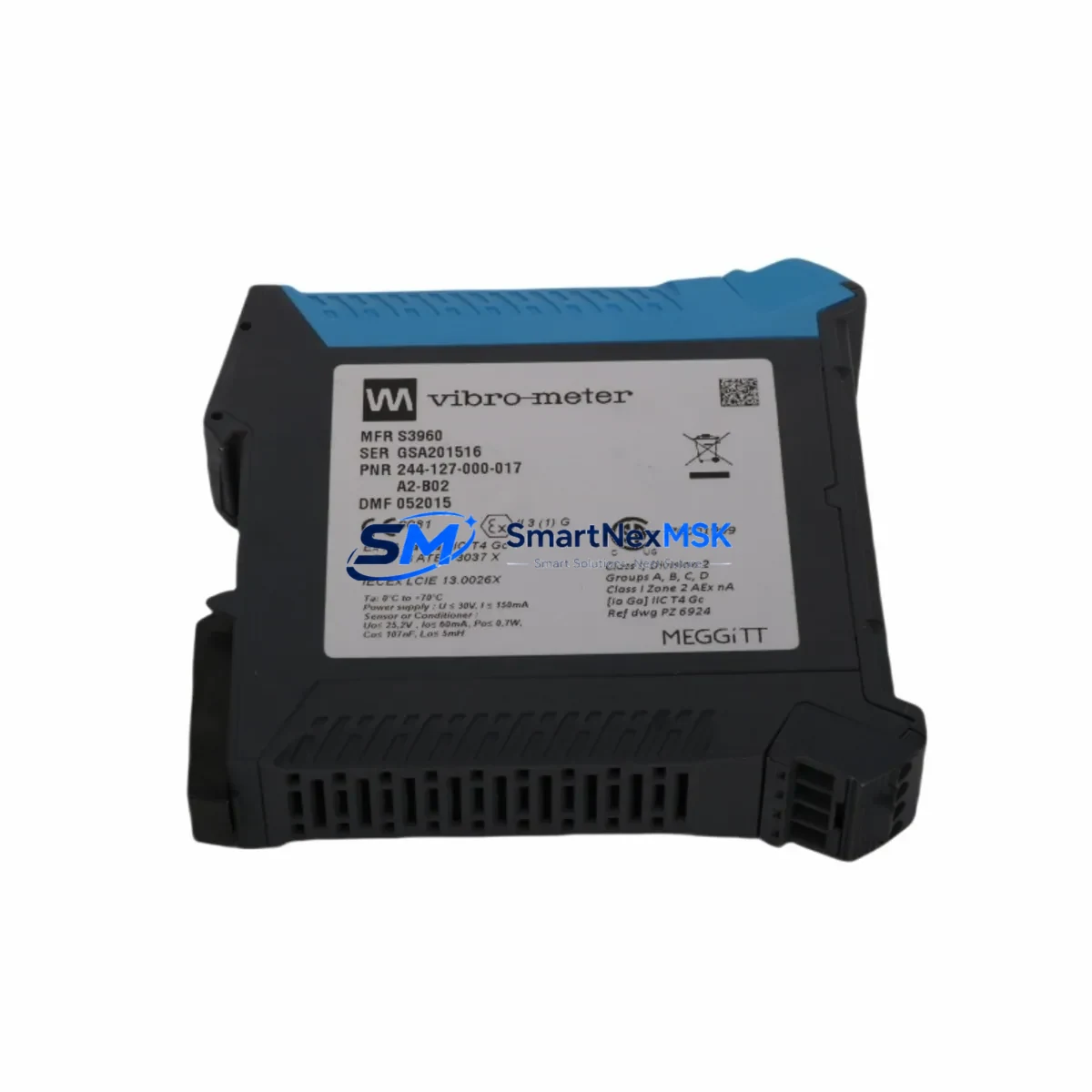

Meggitt GSI 127 244-127-000-017 A2-B02 Retrofit-Ready Galvanic Separation Unit for GSI 127 Series Control Systems

The Meggitt GSI 127 244-127-000-017 A2-B02 is a galvanic separation unit engineered for seamless integration into existing vibration monitoring and machinery protection systems built on the Meggitt Vibro-Meter GSI 127 platform. As legacy industrial control architectures age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain signal integrity, channel isolation, and system compatibility without requiring full panel redesigns or PLC reprogramming. This unit addresses that challenge directly — offering a drop-in retrofit solution backed by 12-month warranty coverage and pre-shipment functional testing.

Designed for use in turbomachinery protection panels, rotating equipment monitoring cabinets, and safety-instrumented system (SIS) enclosures, the GSI 127 244-127-000-017 A2-B02 provides galvanic isolation between field-mounted transducers and downstream signal conditioning or control hardware. Its compact DIN-rail-compatible form factor and standardized terminal block layout allow direct substitution in existing backplane assemblies without modification to cable routing or marshalling wiring. Engineers replacing end-of-life Vibro-Meter VM600 series signal conditioners or decommissioning older MPC4 machinery protection chassis will find this module a reliable bridge component during phased migration projects.

When planning a retrofit around this unit, the first verification step is confirming the power supply rail voltage at the installation slot. The GSI 127 series typically operates on a ±15 VDC or 24 VDC backplane supply; mismatched supply rails from adjacent Vibro-Meter RACK 19 or RACK 6U chassis can cause initialization faults or channel offset errors. Terminal block pinout must be cross-referenced against the original wiring diagram — particularly for differential input pairs from piezoelectric accelerometers or proximity probes, where shield grounding and drain wire routing directly affect noise floor performance. If the existing installation uses Vibro-Meter CA-series coaxial cables or Belden 9182 shielded twisted pairs, no cable replacement is typically required.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the GSI 127 244-127-000-017 A2-B02 begins with a thorough audit of the existing machinery protection architecture. In most turbine or compressor protection panels, this module occupies a dedicated slot within a Vibro-Meter RACK 19 or RACK 6U chassis alongside signal conditioning modules such as the VM600 AMC8 or IOC4T I/O cards. Before removal of the legacy unit, engineers should document the current channel configuration using Meggitt’s Rack Configuration Software (RCS) or equivalent, capturing all active alarm thresholds, OK relay states, and 4–20 mA output scaling parameters.

The terminal block on the A2-B02 variant uses a standard screw-clamp design compatible with 0.5–2.5 mm² conductors. When re-terminating field cables from proximity probes — such as those used with Bently Nevada 3300 XL or Emerson CSI 6500 series transducers in cross-platform migration scenarios — verify that the input impedance specification of the replacement module matches the driver output of the existing proximitor or signal conditioner. In systems where the GSI 127 chassis interfaces with a Modbus RTU or PROFIBUS DP gateway module for DCS integration, no changes to the communication layer are required, as the galvanic separation function is entirely passive and transparent to the upstream protocol stack.

For plants migrating from older Bently Nevada 3500 series rack systems or Emerson Ovation DCS I/O modules, the GSI 127 A2-B02 can serve as an isolation barrier between legacy field wiring and new signal conditioning hardware, preserving the original cable plant while upgrading the active electronics. This approach is particularly valuable in brownfield projects where cable replacement would require confined-space entry or extended outage windows. Alongside this module, the retrofit BOM typically includes Vibro-Meter VM600 MPC4 processor cards, IOC4T terminal I/O cards, and RACK 19 power supply modules — all of which are available from our inventory with matched lead times.

Downtime Control During System Migration

Minimizing unplanned downtime during a galvanic separation module replacement requires a structured hot-swap or cold-swap protocol depending on the chassis design. For GSI 127 series racks that support live-insertion, the replacement sequence should begin with a bypass of the affected monitoring channel at the DCS or safety PLC level — typically a Siemens S7-400 or ABB AC800M controller in turbomachinery applications — to prevent spurious trip signals during the module swap. The original program logic, including vibration alarm setpoints and OK relay configurations, must be preserved in the controller memory and not cleared during the hardware exchange.

Once the replacement GSI 127 244-127-000-017 A2-B02 is seated and terminal connections are verified, restore the monitoring channel incrementally: first confirm the raw signal reading at the module’s analog output matches the expected baseline from the field transducer, then re-enable the alarm logic at the controller. For systems where the GSI 127 rack feeds a Yokogawa CENTUM VP or Honeywell Experion PKS DCS, the HMI faceplate for the affected measurement point should be monitored in parallel during the first 30 minutes of operation to confirm stable readings and absence of noise spikes. Document the as-found and as-left signal values in the maintenance management system (CMMS) to support future reliability analysis.

Where a cold-swap is required — typically in non-redundant single-channel protection systems — coordinate the outage window with operations to align with scheduled maintenance or low-production periods. Pre-stage the replacement module, terminal documentation, and a calibrated signal simulator to minimize bench time. Total replacement time for a trained technician is typically 45–90 minutes including functional verification, making the GSI 127 A2-B02 one of the lower-risk module replacements in a Vibro-Meter protection rack.

Retrofit Support FAQ

Q1: Is the 244-127-000-017 A2-B02 a direct replacement for earlier A1 or B01 suffix variants?
The A2-B02 designation indicates a hardware revision. In most installations, the A2-B02 is backward compatible with A1 and B01 variants at the terminal and backplane level, but engineers should verify the revision history in the Meggitt product change notice (PCN) documentation for their specific chassis serial number range. Our team can assist with revision cross-referencing prior to shipment.

Q2: What pre-shipment testing is performed on this unit?
Each GSI 127 244-127-000-017 A2-B02 unit undergoes functional verification including channel isolation resistance measurement, signal pass-through accuracy check, and power consumption validation before dispatch. A test certificate is included with shipment. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

Q3: Can this module be used in a SIL-rated safety instrumented system?
The GSI 127 series was designed for machinery protection applications. For use in a formally assessed SIL 1 or SIL 2 safety instrumented function, the module’s failure mode and diagnostic coverage data must be reviewed against the SIL target. Contact our technical team with your SIL assessment documentation for a compatibility review before procurement.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed with return authorization (RMA); replacement or repair is completed within 15 business days. Extended warranty options are available on request.
