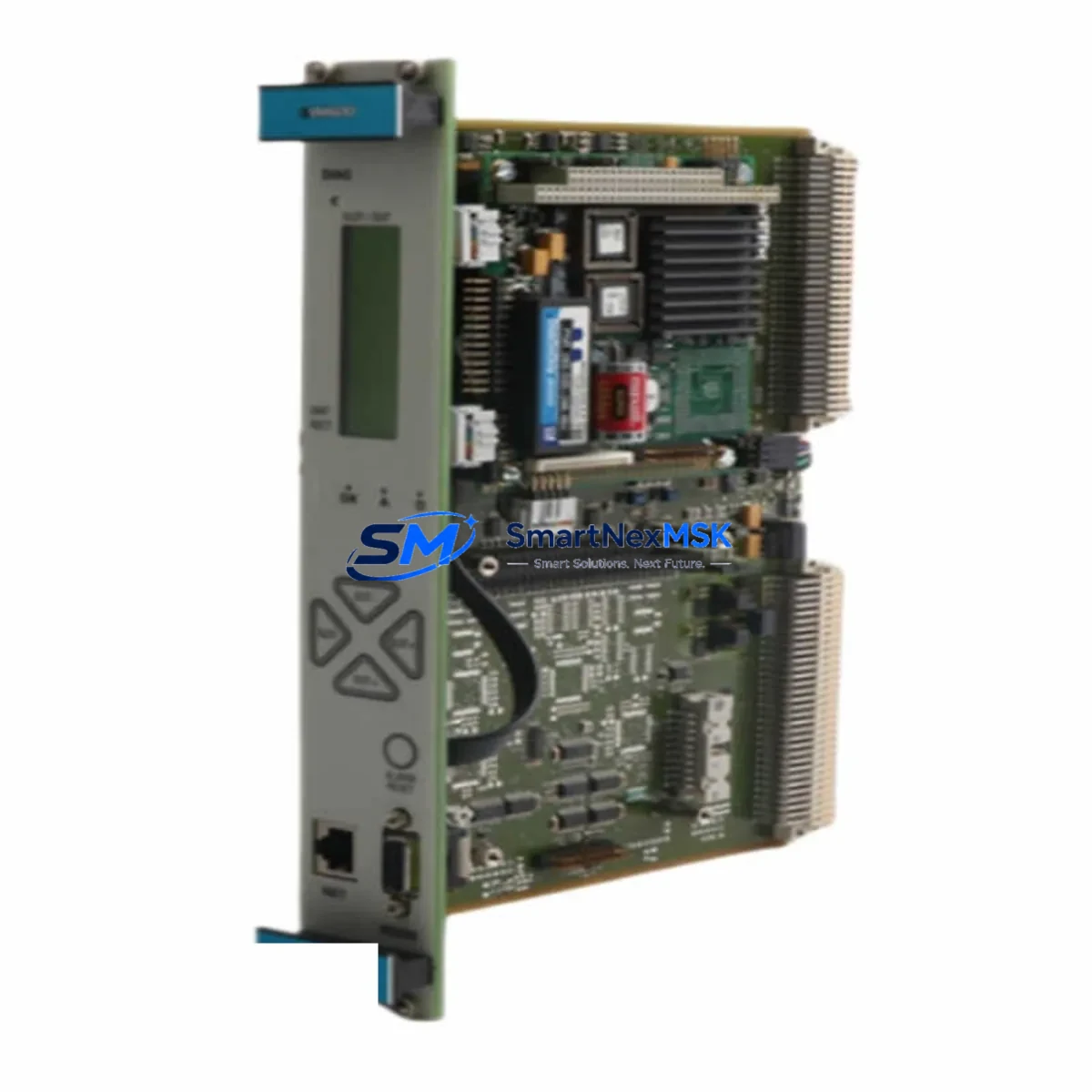

Meggitt VM600 CPU M 200-595-041-113 Retrofit-Ready CPU Card for VM600 Series Control Systems
The Meggitt VM600 CPU M 200-595-041-113 is a central processing card engineered for the VM600 machinery protection and condition monitoring platform. As legacy VM600 racks reach end-of-service milestones, this CPU card serves as the authoritative retrofit solution for facilities seeking to extend system life, restore discontinued spare parts, and maintain uninterrupted vibration monitoring across rotating machinery assets including turbines, compressors, pumps, and generators.
Whether you are replacing a failed CPU card in an existing VM600 rack, upgrading from an earlier VM600 CPU revision, or consolidating spare-parts inventory ahead of a planned outage, the VM600 CPU M 200-595-041-113 provides the processing backbone required to sustain full channel acquisition, alarm management, and communication functions within the VM600 architecture.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Meggitt VM600 Machinery Protection System |
| Card Form Factor | VM600 standard Eurocard, fits VM600 rack backplane |
| Backplane Interface | VM600 proprietary VME-based backplane bus |
| Communication Compatibility | Supports VM600 internal rack communication; interfaces with MPC4, RPS6U, and IOC4T modules |
| Replacement Scope | Direct replacement for VM600 CPU M variants; verify firmware revision before swap |
| Installation Requirement | Rack power must be isolated prior to card insertion; ESD precautions mandatory |
| Commissioning Note | Configuration reload via VM600 rack manager software required after replacement |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful VM600 CPU M 200-595-041-113 retrofit begins well before the card arrives on site. Engineers should audit the existing VM600 rack configuration, documenting the slot assignments of all installed modules. In a typical VM600 rack you will find a combination of the MPC4 machine protection card handling channel-level vibration and speed inputs, the IOC4T input/output conditioning card managing transducer signal conditioning, and the RPS6U redundant power supply ensuring continuous rack power. Each of these modules communicates with the CPU card via the VM600 backplane, and their firmware versions must be cross-checked against the CPU M 200-595-041-113 compatibility matrix before the replacement is executed.
Terminal wiring on the VM600 I/O cards does not change during a CPU swap, but engineers should photograph and document all field wiring terminations on the IOC4T and any associated XMC16 expansion modules before beginning work. If the site uses a VM600 rack with the RLC16 relay output card for alarm annunciation, confirm that the relay logic programmed in the existing CPU configuration has been exported and backed up — this data resides in the CPU card’s non-volatile memory and must be reloaded after the replacement card is installed.
For sites running the VM600 alongside a broader DCS or safety instrumented system, the CPU card’s communication outputs — typically routed through a dedicated communication module or the rack’s rear I/O panel — must be verified for protocol continuity. Many VM600 installations interface with Modbus RTU or Modbus TCP supervisory layers; confirm that the replacement CPU card’s communication parameters match the existing network configuration before bringing the rack back online. Where the VM600 feeds vibration data into a plant historian or condition monitoring software platform, coordinate with the control room team to verify that data tags and polling addresses remain consistent after the CPU swap.
If the retrofit is part of a broader migration from an older Meggitt Vibro-Meter platform to the VM600 architecture, additional planning is required for transducer compatibility, cable screening, and signal conditioning. Eddy-current proximity probes, velocity transducers, and accelerometers previously wired to legacy Vibro-Meter racks may require signal conditioning adapters or re-termination to match the IOC4T input specifications. In these cases, the VM600 CPU M 200-595-041-113 acts as the central coordinator for the new rack, and its configuration must reflect the full channel map of the upgraded system.
Downtime Control During System Migration
Minimizing unplanned downtime during a VM600 CPU card replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, export the complete rack configuration from the existing CPU card using the VM600 rack manager software. Save the configuration file to a secure, offline location — this file contains all channel scaling, alarm setpoints, relay assignments, and communication parameters that define the system’s protective functions.
During the replacement window, follow a strict sequence: isolate rack power via the RPS6U power supply front-panel switch, wait for the capacitor discharge period specified in the VM600 hardware manual, then extract the failed CPU card using the card ejector levers. Insert the VM600 CPU M 200-595-041-113 into the same slot, ensuring the card is fully seated against the backplane connector. Restore rack power and allow the CPU to complete its self-test sequence before attempting configuration reload.
Configuration reload should be performed using the same version of VM600 rack manager software that was used to create the backup. Mismatched software versions can cause parameter import errors that require manual re-entry of alarm setpoints and channel scaling. Once the configuration is loaded, perform a channel-by-channel functional verification: confirm that each MPC4 channel is reporting the correct engineering-unit values, that alarm thresholds are active, and that relay outputs on the RLC16 card are responding correctly to simulated alarm conditions. Only after this verification is complete should the system be returned to protective service.
For critical machinery where continuous monitoring is required, consider staging a temporary portable vibration monitoring system on the most critical measurement points during the CPU replacement window. This approach allows the maintenance team to maintain situational awareness of machine condition even while the permanent VM600 rack is offline, reducing the risk of undetected machinery events during the transition period.
Retrofit Support FAQ
Q: Is the VM600 CPU M 200-595-041-113 a direct drop-in replacement for earlier VM600 CPU revisions?
A: In most cases, yes — the VM600 CPU M 200-595-041-113 is designed to fit the standard VM600 rack backplane and is compatible with the MPC4, IOC4T, RPS6U, and RLC16 modules. However, firmware compatibility should be verified before installation. If the existing rack modules are running older firmware, a firmware update may be required to ensure full interoperability with the replacement CPU card.
Q: What configuration data needs to be backed up before replacing the CPU card?
A: The complete rack configuration — including channel scaling, alarm setpoints, relay assignments, Modbus communication parameters, and any custom tag names — must be exported from the existing CPU card using VM600 rack manager software before the replacement begins. This backup is essential for restoring the system to its pre-outage protective state after the new CPU card is installed.
Q: Does the replacement card ship pre-tested?
A: Yes. Every VM600 CPU M 200-595-041-113 unit supplied by SMARTNEXMSK undergoes functional testing prior to shipment, including power-on self-test verification and backplane communication checks. A test report is available upon request. The card is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
Q: What is the lead time and how is the card packaged for international shipment?
A: In-stock units typically ship within 1–3 business days. The VM600 CPU M 200-595-041-113 is packaged in anti-static ESD shielding bags, placed in foam-lined protective cartons, and shipped via tracked international courier. Export documentation including commercial invoice and packing list is provided for customs clearance. Contact our team to confirm current stock availability and delivery timelines for your region.
