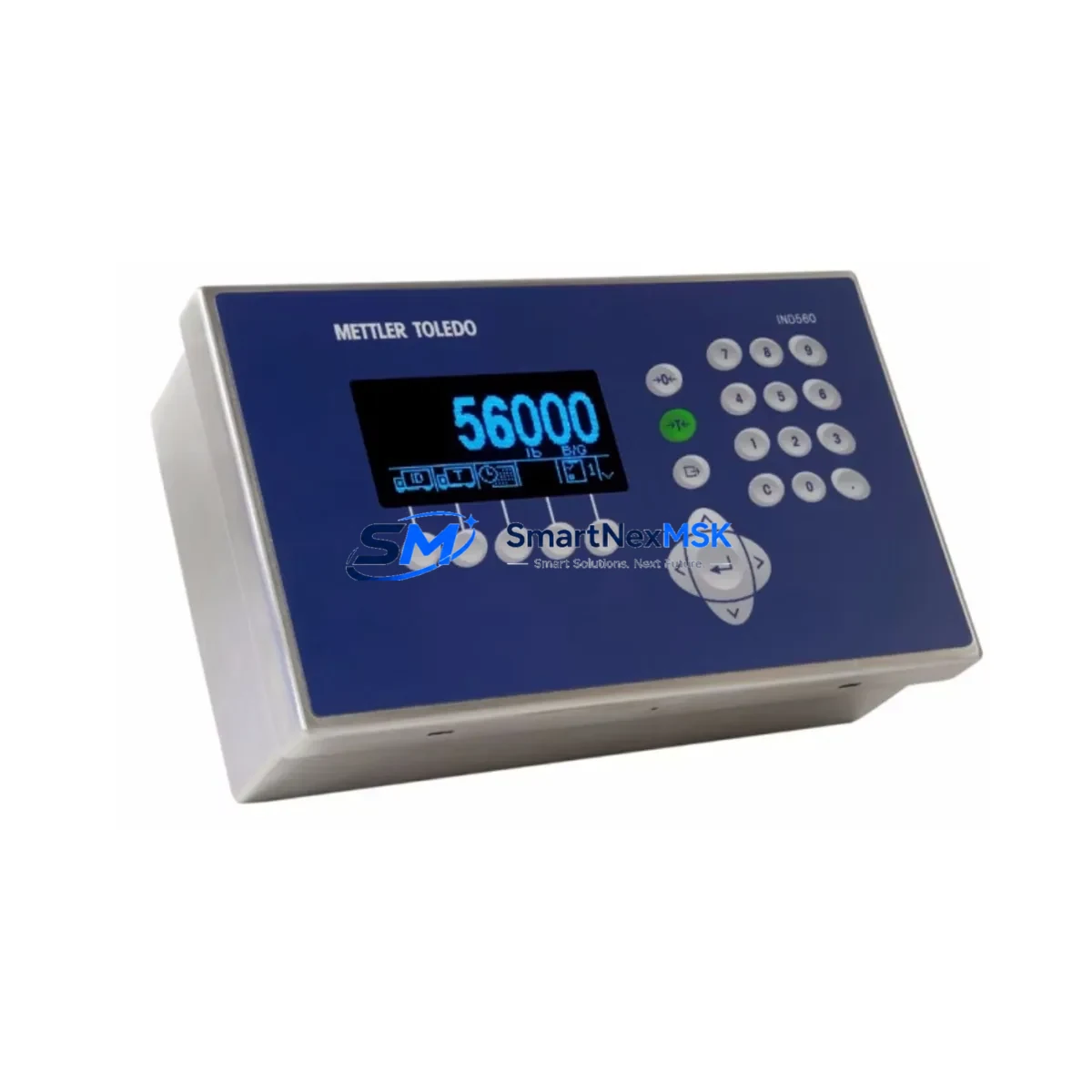

Mettler Toledo IND560 Safety-Enhanced Weighing Terminal

Mettler Toledo IND560 Safety-Enhanced Weighing Terminal: Precision Control for Harsh Industrial Sites

The Mettler Toledo IND560 is a ruggedized, safety-enhanced industrial weighing terminal engineered for continuous operation in the most demanding process environments. As a flagship model in the Mettler Toledo IND500 series, the IND560 delivers uncompromising measurement accuracy, robust signal integrity, and certified protection against washdown, dust ingress, and chemical exposure — making it the preferred choice for safety-critical weighing loops in petrochemical plants, food processing facilities, pharmaceutical production lines, mining operations, and heavy industrial control cabinets.

In high-load, high-interference industrial environments, weighing terminal failures can trigger cascading control interruptions, batch errors, and unplanned shutdowns. The IND560 is purpose-built to eliminate these risks. Its IP69K-rated stainless steel enclosure withstands high-pressure steam cleaning and aggressive chemical washdown without signal drift or module malfunction — a critical requirement in continuous production and hazardous area installations where downtime carries severe safety and financial consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IND560 within a safety-rated control cabinet demands a holistic approach to signal protection, power conditioning, and communication reliability. In a typical heavy industrial weighing system, the IND560 serves as the intelligent hub connecting load cells, PLC inputs, and SCADA networks. To protect the integrity of the weighing loop, it is commonly paired with a Mettler Toledo IDNet junction box for multi-load-cell summing and diagnostics, ensuring that individual cell failures are detected before they corrupt batch totals or trigger false overload alarms.

On the power supply side, the IND560’s 24 VDC input option allows integration with a SITOP PSU100S 24V DC power supply or equivalent DIN-rail power module, providing regulated, surge-protected power that prevents voltage fluctuation from causing terminal resets or calibration drift during peak production loads. For installations in areas with significant electrical noise — such as near variable frequency drives (VFDs), large motor starters, or arc welding equipment — a line filter module and proper cable shielding grounding at the terminal block are essential to maintain signal stability.

Communication reliability is equally critical. The IND560’s Ethernet TCP/IP port supports direct integration with Siemens S7-300 / S7-400 PLCs via Modbus TCP or PROFIBUS DP adapter, enabling real-time weight data transmission to the DCS or safety PLC without polling delays. In interlock-critical applications — such as reactor feed control or silo overfill prevention — the IND560’s discrete output relays can be wired directly into a safety relay module (e.g., Pilz PNOZ or Phoenix Contact PSR series) to trigger emergency stops when weight thresholds are exceeded.

For installations requiring hazardous area compliance, the IND560 can be specified with ATEX/IECEx Zone 1 or Zone 2 certification, and paired with an intrinsically safe barrier (e.g., MTL or Pepperl+Fuchs zener barrier) between the load cell circuit and the terminal. This configuration is standard practice in petrochemical tank farms and pharmaceutical solvent handling areas where ignition risk must be eliminated at every instrumentation interface.

Surge protection at the field wiring terminals — using a Phoenix Contact TRABTECH surge arrester or equivalent — guards against lightning-induced transients and switching surges that can permanently damage the analog input circuitry. Combined with a properly grounded stainless steel cable gland and EMC-compliant conduit entry, the IND560 installation achieves the full protection level its IP69K rating promises, even in outdoor or semi-exposed control cabinet environments.

Critical Industrial Safety Applications

The Mettler Toledo IND560 is deployed across a wide range of safety-critical and continuous-process industries where weighing accuracy directly impacts operational safety and regulatory compliance.

In petrochemical and refinery operations, the IND560 is used for custody-transfer tank weighing, reactor charge control, and drum filling stations where overfill prevention is a primary safety requirement. Its ATEX-rated variant ensures safe operation in Zone 1 classified areas without compromising measurement accuracy or communication throughput.

In power generation and utilities, the terminal monitors coal bunker levels, ash silo weights, and chemical dosing systems. Its robust EMI shielding prevents interference from high-voltage switchgear and transformer proximity from corrupting weight signals — a common failure mode with lower-grade terminals in substation environments.

In mining and mineral processing, the IND560 handles belt scale integration, ore bin level monitoring, and reagent dosing control. Its IP69K enclosure withstands the abrasive dust, high-pressure washdown, and vibration inherent to crushing and grinding circuits, where terminal failures can halt entire processing trains.

In water and wastewater treatment, the IND560 controls chemical dosing — chlorine, coagulant, and polymer — where precise weight-based batching is essential for both treatment efficacy and operator safety. Its stainless steel housing resists the corrosive chemical vapors present in dosing rooms and chemical storage areas.

In metallurgy and steel production, the terminal is integrated into ladle weighing systems, alloy addition control, and continuous casting charge management. The ability to interface with both analog load cells and digital IDNet sensors gives the IND560 flexibility across legacy and modern furnace control architectures.

In port and logistics terminals, the IND560 supports axle load monitoring, container weighing (VGM compliance), and bulk cargo batching — applications where legal-for-trade certification and communication reliability with terminal management systems are non-negotiable.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IND560?
The 12-month warranty covers all manufacturing defects, functional failures, and component integrity issues under normal operating conditions. Each unit undergoes pre-shipment functional testing including load cell simulation, communication port verification, and display calibration check. If a fault is confirmed within the warranty period, we provide replacement or repair at no additional cost.

Q2: How is the IND560 tested before shipment?
Every IND560 unit is powered on and subjected to a full functional test prior to dispatch. This includes analog input response verification, discrete I/O cycling, communication port handshake testing (RS-232 and Ethernet), and display integrity check. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the IND560 compatible with my existing Mettler Toledo load cells and IND500 series accessories?
Yes. The IND560 is fully compatible with standard analog load cells (up to 8 x 350Ω), Mettler Toledo IDNet digital load cell networks, and the full range of IND500 series option cards including fieldbus communication modules (PROFIBUS, EtherNet/IP, Modbus TCP) and additional I/O expansion cards. It is a direct functional upgrade path from earlier IND560 variants and is backward-compatible with most IND500 series peripheral configurations.

Q4: Can you guarantee long-term supply and spare parts availability for the IND560?
We maintain dedicated stock of the IND560 and key IND500 series accessories to support ongoing production and maintenance requirements. For customers with critical infrastructure dependencies, we recommend discussing a standing inventory arrangement to ensure spare unit availability for rapid field replacement. Our team can provide lead time commitments and support multi-unit procurement for planned maintenance programs.
