MICROSTAR MSXB048-02-E2 Retrofit-Ready DCS Filter Board

MICROSTAR MSXB048-02-E2 Retrofit-Ready DCS Filter Board for MSXB048 Series Control Systems

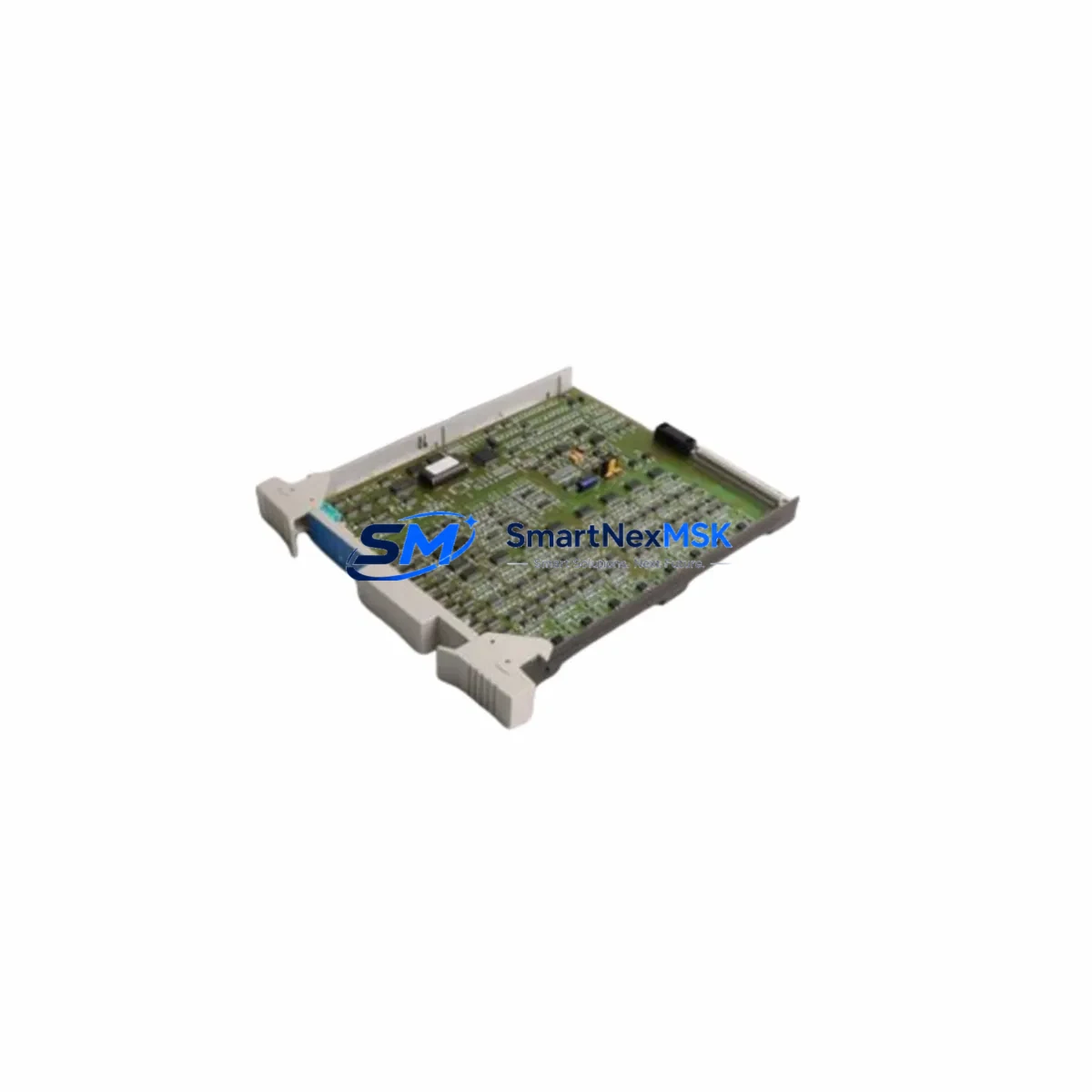

The MICROSTAR MSXB048-02-E2 is a DCS Filter Board engineered for seamless integration into existing MSXB048 Series distributed control system architectures. As legacy DCS platforms age and original components reach end-of-life, the MSXB048-02-E2 provides a verified, drop-in compatible replacement that supports smooth system modernization without requiring full panel redesign or controller replacement. Whether you are managing a planned upgrade cycle or responding to an unplanned component failure, this module is stocked and ready for immediate dispatch with a 12-month warranty covering manufacturing defects and functional performance.

Industrial facilities operating MICROSTAR MSXB048 Series backplanes will find the MSXB048-02-E2 fully compatible with existing rack mounting dimensions, terminal block pinouts, and signal conditioning requirements. The board maintains the original filter topology, ensuring that analog signal integrity is preserved across I/O channels connected to field instruments such as pressure transmitters, thermocouples, and flow meters. Engineers responsible for DCS migration projects can integrate this module without modifying existing wiring harnesses or reconfiguring channel assignments in the engineering workstation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MSXB048-02-E2 into a running DCS environment requires a structured pre-installation review. Before removing the failed or obsolete board, the site engineer should document the current channel configuration using the DCS engineering workstation, capturing all I/O tag assignments, scaling parameters, and alarm setpoints associated with the affected filter board slots. This configuration data serves as the baseline for post-installation verification and reduces commissioning time significantly.

The MSXB048-02-E2 is typically installed within a MSXB048 Series rack alongside other functional modules. In a standard MSXB048 control cabinet, the filter board works in conjunction with the rack’s power supply module, which must be confirmed to have sufficient headroom to support the replacement board’s power draw. If the existing power supply module is also aging, it is advisable to evaluate it concurrently — a failing PSU is a common secondary cause of filter board degradation in long-running DCS installations.

For sites where the MSXB048 Series controller communicates with field devices via HART protocol or 4–20 mA analog loops, the MSXB048-02-E2 preserves the original signal conditioning path. Field instruments including pressure transmitters, RTD temperature sensors, and level transducers connected to the original board will continue to operate without recalibration after the replacement is installed. However, it is good practice to perform a loop check on all channels after installation to confirm signal integrity before returning the process to automatic control.

In larger retrofit projects where the MSXB048 Series DCS is being partially upgraded alongside newer control hardware, the MSXB048-02-E2 can serve as a bridge component — maintaining continuity on legacy I/O loops while adjacent racks are upgraded to newer MICROSTAR controller modules or third-party DCS platforms. Engineers managing phased migration projects often retain MSXB048 Series filter boards in service for 12–36 months while upstream controller and communication infrastructure is modernized. During this period, having verified replacement stock of the MSXB048-02-E2 on hand is critical to maintaining production uptime.

Other components commonly evaluated during an MSXB048 Series retrofit include the MSXB048 Series communication interface module, which handles data exchange between the filter board rack and the DCS supervisory layer. If the site is also migrating from an older proprietary DCS network to Modbus TCP or PROFIBUS DP, the communication module will require separate attention. Additionally, the MSXB048 Series I/O termination assembly and marshalling panel wiring should be inspected for insulation degradation, particularly in installations exceeding 10 years of continuous operation. Replacement of aging terminal blocks and cable ferrules at the same time as the filter board swap reduces the risk of intermittent faults after commissioning.

For control cabinets that also house MICROSTAR HMI panels or operator interface terminals connected to the MSXB048 DCS, no screen reconfiguration is required when replacing the MSXB048-02-E2 on a like-for-like basis. The HMI tag database references the DCS controller’s memory map, not the physical filter board, so the operator display will resume normal operation immediately after the replacement board is recognized by the controller. If the site uses a third-party SCADA system connected via OPC DA or OPC UA, the same principle applies — no server-side configuration changes are needed.

Downtime Control During System Migration

Minimizing process downtime during a DCS filter board replacement requires advance preparation and a clear sequence of operations. The recommended approach is to schedule the replacement during a planned maintenance window, coordinate with the process control team to place affected control loops in manual mode, and have the replacement MSXB048-02-E2 bench-tested and confirmed functional before entering the field.

Prior to removal of the existing board, the engineer should use the DCS engineering workstation to export the current module configuration, including channel enable/disable states, filter time constants, and any custom scaling applied to individual channels. This export file serves as the restoration reference if the replacement board requires any parameter re-entry after installation. In most MSXB048 Series installations, the controller retains channel configuration in its own memory and automatically downloads it to the replacement board upon recognition — but this behavior should be confirmed against the site’s DCS firmware version before relying on it.

Once the MSXB048-02-E2 is installed and the rack is powered, the DCS controller will perform a self-diagnostic cycle. The engineer should monitor the controller’s diagnostic display or engineering workstation for any fault codes related to the new module. A clean diagnostic result, combined with a successful loop check on all connected field instruments, confirms that the replacement is complete and the process can be returned to automatic control. Total elapsed time for a prepared, single-board replacement in an MSXB048 Series rack is typically 30–90 minutes, depending on site access conditions and the number of I/O channels requiring verification.

For sites where a cold shutdown is not feasible, the MSXB048-02-E2 supports hot-swap installation subject to the site’s safety operating procedures. In hot-swap scenarios, it is essential to confirm that the process control strategy has been adjusted to handle the brief interruption in filter board output — typically by placing downstream PID controllers in manual hold mode for the duration of the swap. Retaining the original program logic intact in the DCS controller memory ensures that no re-programming is required after the new board is recognized, protecting the integrity of the control strategy and reducing the risk of process upsets.

Retrofit Support FAQ

Q1: Is the MSXB048-02-E2 a direct drop-in replacement for the MSXB048-02 and MSXB048-02-E1?
Yes. The MSXB048-02-E2 is designed as a compatible replacement for earlier MSXB048-02 variants. It uses the same backplane connector, terminal block layout, and slot dimensions. No mechanical modification to the rack or cabinet is required. Verify the firmware version of your DCS controller is compatible with the E2 revision — in most cases, existing firmware supports the replacement without update.

Q2: What pre-shipment testing is performed on the MSXB048-02-E2?
Each MSXB048-02-E2 unit undergoes functional testing prior to shipment, including power-on self-test, channel continuity verification, and signal conditioning performance checks. A test report is available upon request. The module is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and confirmed functional failures under normal operating conditions.

Q3: Do I need to reconfigure my DCS controller or HMI after installing the MSXB048-02-E2?
In a like-for-like replacement installed in the same rack slot, no controller re-programming or HMI reconfiguration is required. The DCS controller recognizes the replacement board by slot address and automatically applies the stored channel configuration. HMI tag mappings and SCADA OPC connections remain unaffected. A post-installation loop check is recommended to confirm all field instrument signals are reading correctly before returning loops to automatic control.

Q4: What is the lead time and warranty coverage for the MSXB048-02-E2?
The MSXB048-02-E2 is held in stock and available for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. Express shipping options are available for urgent breakdown situations. All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed directly — contact our technical team with the unit serial number and a description of the fault for rapid resolution.
