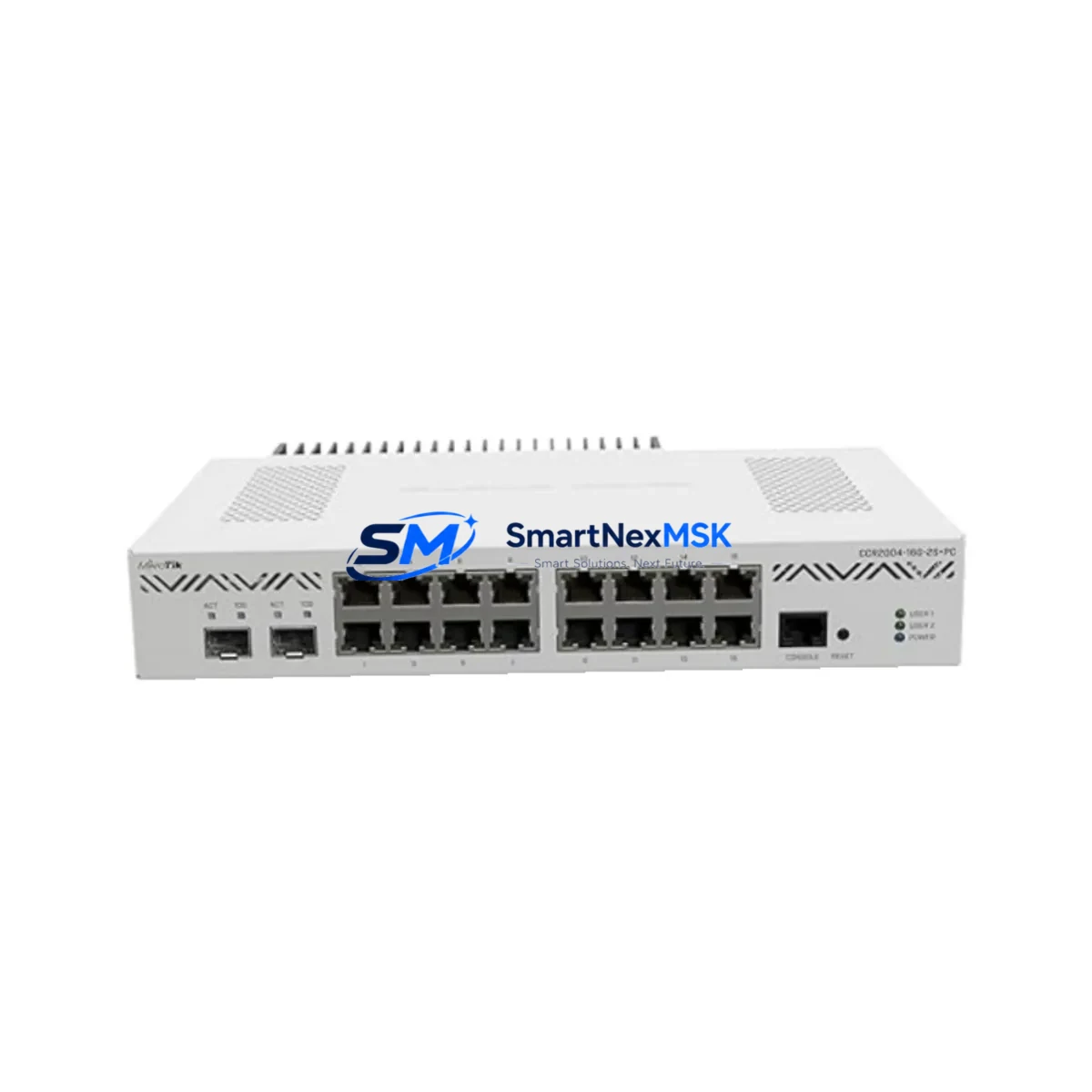

MikroTik CCR2004-16G-2S+ Safety-Enhanced Core Router

MikroTik CCR2004-16G-2S+ Safety-Enhanced Core Router: Industrial Control Reliability in Harsh Sites

In high-stakes industrial environments — petrochemical plants, power substations, mining operations, water treatment facilities, and continuous-process manufacturing lines — network infrastructure is not merely a convenience. It is a critical safety layer. The MikroTik CCR2004-16G-2S+ ruggedized core router is engineered to serve as the backbone of industrial communication architectures where control interruption, signal drift, or communication anomalies can trigger cascading safety failures. With its 16-port Gigabit Ethernet interface array and dual 10G SFP+ uplinks, this router delivers the throughput, redundancy, and deterministic latency that SCADA systems, DCS networks, and PLC-based control loops demand.

Industrial automation networks face threats that standard enterprise routers cannot withstand: electromagnetic interference from variable-frequency drives and high-voltage switchgear, voltage transients from motor starts and arc flash events, vibration from heavy machinery, and wide ambient temperature swings across shift cycles. The CCR2004-16G-2S+ addresses these challenges through its ruggedized chassis design, wide operating temperature tolerance, and hardware-accelerated packet processing that maintains sub-millisecond forwarding consistency even under maximum load — a prerequisite for time-sensitive control traffic between PLCs, remote I/O modules, and engineering workstations.

When deployed alongside a MikroTik CRS328-24P-4S+RM managed PoE switch in the same control cabinet, the CCR2004-16G-2S+ enables a fully segmented network topology that isolates safety instrumented system (SIS) traffic from general plant LAN traffic. This segmentation is fundamental to IEC 61511 functional safety compliance, ensuring that a fault in the business network cannot propagate into the safety loop. The router’s hardware firewall and VLAN capabilities allow engineers to enforce strict access control between the control zone and the enterprise DMZ without introducing latency penalties.

Power integrity is a persistent concern in industrial control cabinets. Voltage sags, micro-interruptions, and conducted EMI from adjacent contactors and relay coils can corrupt router memory tables and cause unexpected reboots — precisely the kind of unplanned downtime that halts production lines and triggers safety shutdowns. Pairing the CCR2004-16G-2S+ with a MikroTik 24V DC power supply and an upstream industrial-grade UPS module (such as those from the 24VDC DIN-rail UPS category) ensures ride-through capability during grid disturbances. For additional surge protection on field cable entries, inline SPD (Surge Protective Device) modules rated to IEC 61643-21 should be installed on all copper Ethernet ports connecting to field devices.

In mining and heavy metallurgy applications, the router is frequently installed in IP54-rated or better enclosures alongside Siemens SCALANCE X-series or Moxa EDS-series managed switches for field-level ring redundancy using MRP or RSTP protocols. The CCR2004-16G-2S+ acts as the aggregation and routing layer, connecting multiple ring segments to the plant historian and MES servers. Its dual SFP+ ports support single-mode fiber uplinks, eliminating ground loop interference on long cable runs between buildings — a common source of communication anomalies in steel mills and smelters.

For port-terminal and bulk-material handling sites, where cranes, conveyor drives, and ship loaders generate severe conducted and radiated EMI, the router’s hardware-offloaded routing engine maintains stable ARP tables and routing convergence without CPU overload. This is critical when Rockwell Automation ControlLogix or Schneider Electric Modicon M580 PLCs rely on EtherNet/IP or Modbus TCP polling cycles that must complete within defined scan-time windows. Any routing delay or packet loss in these cycles can cause controller faults, emergency stops, or loss of process variable visibility.

Water treatment and municipal utility SCADA networks benefit from the CCR2004-16G-2S+’s support for IPsec VPN tunnels, enabling encrypted, authenticated communication between remote pump stations and the central control room — without requiring a separate VPN concentrator appliance. This reduces cabinet footprint, simplifies spare-parts inventory, and eliminates an additional failure point in the communication chain. Combined with MikroTik RouterOS scripting capabilities, operators can automate failover routing, link health monitoring, and alert generation directly on the device, reducing dependency on external network management servers that may themselves be unavailable during a site emergency.

Every CCR2004-16G-2S+ unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including port-by-port connectivity testing, routing table validation, and power-cycle stability checks. Units are sourced from authorized distribution channels and are accompanied by a 12-month warranty covering hardware defects under normal industrial operating conditions. Long-term supply continuity is maintained through strategic inventory positioning, ensuring replacement units are available for critical spare-parts programs without extended lead times.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet integrating the CCR2004-16G-2S+ should be designed as a layered protection system. At the power entry point, a Phoenix Contact QUINT-PS DIN-rail power supply with active buffer module provides hold-up time during micro-interruptions, preventing the router from losing its routing table during brief grid disturbances. Upstream of the power supply, a Weidmüller varistor-based surge arrester clamps transient overvoltages before they reach sensitive electronics.

At the network layer, the CCR2004-16G-2S+ connects to a MikroTik CRS326-24G-2S+RM or equivalent managed switch that aggregates field device connections from Siemens S7-1500 PLC Ethernet interfaces, Schneider Electric Modicon M340 remote I/O heads, and ABB AC500 controller communication modules. Each of these devices operates within a dedicated VLAN, and the router enforces inter-VLAN routing policies that permit only authorized polling traffic — blocking unsolicited connections that could indicate a cybersecurity incident or misconfigured device.

For field cable runs exceeding 30 meters in electrically noisy environments, fiber media converters (100M or Gigabit, DIN-rail mounted) should be inserted between the switch and field devices to eliminate conducted interference paths entirely. On copper segments that cannot be converted, inline Ethernet surge protectors (e.g., DEHN or OBO Bettermann RJ45 SPD modules) protect both the router ports and connected field instruments from lightning-induced surges on cable shields.

The router’s dual DC input terminals should be fed from independent 24VDC bus bars, each sourced from a separate circuit breaker on the cabinet’s power distribution rail. This dual-feed architecture, combined with the router’s internal automatic switchover, ensures that a single blown fuse or tripped breaker does not interrupt network communications — a critical requirement in safety instrumented systems where the network must remain operational even during partial cabinet faults.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hazardous area Zone 2 control rooms, the CCR2004-16G-2S+ routes ESD (Emergency Shutdown) system status data between the safety PLC and the DCS operator stations. Its deterministic forwarding ensures that trip signals and process variable alarms reach operators within defined response windows, supporting SIL 2 loop integrity requirements.

Electric Power Generation & Transmission: Substation automation networks using IEC 61850 GOOSE messaging require sub-4ms message delivery. The router’s hardware-offloaded switching fabric and VLAN prioritization (IEEE 802.1p) ensure that protection relay trip commands are never delayed by lower-priority traffic, maintaining grid stability during fault conditions.

Mining & Mineral Processing: Underground and surface mining operations subject network equipment to extreme vibration, dust ingress, and wide temperature cycling. Installed in sealed enclosures with positive-pressure purging, the CCR2004-16G-2S+ maintains continuous communication between conveyor control PLCs, crusher automation systems, and the surface SCADA server — preventing uncoordinated shutdowns that could trap material in transfer chutes.

Water & Wastewater Treatment: Municipal utilities operating distributed pump stations across wide geographic areas use the router’s IPsec VPN capability to create encrypted SCADA tunnels over public carrier networks. This eliminates the need for dedicated leased lines while maintaining the communication security required by NERC CIP and ICS-CERT guidelines for critical infrastructure.

Metallurgy & Steel Production: Continuous casting and rolling mill networks demand zero unplanned downtime. The router’s VRRP-based redundancy, combined with rapid spanning-tree convergence on the access layer switches, ensures that a single link or device failure triggers automatic rerouting within milliseconds — keeping the process control network operational through equipment failures that would otherwise require a costly production stop.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers hardware defects in materials and workmanship under normal industrial operating conditions. If a unit fails within the warranty period, SMARTNEXMSK arranges replacement or repair with priority handling to minimize your site downtime. Contact sales@smartnexmsk.com with your order reference and fault description to initiate a claim.

Q2: What pre-shipment testing is performed on each CCR2004-16G-2S+ unit?
Each unit undergoes port-by-port Ethernet connectivity verification, SFP+ uplink link-up testing, power-cycle stability checks across both DC input feeds, and RouterOS boot validation before dispatch. This ensures you receive a fully functional unit ready for cabinet installation without requiring incoming inspection delays.

Q3: Is the CCR2004-16G-2S+ compatible with existing MikroTik and third-party industrial network infrastructure?
Yes. The router runs MikroTik RouterOS and is fully compatible with other MikroTik switches and routers in the same network. It also interoperates with IEEE 802.1Q VLAN-capable switches from Siemens SCALANCE, Moxa, Hirschmann, and Cisco IE series via standard Ethernet protocols. EtherNet/IP, Modbus TCP, PROFINET, and IEC 61850 traffic all traverse the router transparently without protocol conversion.

Q4: Can long-term spare-parts supply be guaranteed for critical infrastructure projects?
SMARTNEXMSK maintains strategic stock of the CCR2004-16G-2S+ and related MikroTik industrial networking products to support long-term spare-parts programs for power, petrochemical, and municipal infrastructure clients. For projects requiring guaranteed multi-year supply commitments, contact our sales team to discuss framework agreements and reserved inventory arrangements.
