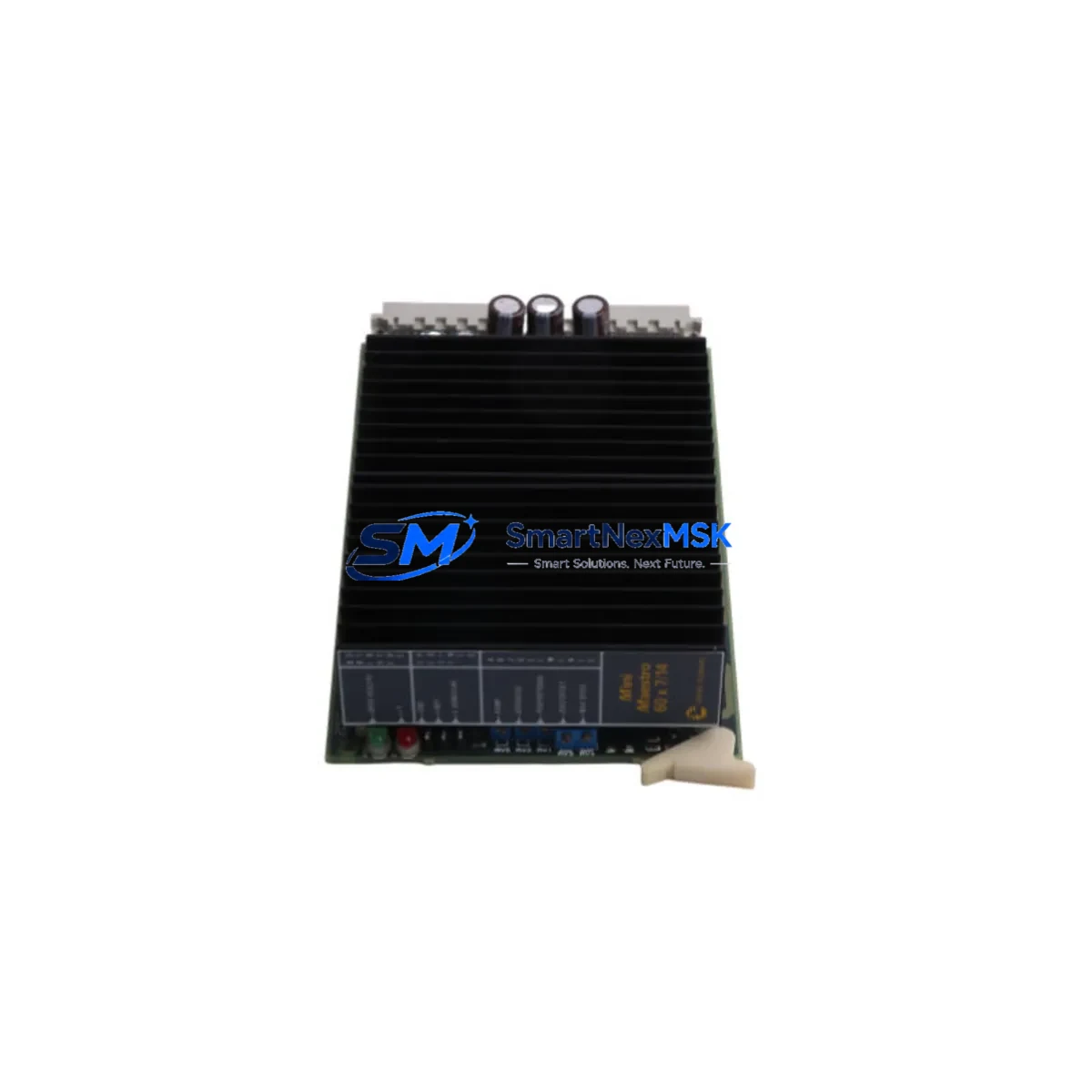

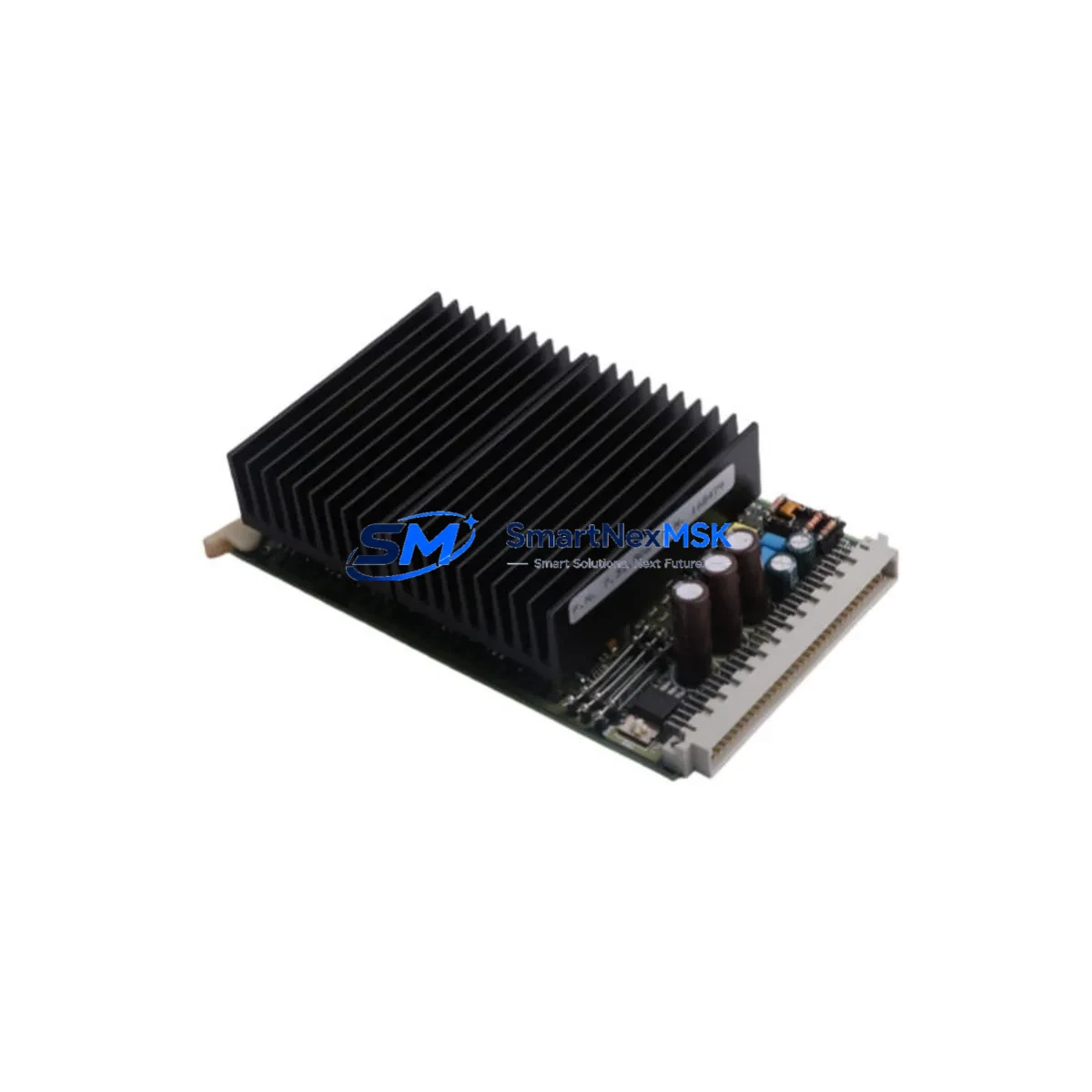

MINI MAESTRO 60×714 Retrofit-Ready Servo Drive for Maestro

MINI MAESTRO 60×714 Retrofit-Ready Servo Drive: Seamless Compatibility for Legacy Maestro Control Systems

The MINI MAESTRO 60×714 is a retrofit-ready servo drive engineered to serve as a direct replacement and functional upgrade for legacy Maestro Series motion control systems. As original Maestro Series drives reach end-of-life or become increasingly difficult to source, the 60×714 provides industrial automation engineers and maintenance teams with a reliable, in-stock solution that minimizes engineering rework and reduces unplanned downtime. Whether you are managing a planned control cabinet upgrade, responding to an emergency drive failure, or executing a phased modernization of an aging production line, the MINI MAESTRO 60×714 is designed to integrate into your existing architecture with minimal disruption.

This unit is sourced directly from verified supply channels, 100% function-tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained in Xiamen for rapid B2B dispatch to customers across Asia, the Middle East, and global industrial markets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the MINI MAESTRO 60×714 into an existing Maestro Series control system begins with a thorough audit of the current installation. Before ordering, engineers should document the existing drive’s power rating, encoder interface type, and communication node address. In multi-axis systems, the 60×714 must be assigned the correct axis ID to avoid conflicts with adjacent servo drives on the same motion bus.

The control cabinet layout should be reviewed to confirm that the backplane or rack accepts the 60×714’s form factor. In many Maestro Series installations, the rack and backplane remain serviceable long after individual drive modules are discontinued — meaning the 60×714 can be installed without replacing the entire cabinet infrastructure. If the existing rack shows signs of wear or connector degradation, it is advisable to inspect and if necessary replace the backplane connector before installing the new drive.

Power supply capacity is a critical checkpoint. The existing power supply module — often a dedicated 24 VDC logic supply alongside a higher-voltage DC bus supply — must be verified to provide sufficient current headroom for the 60×714 under peak load conditions. If the system also includes I/O expansion modules, terminal modules, or communication gateway modules sharing the same power rail, total load calculations should be performed before commissioning.

Wiring adaptation is frequently the most time-consuming element of a servo drive retrofit. The 60×714’s terminal block layout should be compared against the original drive’s wiring diagram. Key connections to verify include the motor power output terminals, encoder feedback cable (verify differential or single-ended signal type), the drive enable input, fault relay output, and any analog reference inputs used for speed or torque command. In systems where the original drive used a proprietary Maestro communication cable or programming cable for parameter upload, confirm that the same interface is supported or that a suitable adapter is available.

For systems that include an HMI panel — whether a standalone operator terminal or an integrated HMI running on a PC-based controller — the drive status tags and fault code registers should be reviewed. If the 60×714 uses a different register map than the original Maestro drive, HMI screen logic may need to be updated to correctly display drive status, active faults, and axis position feedback. This is particularly important in systems where the HMI provides operator-level fault acknowledgment or manual jog control.

Communication link integrity should be validated end-to-end after installation. In CANopen or RS-485 multi-drop networks, the 60×714’s node address and baud rate must match the network configuration. Termination resistors at the physical ends of the communication cable should be confirmed in place. In systems using a dedicated motion controller or CNC controller as the network master, a full network scan should be performed to confirm the 60×714 is recognized and responding correctly before enabling motion commands.

Downtime Control During System Migration

Minimizing production downtime during a servo drive replacement is a primary concern for any maintenance or engineering team. The MINI MAESTRO 60×714 is designed to support a structured swap procedure that protects existing program logic and maintains control system continuity.

The recommended approach is to perform all pre-commissioning preparation — parameter documentation, wiring diagram review, spare parts staging, and HMI backup — before the planned maintenance window begins. This includes backing up the existing drive’s parameter set if the original drive is still operational, so that tuning values can be referenced during re-commissioning of the 60×714. If the original drive has already failed, parameter reconstruction from the motor nameplate data and system documentation is the standard fallback procedure.

During the physical swap, the PLC or motion controller program should remain intact on the controller — there is no need to modify ladder logic or function block diagrams simply because the drive hardware is being replaced. After the 60×714 is installed and wired, the controller can be powered up in a safe, inhibited state while the drive is configured and the communication link is verified. Only after a successful no-load test cycle — confirming correct direction of rotation, encoder feedback polarity, and fault-free operation — should the system be returned to automatic production mode.

For critical production lines where even a brief unplanned stop is unacceptable, it is advisable to maintain a pre-configured spare 60×714 unit on-site, with parameters pre-loaded and verified, so that a future emergency swap can be completed within a single shift. Our team can assist with pre-configuration and bench testing of spare units prior to shipment.

Retrofit Support FAQ

Q1: Is the MINI MAESTRO 60×714 a direct drop-in replacement for my existing Maestro Series servo drive?
In most Maestro Series installations, the 60×714 is mechanically and electrically compatible with the original drive slot. However, terminal pinout, encoder interface type, and communication protocol version should always be verified against your system’s wiring documentation before installation. Our technical team can assist with compatibility confirmation based on your existing drive’s model number and system configuration.

Q2: What commissioning steps are required after installing the 60×714?
After physical installation and wiring verification, the key commissioning steps are: (1) configure the axis address / node ID to match the original drive assignment; (2) enter motor nameplate parameters (rated current, pole pairs, encoder resolution); (3) perform motor auto-tuning or manually enter gain parameters from the original drive’s parameter backup; (4) verify encoder feedback signal quality; (5) run a no-load test cycle in both directions; and (6) confirm fault-free operation before resuming production. HMI tag mapping should also be verified if the HMI displays drive-specific status registers.

Q3: Can the 60×714 be used in a system that also has other Maestro Series modules, such as I/O modules or communication modules?
Yes. The 60×714 is designed for use within Maestro Series control architectures and is compatible with co-installed Maestro Series I/O modules, communication modules, and power supply modules sharing the same rack or cabinet. Ensure that the total power draw of all installed modules does not exceed the rated output of the system’s power supply module, and that the communication network is correctly configured to recognize the 60×714 at its assigned node address.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures occurring under rated operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or operation outside the drive’s rated parameters. To initiate a warranty claim, contact our sales team with your order reference, a description of the fault symptom, and any available fault codes or error logs. We will arrange inspection and, where applicable, replacement or repair at no additional cost within the warranty period.
