Mitsubishi CM100DY-24A Spare for CM-DY Series Automation

Mitsubishi CM100DY-24A Spare for CM-DY Series Automation: Spare Replacement & Industrial Downtime Risk Control

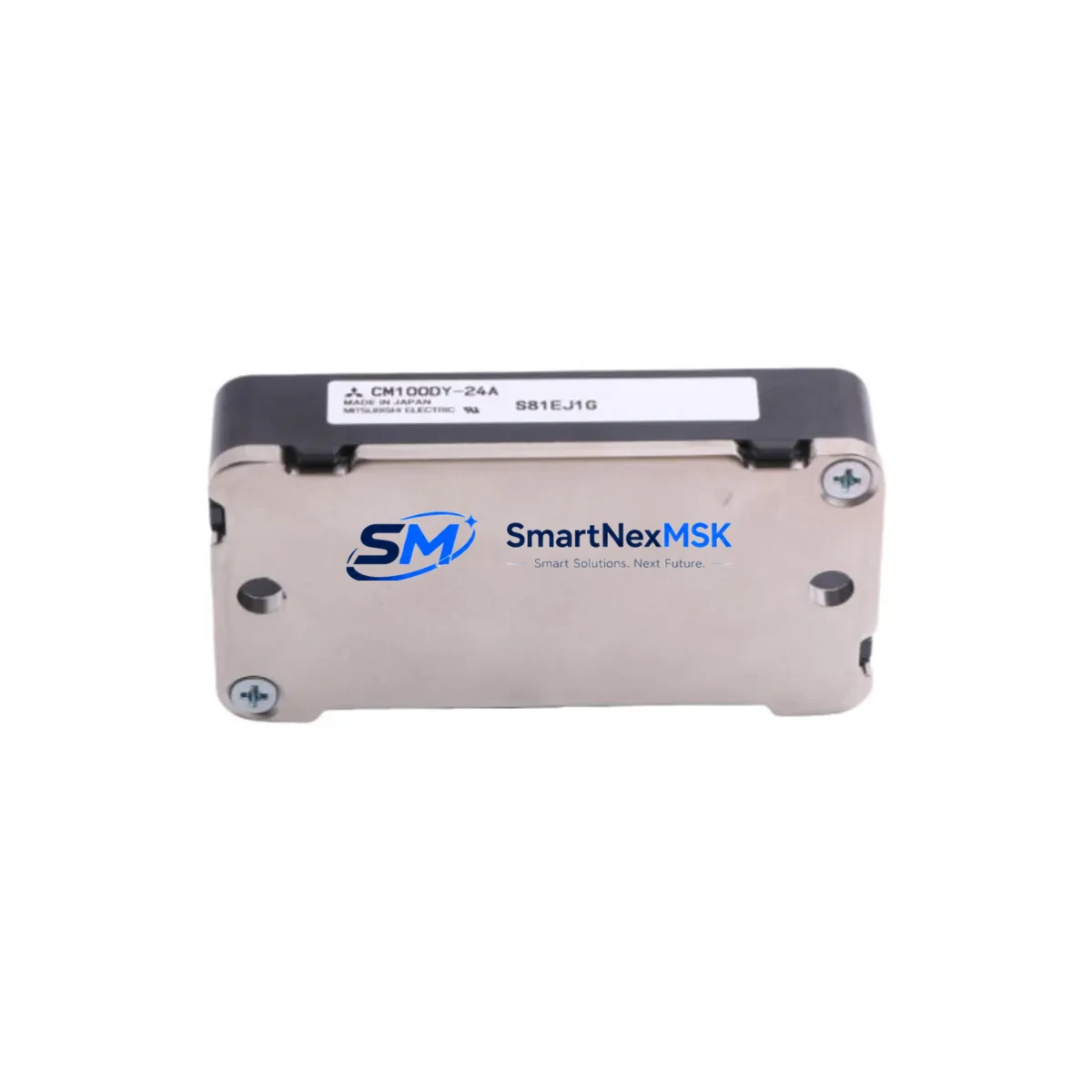

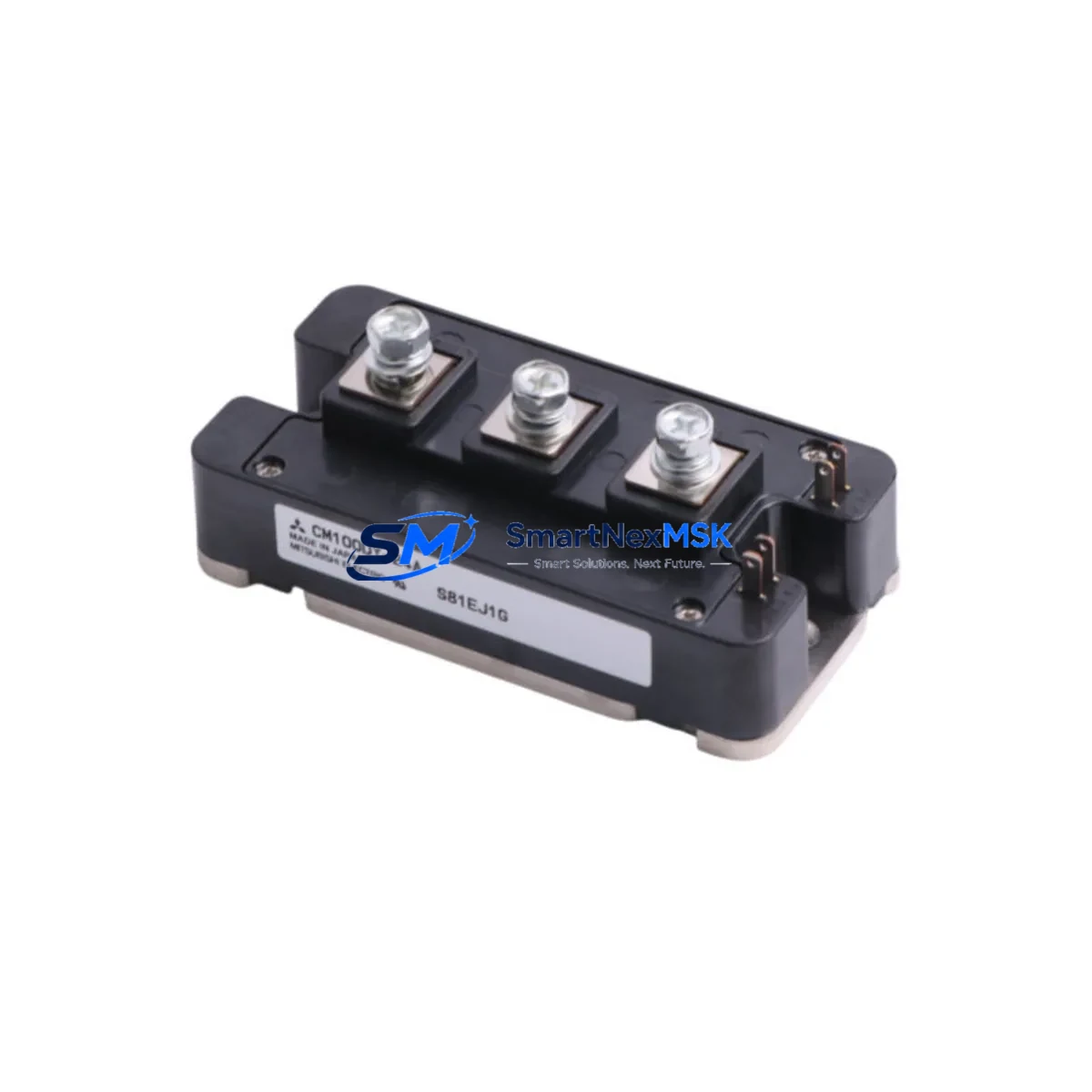

The Mitsubishi CM100DY-24A is a dual-switch IGBT power module rated at 100A / 1200V, belonging to Mitsubishi Electric’s CM-DY series. It is widely deployed in industrial variable-frequency drives (VFDs), servo amplifiers, UPS systems, induction heating equipment, and medium-voltage inverter stacks. When this module fails or degrades, the entire drive system halts — making rapid, verified spare replacement the single most critical factor in minimizing unplanned downtime.

This listing supplies an original Mitsubishi Electric CM100DY-24A, sourced from authorized distribution channels, 100% electrically tested prior to shipment, and backed by a 12-month warranty. Each unit ships with anti-static packaging, individual test records, and full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CM100DY-24A in isolation is rarely sufficient for a robust maintenance strategy. Maintenance engineers and procurement engineers should treat this module replacement as a trigger for a broader control-cabinet inspection. The following components are commonly found in the same electrical circuit or drive cabinet and should be evaluated concurrently:

Gate Drive Board & Driver Resistors: The gate drive circuit directly interfaces with the CM100DY-24A’s gate-emitter terminals. A failed IGBT module frequently damages the gate drive board through overcurrent or voltage spike. Inspect and, where possible, replace the gate drive PCB alongside the power module to prevent repeat failures within weeks of the repair.

DC Bus Capacitors (Film & Electrolytic): High-ripple current from a failing IGBT accelerates capacitor aging. During planned maintenance, measure ESR and capacitance on the DC bus bank. Capacitors operating beyond 80% of rated life should be replaced preventively — particularly in drives running 24/7 in high-ambient environments.

Input Rectifier Bridge (e.g., Mitsubishi RM series or equivalent): The rectifier bridge feeds the DC bus that powers the CM100DY-24A. Thermal stress from a shorted IGBT can propagate upstream. Verify forward voltage drop and reverse leakage on all rectifier diodes before recommissioning.

Current Sensors & Hall-Effect Transducers: Phase current feedback is critical for IGBT protection. A miscalibrated or damaged current sensor can cause nuisance trips or, worse, fail to protect the new module from overcurrent. Verify sensor output accuracy against a clamp meter reference during commissioning.

Thermal Interface & Heatsink: Reusing degraded thermal compound or a warped heatsink surface will cause the replacement CM100DY-24A to overheat within months. Clean the heatsink surface, apply fresh high-conductivity thermal paste (e.g., Shin-Etsu X-23 or equivalent), and verify thermal resistance is within spec.

Fuses & Fast-Acting Semiconductor Protection Fuses: Semiconductor fuses (e.g., Bussmann FWP or Ferraz Shawmut A50QS series) are sacrificial protection devices. If the CM100DY-24A failed due to a short-circuit event, the protection fuse may have operated. Always replace semiconductor fuses after a module failure — never reuse a fuse that has cleared a fault.

Control Power Supply Module: The 24 VDC or ±15 VDC auxiliary power supply feeds the gate driver and control logic. Voltage ripple or dropout on this supply can cause erratic IGBT switching and premature module failure. Measure output voltage under load and replace if ripple exceeds 1% of nominal.

I/O Modules & Signal Isolation Barriers: In PLC-controlled drive systems, the analog speed reference and digital enable signals pass through I/O modules and signal isolators before reaching the drive. Verify that 4–20 mA or 0–10 V reference signals are clean and within tolerance. A noisy reference can cause hunting and thermal stress on the power stage.

Communication Modules (PROFIBUS, DeviceNet, CC-Link): Many drives using CM-DY series modules are integrated into fieldbus networks. After replacing the power module and recommissioning the drive, verify that the communication module (e.g., Mitsubishi FR-A7NC CC-Link card or equivalent) is responding correctly and that parameter settings have been restored from backup.

HMI & Operator Panel: Confirm that the HMI is displaying correct drive status, fault history has been cleared, and any parameter changes made during troubleshooting have been reverted to the validated production settings.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the drive, discharge the DC bus to below 30 VDC (verify with a calibrated meter), and apply LOTO before opening the cabinet.

Step 2 — Document Existing Configuration: Photograph wiring, record all drive parameters, and note the torque values on existing module fasteners. This baseline is essential for restoring the system to its validated state.

Step 3 — Remove Failed Module: Disconnect gate, emitter, collector, and auxiliary terminals in the correct sequence per the drive manufacturer’s service manual. Remove mounting screws and lift the module clear of the heatsink.

Step 4 — Heatsink Preparation: Clean the heatsink surface with isopropyl alcohol. Inspect for warping or corrosion. Apply a thin, uniform layer of thermal compound to the module base.

Step 5 — Install CM100DY-24A: Position the replacement module, torque mounting screws to the specified value (typically 3–4 N·m for this package), and reconnect all terminals in reverse removal order. Verify terminal torque with a calibrated torque wrench.

Step 6 — Pre-Power Verification: Before energizing, perform a static check: measure gate-emitter resistance, verify no short between collector and emitter, and confirm all wiring matches the documented baseline.

Step 7 — Commissioning & Load Test: Energize the drive at reduced load, monitor heatsink temperature, output current waveform, and DC bus voltage. Gradually increase to full load and confirm stable operation over a minimum 30-minute run cycle before returning to production.

This systematic approach eliminates the most common causes of repeat failures and ensures the replacement CM100DY-24A delivers its full service life — typically 5–10 years in a well-maintained installation.

Spare Parts Support FAQ

Q1: Is this CM100DY-24A an original Mitsubishi Electric part or a compatible substitute?
This is an original Mitsubishi Electric CM100DY-24A — not a clone, copy, or third-party compatible. Each unit is sourced from authorized distribution channels and carries full Mitsubishi Electric part markings and date codes. We do not supply counterfeit or grey-market components.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact us with the order number, failure description, and photos of the failed unit. We will arrange return shipping and provide a replacement or refund within 10 business days of receiving the returned item.

Q3: How do I verify compatibility before ordering if my existing module label is damaged?
Compatibility can be confirmed by cross-referencing the drive model number against Mitsubishi Electric’s published power module selection guides, or by measuring the physical footprint and terminal pitch of the existing module. The CM100DY-24A uses a standard isolated-base package with a 62 mm × 108 mm footprint. If you are uncertain, send us the drive model number and we will confirm compatibility before shipment.

Q4: Do you maintain stock for long-term supply, and can we place blanket orders for MRO inventory?
Yes. We maintain buffer stock of CM100DY-24A and related CM-DY series modules specifically to support MRO (Maintenance, Repair & Operations) customers with planned maintenance schedules. Blanket purchase orders with scheduled releases are accepted. Contact our sales team to discuss volume pricing, consignment stock arrangements, and long-term supply agreements tailored to your plant’s maintenance calendar.
