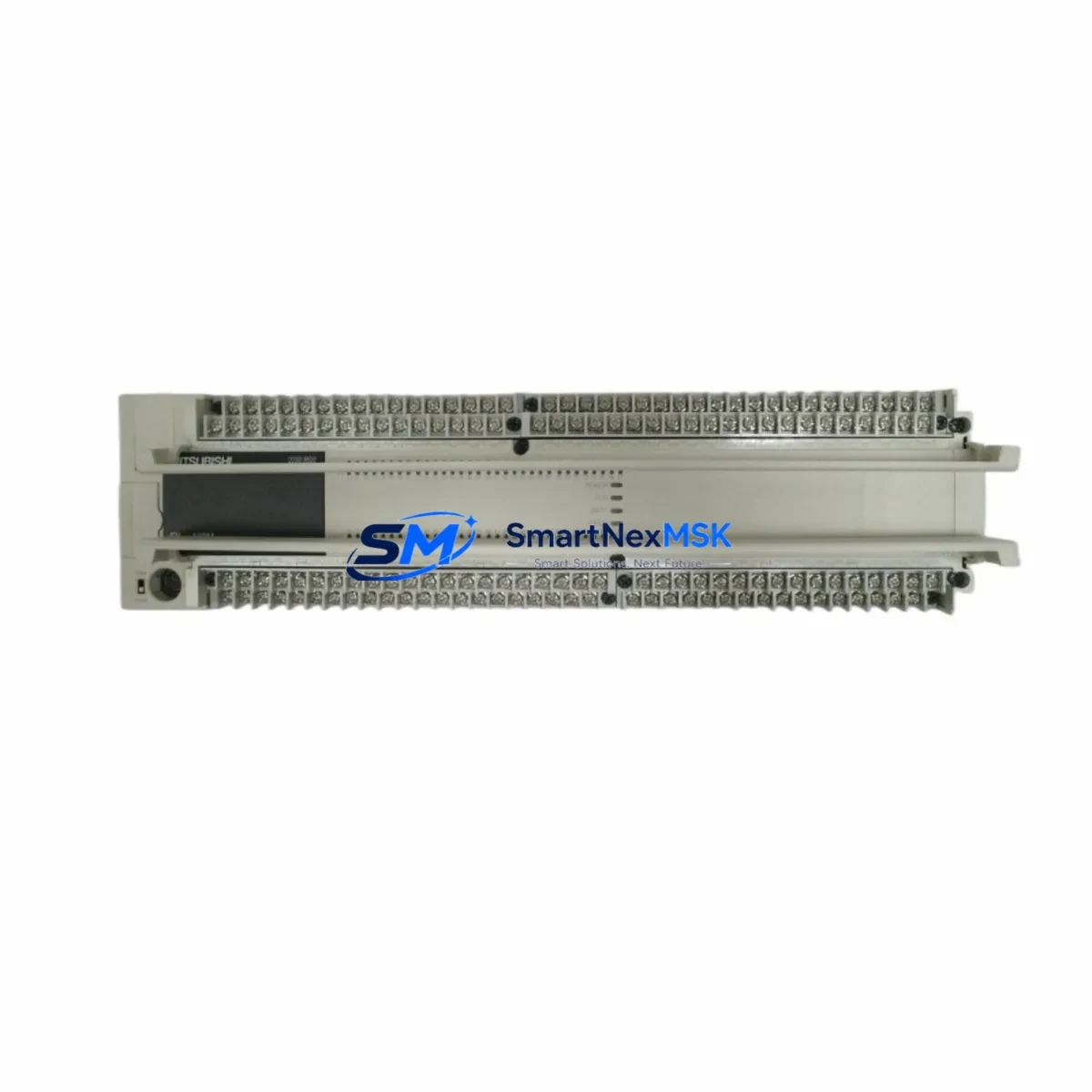

Mitsubishi FX3U-128MR/ESS Safety-Enhanced Relay PLC

Mitsubishi FX3U-128MR/ESS Safety-Enhanced Relay PLC: Reliable Control for Harsh Industrial Sites

The Mitsubishi FX3U-128MR/ESS is a high-performance programmable logic controller from the MELSEC FX3U Series, engineered to deliver uncompromising safety and reliability in the most demanding industrial environments. With 128 I/O points (64 inputs / 64 outputs) and a relay output configuration, this PLC module is purpose-built for continuous production lines, critical interlock circuits, and control cabinets operating under high electrical noise, voltage fluctuations, and mechanical stress. Its built-in Ethernet port enables seamless integration into modern industrial communication architectures without additional communication modules, reducing cabinet complexity and potential failure points.

In high-load automation systems — such as those found in petrochemical plants, metallurgical facilities, power generation stations, and port logistics — control interruption is never an option. The FX3U-128MR/ESS addresses this with a robust relay output stage that provides galvanic isolation between the control circuit and field devices, effectively suppressing surge impacts and preventing signal drift caused by inductive load switching. This isolation is critical in environments where motor starters, solenoid valves, and high-current actuators share the same power distribution panel.

When deployed alongside the Mitsubishi FX3U-4AD analog input module and FX3U-4DA analog output module, the FX3U-128MR/ESS forms a complete closed-loop control solution capable of monitoring process variables with high precision while maintaining output stability even under fluctuating supply voltages. For applications requiring high-speed pulse counting or positioning, the FX3U-2HSY-ADP high-speed output adapter can be appended to extend the system’s motion control capability without replacing the main CPU unit.

Power supply integrity is a foundational element of control cabinet safety. The FX3U-128MR/ESS is designed to operate reliably with the Mitsubishi FX3U-1PSU-5V power supply unit, which provides regulated 5 VDC for expansion modules and maintains stable bus voltage during input power transients. In installations where the incoming AC supply is subject to brownouts or harmonic distortion — common in heavy industrial facilities — pairing the PLC with a dedicated industrial-grade UPS or power conditioner is strongly recommended to prevent unexpected CPU resets and data corruption in the program memory.

Communication reliability is equally critical in safety-sensitive applications. The built-in Ethernet port of the FX3U-128MR/ESS supports MELSOFT connection and MC Protocol, enabling direct integration with Mitsubishi GOT2000 Series HMI panels for real-time process visualization and alarm management. For legacy RS-485 field networks, the FX3U-485ADP-MB MODBUS communication adapter extends the PLC’s connectivity to third-party instruments, variable frequency drives, and remote I/O stations without compromising scan cycle performance. In distributed control architectures, the FX3U-ENET-L Ethernet interface module can be used to segment network traffic and isolate the PLC from upstream SCADA communication anomalies.

For safety interlock circuits in hazardous areas — including emergency stop loops, fire and gas detection interfaces, and machine guarding systems — the relay output architecture of the FX3U-128MR/ESS provides a fail-safe de-energize-to-trip characteristic that is inherently compatible with IEC 60204-1 safety circuit design principles. When integrated with Mitsubishi safety relays or third-party safety monitoring modules, the system can achieve the redundancy and diagnostic coverage required for SIL-rated applications in water treatment, mining, and chemical processing facilities.

Spare parts availability and long-term supply continuity are critical considerations for plant maintenance teams. The FX3U-128MR/ESS is a current-production model within the MELSEC FX3U platform, and SMARTNEXMSK maintains verified stock with pre-shipment functional testing on every unit. Each module undergoes power-on verification, I/O point continuity checks, and communication port validation before dispatch, ensuring that replacement units arrive ready for immediate installation without additional bench testing.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design around the FX3U-128MR/ESS begins with proper power conditioning. The Mitsubishi FX3U-1PSU-5V expansion power supply ensures stable bus voltage for all connected expansion modules, preventing brownout-induced module faults. Surge protection at the cabinet entry point — using DIN-rail mounted surge protective devices (SPDs) rated for the local grid — is essential in facilities with frequent lightning events or heavy motor switching on shared feeders.

For analog signal integrity, the FX3U-4AD analog input module and FX3U-4DA analog output module should be installed with shielded twisted-pair wiring, with shield grounds terminated at a single point to prevent ground loop interference. In cabinets housing both the PLC and variable frequency drives (VFDs), physical separation of signal and power wiring — enforced by dedicated cable ducts — is mandatory to prevent common-mode noise from corrupting 4–20 mA process signals.

Communication network protection is achieved by connecting the FX3U-128MR/ESS Ethernet port through an industrial-grade managed Ethernet switch with port-level storm control and VLAN segmentation, isolating PLC traffic from general plant IT networks. For RS-485 field buses, the FX3U-485ADP-MB adapter provides MODBUS RTU connectivity with built-in termination resistor support, reducing reflection-induced communication errors on long cable runs. The Mitsubishi GOT2000 HMI connected via Ethernet provides operators with real-time alarm visibility, enabling rapid response to process deviations before they escalate to safety events.

For safety interlock wiring, relay outputs from the FX3U-128MR/ESS should be routed through Mitsubishi safety relay modules or equivalent IEC 62061-compliant devices to achieve the required diagnostic coverage for SIL 1 or SIL 2 interlock loops. Emergency stop circuits should use normally-closed relay contacts in series, ensuring that any wiring fault or relay coil failure results in a safe de-energized state. The FX3U-2HSY-ADP high-speed output adapter can be used for time-critical pulse outputs in positioning applications without impacting the safety relay output channels.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The FX3U-128MR/ESS is deployed in pump station control panels, compressor interlock systems, and emergency shutdown (ESD) pre-logic circuits. Its relay output isolation prevents cross-contamination of control signals between high-voltage actuator circuits and low-voltage sensor inputs, a critical requirement in ATEX-adjacent control rooms.

Power Generation and Substation Automation: In auxiliary control systems for turbine auxiliaries, cooling water pumps, and transformer protection panels, the FX3U-128MR/ESS provides reliable sequence control with deterministic scan times. Its Ethernet connectivity enables integration with substation SCADA systems using MC Protocol, supporting remote monitoring without compromising local control autonomy.

Mining and Mineral Processing: Conveyor belt interlock systems, crusher control panels, and ventilation fan sequencing in underground mining operations demand PLCs that withstand high vibration, dust ingress, and wide temperature swings. The FX3U-128MR/ESS, installed in sealed IP54 or IP65 enclosures with appropriate cable glands, meets these environmental challenges while maintaining full I/O functionality.

Water and Wastewater Treatment: Pump sequencing, dosing control, and UV disinfection system interlocks in municipal water treatment plants rely on the FX3U-128MR/ESS for 24/7 unattended operation. Its relay outputs directly drive motor contactors and solenoid valves rated up to 250 VAC, eliminating the need for intermediate relay panels and reducing cabinet wiring complexity.

Metallurgy and Steel Production: In continuous casting lines, rolling mill auxiliary systems, and furnace temperature control cabinets, the FX3U-128MR/ESS handles high I/O count sequencing with fast scan cycles. Its noise immunity — compliant with IEC 61000-4 series — ensures stable operation in environments with high electromagnetic interference from large induction furnaces and DC drive systems.

Port and Material Handling Logistics: Crane control systems, automated stacker-reclaimer interlocks, and conveyor routing logic in bulk material handling terminals use the FX3U-128MR/ESS for its combination of high I/O density, Ethernet connectivity, and proven long-term reliability in outdoor-adjacent control houses subject to humidity and temperature cycling.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the FX3U-128MR/ESS?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies that occur under normal operating conditions as specified in the Mitsubishi FX3U hardware manual. It includes free replacement or repair of the unit. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Warranty claims are processed within 5 business days of unit receipt at our facility.

Q2: What pre-shipment testing is performed on each FX3U-128MR/ESS unit?
Every unit undergoes a structured pre-shipment inspection protocol: power-on functional test at rated input voltage, I/O point continuity verification across all 128 channels, Ethernet port communication test using MELSOFT GX Works2, and visual inspection for physical integrity. Units that fail any test criterion are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is the FX3U-128MR/ESS compatible with existing FX3U expansion modules and legacy FX2N programs?
Yes. The FX3U-128MR/ESS is fully compatible with the complete range of MELSEC FX3U expansion modules, including analog I/O modules (FX3U-4AD, FX3U-4DA), communication adapters (FX3U-485ADP-MB, FX3U-232ADP), and special function modules. FX2N ladder programs can be migrated to the FX3U platform with minor modifications using GX Works2, preserving existing control logic investments. Compatibility with GOT2000 HMI panels via Ethernet is confirmed.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated stock of the FX3U-128MR/ESS and key companion modules to support plant maintenance spare parts programs. For facilities requiring guaranteed availability under a service agreement, we offer reserved stock arrangements with defined lead times. The MELSEC FX3U platform remains in active production by Mitsubishi Electric, and we monitor end-of-life announcements to provide advance notice and migration support to successor platforms such as the MELSEC iQ-F FX5U series when applicable.
