Mitsubishi FX3U-4DA Safety-Enhanced Analog Output Module

Mitsubishi FX3U-4DA Safety-Enhanced Analog Output Module: Precision Control for Harsh Industrial Sites

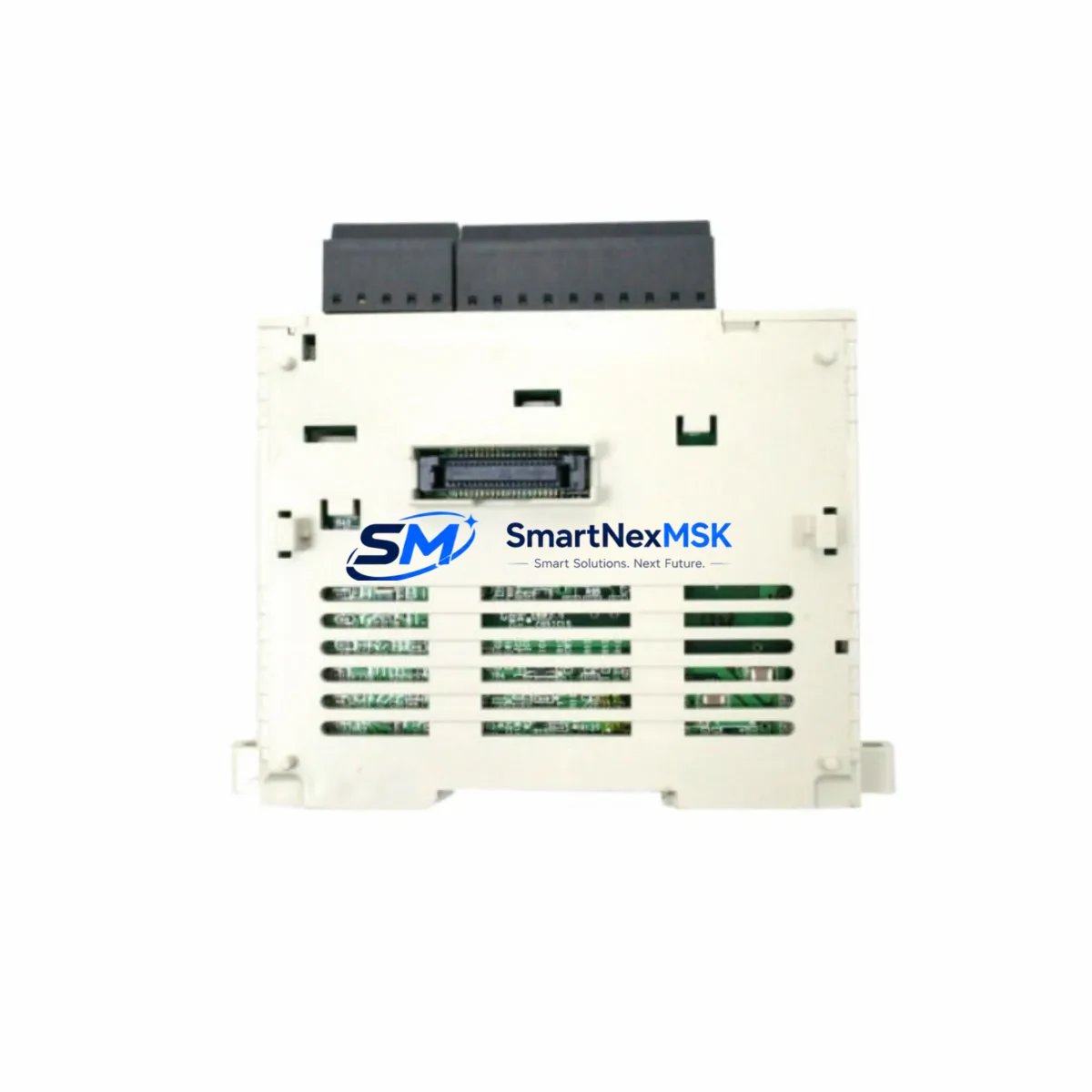

The Mitsubishi Electric FX3U-4DA is a 4-channel analog output module engineered for the MELSEC FX3U programmable logic controller series — one of the most widely deployed compact PLC platforms in global industrial automation. Designed to deliver stable, high-resolution analog signal output in demanding production environments, the FX3U-4DA is a critical component in control cabinets where signal integrity, loop continuity, and operational safety cannot be compromised.

In high-load continuous manufacturing, petrochemical processing, power distribution substations, metallurgical furnace control, and water treatment facilities, analog output accuracy directly governs process safety. A drifting 4–20 mA signal or an unstable 0–10 V output can cascade into valve misoperation, pump overspeed, or burner runaway — all of which carry serious safety and production consequences. The FX3U-4DA addresses these risks through its precision D/A conversion architecture, robust electrical isolation design, and tight output resolution, ensuring that the control signal reaching your field actuators faithfully represents the PLC’s commanded value under all operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered FX3U control cabinet, the FX3U-4DA does not operate in isolation — it functions as part of a coordinated protection and control architecture. The FX3U main CPU unit (such as the FX3U-32MR/ES or FX3U-64MT/ES) governs the program scan and issues output commands to the 4DA module via the high-speed extension bus, ensuring deterministic update cycles even under heavy I/O loading.

Power quality is foundational to analog output stability. Surges, sags, and high-frequency noise on the 24 V DC supply rail are among the leading causes of analog signal drift and module malfunction in field installations. A dedicated Mitsubishi FX3U-1PSU-5V power supply expansion or an external DIN-rail mounted power conditioner should be used to provide a clean, regulated supply to the FX3U backplane. Upstream, a properly rated surge protective device (SPD) on the AC input protects the entire cabinet from lightning-induced transients and grid-borne surges that would otherwise propagate to sensitive analog circuits.

For applications requiring digital input expansion alongside analog output — common in interlock and safety relay circuits — the FX3U-16EX digital input expansion module integrates seamlessly on the same extension bus. Where both analog input and output are needed for closed-loop PID control (e.g., temperature regulation in a furnace or pressure control in a compressor station), pairing the FX3U-4DA with the FX3U-4AD analog input module creates a complete 4-channel bidirectional analog I/O subsystem within a single compact cabinet footprint.

Communication integrity is equally critical in safety-sensitive installations. The FX3U-485BD RS-485 communication board or the FX3U-ENET Ethernet adapter enables the FX3U system to participate in SCADA networks, DCS integration, or remote HMI monitoring — ensuring that analog output status and process variables are visible at the supervisory level for alarm management and audit logging. In installations where the FX3U must interface with a Mitsubishi GOT series HMI (such as the GT2107-WTSD), real-time analog output trending and manual override capability can be implemented directly at the panel face, reducing the need for technician intervention during process upsets.

For cabinet-level protection against short circuits and overloads on the 24 V DC distribution network, miniature circuit breakers (MCBs) rated for DC service should be installed on each branch feeding the FX3U extension modules. This ensures that a fault on one branch — such as a wiring short on the analog output terminal block — does not collapse the supply voltage across the entire control system, which would cause a full PLC shutdown and uncontrolled process stop.

Critical Industrial Safety Applications

The FX3U-4DA is deployed across a broad spectrum of heavy industrial and process-critical environments where analog output reliability is directly linked to operational safety and regulatory compliance.

In petrochemical and refinery facilities, the module drives control valve positioners and variable-frequency drives (VFDs) that regulate flow rates of flammable and hazardous media. Signal interruption or output drift in these loops can trigger emergency shutdown systems (ESD) or, in worst cases, lead to overpressure events. The FX3U-4DA’s photocoupler isolation and EMC-hardened design reduce the risk of ground loop interference corrupting the 4–20 mA signal in environments with high electromagnetic noise from large motors and switchgear.

In electric power generation and substation automation, the module is used to provide setpoint signals to AVRs (automatic voltage regulators), excitation systems, and load dispatch controllers. Stable, drift-free analog output is essential for maintaining grid frequency and voltage within statutory limits. The module’s 12-bit resolution provides the fine control granularity required for these precision regulation tasks.

In mining and mineral processing operations — including conveyor speed control, flotation cell level regulation, and crusher load management — the FX3U-4DA operates in environments characterized by heavy vibration, dust ingress, and wide temperature swings. Its rated vibration and shock resistance, combined with the sealed FX3U enclosure system, supports reliable long-term operation without signal degradation.

In municipal and industrial water treatment plants, the module controls dosing pump speeds, aeration blower VFDs, and UV disinfection intensity — all of which are subject to regulatory monitoring. Consistent analog output accuracy ensures that chemical dosing remains within permitted ranges, protecting both public health and the operator’s compliance record.

In metallurgical and steel production environments, the FX3U-4DA provides setpoint signals to thyristor power controllers and induction heating systems operating at high power levels. The module’s ability to maintain output accuracy in the presence of strong electromagnetic fields generated by high-current bus bars and induction coils is a key selection criterion for these applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the FX3U-4DA?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes D/A conversion failure, channel output loss, bus communication errors, and component-level defects. Units that fail within the warranty period are repaired or replaced at no charge. Warranty claims require the original invoice and a brief fault description.

Q2: What pre-shipment testing is performed on each FX3U-4DA unit?
Every FX3U-4DA unit undergoes functional verification prior to dispatch, including channel-by-channel analog output accuracy testing across both voltage and current output modes, bus communication handshake verification with an FX3U CPU, and visual inspection for physical damage. Units that do not meet Mitsubishi Electric’s published accuracy specifications are not shipped.

Q3: Is the FX3U-4DA compatible with FX3UC and other FX3 series PLCs?
The FX3U-4DA is natively compatible with the Mitsubishi MELSEC FX3U and FX3UC series PLCs via the standard FX3U extension bus connector. It is not directly compatible with the older FX2N series or the newer iQ-F (FX5U) series without an adapter. For FX5U applications, the equivalent module is the FX5-4DA. Please confirm your PLC model before ordering to ensure compatibility.

Q4: Can long-term supply continuity be guaranteed for the FX3U-4DA?
We maintain dedicated stock of the FX3U-4DA to support ongoing production requirements, planned maintenance schedules, and emergency spare parts needs. For customers with critical infrastructure dependencies on the FX3U platform, we recommend establishing a standing spare parts agreement to ensure availability during peak demand periods or supply chain disruptions. Contact our sales team to discuss volume pricing and reserved stock arrangements.
