MODICON AS-B805-016 Maintenance-Ready Spare for 800 Automation

MODICON AS-B805-016 Maintenance-Ready Spare for 800 Series Automation

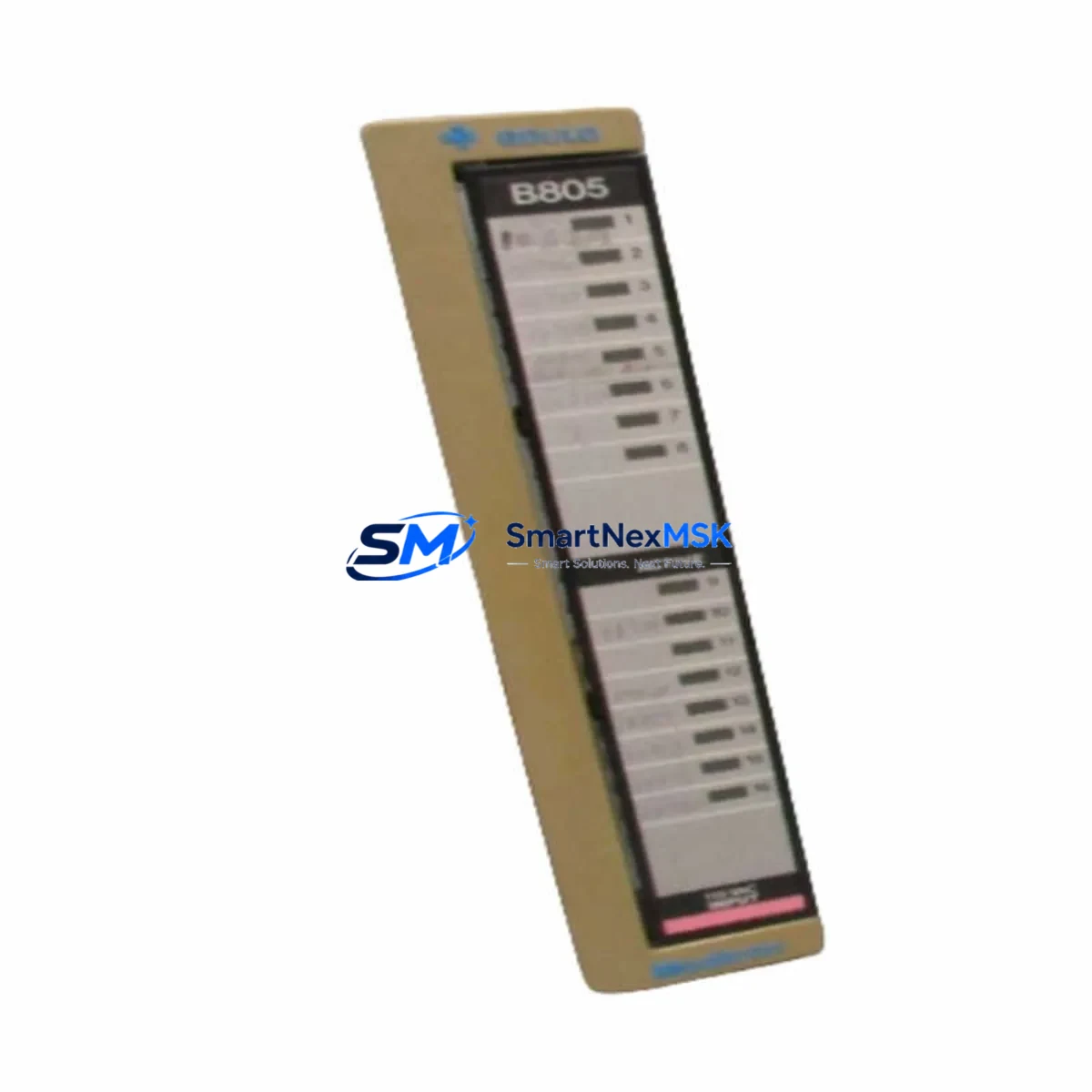

The MODICON AS-B805-016 is an original 16-point discrete input module designed for the Modicon 800 Series programmable logic controller platform. In industrial environments where unplanned downtime translates directly into production loss, maintaining a verified spare of the AS-B805-016 is a fundamental element of any responsible maintenance strategy. This module serves as a direct replacement for aging or failed input cards in control panels, machine tool cabinets, and process automation systems that rely on the Modicon 800 architecture.

Sourced as an original component, the AS-B805-016 is tested prior to shipment and backed by a 12-month warranty. Whether you are executing a planned shutdown, responding to an emergency fault, or building out your spare parts inventory for long-term system support, this module provides the compatibility assurance and supply reliability that maintenance engineers and procurement teams require.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the AS-B805-016 is identified as a fault source during troubleshooting or scheduled inspection, experienced maintenance engineers know that the input module is rarely the only component that warrants attention. A disciplined replacement workflow should extend to the surrounding electrical circuit and control architecture.

Begin by inspecting the 24 VDC field power supply feeding the input circuit — a degraded or undersized power supply is a common root cause of intermittent input faults that are incorrectly attributed to the module itself. Next, examine the terminal blocks and wiring harness connected to the module’s field-side terminals; loose terminations, corroded contacts, or undersized conductors can cause false input states that accelerate module wear. If the system uses signal isolators between field sensors and the PLC input card, verify that the isolator output voltage and current are within the module’s rated input thresholds.

For systems that include relay output modules (such as the AS-B825-016 or similar 800 Series output cards) in the same control loop, inspect coil drive circuits and contact wear simultaneously — a failed output relay can create feedback conditions that stress input modules. Review the 800 Series backplane or I/O chassis for signs of oxidation, bent connector pins, or mechanical damage at the slot where the AS-B805-016 is seated; backplane degradation is a leading cause of recurring module failures in older installations.

If the system communicates via Modbus RTU or Modbus TCP — common in Modicon 800 environments — verify that the communication module (such as an AS-J890 or compatible network adapter) is functioning correctly and that the I/O map has not shifted after the module swap. For systems with a Modicon HMI or operator panel connected to the same network, confirm that the display is reading updated input states after replacement to rule out HMI cache or address mapping issues.

Additionally, check any fuse blocks or circuit protection devices on the field wiring side — a blown fuse protecting the input circuit is easily overlooked and will cause the replacement module to appear faulty. For older installations, inspect the I/O expansion cables connecting remote I/O racks to the main processor, as cable degradation can introduce noise that affects discrete input reliability across multiple modules including the AS-B805-016.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the PLC diagnostic software or HMI fault log to confirm that the AS-B805-016 is the source of the fault. Check for input status discrepancies between the field device state and the PLC register value. Document the slot address and I/O mapping before removal.

Step 2 — Safe Isolation: De-energize the field-side 24 VDC supply to the module’s input terminals. Do not rely solely on the PLC being in STOP mode — physically isolate field power at the fuse block or disconnect switch. Verify with a multimeter before proceeding.

Step 3 — Module Removal: Disconnect the field wiring harness or terminal block from the module. Release the backplane locking mechanism and extract the AS-B805-016 from its slot. Inspect the backplane connector for damage before inserting the replacement.

Step 4 — Replacement Installation: Insert the new AS-B805-016 into the same slot. Reconnect the field wiring harness, ensuring all terminations are secure and correctly positioned. Restore field power and place the PLC in RUN mode.

Step 5 — Functional Verification: Activate each field input device individually and confirm that the corresponding PLC input register reflects the correct state. Cross-reference with the HMI display and the original I/O map. Log the replacement date, module serial number, and test results in the maintenance record.

This workflow minimizes downtime, preserves system compatibility, and ensures that the replacement module is fully validated before the system returns to production. The AS-B805-016’s direct form-fit-function compatibility with the Modicon 800 Series backplane eliminates the need for software reconfiguration in most standard replacement scenarios.

Spare Parts Support FAQ

Q: Is the AS-B805-016 a direct drop-in replacement for the original module in my Modicon 800 Series system?
A: Yes. The AS-B805-016 is designed for direct slot-for-slot replacement within the Modicon 800 Series I/O chassis. No hardware modification or software reconfiguration is required in standard installations. Verify your backplane slot address and I/O mapping documentation before installation to confirm compatibility with your specific system configuration.

Q: How is the module tested before shipment?
A: Each AS-B805-016 unit undergoes functional testing prior to dispatch to verify input channel integrity, backplane interface continuity, and signal response. Units are inspected for physical condition including connector pin alignment and housing integrity. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the recommended spare parts inventory strategy for the AS-B805-016 in a critical production environment?
A: For systems where the Modicon 800 Series PLC controls critical processes, maintaining a minimum of one verified spare AS-B805-016 on-site is recommended. For multi-rack installations or systems with high I/O point counts, holding two units reduces the risk of extended downtime during concurrent failures or scheduled maintenance windows. Pair the input module spare with a compatible 800 Series output module and a replacement power supply to cover the most common failure scenarios in a single maintenance kit.

Q: Can you supply the AS-B805-016 for long-term or legacy system support?
A: Yes. We specialize in sourcing and supplying original spare parts for legacy Modicon 800 Series systems, including modules that are no longer in active production. Long-term supply agreements and bulk procurement are available for maintenance teams managing aging automation infrastructure. Contact our team to discuss availability, lead times, and volume pricing.
