Moeller LE4-116-DX1 Spare for Easy Series Automation

Moeller LE4-116-DX1 Spare for Easy Series Automation

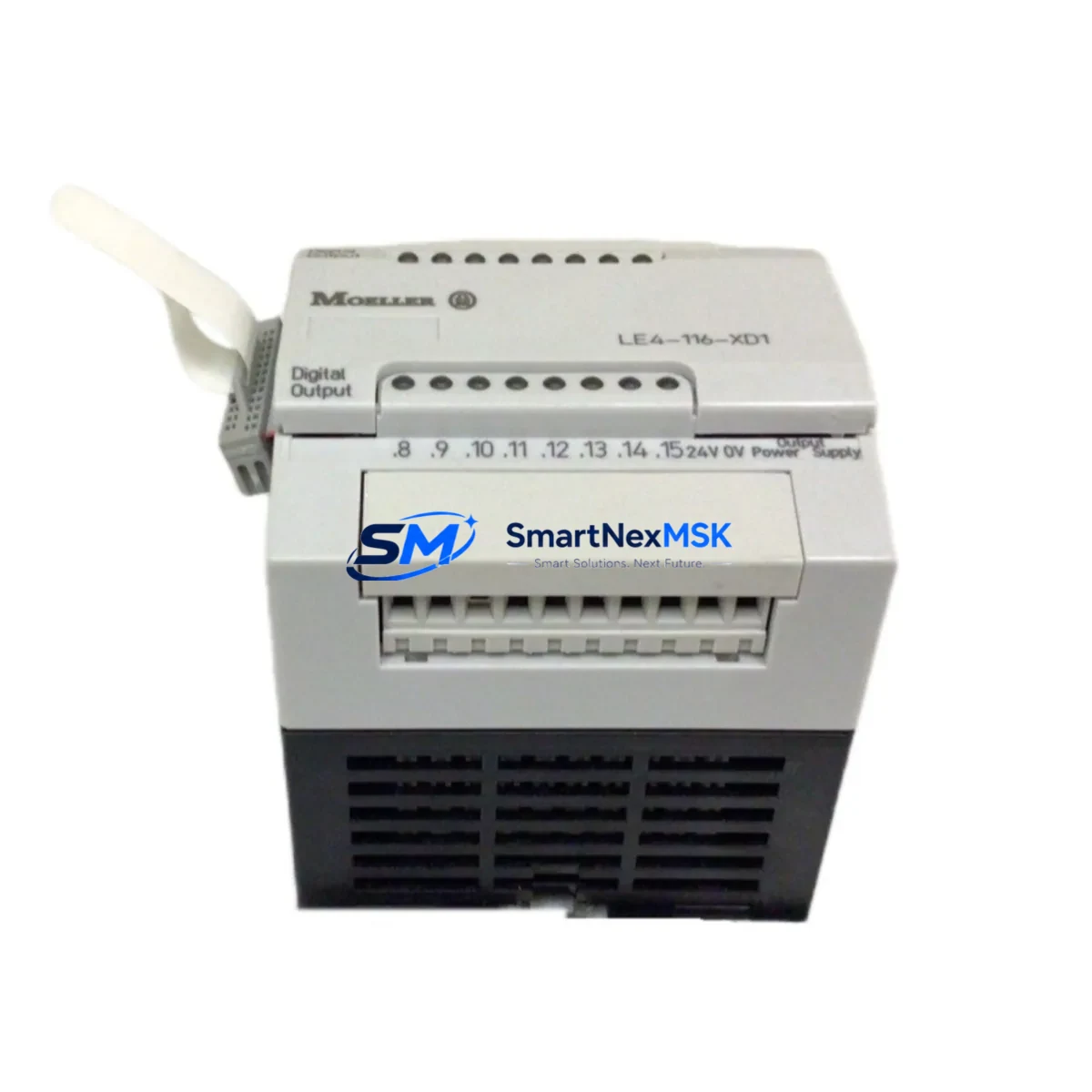

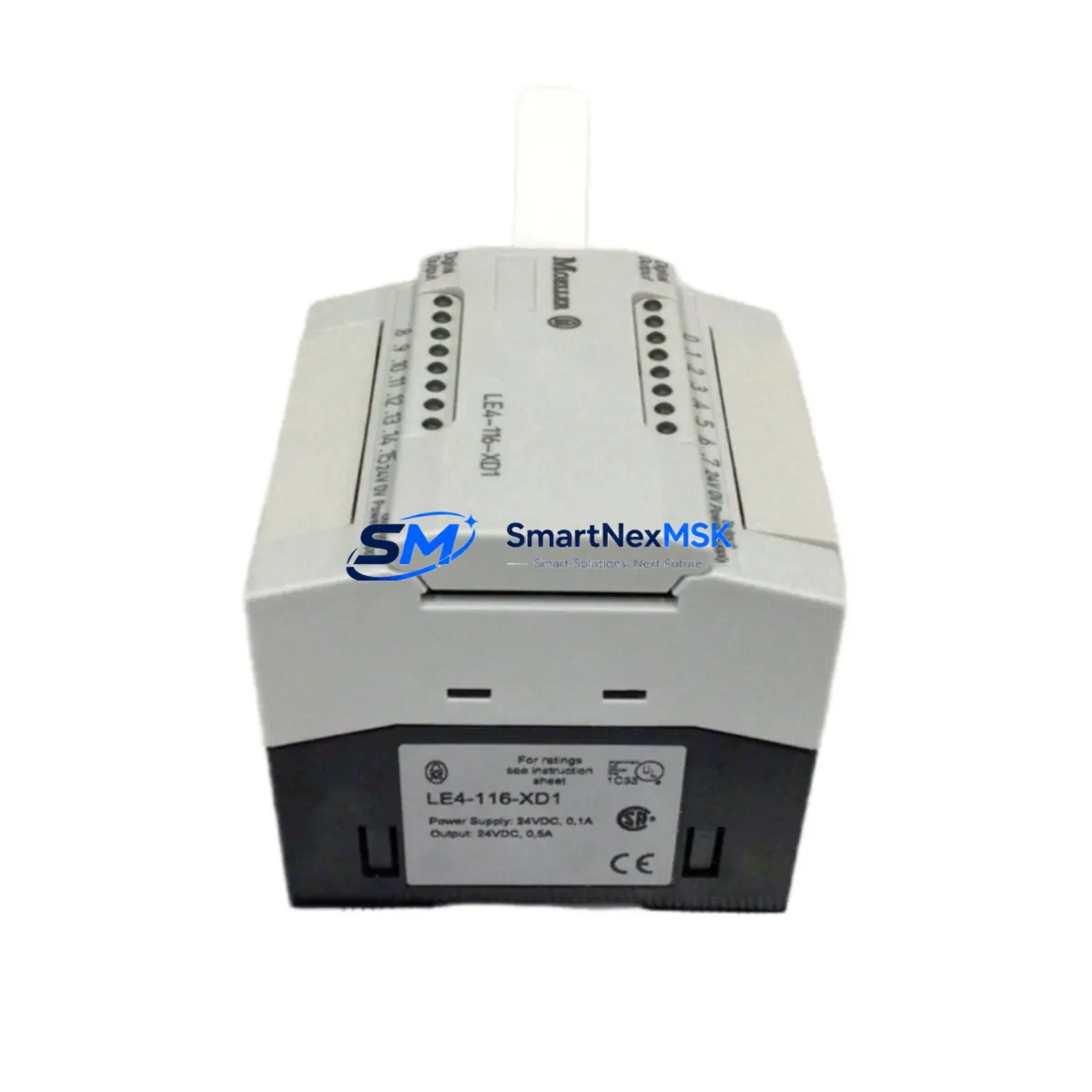

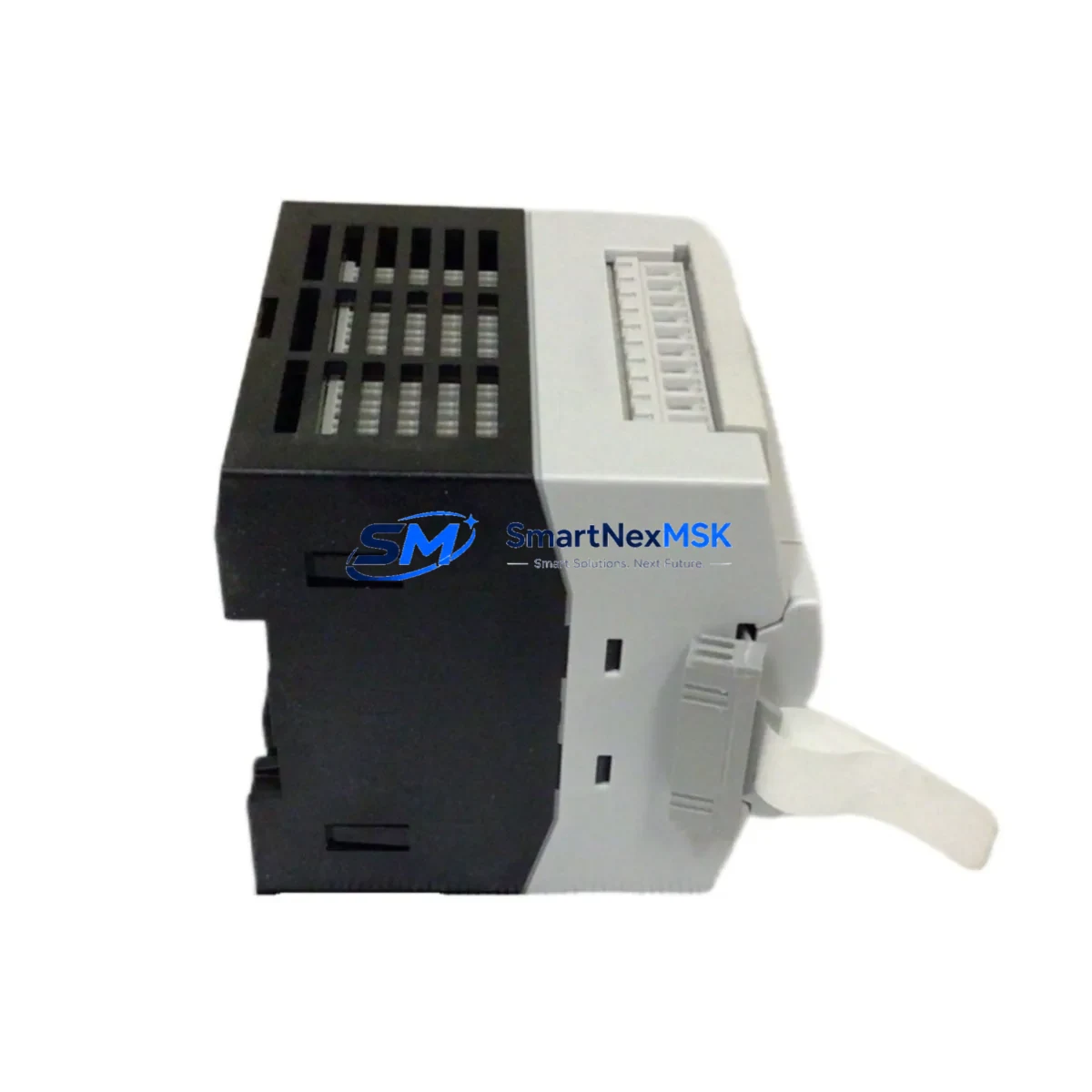

The Moeller LE4-116-DX1 is an original digital expansion module designed for the Easy Series programmable relay and compact automation platform. In industrial maintenance environments, unplanned downtime caused by a failed I/O expansion module can halt an entire production line. Stocking a verified replacement unit of the LE4-116-DX1 is a proven strategy for maintenance engineers managing aging Easy Series control panels, retrofit projects, and multi-site automation systems.

This module extends the digital I/O capacity of Easy Series controllers, enabling seamless integration with existing wiring, DIN-rail enclosures, and 24VDC control circuits. Whether you are performing a scheduled overhaul, responding to an emergency fault, or building a preventive maintenance spare parts kit, the LE4-116-DX1 provides a direct, plug-compatible replacement that restores system operation without reprogramming or panel redesign.

Each unit supplied by SMARTNEXMSK is sourced from authorized channels, inspected prior to dispatch, and covered by a 12-month warranty. We support maintenance teams and procurement engineers with fast lead times, pre-shipment functional testing, and long-term supply continuity for discontinued and hard-to-source Moeller Easy Series components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the LE4-116-DX1 as a replacement requirement, a thorough site inspection of the surrounding control cabinet is strongly recommended before and after installation. The Easy Series expansion module does not operate in isolation — its performance depends on the health of interconnected components throughout the same electrical circuit and control system.

Begin by verifying the Easy Series base controller (such as the EASY512-DC-TC or EASY719-DC-RC) for firmware integrity and I/O mapping consistency. A failed expansion module can sometimes be a symptom of upstream power irregularities rather than the root cause. Inspect the 24VDC power supply module feeding the control rail — units such as the Moeller PSG series or equivalent SITOP-class supplies should be load-tested to confirm stable output under full I/O load.

Check all terminal blocks and wiring connectors on the expansion bus. Loose or corroded terminals on the I/O side can cause intermittent faults that mimic module failure. Inspect input signal cables from field sensors and actuators for insulation damage, especially in high-vibration or high-temperature environments. If the system includes relay output modules (such as the LE4-116-RX1 or similar Easy Series relay expansion units), verify contact wear and coil resistance — relay outputs in the same cabinet often degrade in parallel with digital I/O modules under heavy cycling loads.

For systems with communication modules — such as PROFIBUS DP or CANopen interface cards connected to the Easy Series network — confirm that the bus termination resistors are intact and that the module address settings are correctly preserved after any replacement. If the control cabinet includes a EASY-SOFT programming interface or a connected HMI panel (such as an MFD-Titan or XV-series display), verify that the I/O configuration in the program matches the physical expansion slot assignment of the new LE4-116-DX1.

Additionally, inspect miniature circuit breakers (MCBs) and fuse holders protecting the 24VDC control circuit. A blown fuse upstream of the expansion module is a common cause of apparent module failure. Signal isolators or signal conditioning modules between field instruments and the Easy Series I/O should also be checked for drift or output saturation. Maintaining a spare parts kit that includes the LE4-116-DX1 alongside a spare power supply, a set of terminal blocks, and a relay output module ensures that your team can resolve the most common Easy Series cabinet faults within a single maintenance window.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the failed module, isolate the control cabinet from the 24VDC supply. Photograph the existing wiring layout and record the I/O address assignments from the Easy Series program (via EASY-SOFT or the onboard display) to ensure accurate restoration after replacement.

Step 2 — Remove the faulty unit: Disconnect the expansion bus connector and any field wiring terminals from the defective LE4-116-DX1. Note the DIN-rail position and slot order relative to the base controller and any other expansion modules in the chain.

Step 3 — Install the replacement: Clip the new LE4-116-DX1 onto the DIN rail in the correct position. Reconnect the expansion bus and field wiring terminals. Confirm that the module is firmly seated and that all terminal screws are torqued to specification.

Step 4 — Power-up and verify: Restore 24VDC supply and observe the module status LEDs. Use the Easy Series base controller display or EASY-SOFT to confirm that all I/O points on the expansion module are recognized and mapped correctly. Run a functional test of all connected field devices before returning the system to production.

Step 5 — Update maintenance records: Log the replacement date, module serial number, and any observations about the failure mode. Update your spare parts inventory to reorder a replacement LE4-116-DX1 for the next maintenance cycle.

This workflow minimizes downtime, preserves system compatibility, and ensures that the Easy Series automation platform continues to operate reliably without requiring panel redesign or controller reprogramming.

Spare Parts Support FAQ

Q1: Is the LE4-116-DX1 still available as a new original spare?
Yes. SMARTNEXMSK maintains stock of original Moeller Easy Series expansion modules including the LE4-116-DX1. Each unit is sourced from verified supply channels and undergoes pre-shipment functional inspection. We support long-term supply continuity for both active and discontinued Easy Series components.

Q2: How do I confirm compatibility with my existing Easy Series controller?
The LE4-116-DX1 is designed for direct expansion with Easy Series programmable relay controllers. Confirm your base unit model (e.g., EASY512, EASY719, EASY821) and verify that the expansion slot count and I/O address range in your program accommodate the additional module. Our technical team can assist with compatibility verification before order confirmation.

Q3: What pre-shipment checks are performed before dispatch?
Every LE4-116-DX1 unit is visually inspected for physical integrity and functionally tested to verify digital I/O response and bus communication prior to packaging. Units are shipped with protective packaging suitable for international freight. A 12-month warranty is provided from the date of shipment.

Q4: What is the recommended spare parts strategy for Easy Series cabinets?
For critical production environments, we recommend holding at least one LE4-116-DX1 per installed Easy Series cabinet as a fast-response spare. Complement this with a spare 24VDC power supply, a relay output expansion module, a set of terminal blocks, and a backup copy of the Easy Series program file. This kit approach enables single-visit fault resolution and significantly reduces mean time to repair (MTTR).
