Moore 16114-171/6 Maintenance-Ready Spare for APACS+ DCS Automation

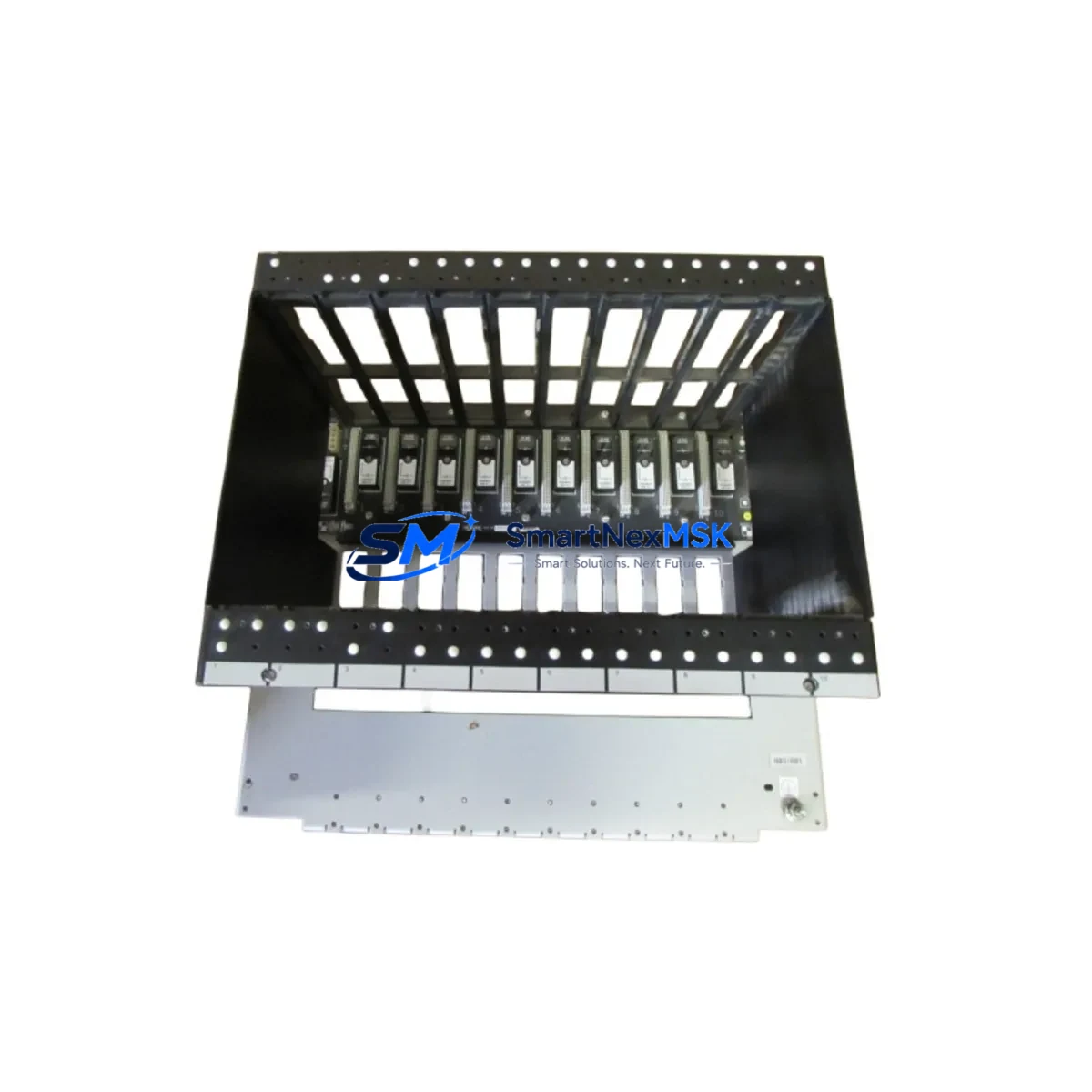

The Moore 16114-171/6 MODULERAC Six-Slot Card Rack is a critical structural and electrical backbone component within the APACS+ Distributed Control System architecture. For maintenance engineers managing aging DCS infrastructure, securing a verified replacement backplane is the single most effective action to prevent extended unplanned downtime. This original spare is sourced, inspected, and shipped with a 12-month warranty, ensuring your control system returns to full operation with minimal disruption.
The 16114-171/6 six-slot rack provides the physical mounting, backplane bus interconnection, and power distribution interface for APACS+ I/O and controller modules. When this component degrades or fails — whether due to connector wear, bus signal integrity loss, or physical damage from vibration and thermal cycling — the entire rack segment becomes inoperative. Rapid spare parts availability is therefore not optional; it is a core element of any credible maintenance strategy for continuous process operations.
This listing is maintained by SMARTNEXMSK as part of a long-term supply commitment to APACS+ users worldwide. Every unit undergoes pre-shipment functional verification and is packaged to IPC standards for safe international transit.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 16114-171/6 (also referenced as 16114-171 6) |
| Manufacturer | Moore Automation / Siemens Moore |
| Series | APACS+ DCS |
| Product Type | Six-Slot Module Card Rack (MODULERAC) |
| Slot Capacity | 6 module slots |
| Backplane Bus | APACS+ proprietary parallel I/O bus |
| Power Input | 24 VDC via APACS+ power supply module (e.g. 16103-xxx series) |
| Compatibility | APACS+ controller modules, I/O modules, communication modules |
| Mounting | DIN rail or panel mount, standard APACS+ enclosure |
| Operating Temperature | 0°C to 60°C |
| Application Environment | Industrial process control, chemical, oil & gas, power generation |
| Condition | Original / Refurbished-to-spec (confirmed prior to shipment) |
| Pre-Shipment Test | Functional bus continuity and slot connector verification |
| Warranty | 12 Months from date of shipment |
| Lead Time | In stock — typically ships within 2 business days |
| Origin | USA |
Maintenance Planning for Continuous Operation
Replacing the 16114-171/6 MODULERAC is rarely an isolated task. A disciplined maintenance engineer will treat a backplane replacement as a trigger for a broader rack-level inspection. Before reinstalling modules into the new rack, verify the condition of the APACS+ power supply module (typically a 16103-series unit) that feeds the rack bus — a failing power supply can cause the same symptoms as a defective backplane and will damage a new rack if left unchecked.
Each module slot should be inspected for bent or corroded connector pins before re-seating I/O modules. Common co-located components that should be evaluated during the same maintenance window include APACS+ analog input modules (AI), digital output modules (DO), and the rack’s dedicated communication module if HART or FOUNDATION Fieldbus integration is in use. If the system includes a redundant controller pair, confirm that the redundancy link cable between the primary and secondary controller modules is intact and properly seated after the rack swap.
For control cabinets that also house third-party signal conditioning equipment, this is an appropriate time to inspect DIN-rail-mounted signal isolators and loop-powered transmitter barriers. Terminal blocks and field wiring terminations adjacent to the replaced rack should be checked for loose screws and insulation degradation, particularly in high-vibration or high-humidity environments. If the cabinet includes an operator interface panel or local HMI, verify that the communication link to the APACS+ controller is re-established after power-up and that all process values are reading correctly before returning the loop to automatic control.
Facilities running extended APACS+ installations should also maintain on-hand spares for the MODULERAC power connector, rack end caps, and any associated fuse holders or surge protection devices mounted in the same enclosure. A single spare 16114-171/6 rack, combined with a matched set of critical I/O modules and a tested power supply, constitutes a minimum viable spare kit for a six-slot APACS+ node.
Site Replacement Workflow
Step 1 — Preparation: Obtain the replacement 16114-171/6 rack and confirm the slot count and bus revision match the installed unit. Download or locate the APACS+ hardware installation manual for your firmware revision before beginning work.
Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DCS workstation. Notify operations personnel. De-energize the rack by removing the power supply module or switching off the dedicated circuit breaker. Do not rely solely on the rack power LED — verify with a multimeter at the power input terminals.
Step 3 — Module Extraction: Label each module with its slot position before removal. Photograph the wiring and module arrangement. Remove modules in reverse slot order (slot 6 first) to avoid mechanical stress on the backplane connectors.
Step 4 — Rack Swap: Remove the defective 16114-171/6 rack from its mounting. Install the replacement rack and verify secure mechanical fastening. Inspect all backplane connector positions for debris before re-inserting modules.
Step 5 — Module Re-installation: Re-insert modules in original slot order. Confirm each module is fully seated — a partially inserted module will cause bus errors that can be misdiagnosed as a controller fault.
Step 6 — Power-Up and Verification: Restore power. Observe the controller module status LEDs through the startup sequence. Confirm all I/O channels report expected values at the DCS workstation. Return loops to automatic control only after all channels are verified.
This workflow minimizes downtime and eliminates the most common re-work causes associated with APACS+ backplane replacements. Total elapsed time for a prepared maintenance team is typically 45–90 minutes per rack.
Spare Parts Support FAQ
Q: Is the 16114-171/6 still manufactured, or is this an aftermarket replacement?
A: The APACS+ product line has reached end-of-manufacture. SMARTNEXMSK supplies original Moore-manufactured units sourced from decommissioned systems and certified distributor stock. Each unit is tested before shipment. No aftermarket or cloned backplanes are offered.
Q: How do I verify compatibility with my installed APACS+ revision?
A: The 16114-171/6 six-slot rack is compatible across all standard APACS+ hardware revisions. Confirm your existing rack’s slot count (6-slot vs. 12-slot variants exist in the APACS+ family) and verify the power supply module part number matches the 16103-series. If you have a non-standard enclosure configuration, contact us with your system’s hardware revision tag before ordering.
Q: What does the 12-month warranty cover?
A: The warranty covers defects in materials and workmanship under normal operating conditions. Units that fail within 12 months of the shipment date due to manufacturing or component defects will be replaced or refunded. Damage caused by incorrect installation, overvoltage, or environmental conditions outside the rated specification is not covered. Warranty claims are processed within 5 business days of receipt of the returned unit.
Q: Can you supply multiple units for a planned maintenance stock program?
A: Yes. SMARTNEXMSK supports bulk spare parts procurement for planned maintenance programs. Volume pricing is available for orders of 3 or more units. Long-term supply agreements with reserved stock allocation are available for facilities with multiple APACS+ nodes. Contact our sales team to discuss your site’s spare parts inventory requirements.
