Moore Industries 16167-1-7 Spare for MTA Automation

Moore Industries 16167-1-7 Spare for MTA Automation: Spare Replacement & Industrial Downtime Risk Control

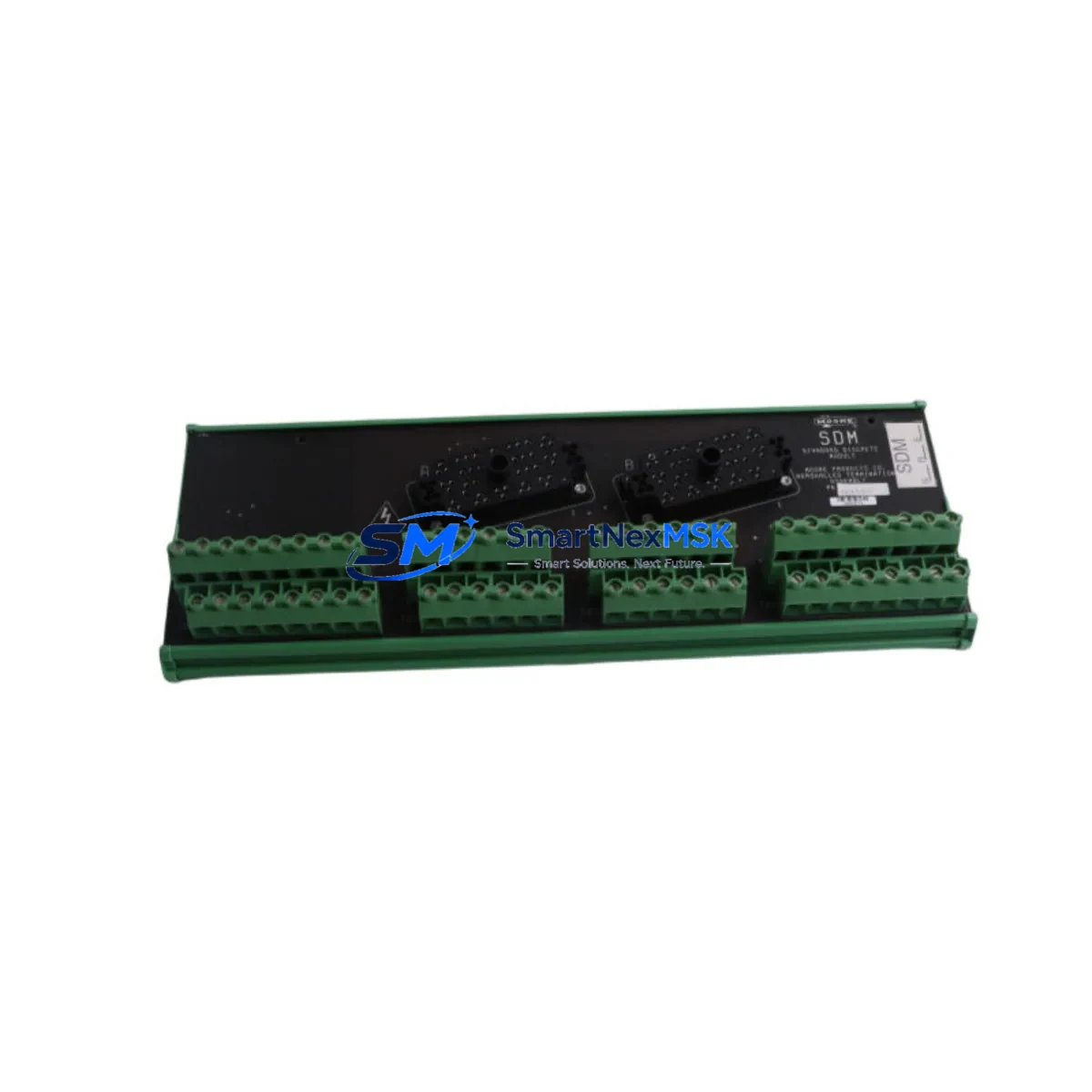

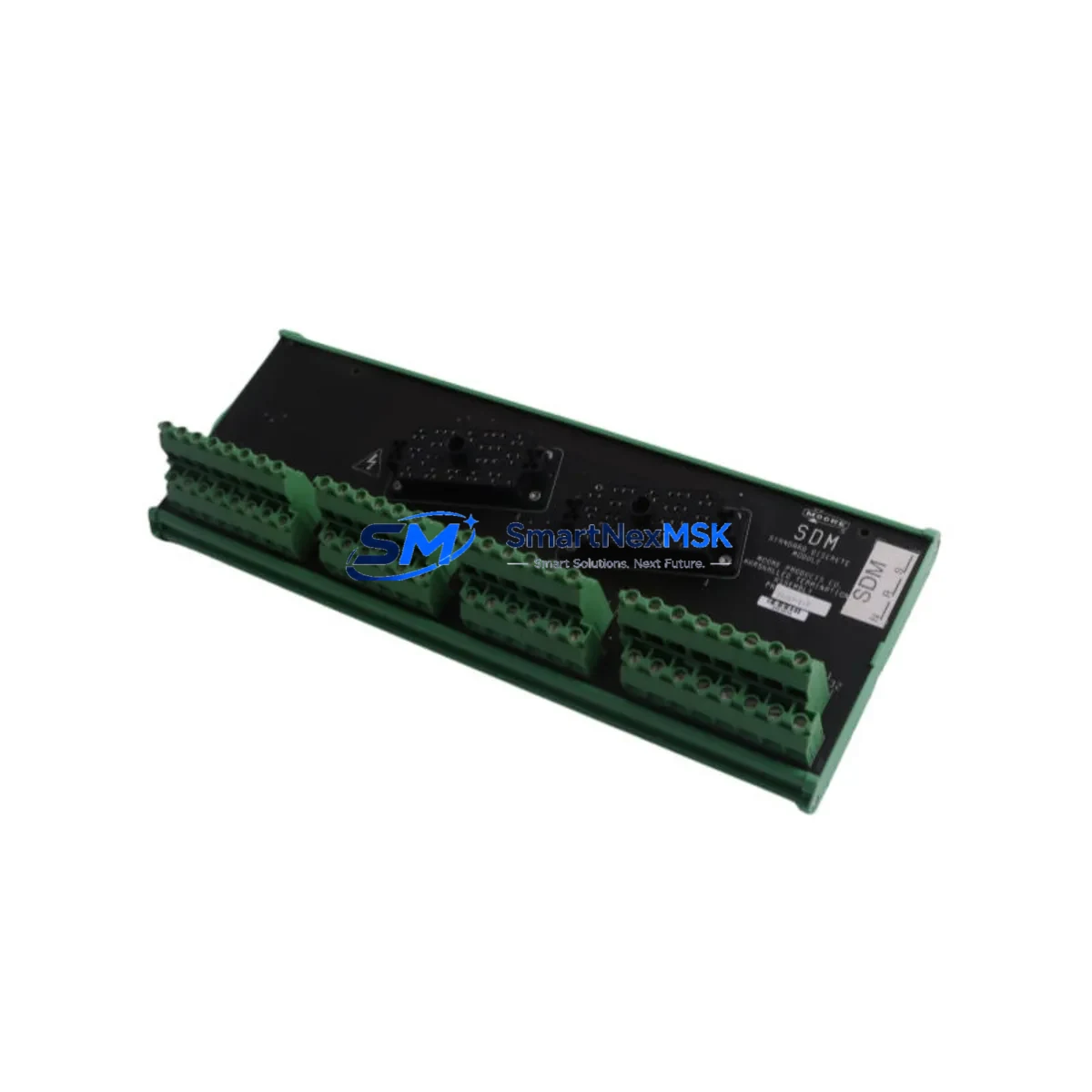

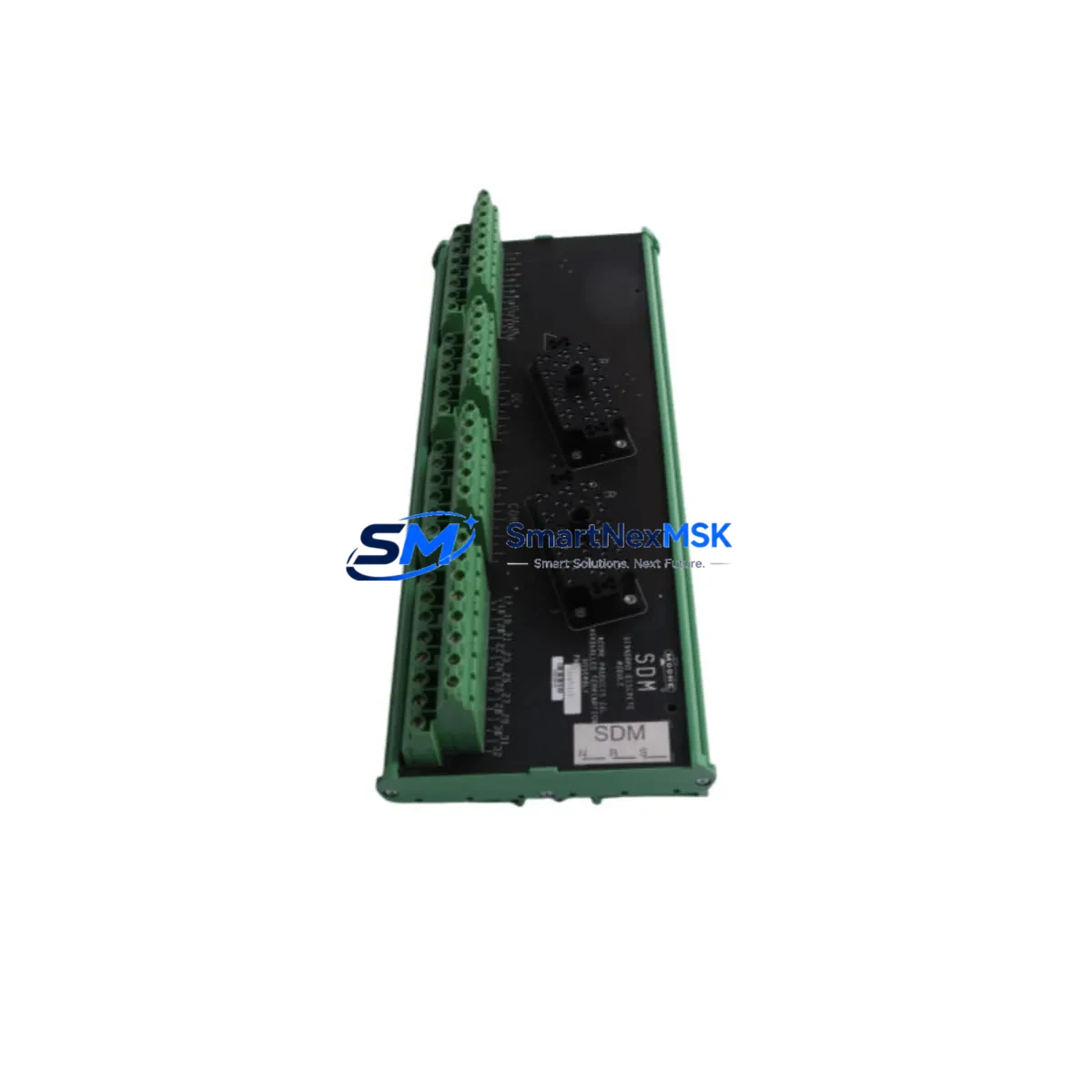

The Moore Industries 16167-1-7 is a Marshalled Termination Assembly (MTA) designed for structured I/O marshalling in DCS and process control architectures. As a maintenance-ready original spare, this unit supports rapid field replacement in critical automation environments where unplanned downtime carries significant operational and financial risk. Whether you are managing a planned turnaround, responding to an emergency fault, or building a proactive spare parts inventory, the 16167-1-7 delivers the dimensional and electrical compatibility required for seamless integration into existing Moore Industries MTA wiring infrastructure.

Maintenance engineers and procurement teams working with Moore Industries marshalling systems recognize the 16167-1-7 as a foundational component in DCS cabinet wiring strategies. Its role in organizing field wiring from junction boxes to DCS I/O cards makes it a high-priority spare in any facility running continuous process operations — including oil and gas, chemical, power generation, water treatment, and pharmaceutical manufacturing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Moore Industries 16167-1-7 MTA in a live DCS environment, a disciplined maintenance approach requires more than a direct swap. Maintenance engineers should treat the replacement as an opportunity to audit the surrounding electrical infrastructure and reduce the risk of secondary failures.

Begin by verifying the integrity of the field cable terminations feeding into the MTA. Loose or corroded terminals on multi-pair shielded cables are a common source of signal drift that can be misattributed to the MTA itself. At the same time, inspect the associated DCS I/O cards — such as Moore Industries SPA (Signal Processor Assemblies) or compatible third-party analog input modules — to confirm that channel calibration has not drifted during the fault period.

Power distribution within the marshalling cabinet should also be reviewed. Check the 24 VDC loop power supply feeding the field instruments connected through this MTA. A failing or undersized power supply can cause intermittent signal loss that mimics MTA wiring faults. Fuse holders and terminal-mounted fuse blocks protecting individual field loops should be tested for continuity and replaced if showing signs of heat discoloration or mechanical fatigue.

Signal isolators and barriers installed between the field wiring and the DCS I/O — such as Moore Industries SIX or TDY series signal conditioners — should be inspected for proper output levels. These components are frequently overlooked during MTA replacements but are critical to maintaining signal integrity across the marshalling boundary.

Terminal blocks throughout the marshalling cabinet, including feed-through terminals, knife-disconnect terminals, and test point terminals, should be torqued to specification and visually inspected for insulation damage. Labeling should be verified against the as-built wiring documentation to prevent cross-wiring errors during reassembly.

For facilities running older DCS platforms, the 16167-1-7 replacement is also an appropriate time to assess the condition of the backplane connectors and ribbon cables connecting the MTA to the I/O subsystem. Oxidized or intermittently connected backplane interfaces are a known failure mode in aging marshalling architectures and can cause sporadic channel faults that are difficult to diagnose without physical inspection.

Communication modules interfacing with the DCS controller — including HART multiplexers or fieldbus segment couplers installed in the same cabinet — should be verified for proper addressing and signal quality after the MTA replacement is complete. Any changes to field wiring topology during the replacement can affect HART communication paths or fieldbus segment loading.

Finally, if the facility uses a distributed marshalling strategy with remote I/O panels, confirm that the replacement MTA is correctly mapped in the DCS configuration and that the I/O channel assignments match the updated field wiring schedule. A configuration mismatch at this stage can result in incorrect process readings that are not immediately obvious during post-maintenance functional testing.

Site Replacement Workflow

The 16167-1-7 is designed as a direct replacement for aging or failed Moore Industries MTA units within the same series. The replacement workflow follows a structured sequence to minimize downtime and maintain system compatibility:

Step 1 — Isolation and Documentation: De-energize the affected I/O section following site lockout/tagout (LOTO) procedures. Photograph the existing wiring layout and cross-reference against the as-built drawings before disconnecting any field cables.

Step 2 — Physical Removal: Disconnect field cable terminations from the existing MTA in sequence, labeling each wire if labels are missing or illegible. Remove the MTA from its mounting position, noting the orientation and any grounding connections.

Step 3 — Inspection and Cleaning: Clean the cabinet mounting area and inspect the DIN rail or panel mounting surface for corrosion or mechanical damage. Verify that the replacement 16167-1-7 matches the physical dimensions and terminal configuration of the removed unit.

Step 4 — Installation: Mount the replacement MTA, reconnect field cables in the documented sequence, and verify terminal torque. Restore grounding connections and confirm shield termination points.

Step 5 — Functional Verification: Re-energize the I/O section and perform a channel-by-channel signal verification against the DCS faceplate or historian. Confirm that all field instruments are reading within expected ranges before returning the system to automatic control.

This workflow supports a typical replacement time of under two hours for a trained maintenance technician, significantly reducing the mean time to repair (MTTR) compared to sourcing non-original or incompatible assemblies.

Spare Parts Support FAQ

Q1: Is the 16167-1-7 a direct drop-in replacement for older Moore Industries MTA units?
Yes. The 16167-1-7 is manufactured to Moore Industries MTA series specifications and is intended as a direct replacement within compatible marshalling cabinet configurations. Verify the terminal count and mounting dimensions against your existing installation before ordering if your system has been modified from the original design.

Q2: How is the unit tested before shipment?
Each 16167-1-7 unit is inspected and functionally verified prior to dispatch. Testing covers terminal continuity, mechanical integrity, and dimensional conformance. A test report is available upon request for facilities requiring incoming inspection documentation.

Q3: What is the recommended spare parts inventory strategy for MTA-based DCS systems?
For continuous process facilities, we recommend maintaining a minimum of one spare MTA per marshalling cabinet as part of the critical spare parts inventory. For plants with extended maintenance intervals or remote locations, a two-unit buffer per cabinet type is advisable to cover both planned replacement and emergency fault scenarios.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the rated specifications. Warranty claims are processed with priority turnaround to minimize impact on plant operations.
