MOX MOX12/4U-P3509B 80026-173-23 Retrofit-Ready Rack PSU

MOX MOX12/4U-P3509B 80026-173-23 Retrofit-Ready Rack-Mount PSU: Compatible Modernization for Legacy Control Systems

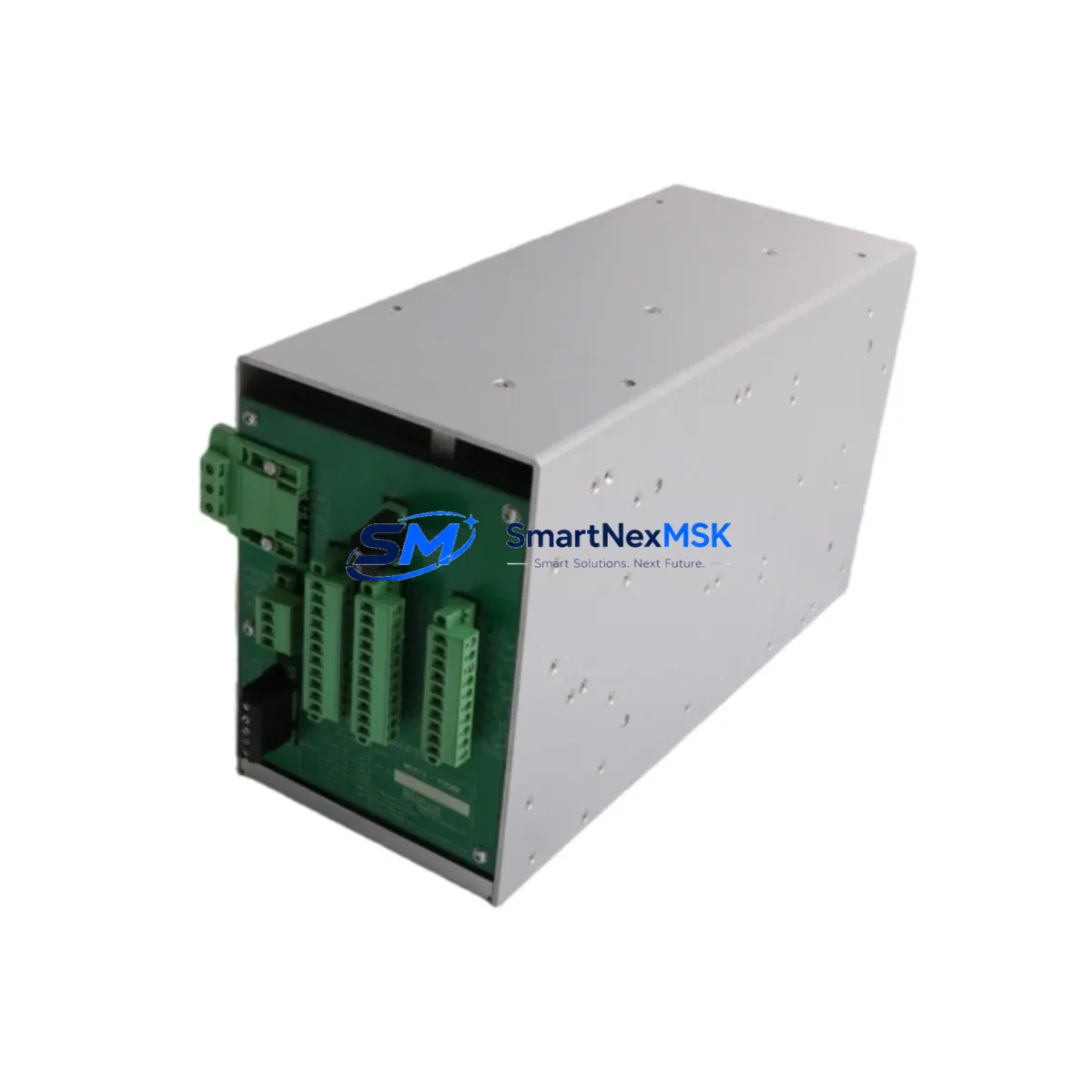

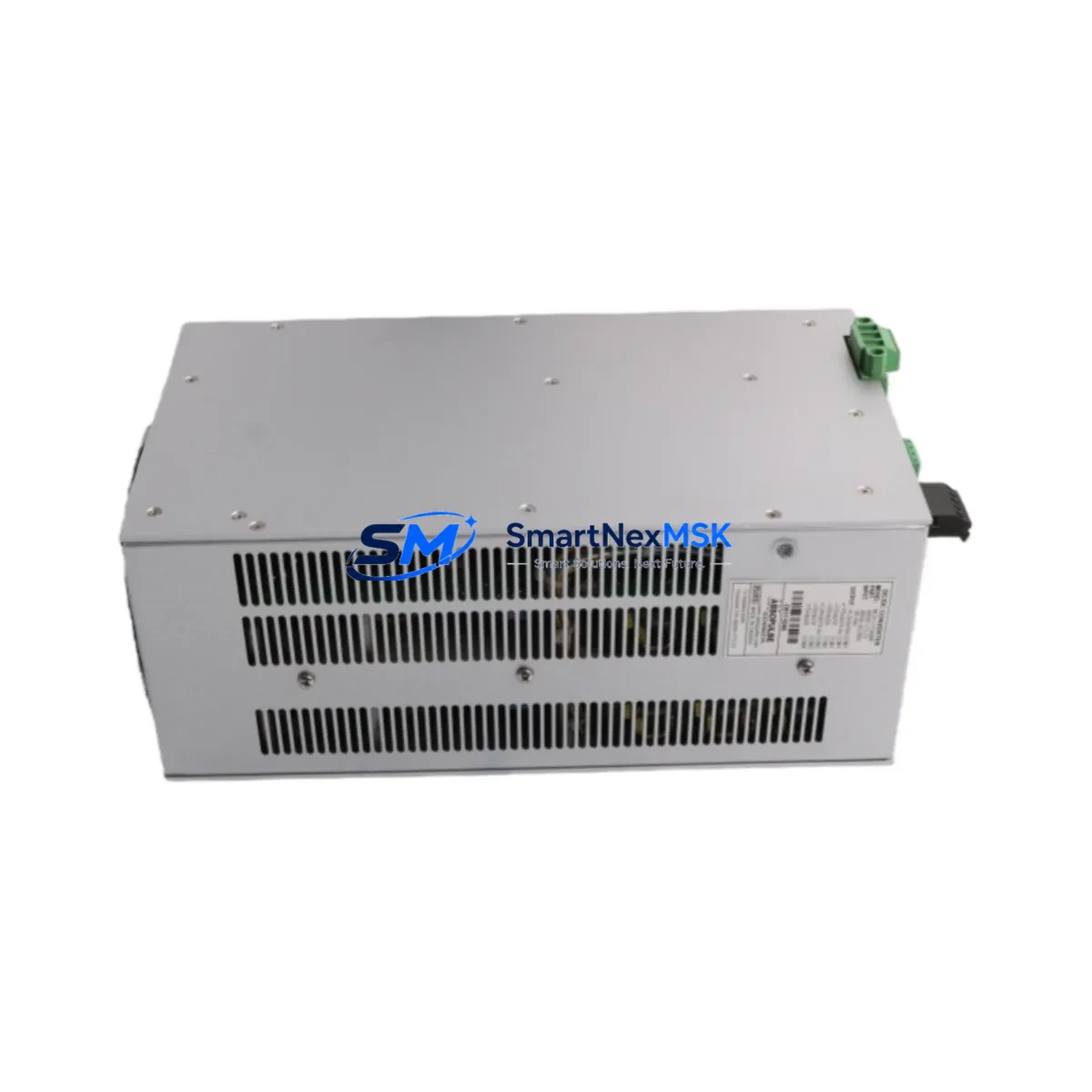

The MOX12/4U-P3509B 80026-173-23 is a rack-mount switching power supply module engineered for seamless integration into existing MOX12/4U series control system enclosures. As industrial facilities face increasing pressure to extend the operational life of legacy automation infrastructure while maintaining system reliability, this module provides a verified, drop-in power solution that eliminates the need for full cabinet redesign. Whether you are replacing a failed unit, upgrading an aging power rail, or consolidating redundant PSU configurations across a distributed control system, the MOX12/4U-P3509B 80026-173-23 delivers the electrical performance and mechanical compatibility required for mission-critical retrofit projects.

This module is particularly well-suited for facilities operating MOX12/4U-series rack enclosures that house mixed I/O and communication modules across multiple backplane slots. Engineers undertaking control cabinet upgrades will find that the MOX12/4U-P3509B 80026-173-23 maintains the original terminal block layout and backplane connector pinout, significantly reducing rewiring time during scheduled maintenance windows. Before installation, technicians should verify the incoming AC supply voltage range, confirm the DC output rail capacity against the total load of installed modules — including analog input cards, digital output modules, and any co-installed communication processors — and cross-reference the module address configuration with the existing PLC program to avoid address conflicts on the backplane bus.

Procurement teams sourcing this unit as a discontinued spare or end-of-life replacement will benefit from our verified inventory stock, pre-shipment functional testing, and 12-month warranty coverage, ensuring continuity of supply for long-lifecycle automation assets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the MOX12/4U-P3509B 80026-173-23 begins with a thorough audit of the existing control cabinet. In a typical MOX12/4U-based system, the rack enclosure may house a combination of analog input modules, digital output modules, thermocouple input cards, and one or more communication interface modules handling PROFIBUS DP or Modbus RTU links to field devices. The power supply module feeds all of these components through the backplane, making its output capacity and stability critical to overall system health.

When planning the replacement, engineers should document the current power budget by summing the rated consumption of each installed module. For example, a rack populated with a CPU module, four analog I/O cards, two digital I/O modules, and a PROFIBUS communication module may draw close to the rated output of the original PSU. If additional I/O expansion is planned — such as adding an extra digital input module or a serial communication card for legacy device integration — the new PSU’s headroom must be confirmed before proceeding.

Wiring adaptation is another key consideration. Technicians should photograph the existing terminal block connections before removal and compare the terminal labeling against the MOX12/4U-P3509B 80026-173-23 wiring diagram. In most cases, the AC input terminals (L, N, PE) and DC output terminals align directly with the predecessor unit, but any field modifications made to the original installation should be documented and carried forward. If the cabinet also contains an HMI panel — such as a touch-screen operator interface connected via RS-232 or Ethernet — the HMI power feed should be verified separately, as some configurations route HMI power through a dedicated secondary rail rather than the main backplane PSU.

For systems undergoing a broader migration — for instance, transitioning from an older proprietary control platform to a more open architecture — the MOX12/4U-P3509B 80026-173-23 can serve as a stable interim power solution while the CPU module, programming cable interface, and I/O backplane are upgraded in stages. This phased approach allows the facility to maintain production continuity while progressively modernizing the control infrastructure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any industrial retrofit project. When replacing the MOX12/4U-P3509B 80026-173-23 in a live production environment, the recommended approach is to schedule the swap during a planned maintenance window and prepare a complete pre-tested replacement unit in advance. Before de-energizing the rack, the existing PLC program should be uploaded and saved to a programming device to protect against data loss. If the system uses battery-backed memory in the CPU module, verify that the battery is functional and that the program retention time exceeds the planned outage duration.

During the physical swap, all field wiring connected to I/O modules should remain undisturbed. Only the PSU module itself is removed and replaced. After installing the MOX12/4U-P3509B 80026-173-23, the system should be powered up in stages: first verify the DC output voltage at the backplane test points before allowing the CPU and I/O modules to initialize. Once the CPU module has completed its self-test and the communication links — including any PROFIBUS or Modbus segments — have re-established, the HMI operator screen should be checked to confirm that all process values are being received correctly and that no alarm conditions have been triggered by the power interruption.

For facilities with redundant PSU configurations, the hot-swap procedure may allow the replacement to be completed without any process interruption, provided the redundancy module and the second PSU unit remain operational throughout the exchange. In all cases, a post-commissioning functional test covering all I/O channels, communication links, and control outputs should be completed and documented before returning the system to automatic operation.

Retrofit Support FAQ

Q1: Is the MOX12/4U-P3509B 80026-173-23 a direct replacement for the original MOX12/4U-P series power supply?
Yes. The MOX12/4U-P3509B 80026-173-23 is designed as a form-fit-function replacement for the MOX12/4U-P series PSU. The backplane connector, terminal block layout, and mechanical dimensions are compatible with the original rack slot, allowing direct substitution without cabinet modification.

Q2: What commissioning steps are required after installation?
After physical installation, verify the DC output voltage at the backplane test points, confirm that all installed modules have initialized correctly, and check that all communication links (PROFIBUS, Modbus, or Ethernet, as applicable) have re-established. Upload the saved PLC program if required and perform a full I/O functional test before returning the system to service.

Q3: Can this module be used in a system that is being upgraded to a newer control platform?
Yes. The MOX12/4U-P3509B 80026-173-23 can serve as a stable power source during a phased migration. It is compatible with the existing backplane and will continue to power legacy I/O and communication modules while the CPU and other components are upgraded incrementally.

Q4: What warranty and testing does this unit include?
Every MOX12/4U-P3509B 80026-173-23 unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing to verify output voltage, load regulation, and protection circuit operation. A 12-month warranty from the date of shipment is included, covering manufacturing defects and functional failures under normal operating conditions.
