NANOMOTION AB1A-2A-HR-E4 Safety-Enhanced Servo Driver

NANOMOTION AB1A-2A-HR-E4 Safety-Enhanced Servo Driver for Harsh Industrial Sites

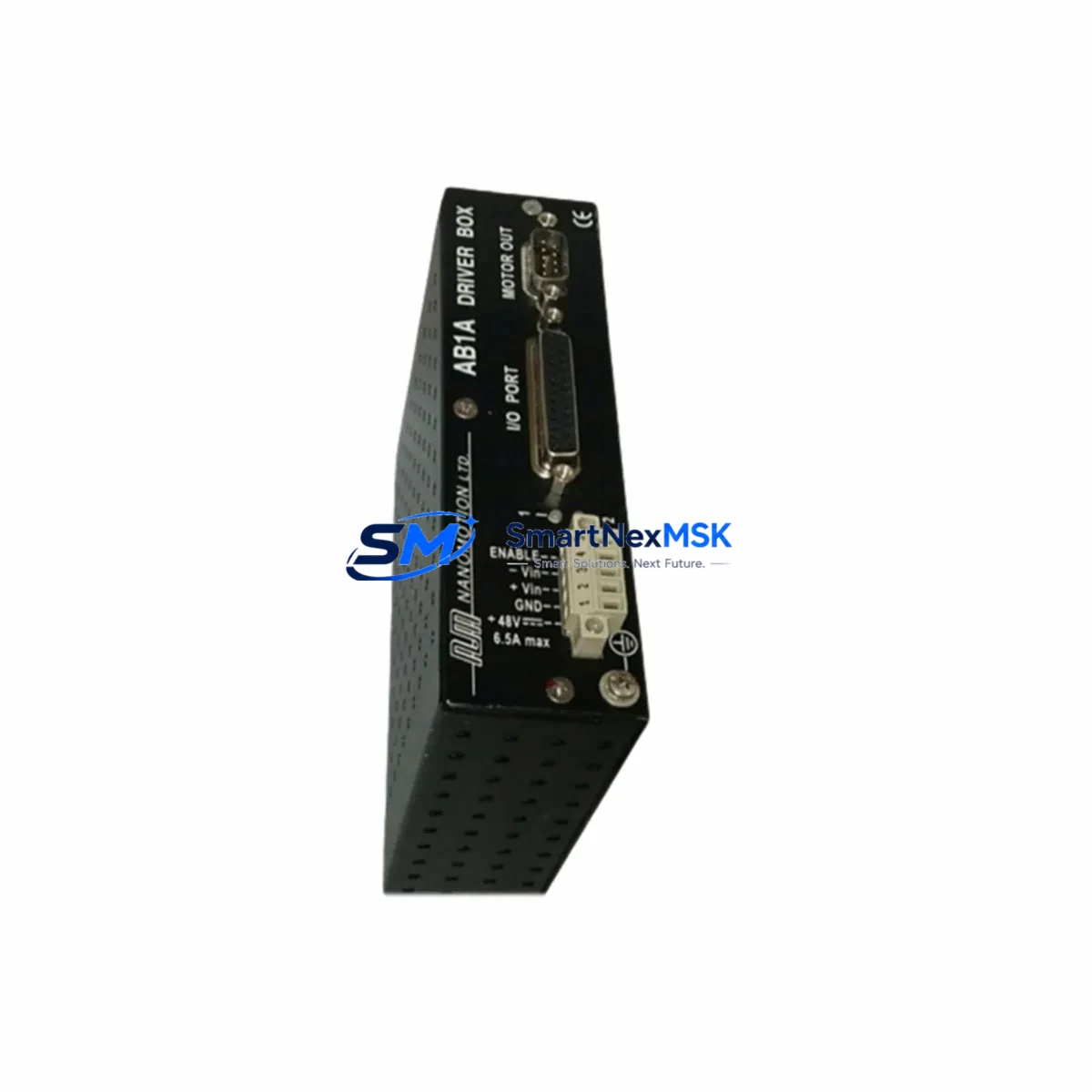

The NANOMOTION AB1A-2A-HR-E4 is a dual-axis, high-reliability piezoelectric servo driver engineered for continuous operation in the most demanding industrial environments. Designed to meet the rigorous requirements of critical motion control loops, this ruggedized module delivers precise, stable servo output even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and fluctuating supply voltage. For plant engineers and automation specialists operating in petrochemical facilities, power generation stations, mining operations, water treatment plants, metallurgical processing lines, port logistics systems, or continuous discrete manufacturing, the AB1A-2A-HR-E4 represents a dependable backbone for safety-critical positioning and motion control.

Unlike standard servo drivers that may exhibit signal drift or nuisance tripping under harsh field conditions, the AB1A-2A-HR-E4 incorporates NANOMOTION’s proven piezoelectric drive technology, which eliminates the electromagnetic coil assemblies responsible for many common failure modes in conventional servo systems. This architecture inherently reduces susceptibility to surge-induced damage, ground loop interference, and thermally driven parameter shift — all of which are primary contributors to unplanned downtime in heavy industrial control cabinets.

In high-load production environments where servo axis faults can cascade into full line shutdowns, the AB1A-2A-HR-E4’s dual-axis architecture allows engineers to consolidate two independent motion channels within a single ruggedized enclosure, reducing cabinet footprint, minimizing inter-module wiring complexity, and lowering the number of potential failure points in the control loop. This consolidation is particularly valuable in safety interlock circuits where response latency and component count directly affect functional safety performance.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the NANOMOTION AB1A-2A-HR-E4 within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal integrity, and communication reliability simultaneously. At the power entry point, a dedicated 24 VDC industrial power supply with active power factor correction and built-in overvoltage protection should be used to isolate the servo driver from upstream grid disturbances. Pairing this with a DIN-rail mounted surge protection device (SPD) on both the AC input and DC bus lines ensures that transient overvoltages — common in facilities with large motor starters or welding equipment — do not propagate into the AB1A-2A-HR-E4’s sensitive piezoelectric drive circuitry.

For motion command signal integrity, routing the analog reference signal through a signal isolator or analog signal conditioner eliminates ground loop currents that can introduce velocity ripple or positional error in precision servo axes. In multi-axis cabinets where the AB1A-2A-HR-E4 operates alongside a NANOMOTION AB1A-1A or AB2 series single-axis driver, careful cable segregation between power and signal wiring — enforced by ferrite bead assemblies and shielded twisted-pair cabling — is essential to maintain the EMI performance that the E4 designation provides.

The motion controller upstream of the AB1A-2A-HR-E4 — whether a Siemens SIMOTION D, Beckhoff CX series IPC, or a dedicated NANOMOTION motion controller — should be protected by a UPS module to ensure that power interruptions do not result in uncontrolled axis movement. In safety interlock architectures, a safety relay module (such as a Pilz PNOZ or Schmersal SRB series) should be wired in series with the drive enable input of the AB1A-2A-HR-E4, ensuring that any safety function activation — E-stop, light curtain trip, or guard door open — immediately disables drive output without relying on software-layer commands alone.

For facilities operating in environments with high particulate contamination or humidity, the control cabinet housing the AB1A-2A-HR-E4 should be rated to at least IP54, with filtered ventilation or a closed-loop cooling system to maintain internal temperatures within the driver’s rated operating range. A cabinet thermostat and fan controller provides automated thermal management, preventing the thermal cycling that accelerates component aging in servo drive electronics. Completing the protection architecture, a network communication gateway or fieldbus coupler (EtherCAT, PROFIBUS, or Modbus RTU) can be used to integrate drive status monitoring into the plant SCADA system, enabling predictive maintenance alerts before a fault condition develops into a production stoppage.

Critical Industrial Safety Applications

The NANOMOTION AB1A-2A-HR-E4 is deployed across a wide range of safety-critical industrial sectors where motion control reliability directly affects operational safety and production continuity.

In petrochemical and refinery facilities, the AB1A-2A-HR-E4 drives precision valve positioning actuators in process control loops where a servo fault could result in uncontrolled flow of hazardous media. Its EMI-resistant E4 design ensures stable operation in environments saturated with variable-frequency drive (VFD) harmonics and high-voltage switching transients from large pump and compressor motor starters.

In power generation plants — including thermal, hydroelectric, and nuclear auxiliary systems — the driver supports turbine governor positioning, fuel control valve actuation, and cooling system flow regulation. The dual-axis capability allows a single AB1A-2A-HR-E4 to control two independent positioning axes within a compact relay panel, reducing the number of drive modules that must be maintained and tested during scheduled outages.

In underground mining and mineral processing operations, where vibration levels, dust ingress, and electrical noise from heavy extraction equipment create extreme conditions for electronic control components, the ruggedized HR construction of the AB1A-2A-HR-E4 provides the mechanical and electrical robustness required for continuous unattended operation between maintenance intervals.

In water and wastewater treatment facilities, the driver controls precision dosing pump actuators and flow control gate positioning systems where consistent, repeatable motion is essential for regulatory compliance and process safety. Its compatibility with external safety relay circuits allows integration into SIL-rated control architectures without requiring additional interface hardware.

In metallurgical and steel processing plants, the AB1A-2A-HR-E4 supports rolling mill positioning, ladle transfer systems, and continuous casting line motion control — applications where servo axis faults can result in material waste, equipment damage, or personnel safety incidents. The driver’s inherent resistance to thermal drift ensures consistent positioning accuracy across the wide ambient temperature swings typical of hot-process industrial environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the AB1A-2A-HR-E4?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to its rated specification within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims are supported by our technical team at sales@smartnexmsk.com.

Q2: What pre-shipment testing is performed on the AB1A-2A-HR-E4?
Each AB1A-2A-HR-E4 unit undergoes functional verification testing prior to shipment, including drive output confirmation, enable/disable circuit check, and visual inspection for physical integrity. Units sourced from verified supply channels are cross-checked against original manufacturer documentation to confirm authenticity and specification compliance.

Q3: Is the AB1A-2A-HR-E4 compatible with my existing NANOMOTION motion controller and stage?
The AB1A-2A-HR-E4 is designed for use with NANOMOTION piezoelectric stages and is compatible with NANOMOTION’s standard motion controller signal interface. If you are integrating this driver into an existing system with a third-party motion controller, our technical team can advise on signal conditioning and interface requirements. Contact us with your system configuration for a compatibility assessment.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for this model?
Yes. SMARTNEXMSK maintains stock of the AB1A-2A-HR-E4 and related NANOMOTION AB series components to support ongoing spare parts programs for industrial facilities. We understand that production-critical systems require reliable spare parts availability, and we work proactively with our supply network to ensure continuity. For volume requirements or scheduled maintenance programs, contact our sales team to discuss dedicated stock reservation arrangements.
