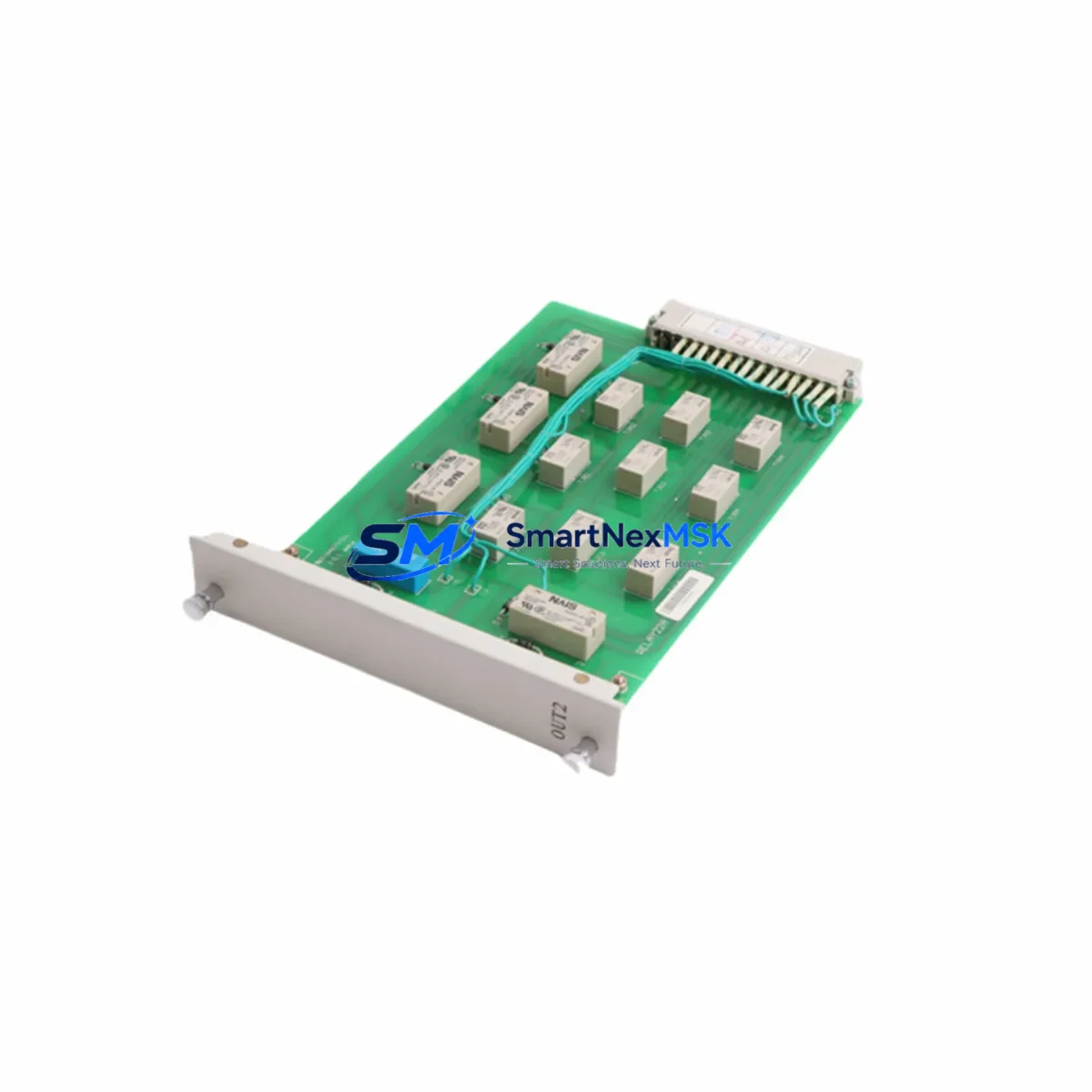

NARI-RELAYS OUT2 Safety-Enhanced Dual-Output Relay Module

NARI-RELAYS OUT2 Safety-Enhanced Dual-Output Relay Module: Reliable Control for Harsh Industrial Sites

The NARI-RELAYS OUT2 is a ruggedized dual-output relay protection IED module engineered for mission-critical industrial control environments where signal integrity, continuous uptime, and personnel safety are non-negotiable. Designed as a core output execution component within the PCS-9000 series protection and control platform, the OUT2 module delivers dependable trip and close command outputs in high-load, high-interference, and hazardous-area installations — from substation protection panels to heavy industrial control cabinets.

In continuous production facilities, petrochemical plants, power generation sites, and metallurgical operations, a single relay misoperation or output failure can cascade into unplanned shutdowns, equipment damage, or safety incidents. The OUT2 is built to eliminate these risks through robust output isolation, EMI-hardened circuitry, and stable contact performance across wide temperature and humidity ranges. Its dual-channel output architecture ensures that both trip and close commands are executed with precision, even under sustained electrical stress, surge events, or ground fault conditions common in heavy industrial switchgear environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered protection and control cabinet, the OUT2 module does not operate in isolation — it functions as the final execution layer within a coordinated safety architecture. Upstream, the NARI-RELAYS PCS-9611D line differential protection relay provides the primary fault detection logic, issuing trip commands that the OUT2 faithfully executes without delay or contact bounce. Alongside it, the NARI-RELAYS PCS-9705 bus protection IED monitors busbar integrity and triggers the OUT2’s close output to restore healthy sections after fault clearance.

Power supply stability is equally critical. The OUT2 module is typically powered through a NARI-RELAYS PSM-A DC power supply module, which provides regulated 110V or 220V DC with built-in surge suppression and battery backup switching — ensuring the relay output remains energized even during AC mains disturbances. For installations with high transient exposure, a NARI-RELAYS SPD-DC surge protection device is recommended at the DC bus feeding the IED chassis, clamping voltage spikes before they reach the OUT2’s internal circuitry.

On the signal input side, the NARI-RELAYS IN8 digital input module captures field status signals — breaker auxiliary contacts, pressure switches, and interlock feedback — and feeds them into the protection logic that ultimately drives the OUT2 output. For analog measurement, the NARI-RELAYS AI4 analog input module acquires current and voltage signals from CTs and VTs, enabling the protection relay to make accurate trip decisions under fault conditions. The NARI-RELAYS COM1 communication module handles IEC 61850 GOOSE messaging and Modbus RTU data exchange, ensuring that remote SCADA systems and engineering workstations receive real-time status updates from the OUT2’s contact state.

In critical interlock circuits — such as transformer differential protection, motor feeder protection, or emergency shutdown (ESD) loops — the OUT2 is often paired with a NARI-RELAYS CPU3 central processing module that executes the protection algorithm and coordinates output timing across multiple relay modules in the same chassis. This layered architecture ensures that no single component failure can compromise the integrity of the safety function.

Critical Industrial Safety Applications

Power Generation & Substation Protection: In thermal power plants and 110kV–500kV substations, the OUT2 module serves as the trip output interface for generator protection, transformer differential protection, and busbar protection schemes. Its high-speed contact closure — typically within 5ms of command receipt — meets the strict fault clearance time requirements of grid-connected protection systems, preventing equipment damage and grid instability.

Petrochemical & Refinery Control: In hazardous-area control rooms and safe-area marshalling cabinets serving petrochemical plants, the OUT2 provides reliable output execution for emergency shutdown (ESD) and safety instrumented system (SIS) interlock circuits. Its robust contact isolation prevents cross-circuit contamination and ensures that ESD commands are executed cleanly, even in environments with high levels of conducted interference from variable frequency drives and large motor starters.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, dust ingress, and wide temperature swings. The OUT2’s ruggedized construction and wide operating temperature range make it suitable for feeder protection panels in mine power distribution systems, where reliable trip output is essential to protect personnel from electrical hazards in confined spaces.

Water & Wastewater Treatment: In pump station motor control centers and water treatment plant distribution switchboards, the OUT2 module provides dependable output for motor protection relays and feeder circuit breaker control. Its stable contact performance under humid, corrosive atmospheric conditions ensures long service life without contact oxidation or increased contact resistance.

Metallurgy & Steel Production: Electric arc furnace (EAF) and rolling mill environments generate extreme harmonic distortion and electromagnetic interference. The OUT2’s EMI-hardened design ensures that relay output commands are not corrupted by conducted or radiated interference from high-power thyristor drives and furnace transformers, maintaining control loop integrity during continuous production cycles.

Port & Heavy Logistics: In port crane power distribution and container terminal automation systems, the OUT2 supports feeder protection and interlock control for high-cycle-rate switching applications, where contact durability and consistent operate time are critical to maintaining throughput and preventing unplanned downtime.

Safety and Quality FAQ

Q1: What warranty does the NARI-RELAYS OUT2 carry, and what does it cover?
The OUT2 module is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, contact failure, and module malfunction under normal operating conditions. Replacement or repair is provided at no charge within the warranty period, with fast turnaround to minimize site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every OUT2 module undergoes a comprehensive pre-shipment inspection that includes full functional output testing (trip and close contact operation), contact resistance measurement, insulation resistance testing at 500V DC, and visual inspection for mechanical integrity. A test report is available upon request for quality-critical procurement.

Q3: Is the OUT2 compatible with existing PCS-9000 series IED chassis and NARI-RELAYS protection platforms?
Yes. The OUT2 is designed as a plug-in module for the PCS-9000 series IED chassis and is backward-compatible with established NARI-RELAYS protection relay platforms. It supports direct replacement of existing OUT2 modules without chassis modification or firmware reconfiguration, enabling fast field replacement with minimal outage time.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the NARI-RELAYS OUT2 to support both immediate project requirements and long-term spare parts programs. Orders are typically dispatched within 1–3 business days. For large-volume or scheduled maintenance contracts, we offer reserved inventory arrangements to ensure supply continuity for critical plant assets.
